FT8 Hand Crimp Tool,M22520/1-01 Thru-hole Enlarged Version Working Diameter 6.35mm, Wire Range 12-26AWG,Can Be Used for Railway Application
SPECIFICATIONS:
- Material: Mould Steel
- AWG: 12-26AWG(0.128-3.33mm²)
- Crimper Through-hole Dia: Φ6.35mm
- Dimensions(mm): 247*59*25
- Weight(g): 550
Features:
[CRIMP STYLE]: 4 indent 8 impression
[HANDLE WAVE DESIGN]:Special wave design makes sheath more stable and not easy to fall off.

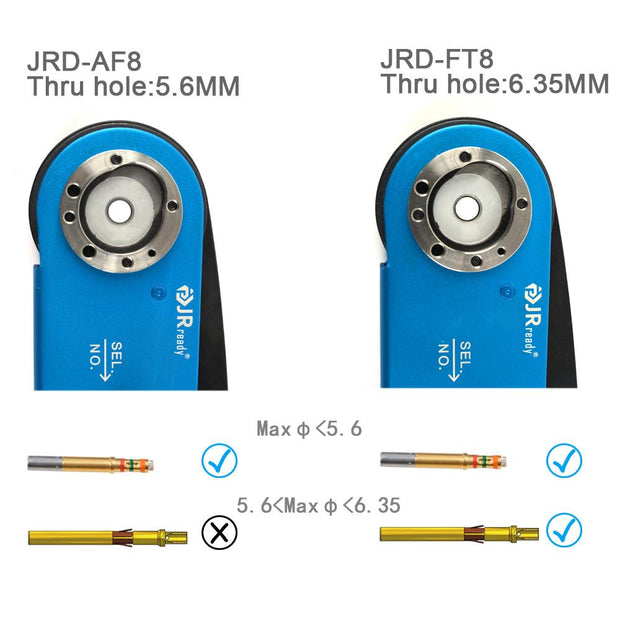

[LARGE THRU-HOLE]: 6.35mm large thru-hole diameter supports a wider range of applications.
[RATCHET MECHANISM]: The cycle controlled precision ratchet assures consistency of impression the crimping quality of wires and contacts.
[MULTIPLE GEARS]: Crimp depth can be adjusted by an 8 position selector knob conveniently located on the tool frame according to your needs.
Positioner For JRD-FT8
![]() |
![]() |
![]() |
![]() |
![]() |
|
Adapted crimping tool | JRD-FT8 | JRD-FT8 | JRD-FT8&JRD-AF8 | JRD-FT8&JRD-AF8 | JRD-FT8&JRD-AF8 |
Standard | / | / | M22520/1-02 | M22520/1-04 | M22520/1-05 |
Adaptation terminal |
ABCIRP&ABCIRH series connectors contacts |
ITT CANNON Combo D Series Connectors Contacts |
MS27655,MS27490, MS27491,MS27492,MS27493,MS27494 |
MS3162&63, MS3192&93, MS18134&36, MS24254&55, MS90453&54 | Universal in the crimp range |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Adapted crimping tool |
JRD-FT8 |
JRD-FT8&JRD-AF8 | JRD-FT8&JRD-AF8 | JRD-FT8&JRD-AF8 | JRD-FT8&JRD-AF8 |
Standard |
/ |
M22520/1-07 | M22520/1-11 | / | M22520/1-09 |
Adaptation terminal |
TE Connectivity / DEUTSCH NGC connector |
MS18232,MS18233 |
M39029/93-540, M39029/94-604, M39029/11-147, M39029/12-151 | M24308/10-1, M24308/11-1, M39029/64-369, M39029/64-657, M39029/63-368, M39029/63-656, M39029/93-598, M39029/94-602 | M39029/18-180, M39029/17-175, M39029/18-180 , M39029/16-170 |
Notice:positioner needs to be purchased separately.
