JRD-AF8 Crimping Tool M22520/1-01 Solid Contact Crimper High Precision Electrical Connectors Crimp Tool 12-26 AWG

Regular price $199.00
/

JRready JRD-AF8 M22520/1-01 Crimping Tool

  •  [Mil-Standard Crimper]: JRD-AF8 crimping tool is designed according to MIL-DTL-22520/1-01 and AS22520/1-01, has virtually limitless application within the specified wire range of 12 through 26 AWG.
  • [Racheting Control Mechanism]: JRD-AF8 crimping tool assures absolute maximum tensile strength with almost every closed barrel contact.
  • [Crimp Style]: 4-indent 8-impression
  • [Positioners Adapted]: TH series positioner, TP series positioner, UH2-5 universal adjustable positioner.
  • [8 Selector Numbers]: Crimp depth can be adjusted by an 8 position selector knob conveniently located on the tool frame according to your needs.

1.Has limitless application within the specified wire range of 12-26 AWG

2.Positioners adapt the tool frame to specific military or proprietary contact combination

3.The JRD-AF8 gives an 8 impression crimp, which assures maximum tensile strength

4.Crimp depth can be adjusted by an 8 position selector knob conveniently located on the tool frame

5.Often used in military institutions, aviation companies and electronic connector companies, for example: TE Deutsch, Harting, Wain, Amphenol, Lemo and so on

6.The precision ratchet controls cycling of the tool in both directions of handle movement which assures the same accurate crimp every time

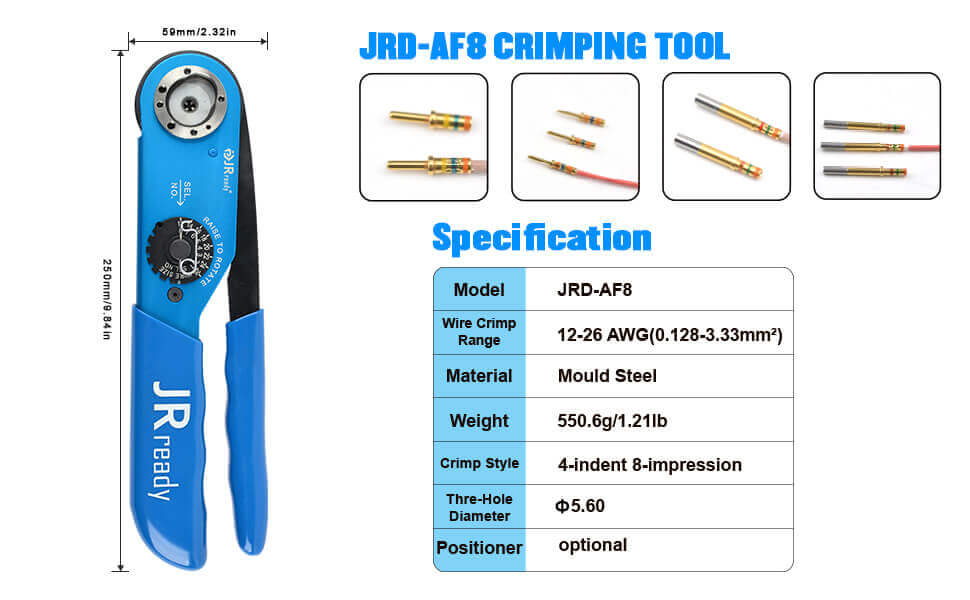

SPECIFICATIONS:

  • Material: Mould Steel
  • AWG: 12-26AWG(0.128-3.33mm²)
  • Crimper Through-hole Diameter: Φ5.6mm
  • Dimensions(mm): 250*59*25
  • Internal Number: D70
  • Weight(g): 550.6



MIL-C-26482 Series II

  • Size 20    Pin M39029/4-110, Socket M39029/5-115
  • Size 16    Pin M39029/4-111, Socket M39029/5-116
  • Size 12    Pin M39029/4-113, Socket M39029/5-118

Deutsch Industrial DTM/DT/DTP

  • DTM Size 20    Pin 0460-202-20141, Socket 0462-201-20141
  • DT    Size 16    Pin 0460-202-16141, Socket 0462-201-16141
  • DTP  Size 12   Pin 0460-204-12141, Socket 0462-203-12141

When used with the TH163, the following connectors and contacts can be terminated:

Deutsch Autosport Size 16

  • Size 16    Pin 38941-16, Socket 38943-16
