JRready ST1024 M22520/1-01 Tools AF8 Crimper/TH1A TH163 Turret Head/UH2-5 Positioner/G125 Gage

Regular price $349.00
/

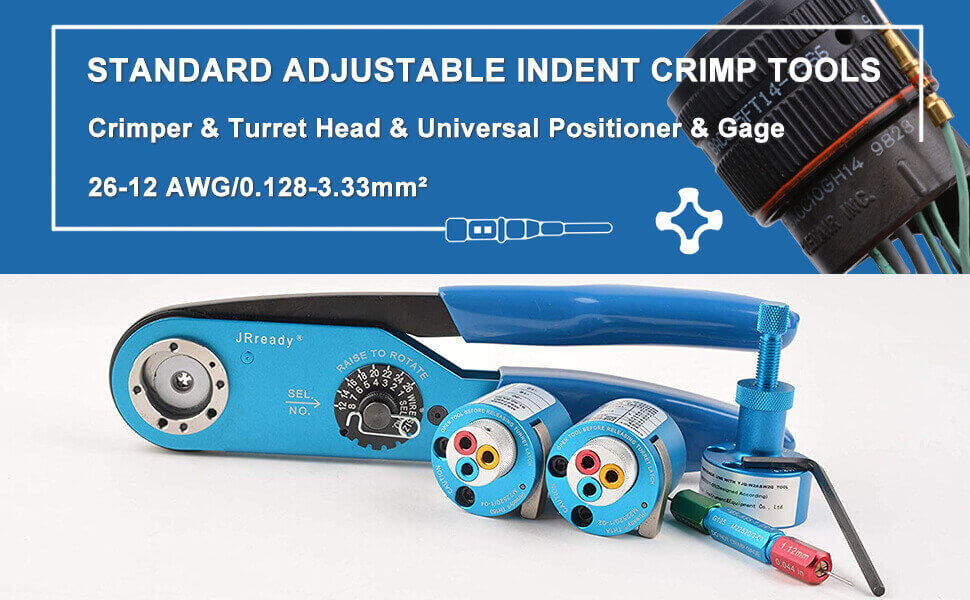

 JRready ST1024 TOOL KIT YJQ-W2A Crimper/AF8 Crimping Tool/M22520/1-01&G125 GO-NOGO Gage&TH1A/M22520/1-02 Turret Head&TH163/M22520/1-04 Turret Head&UH2-5/M22520/1-05 Adjustable Positioner


  • [CRIMPER CRIMPING RANGE]:12-26 AWG(0.128-3.33mm²)
  • [CRIMPER CRIMP STYLE]:4-indent 8-impression
  • [APPLICATION]:Suitable for crimping round contacts of MIL standard connector
  • [PACKAGE INCLUDE]:YJQ-W2A/AF8 crimp tool & TH1A turret Head & TH163 turret head & UH2-5 adjustable positioner&G125 GO-NOGO gauge
  • [PLEASE NOTE]: This tool is designed according to MIL-SPEC and manufactured by JRready. NOT IN QPL & NOT DMC TOOLS.
AF8 crimping toolsAF8 crimping tools



    Turret Head TH1A & TH163
    Weight: 0.25 lb
    Adjustable turret crimper positioner
    Gives a standardized and accurate crimp every time
    A dataplate affixed to turret head lists specific contact part numbers, the corresponding position color code, and suggested selector depth settings for the wire size being used
    Can be adjusted to match the diameter of the connectors and the wires desired

    Universal Adjustable Positioner UH2-5
    Weight: 0.15 lb
    Can be easily mated to the crimping tool frame
    Adapt the tool frame to specific military or proprietary contact combination
    The screw can be secured with the locknut provided
    The selected contact is inserted through the entry hole on the opposite side of the tool frame from the head
    The height adjusting screw is rotated until the contact is in the proper position for crimping

    Go-Nogo Gage G125
    GO: 0.039 inch
    NO-GO: 0.044 inch
    Set the tool selector knob to position4, and check indenter closure with the gage
    Periodic gaging is recommended to insure accurate calibration.







    Turret Head/Positioner Installation
    Keep the crimp tool in open position,press turret trigger latch which releases turret to indexing position
    Place selected turret head assembly onto retainer ring with socket head screws lined up with tapped holes
    After turret head is seated against retainer ring, tighten socket head screws
    Turret head & positioner installation is complete










    Selector Knob Adjustment
    The crimper has 8 selector numbers,NO.1-8 / AWG 26-12(3.33-0.128 mm²)
    Selector Knob adjustment is very easy
    Remove the spring clip first,lift selector knob to rotate the dail,chose the right selector number










    Go-Nogo Gauge Instructions
    Operate the tool to the fully closed working position. Set the crimp tool to the correct selector number
    If the “GO” gage end (Green) can pass freely, but the NO-GO end (Red) can not pass completely, it means the tool is still qualified
    If the “GO” gage end (Green) can not pass, but the NO-GO end (Red) can pass completely, it means the tool is not qualified
