JRready NEW-AS2(AFM8 M22520/2-1 615717) Crimp Tool 20-32AWG+G125 Go-nogo Gage(M22520/3-1) Go .0390 No-Go .0440 的副本

Regular price $167.00
/

JRready NEW-AS2(AFM8 M22520/2-1 615717) Crimp Tool 20-32AWG+G125 Go-nogo Gage(M22520/3-1) Go .0390 No-Go .0440

[VALUE TOOL KIT] Includes NEW-AS2 Crimp Tool (AFM8 M22520/2-01) & G125 Go-nogo Gage(M22520/3-1)

[NEW DESIGN NEW APPEARANCE] Personalized & Unique Colorful Camouflage Appearance with firm construction which makes work more interesting; Suitable for young people and DIY users

[SMALL SIZE & LIGHTWEIGHT] Small Size (6.27in * 1.93in) & Lightweight (225g / 0.5lb) for one-hand operation and easy carrying or outdoor use

[4-WAY 8-IMPRESSION CRIMPING] Gives a Mil-Standard 8 impression crimp, which assures maximum tensile strength

[CRIMP WIRE RANGE] Meets the need for a miniature tool accommodating wire sizes 20 through 32 AWG(0.52-0.032mm²)

[PROFESSIONAL CRIMPING TOOL] Designed according to MIL-C-22520/2-01;The cycle controlled precision ratchet assures consistently accurate crimps every time

[APPLICATION] Designed for most of the miniature and sub-miniature connector types that are so widely used in electronic systems

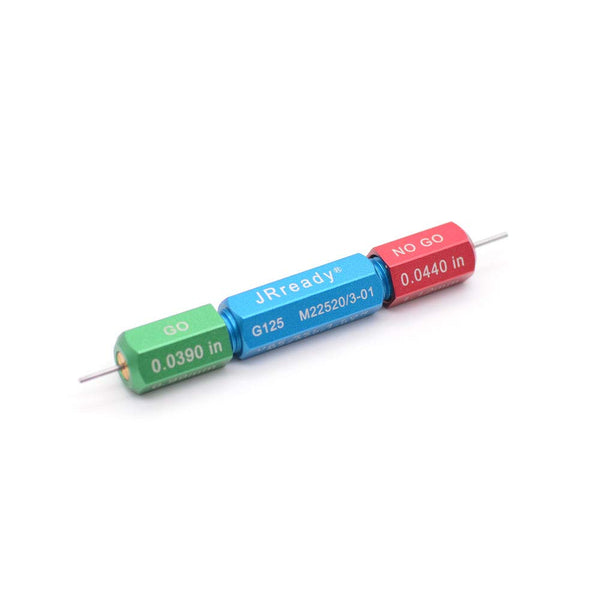

G125 Gauge
M22520/3-1
GO: 0.039 inch, NO-GO: 0.044 inch
Set the tool selector knob to position 4, and check indenter closure with the gage
Periodic gaging is recommended to insure accurate calibration.

Gaging Instructions

1.Operate the tool to the fully closed working position. Set the crimp tool to the correct selector number

2.If the “GO” gage end (Green) can pass freely, but the NO-GO end (Red) can not pass completely, it means the tool is still qualified

3.If the “GO” gage end (Green) can not pass, but the NO-GO end (Red) can pass completely, it means the tool is not qualified
