JRready Tool Kit ST1060-AS2: NEW-AS2 Crimper M22520/2-01 AFM8 615717 & Ideal 45-416 Wrie Stripper & 11 AFM8 Positioners & G125 Gage & DAK20 Installing Tool & DRK20B Removal Tool 20-32 AWG
NEW-AS2 Aviation Hand Wire Contacts Crimper Miniature Adjustable Crimp Tool for Cable Assembly 20-32AWG
- New Design: Small size colorful appearance crimp tool with firm construction
- Weight: 225g / 0.5lb, lightweight for easy carry
- Crimp Style: 4-way 8-impression crimping
- Wire range: 20-32AWG (0.52mm²-0.032mm²)
- Applications: Suitable for crimping round contacts of MIL standard, Harting, Hardin, Wain, TE connectors
- Positioner: Adapts K,KA,SK2/2,HD series positioners
- NEW-AS2 is compatible with the M22520/2-01 which is widely used for the crimping of wires and contacts in electronic connectors

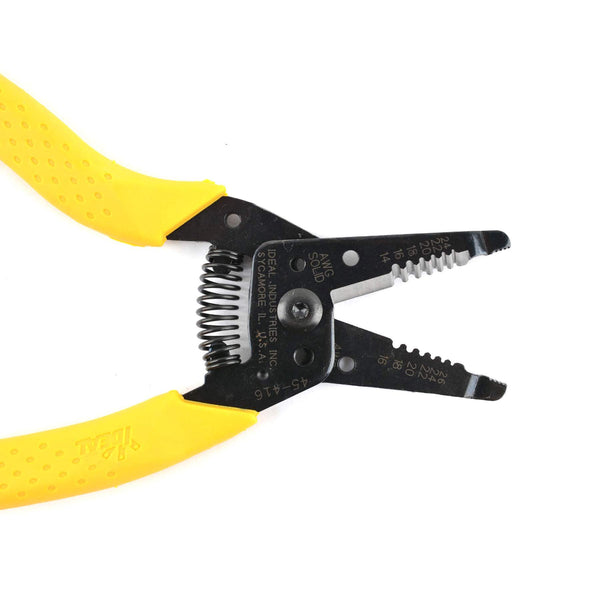

Ideal 45-416 Reflex Premium T-Stripper
Ergonomic design for maximum comfort
Curved handles help reduce wrist fatigue
Ergonomic design for maximum comfort
Curved handles help reduce wrist fatigue
Wire Stripper Wire Size 16-26 AWG
AFM8 Positioners
K1S M22520/2-02
K40 M22520/2-07
K41 M22520/2-06
K42 M22520/2-09
K43 M22520/2-10
K338 M22520/2-13
K339 M22520/2-16
K267
K13-1 M22520/2-08
K709 M22520/2-37
SK2/2 Adjustable Positioner

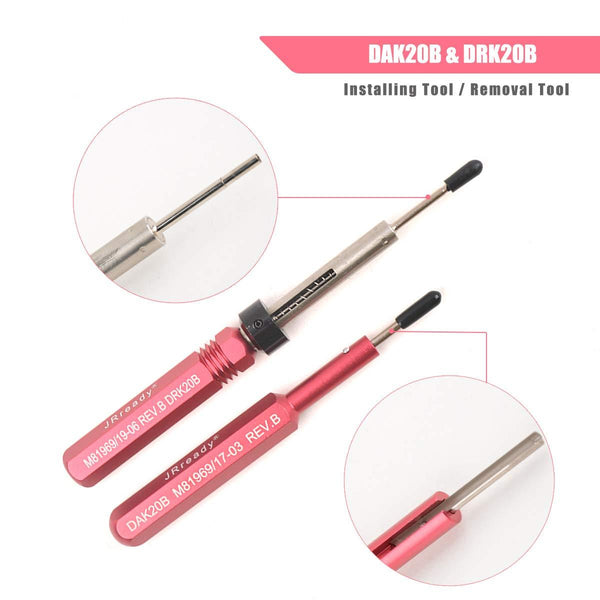

DAK20B DRK20B Installing Removal Tool
AFM8 Positioners
K1S M22520/2-02
K40 M22520/2-07
K41 M22520/2-06
K42 M22520/2-09
K43 M22520/2-10
K338 M22520/2-13
K339 M22520/2-16
K267
K13-1 M22520/2-08
K709 M22520/2-37
SK2/2 Adjustable Positioner
DAK20B DRK20B Installing Removal Tool
DAK20B: A small slot on installing rod ensures enough tensile force to install contact into electronic connectors easily
DRK20B: The brace pipe has an ejector pin to facilitate the removal of contacts
G125 Gauge
M22520/3-1
GO: 0.039 inch, NO-GO: 0.044 inch
Set the tool selector knob to position 4, and check indenter closure with the gage
Periodic gaging is recommended to insure accurate calibration.
GO: 0.039 inch, NO-GO: 0.044 inch
Set the tool selector knob to position 4, and check indenter closure with the gage
Periodic gaging is recommended to insure accurate calibration.
