JRready ST2147 Crimp Tool Kit: NEW-ASF1 (M22520/1-01) Crimp Tool 12-26 AWG & M22520/1-02 M22520/1-03 M22520/1-04 Turret Head & UF6-UF2-5 M22520/1-05 Positioner & G125 M22520/3-1 Gage
Feature:
-

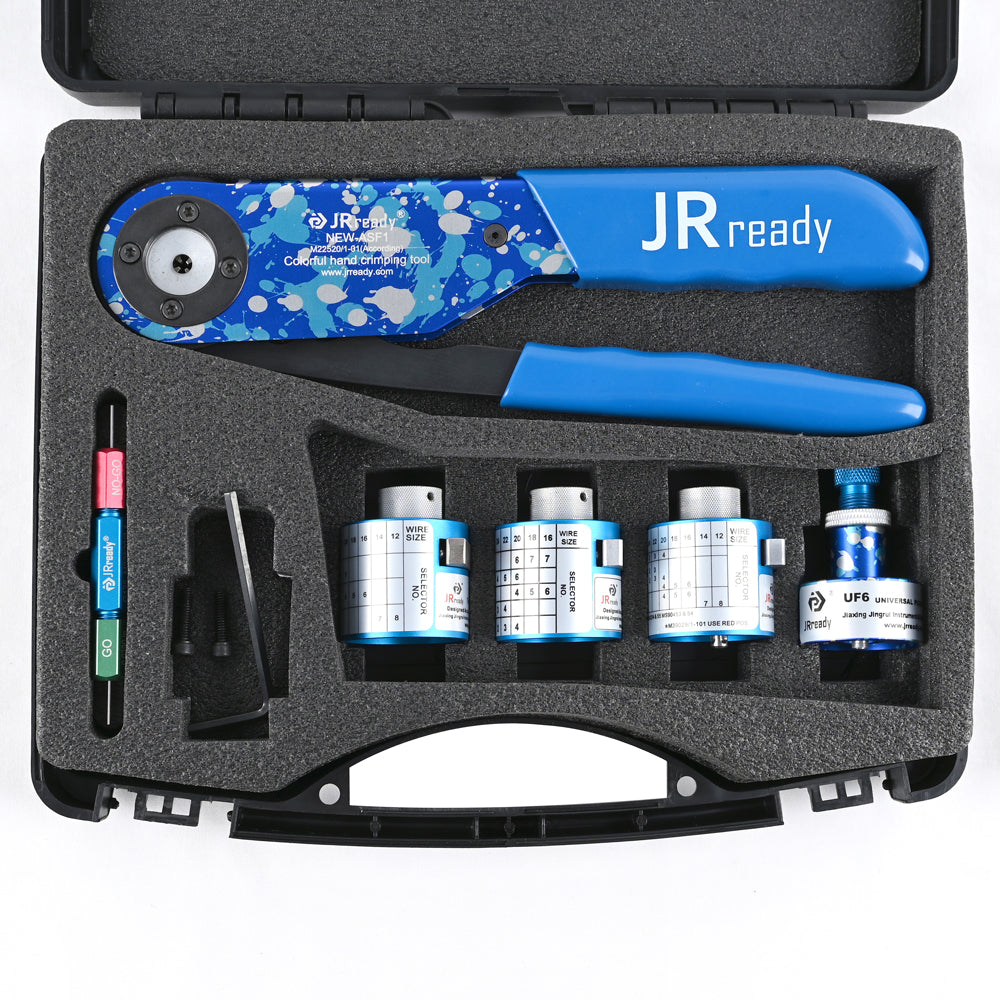

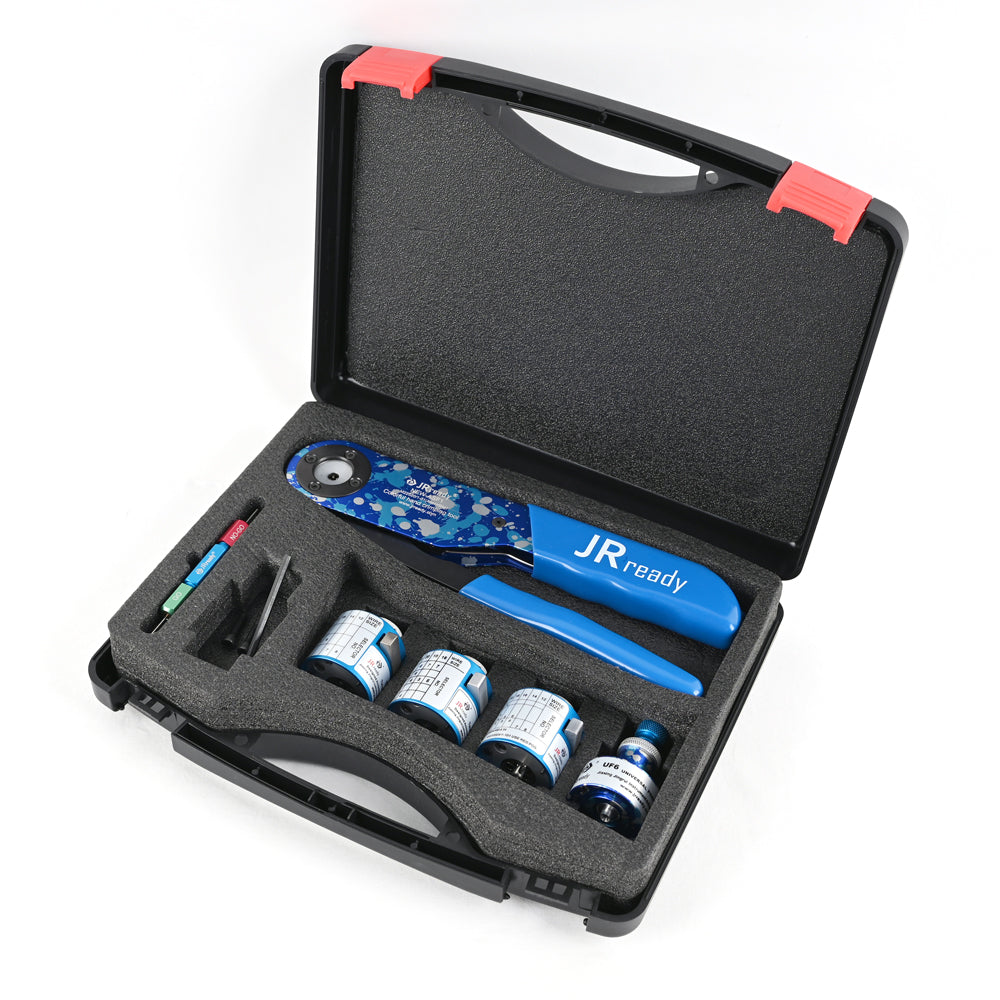

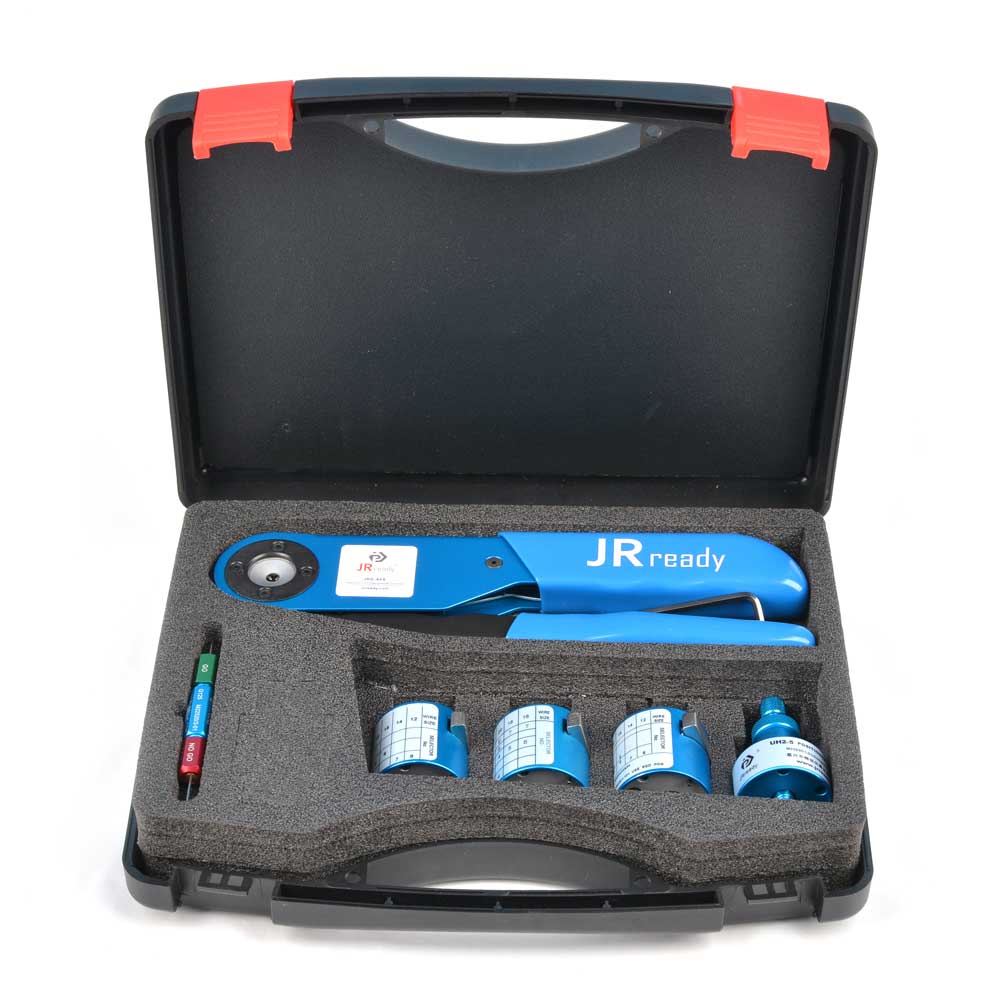

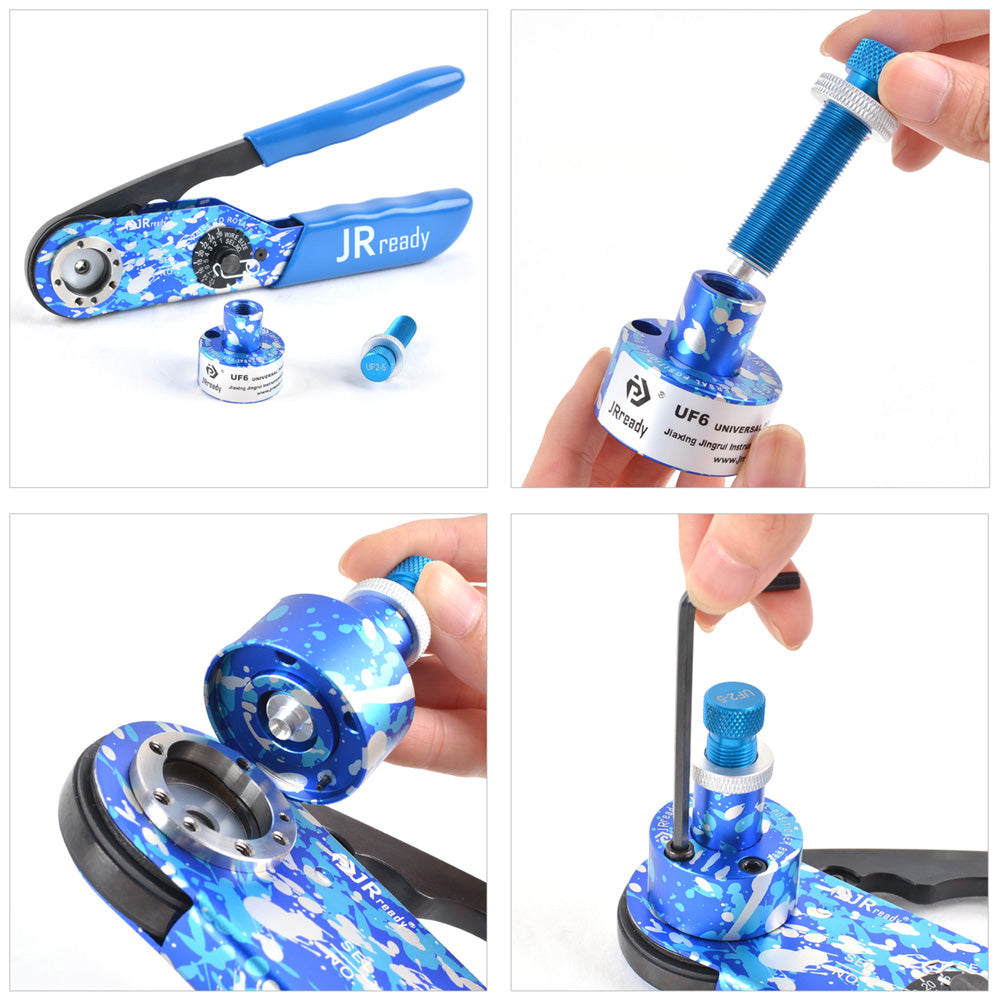

The kit included: NEW-ASF1 (M22520/1-01) Crimp Tool & M22520/1-02 M22520/1-03 M22520/1-04 Turret Head & UF6-UF2-5 M22520/1-05 Positioner & G125 M22520/3-1 Gage
-

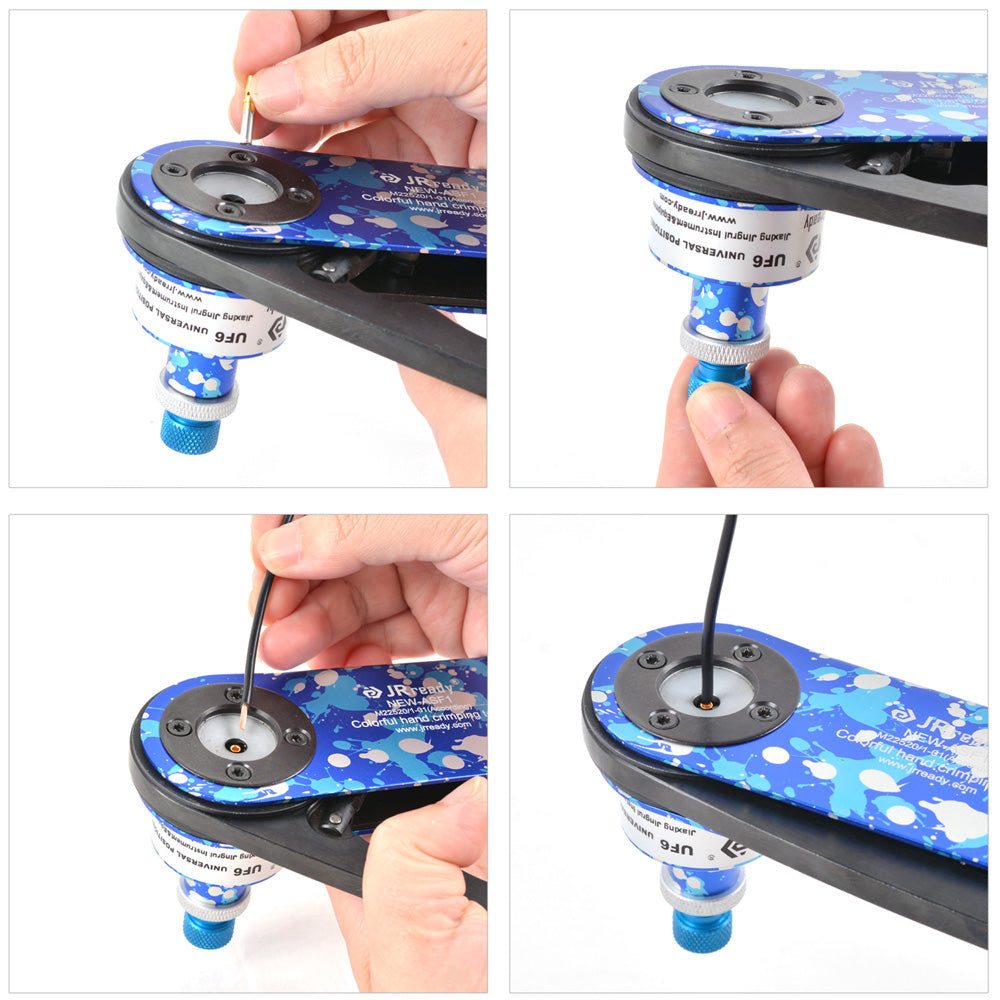

NEW-ASF1 is compatible with the M22520/1-01 which is widely used for the crimping of wires and contacts in electronic connectors.

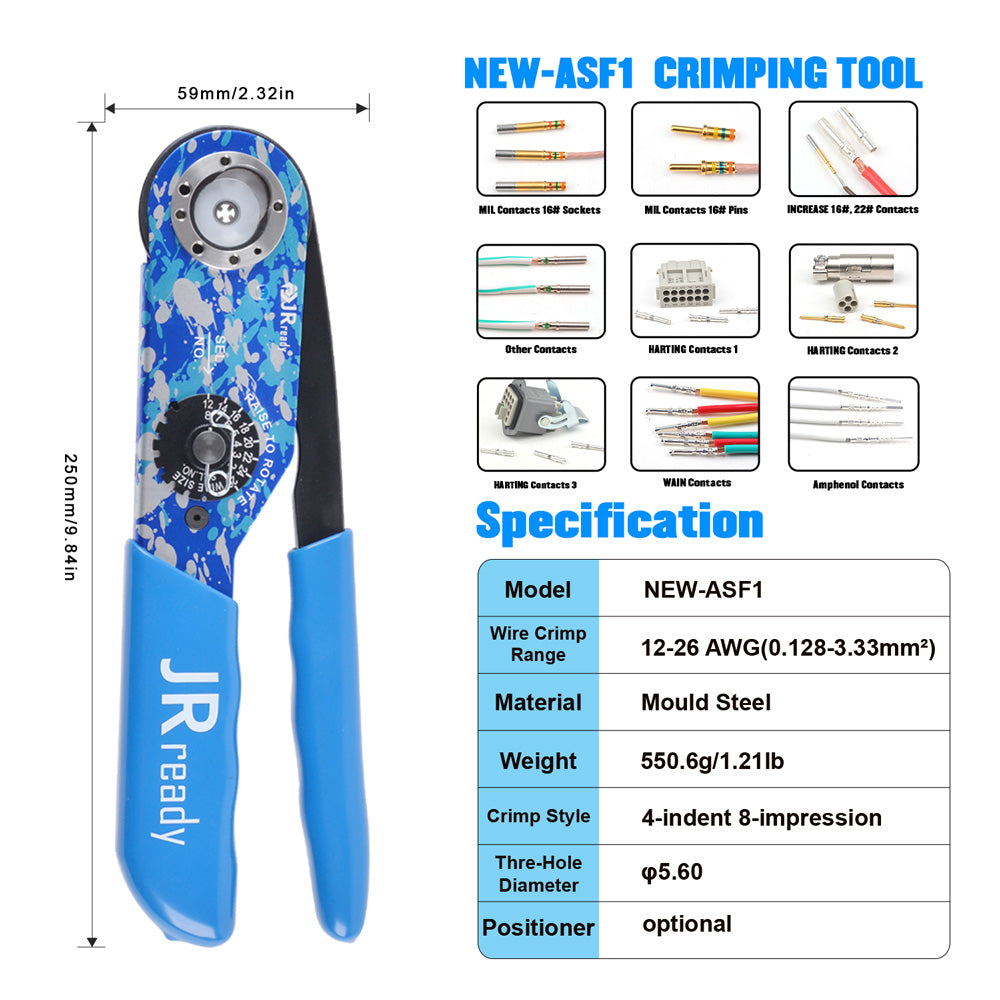

JRready NEW-ASF1 Standard Adjustable Indent Crimp Tools Mil Spec Crimper tools 12-26AWG MIL-C-22520/1-01
[4-WAY 8-IMPRESSION CRIMPING]

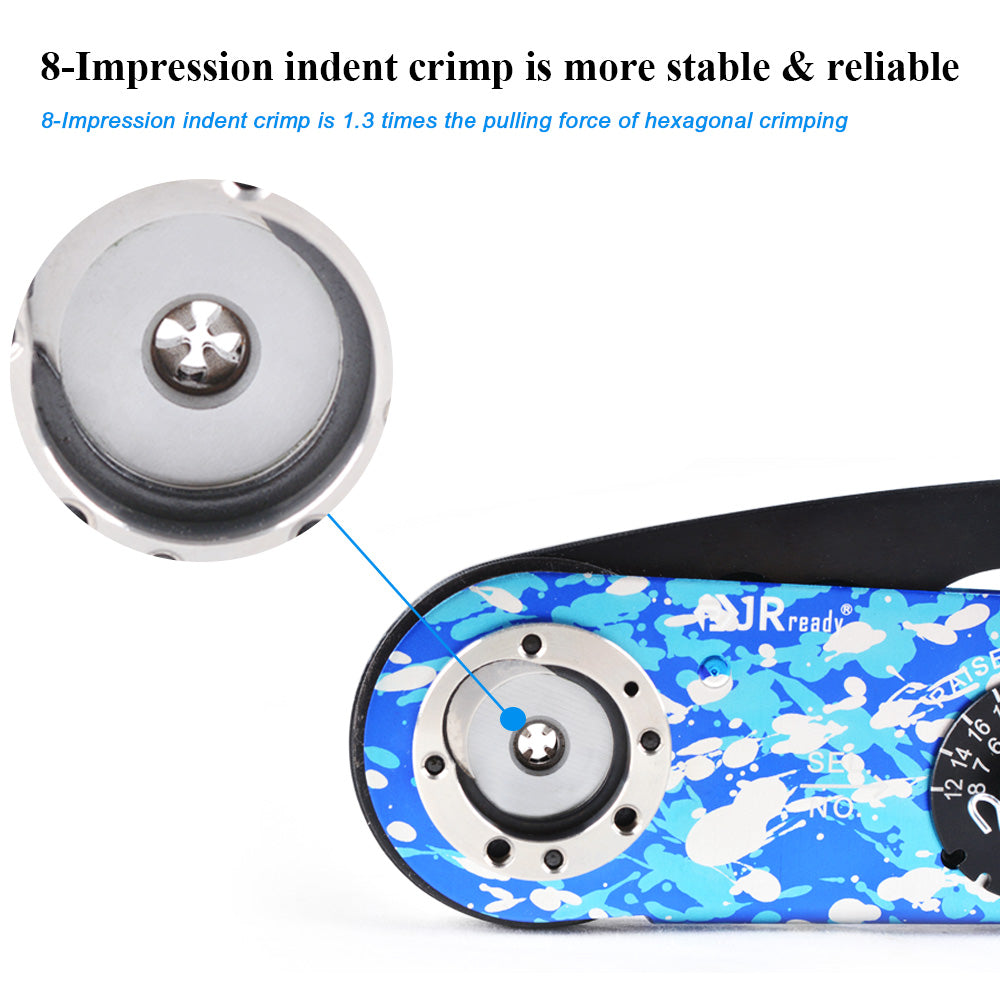

Gives a Mil-Standard 8 impression crimp, which assures maximum tensile strength with almost every closed barrel contact.
[CRIMP WIRE RANGE]
12-26 AWG (0.128-3.33mm²)
Has virtually limitless application within the specified wire range of 12 through 26 AWG.

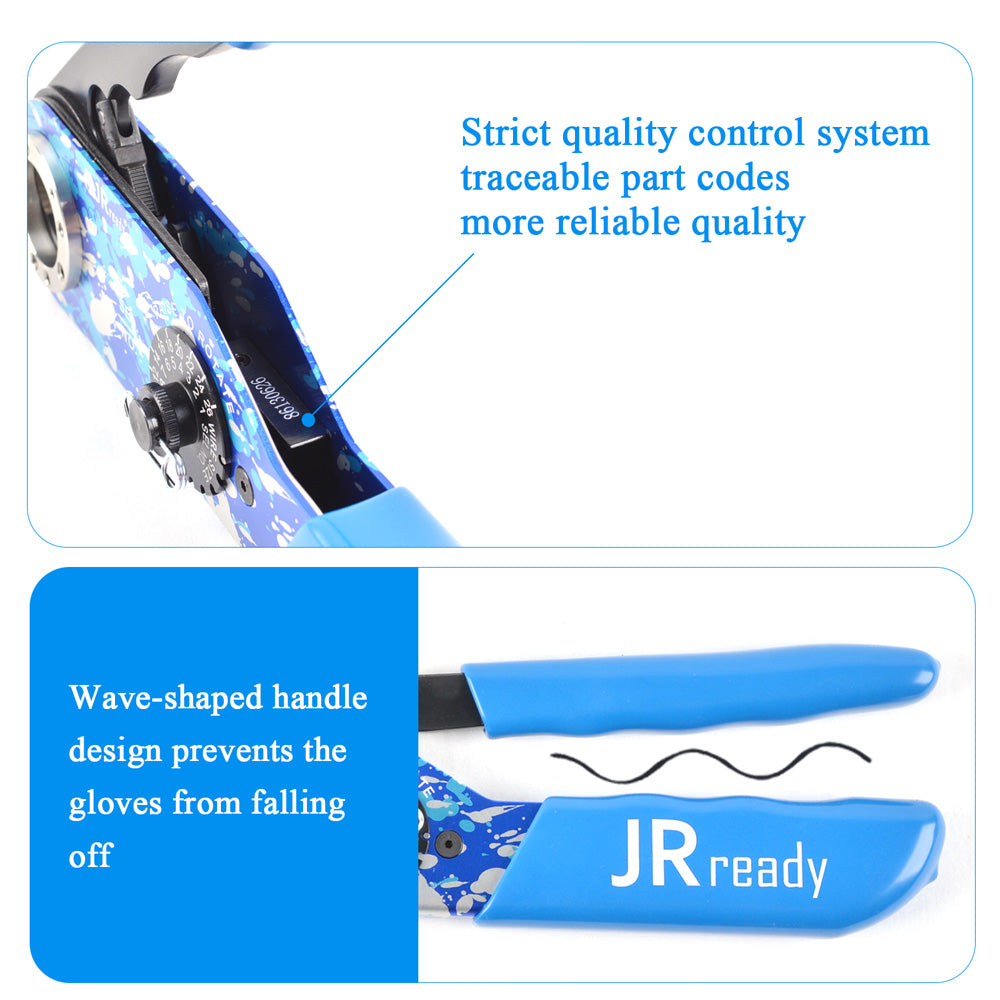

[PROFESSIONAL CRIMPING TOOL]
Designed according to MIL-C-22520/1-01;
The cycle controlled precision ratchet assures consistently accurate crimps every time
Positive crimp depth is controlled by an 8 position selector knob conveniently located on the tool frame
[APPLICATION]
Suitable for crimping round contacts of MIL standard, Harting, Wain, TE connectors
Crimp Range
CONTACTS：12-20 #
|
Selector
NO.
|
Intender Working Diameter mm/INCH
|
|
A（GO）
|
B（NO GO）
|
|
1
|
0.71/0.028
|
0.84/0.033
|
|
2
|
0.81/0.032
|
0.94/0.037
|
|
3
|
0.91/0.036
|
1.04/0.041
|
|
4
|
0.99/0.039
|
1.12/0.044
|
|
5
|
1.14/0.045
|
1.27/0.050
|
|
6
|
1.32/0.052
|
1.45/0.057
|
|
7
|
1.50/0.059
|
1.63/0.064
|
|
8
|
1.73/0.068
|
1.86/0.073
|
