PROMOTION: JRready NEW-ASF1 (AF8 M22520/1-01) Crimper 12-26 AWG & TH1A TH163 TH4 Turret Head & UF6-UF2-5 M22520/1-05 Positioner & G125 M22520/3-1 Gage--ST2147 (JST1515) Kit

Regular price $490.00 Sale price $319.00
/

JRready ST2147 (JST1515 Equivalent) Crimp Tool Kit: NEW-ASF1 (AF8 M22520/1-01) Crimp Tool 12-26 AWG & TH1A TH163 TH4 Turret Head & UF6-UF2-5 M22520/1-05 Positioner & G125 M22520/3-1 Gage

Feature:

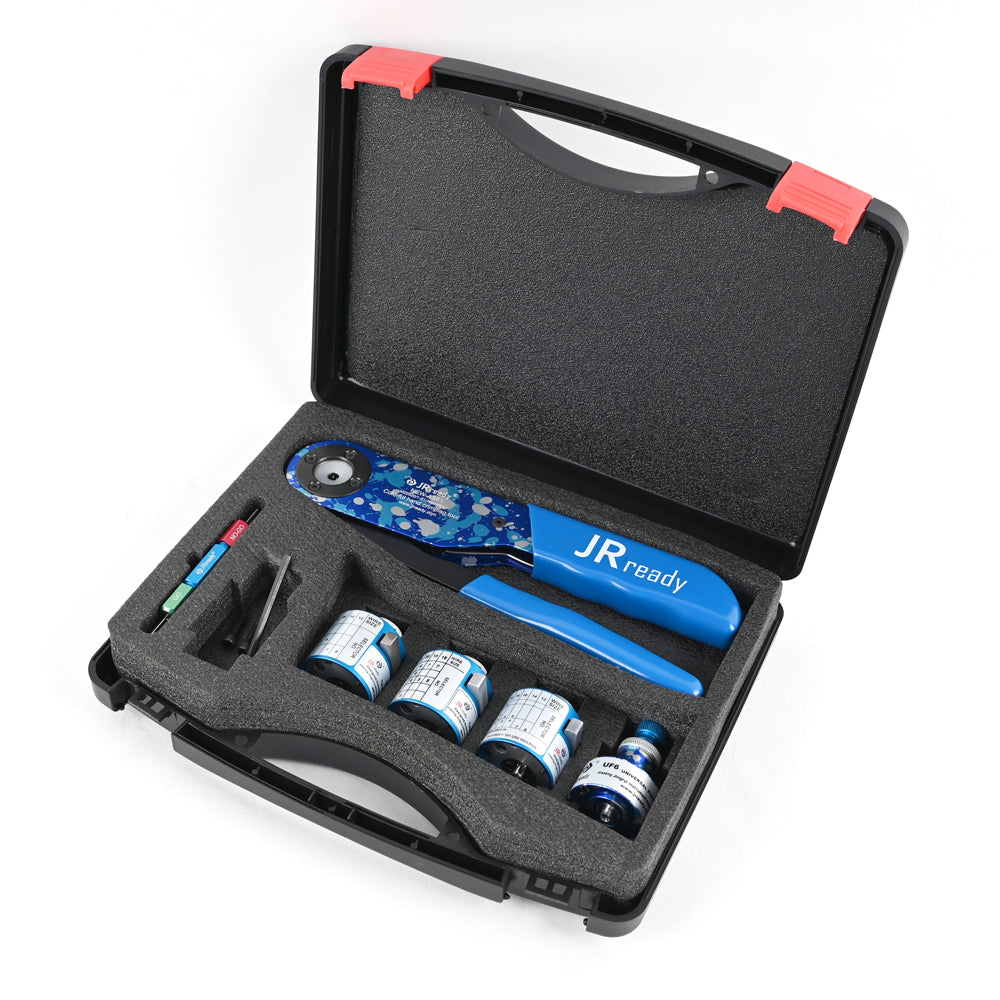

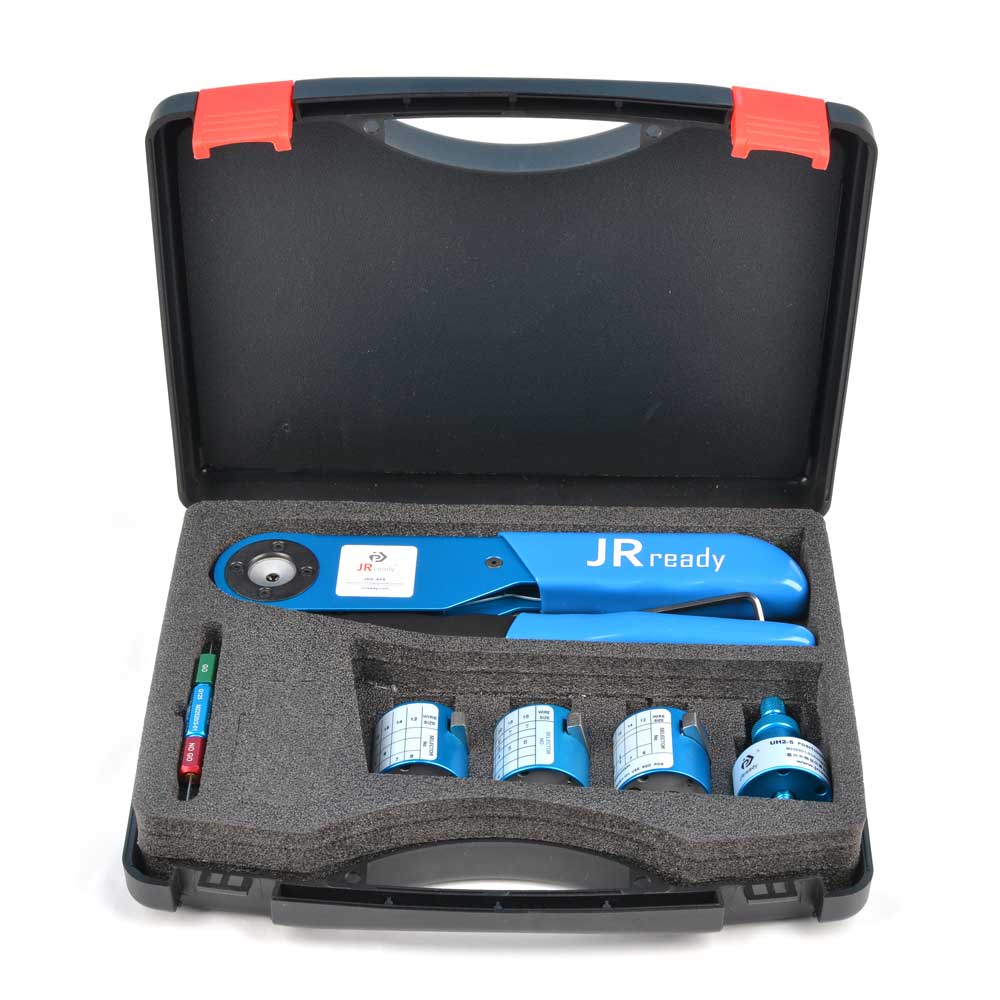

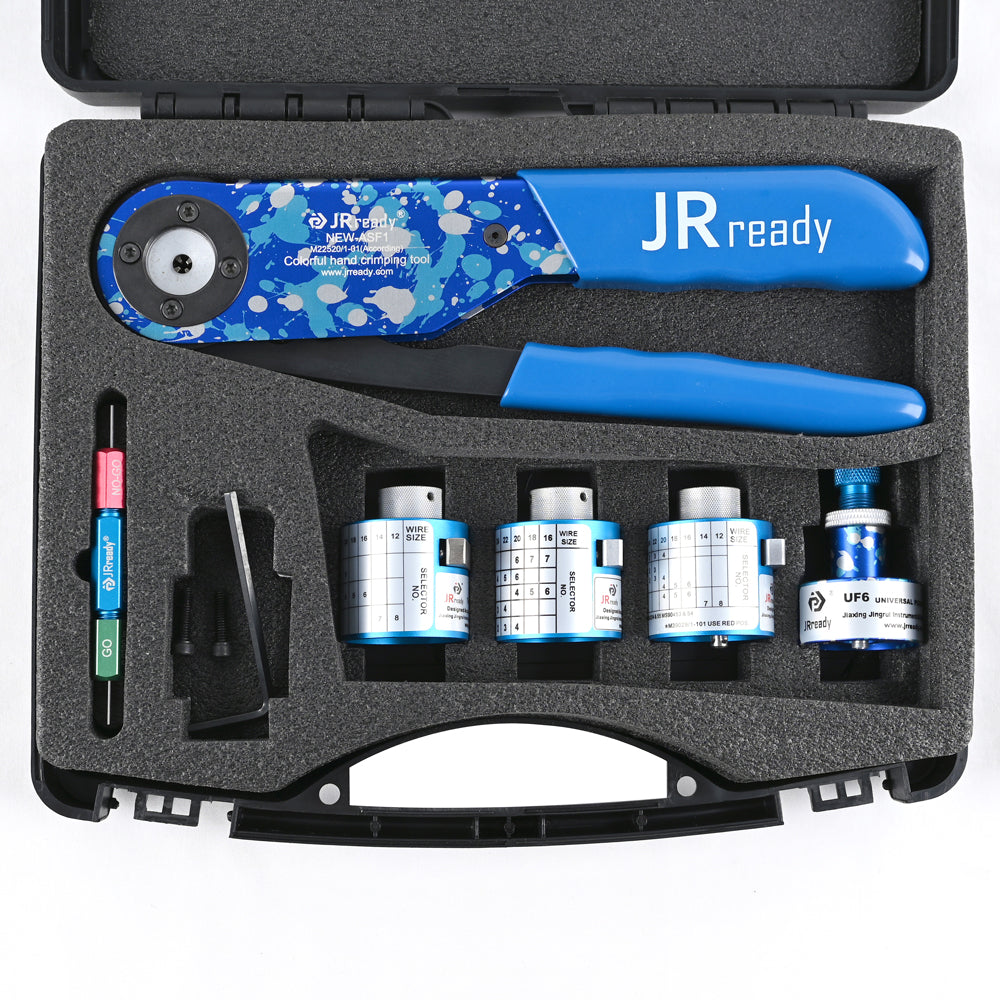

  • The kit included: NEW-ASF1(Hand Crimp Tool) & TH163, TH4, TH1A (Turret Head) & UF6-UF2-5 (Positioner) & G125 (Go-nogo Gage).

  • NEW-ASF1 is compatible with the M22520/1-01 which is widely used for the crimping of wires and contacts in electronic connectors.

  • TH1A is designed referred to MIL-C-22520/1-02.There is no need to change the positioning device for crimping different MIL standard contacts, just rotate the positioning core.

  • TH163 is designed referred to M22520/1-04 and suitable for M38999 Series1,2,3 connectors.

  • TH4 is qualified to MIL-DTL-22520/1-03 and can be adjusted to match the diameter of the connectors and the wires desired. TH4 M22520/1-03 for 12, 16, 20 size contacts of MIL Standard connectors MIL-DTL-28748

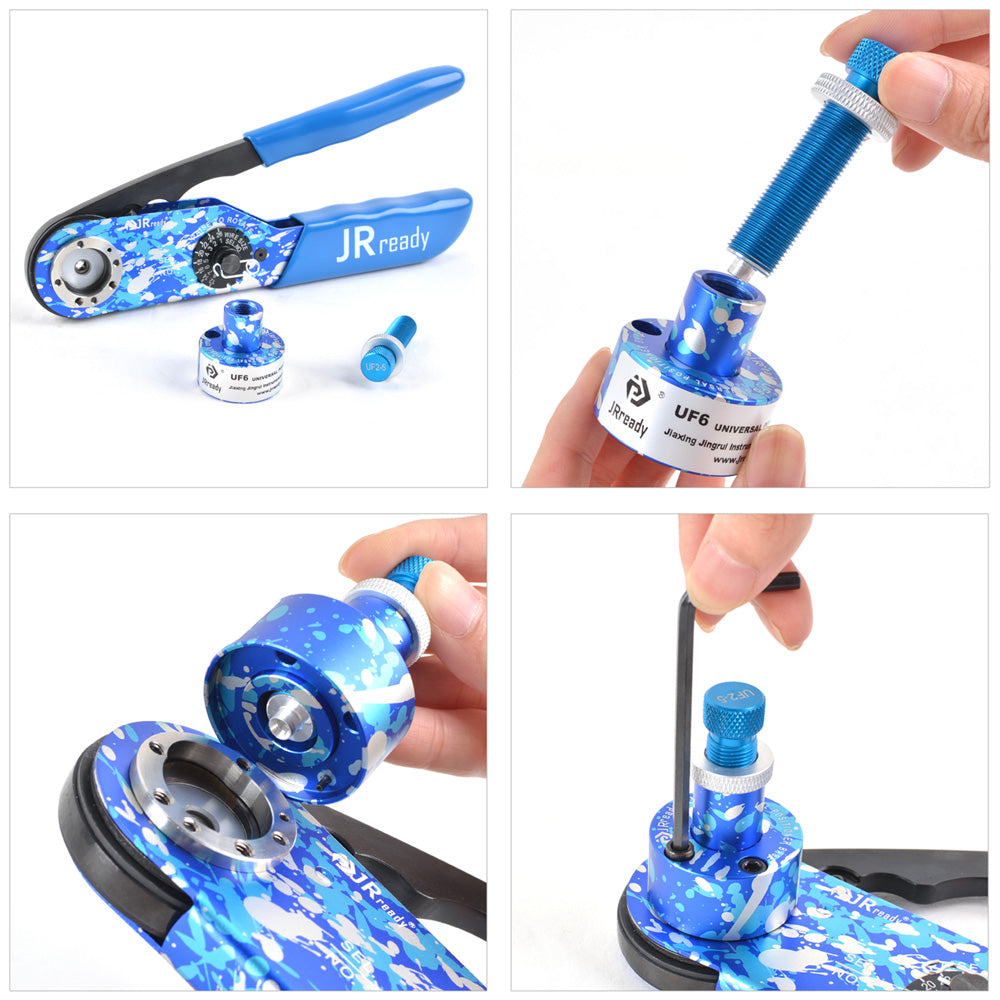

  • UH6-UF2-5 is designed according to MIL-SPEC M22520/1-05 and suitable for the positioning of a small part of round contacts of MIL standard.

  • G125 is designed according to M22520/3-1,GO: 0.039 inch; NO-GO: 0.044 inch.

JRready NEW-ASF1 Standard Adjustable Indent Crimp Tools Mil Spec Crimper tools AF8 12-26AWG MIL-C-22520/1-01

[NEW DESIGN NEW APPEARANCE]

Personalized & Unique Colorful Camouflage Appearance with firm construction which makes work more interesting; Suitable for young people and DIY users

[4-WAY 8-IMPRESSION CRIMPING]

Gives a Mil-Standard 8 impression crimp, which assures maximum tensile strength with almost every closed barrel contact.

[CRIMP WIRE RANGE]

NEW-ASF1 : 12-26 AWG (0.128-3.33mm²)

Has virtually limitless application within the specified wire range of 12 through 26 AWG.

[PROFESSIONAL CRIMPING TOOL]

Designed according to MIL-C-22520/1-01;

The cycle controlled precision ratchet assures consistently accurate crimps every time

Positive crimp depth is controlled by an 8 position selector knob conveniently located on the tool frame

[APPLICATION]

NEW-ASF1: Suitable for crimping round contacts of MIL standard, Harting, Wain, TE connectors

Crimp Range

CONTACTS:12-20 #



Selector

NO.

Intender Working Diameter mm/INCH

A(GO)

B(NO GO)

1

0.71/0.028

0.84/0.033

2

0.81/0.032

0.94/0.037

3

0.91/0.036

1.04/0.041

4

0.99/0.039

1.12/0.044

5

1.14/0.045

1.27/0.050

6

1.32/0.052

1.45/0.057

7

1.50/0.059

1.63/0.064

8

1.73/0.068

1.86/0.073
