JRready 4-Pin Deutsch DTP Connector Kit with #12 Stamped Contacts, 12-14 AWG (25A) - Waterproof Marine, Truck, Agricultural & Alternative Energy

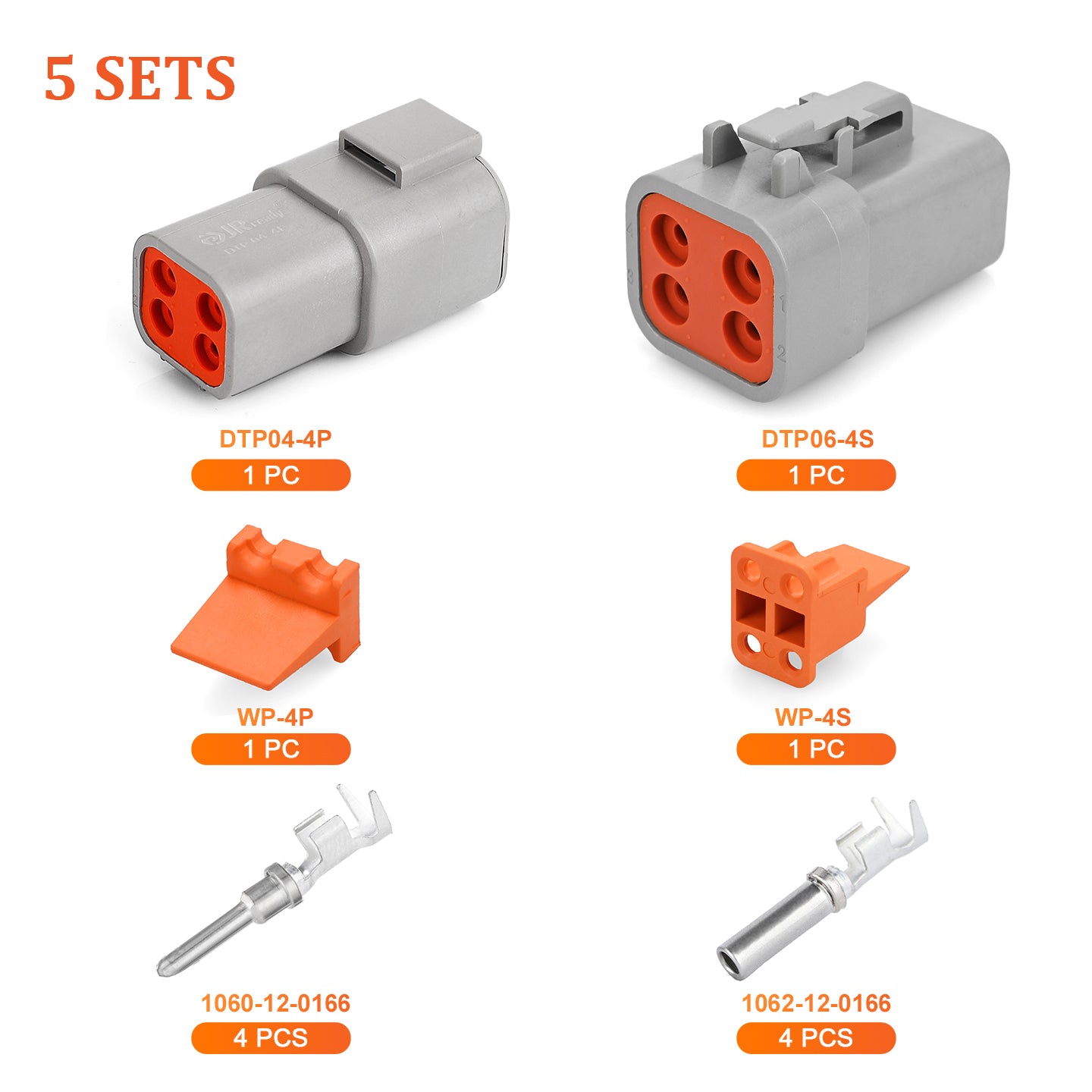

PACKAGE LIST:

JRready DTP Series 4-Pin connector housings (1 male + 1 female) with stamped contacts, 5 Sets.
(WP-4P+WP-4S+DTP04-4P+DTP06-4S+1062-12-0166*4+1060-12-0166*4)*5

[FOUR HIGH-CURRENT CIRCUITS IN ONE]

Four independent circuits each rated at 25A / 250V AC/DC through a single weatherproof connector pair — the practical solution for consolidating high-draw wiring like multi-channel lighting, dual winch controls, or power distribution to auxiliary equipment. Handles 12-14AWG (4.0–2.0mm²) across all four positions without derating.

[SEALED TIGHT, TESTED HARD]

IP67-rated PA66 housings with UL94V-0 flame retardancy hold their seal across all four wire entries in sustained moisture exposure, dust, and chemical environments. Operating range of -40°C to +125°C with withstand voltage tested at 1500V for 1 minute and insulation resistance exceeding 1000MΩ — consistent protection whether the connector is buried under a hood or mounted on deck.

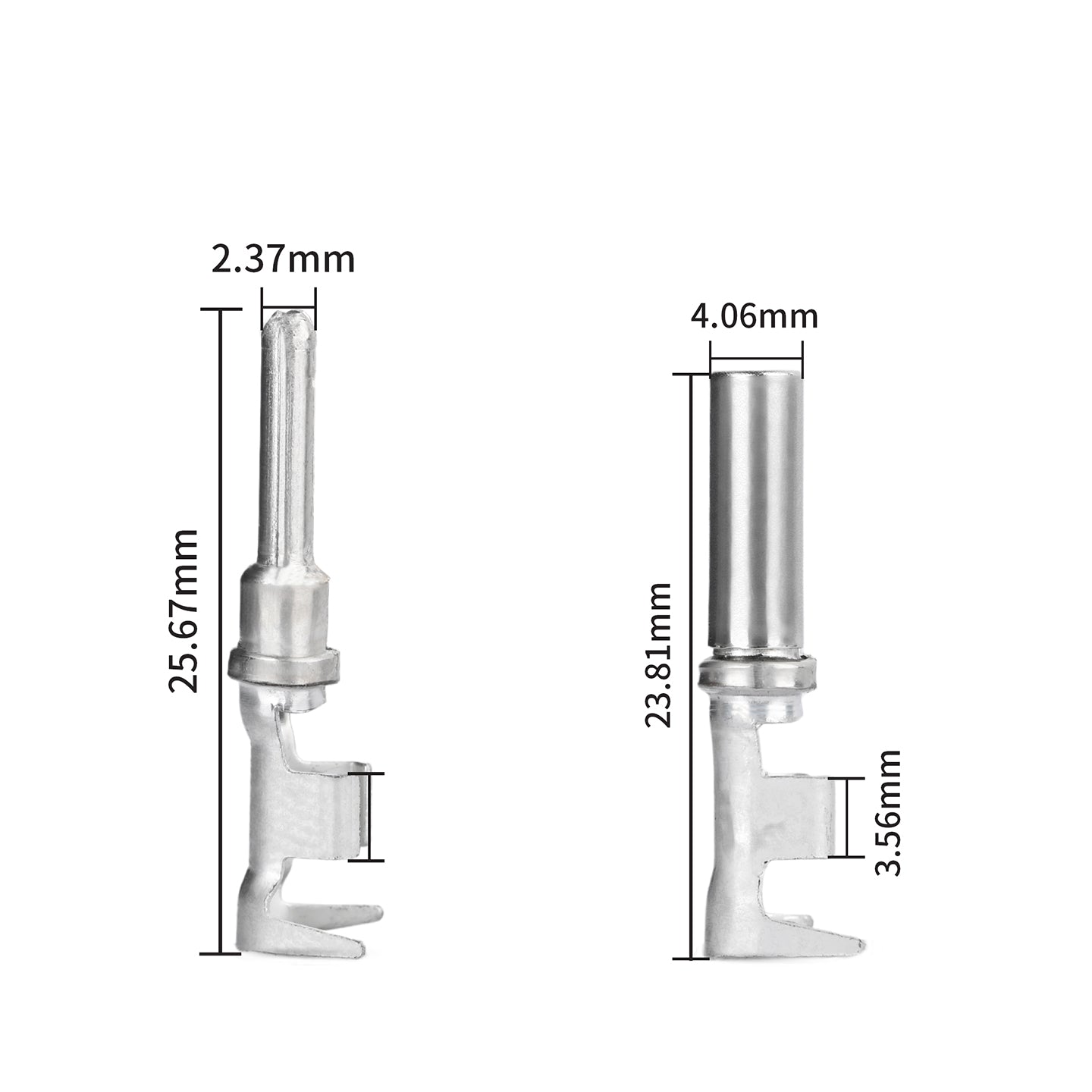

[PHOSPHOR BRONZE CONTACTS, BUILT FOR HIGH-LOAD CRIMPS]

Stamped from phosphor bronze with full-surface nickel plating and a tin-plated crimp tail, these 12# contacts are engineered to handle the higher mechanical stress that comes with larger wire gauges. Terminal retention force exceeds 130N per position — holding each of the four circuits firmly in place through vibration, cable tension, and thermal cycling in demanding installations.

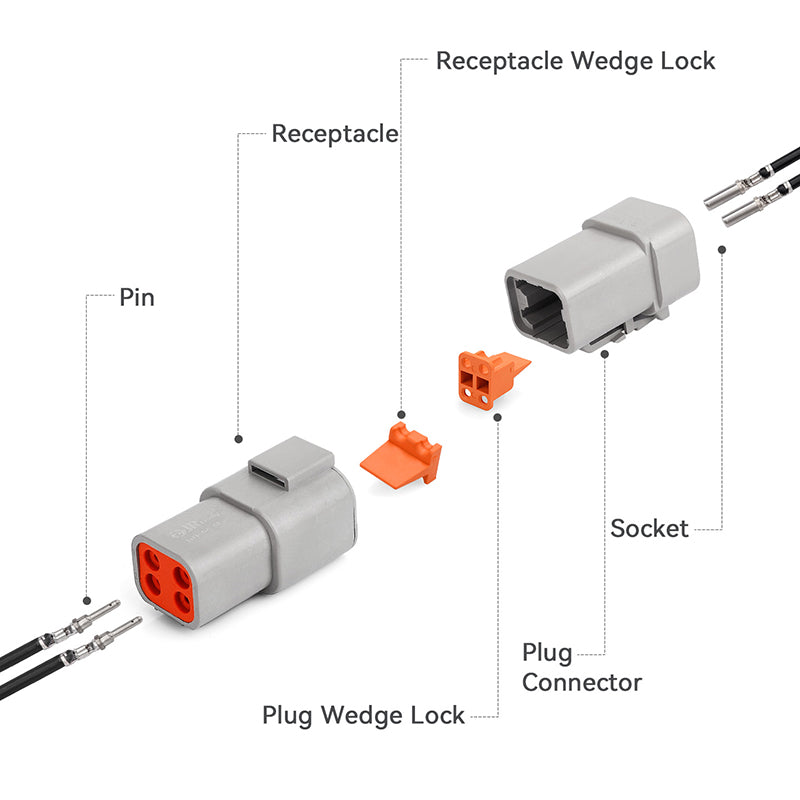

[FOUR-POSITION WEDGE LOCK — NO TERMINAL MOVES]

The plug and receptacle wedge locks slide in behind all four terminal positions simultaneously, adding a mechanical secondary retention layer on top of each terminal's primary locking tab. Even under the sustained vibration and load shifts that high-current wiring encounters in trucks, marine vessels, and agricultural equipment, every terminal stays exactly where it was installed.

[DTP SERIES COMPATIBLE, FITS ACROSS MULTIPLE FAMILIES]

Built to DTP series mating specifications and fully compatible with same-specification connectors on the market. The stamped contacts extend compatibility to HDP20, HD30, DTHD, HD10, DRC, and Jiffy Splice series — giving this 4-pin kit flexibility across the connector families most commonly used in heavy-duty automotive, marine, and alternative energy wiring requiring reliable high-current connectivity.
