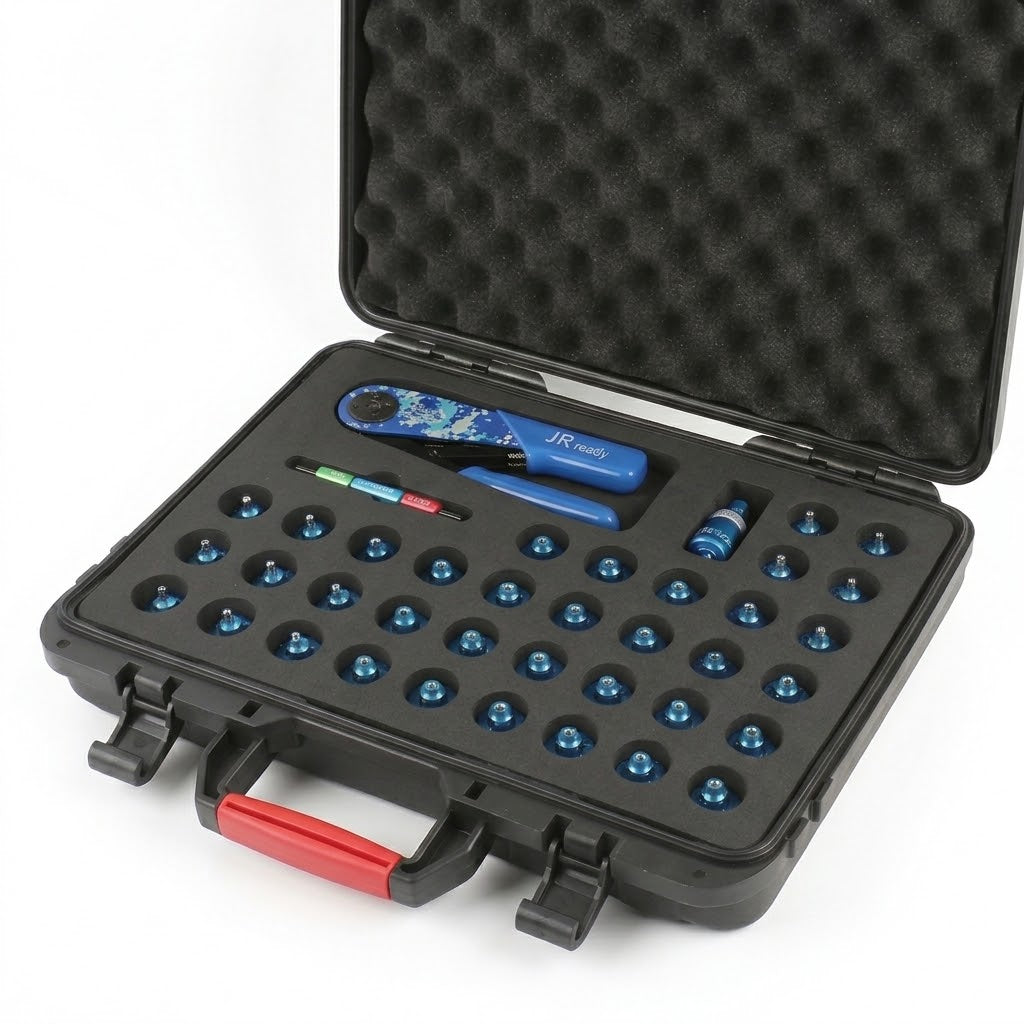

JRready Crimp Kit ST2119-AS2-1 : NEW-AS2 (615717 M22520/2-01) Indent Crimper & 36 K series Positioners & P-W1 Universal Positioner+G125 Go-nogo Gage for 20-32 AWG

JRready Crimp Kit ST2119-AS2-1 : NEW-AS2 (615717 M22520/2-01) Indent Crimper & 36 K series Positioners & P-W1 Universal Positioner+G125 Go-nogo Gage for 20-32 AWG

Regular price $999.00 USD
Regular price Sale price $999.00 USD
Sale Sold out
Shipping calculated at checkout.
Size
JRready Crimp Kit ST2119-AS2-1: NEW-AS2 ( 615717 M22520/2-01) Indent Crimper & 36 K series Positioners & P-W1 Universal Positioner+G125 Go-nogo Gage for 20-32 AWG

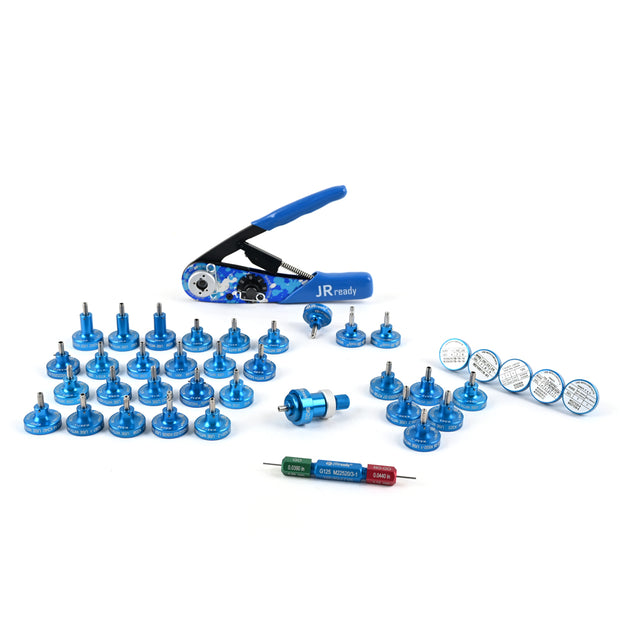

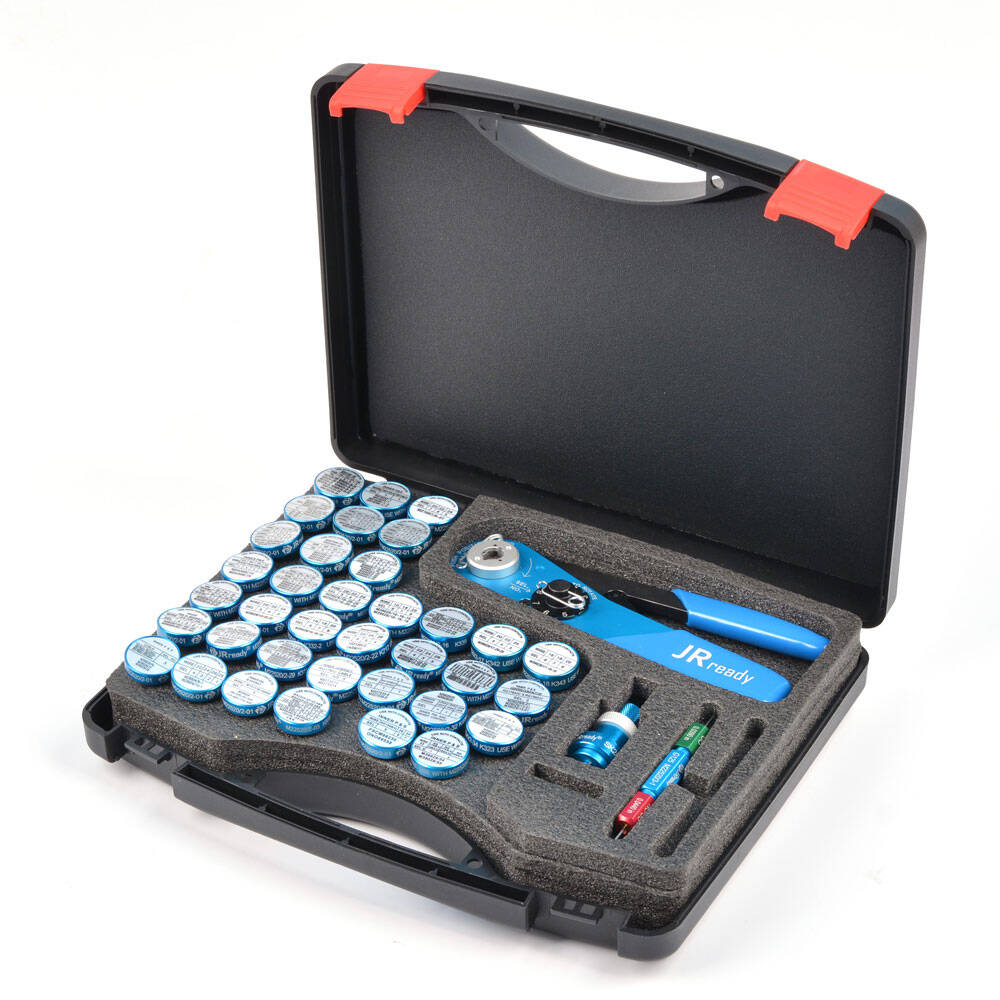

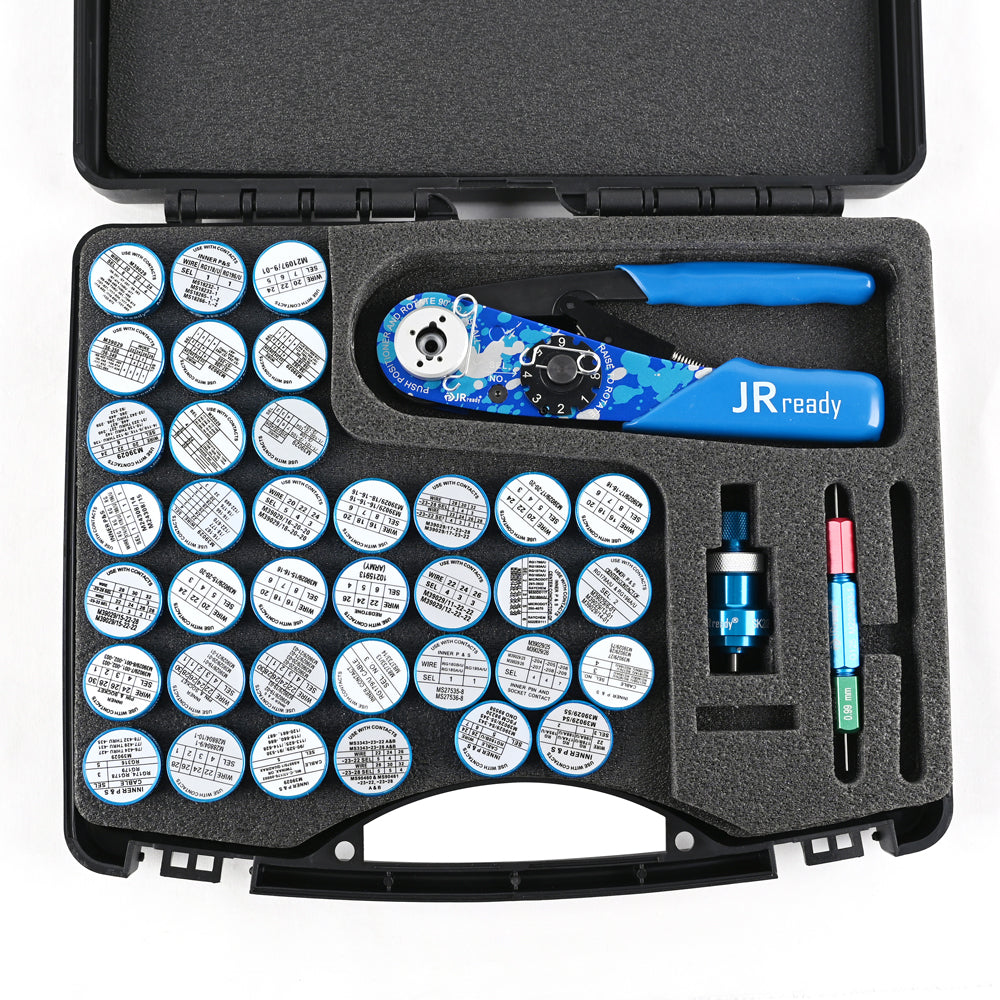

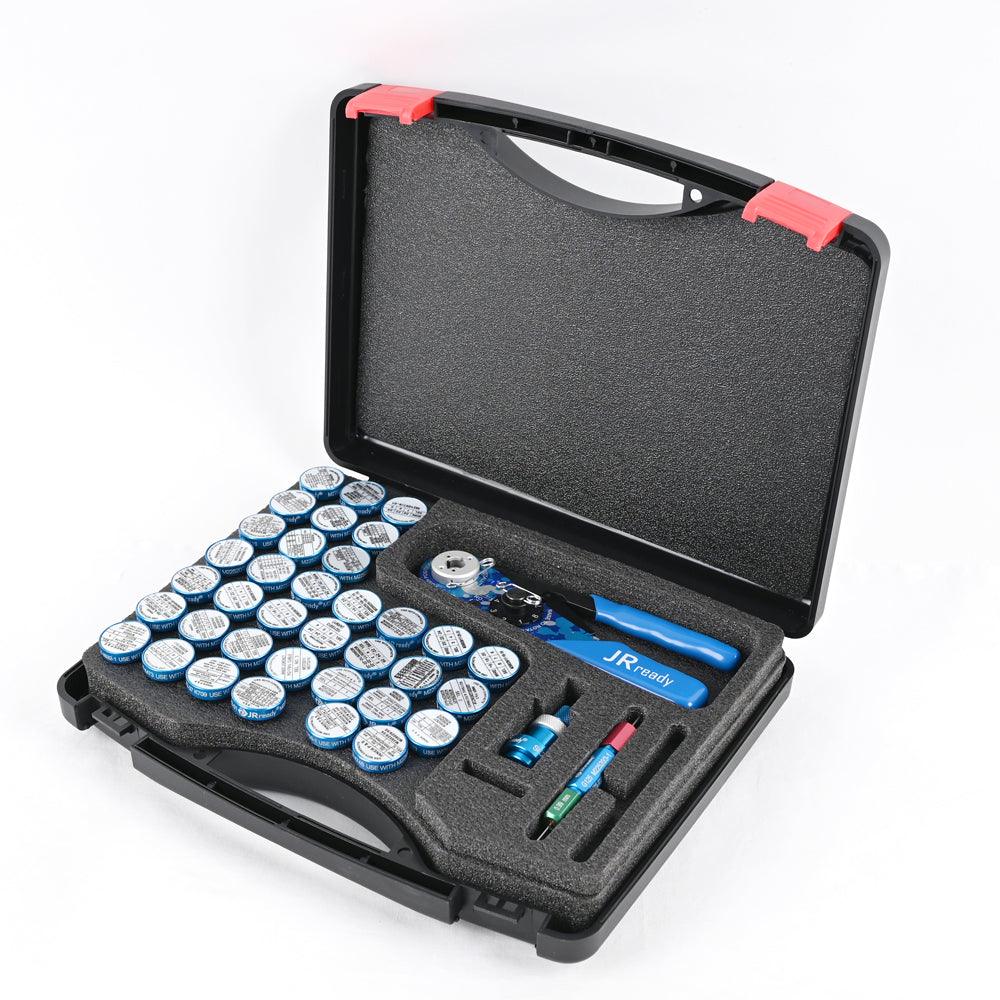

  • [Value Kit]: Package includes
    NEW-AS2+P202S+P203S+P204+P205+P206+P207+P208+P209+P210+P211+P212+P213+P214+P215+P216+P217+P218+P219+P220+P221+P222+P223+P224S+P225+P226+P227+P228+P229+P230+P231+P232+P233S+P234+P235+P236+P237+P-W1+G125
  • [Suitable Connectors]: MIL-PRF-38999 SERIES, MIL-C-81511 SERIES, MIL-DTL-26482 SERIES, MIL-STD-1760, MIL-DTL-81703 SERIES, MIL-DTL-28804, MIL-DTL-24308, MIL-DTL-83733, MIL-DTL-81659, AS81714, MIL-DTL-83527,etc.
  • [Suitable Contacts]: M39029 SERIES, MS24254 SERIES, MS24255 SERIES, MS18134, MS18136, M83723, MS27490 SERIES, MS27491 SERIES, MS27492 SERIES, MS27493 SERIES; MS27494 SERIES, MS27655 SERIES,M24308 SERIES, etc.
NO. MIL PART NUMBER JRREADY PART NUMBER
1 M22520/2-02 P202S
2 M22520/2-03 P203S
3 M22520/2-04 P204
4 M22520/2-05 P205
5 M22520/2-06 P206
6 M22520/2-07 P207
7 M22520/2-08 P208
8 M22520/2-09 P209
9 M22520/2-10 P210
10 M22520/2-11 P211
11 M22520/2-12 P212
12 M22520/2-13 P213
13 M22520/2-14 P214
14 M22520/2-15 P215
15 M22520/2-16 P216
16 M22520/2-17 P217
17 M22520/2-18 P218
18 M22520/2-19 P219
19 M22520/2-20 P220
20 M22520/2-21 P221
21 M22520/2-22 P222
22 M22520/2-23 P223
23 M22520/2-24 P224S
24 M22520/2-25 P225
25 M22520/2-26 P226
26 M22520/2-27 P227
27 M22520/2-28 P228
28 M22520/2-29 P229
29 M22520/2-30 P230
30 M22520/2-31 P231
31 M22520/2-32 P232
32 M22520/2-33 P233S
33 M22520/2-34 P234
34 M22520/2-35 P235
35 M22520/2-36 P236
36 M22520/2-37 P237
37 UNIVERSAL POSITIONER P-W1

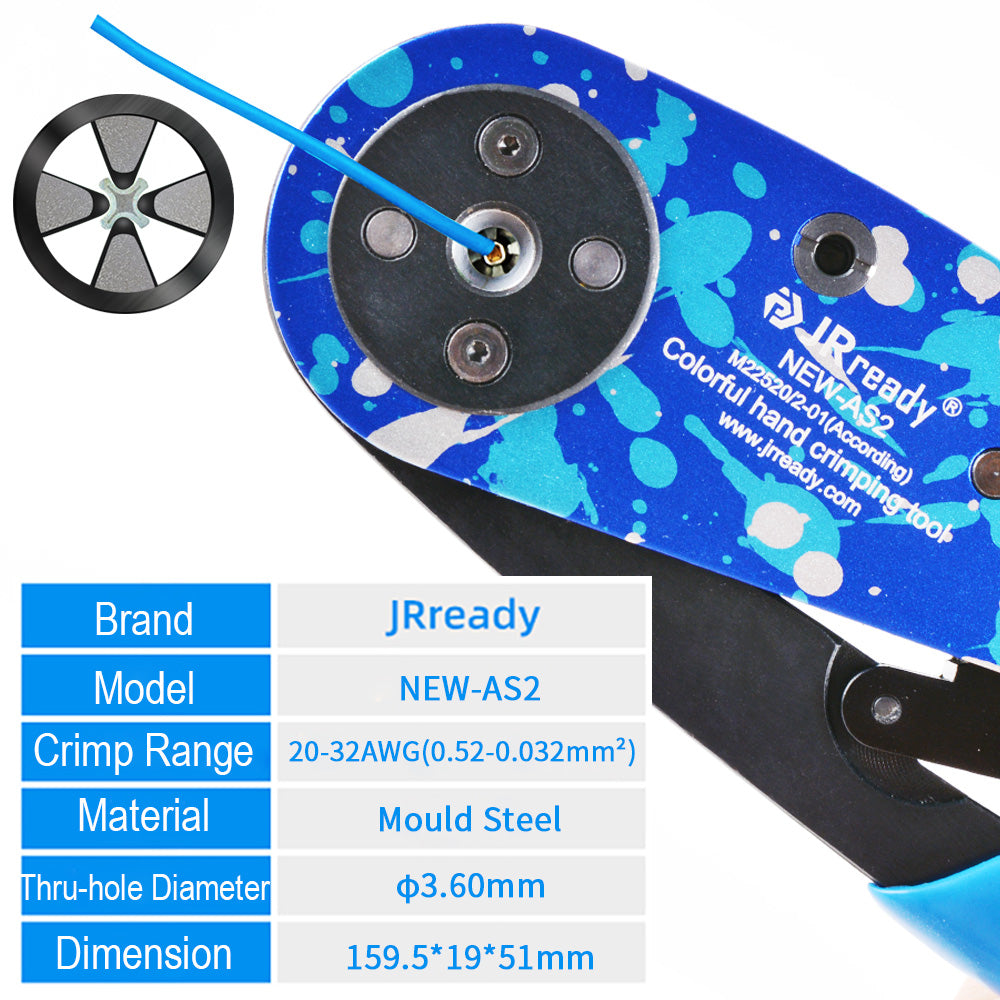

NEW-AS2 Aviation Crimper Miniature Adjustable Crimp Tool for Cable Assembly 20-32AWG
  • [NEW DESIGN NEW APPEARANCE] Personalized & Unique Colorful Camouflage Appearance with firm construction which makes work more interesting

  • [SMALL SIZE & LIGHTWEIGHT] Small Size (6.27in * 1.93in) & Lightweight (225g / 0.5lb) for one-hand operation and easy carrying or outdoor use

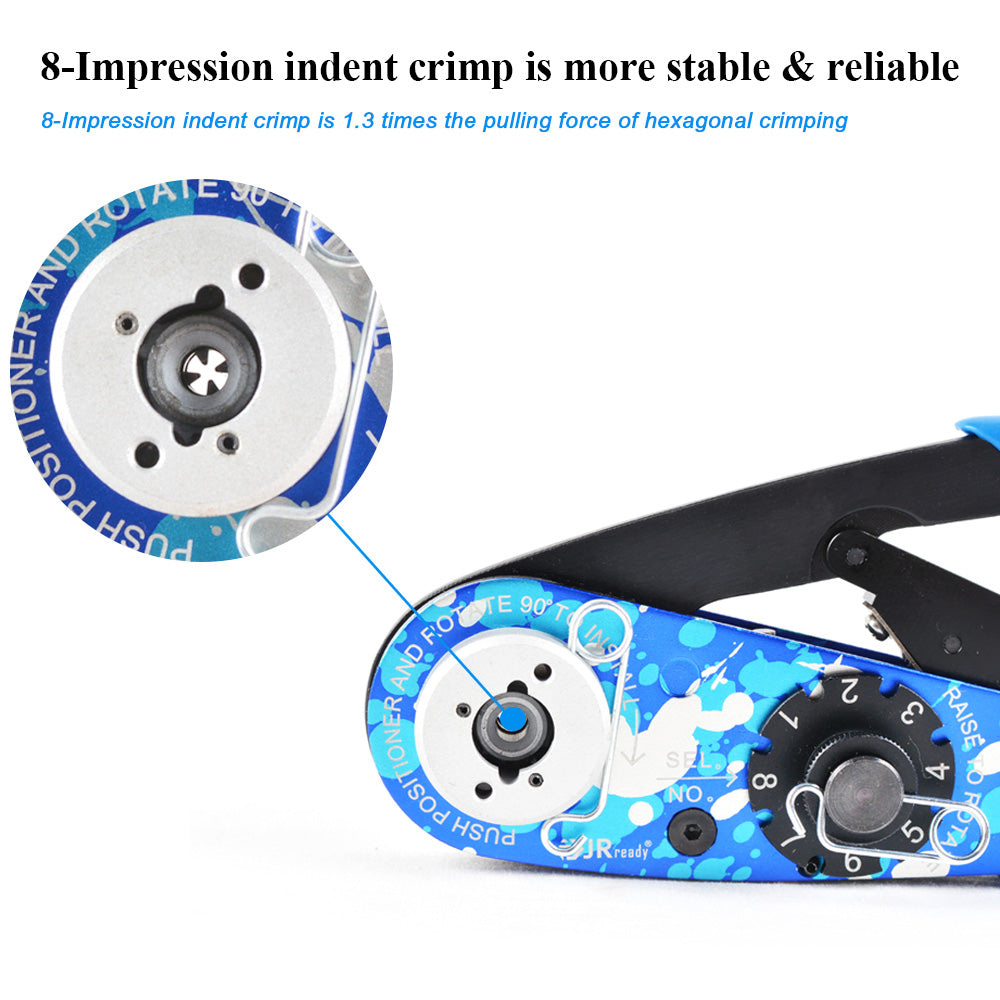

  • [4-WAY 8-IMPRESSION CRIMPING] Gives a Mil-Standard 8 impression crimp, which assures maximum tensile strength

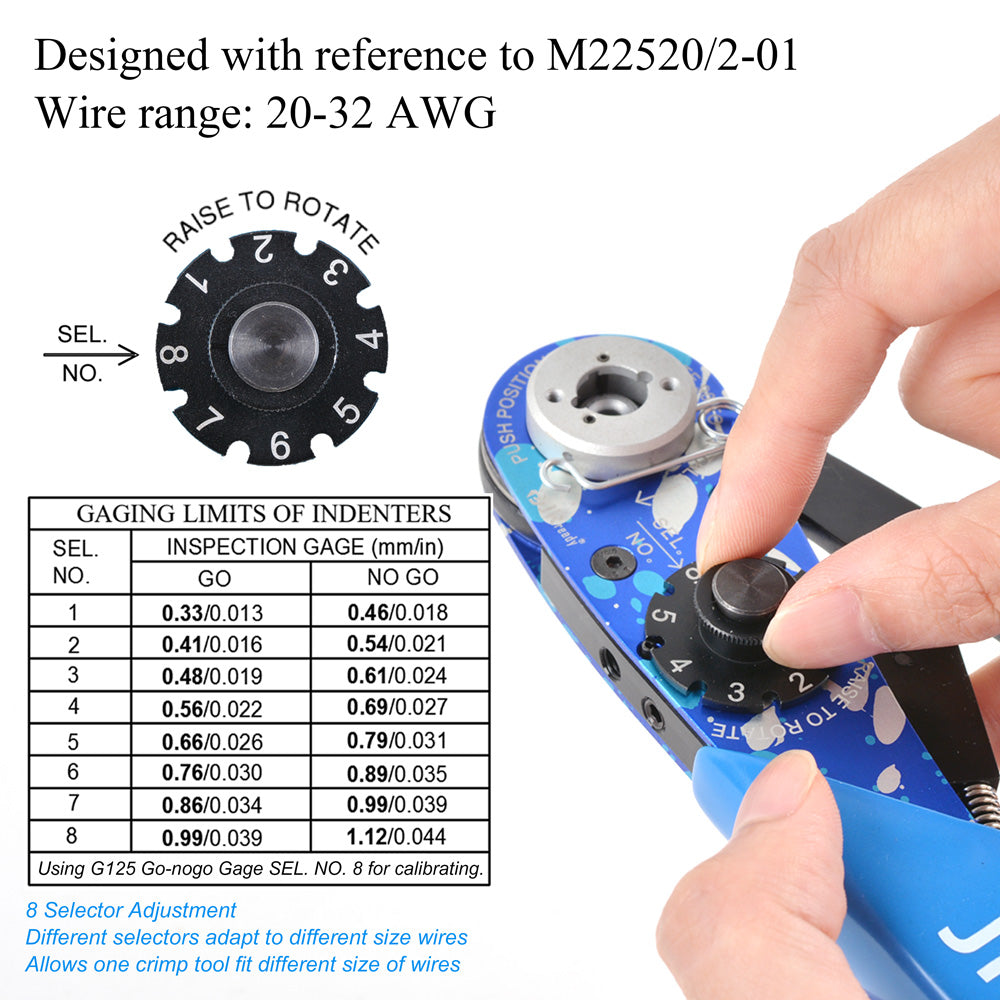

  • [CRIMP WIRE RANGE] Meets the need for a miniature tool accommodating wire sizes 20 through 32 AWG(0.52-0.032mm²)

  • [PROFESSIONAL CRIMPING TOOL] Designed according to MIL-C-22520/2-01;The cycle controlled precision ratchet assures consistently accurate crimps every time

  • [APPLICATION] Designed for most of the miniature and sub-miniature connector types that are so widely used in electronic systems; Suitable for crimping round contacts of MIL standard, Harting, Wain, TE connectors
