JRready ST1049 Crimp Tool Kit +ST5142 Installing Removal Tool
ST1049: YJQ-W7A(MH860) M22520/7-01 Crimper+86 Series positioner+G145(M22520/3-03) Maintenance Kit For Electrical Connectors and Wiring Systems
- Tool and accessory list : YJQ-W7A(MH860) tool frame, 12 PCS 86 series Positioners and 1 In-Service Inspection Gage G145(M22520/3-03)
- Crimp : The YJQ-W7A/M22520/7-01/MH860 accepts the entire middle wire range of 16 through 28 AWG to removable contacts used in
- Positioner: 86-1S+86-2+86-3+86-4+86-5+86-6+86-7+86-11S+86-12S+86-19+86-20+86-21 & adjustable positioner 86-37
- Connector: MIL-PRF-38999 SERIES, MIL-DTL-26482 series, MIL-DTL-26500, MIL-DTL-24308,MIL-C-38300, AS50151 series, MIL-C-81703 SERIES, MIL-DTL-83723 SERIES, MIL-C-81511 series, MIL-DTL-83733, MIL-STD-1549 ,etc.
- Thanks to the cycle controlled precision ratchet,it assures the consistency of impression and the crimping quality of wires and contacts
ST5142 Removal and Installing Tool Kit:DRK12B+DRK16B+DRK20B+DAK12B+DAK16B+DAK20B Removal and Installing Tool Kit for MIL-C-81969 series and some of NON-MIL round contacts
- DRK12B Removal Tool designed according to MIL-C-81969/19-02 REV.B ; DRK16B Removal Tool designed according to M81969/19-01 REV.8 ; DRK20B Removal Tool designed according to MIL-C-81969/19-06 REV.B;
- DAK12B Installing Tool designed according to MIL-C-81969/17-05 REV.B ; DAK16B Installing Tool designed according to MIL-C-81969/17-04 REV.8 ; DAK20B Installing Tool designed according to MIL-C-81969/17-03 REV.B;
- Applied to remove or install MIL series and some of NON-MIL round contacts without any damages to the electric connectors;

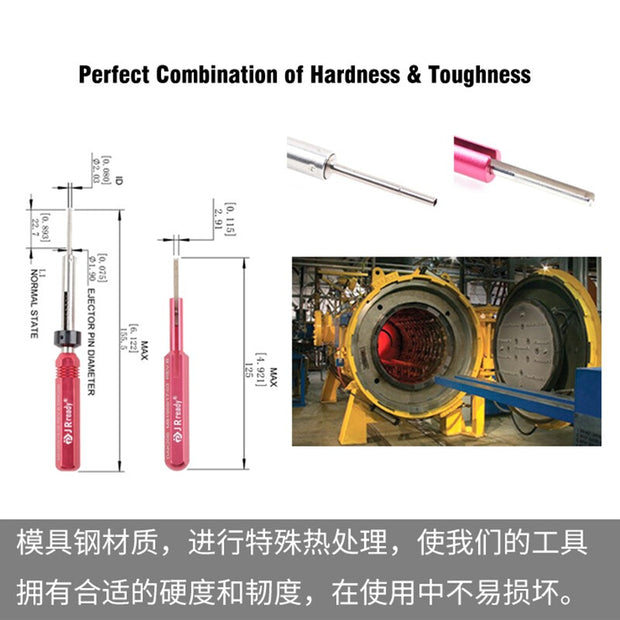

- Removal Tool: The brace pipe has an ejector pin to facilitate the removal of contacts ; Installing Tool: A small slot on installing rod ensures enough tensile force to install contact into electronic connectors easily;
- Small size, convenient to carry，good choice for outdoor using;
