ST2011 YJQ-W7A MH860 Crimping Pliers Wires 16-28AWG+86-37 positioner

Regular price $209.00
/

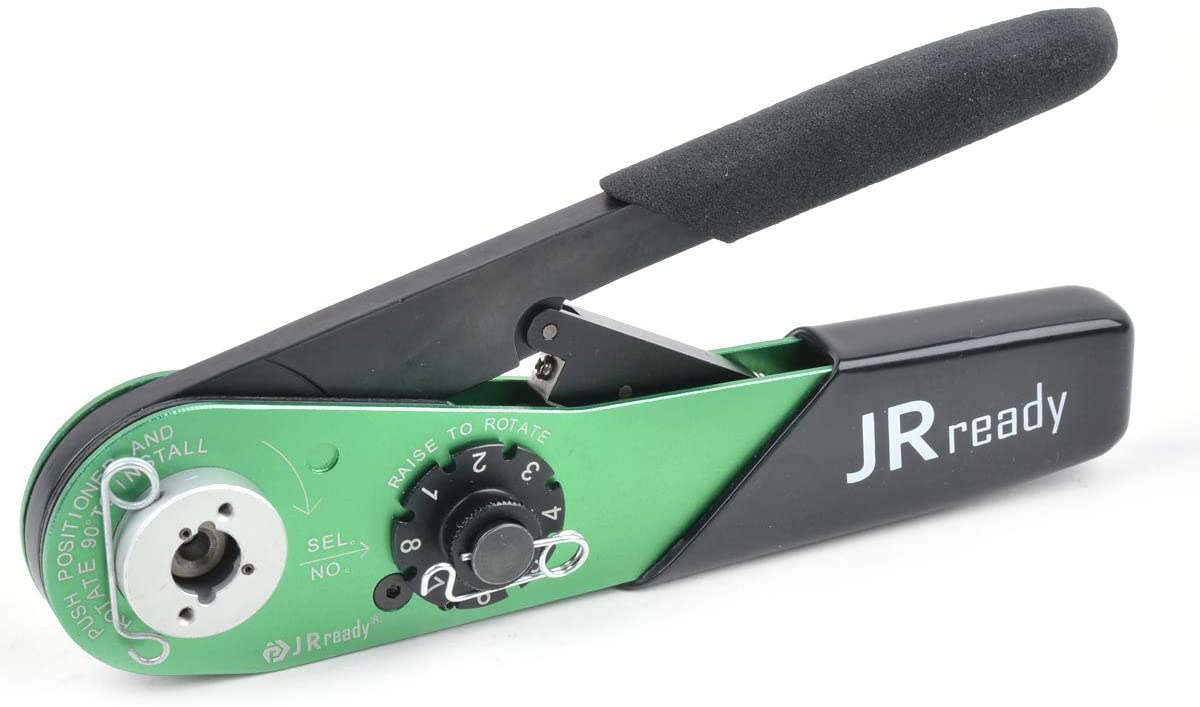

ST2011 YJQ-W7A (Equivalent to DMC MH860 MIL-C-22520/7-01)Hand Crimp Tool Terminal Crimping Pliers & Adjustable 86-37 Universal Positioner 16-28AWG

GENERAL INFORMATION

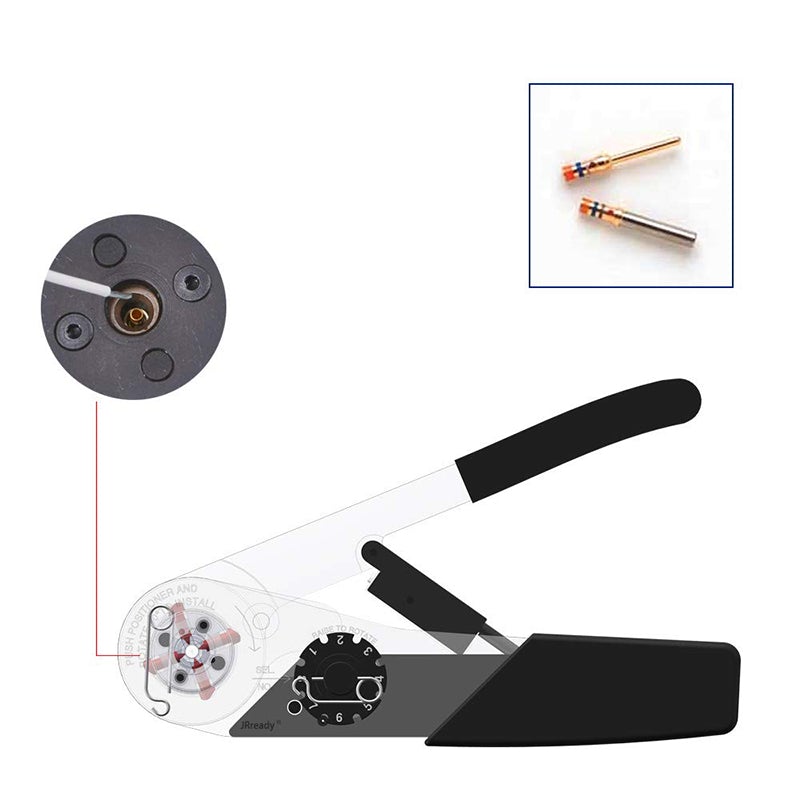

1. Precisetool YJQ-W7A Aircraft tool gives an 8 impression crimp, which assures maximum tensile strength
2. Designed for most of the miniature and sub-miniature connector types used in electronic system
3. Meets the need for a miniature tool accommodating wire sizes 16 through 28 AWG (1.32mm²-0.08mm²)

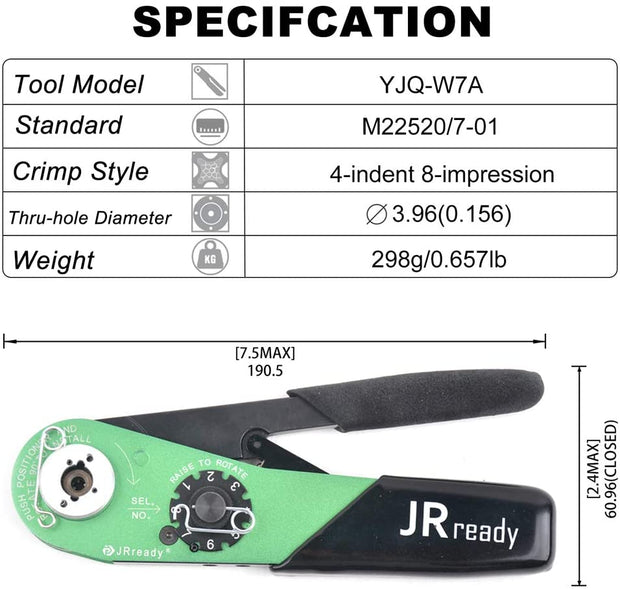

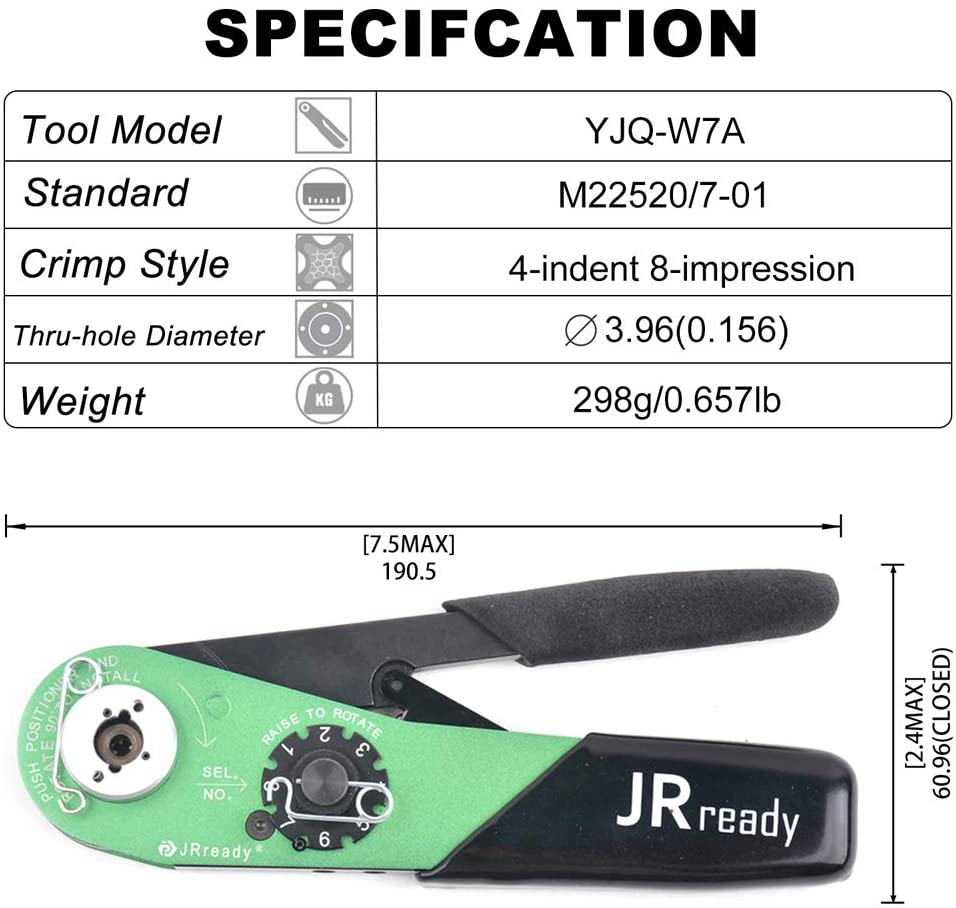

4. YJQ-W7A is qualified to the 22520/7-01 which is widely used for the crimping of wires and contacts in electronic connectors
5. Suitable for military connectors, heavy duty connectors, electric connectors, terminals, wiring harness, cable assembly

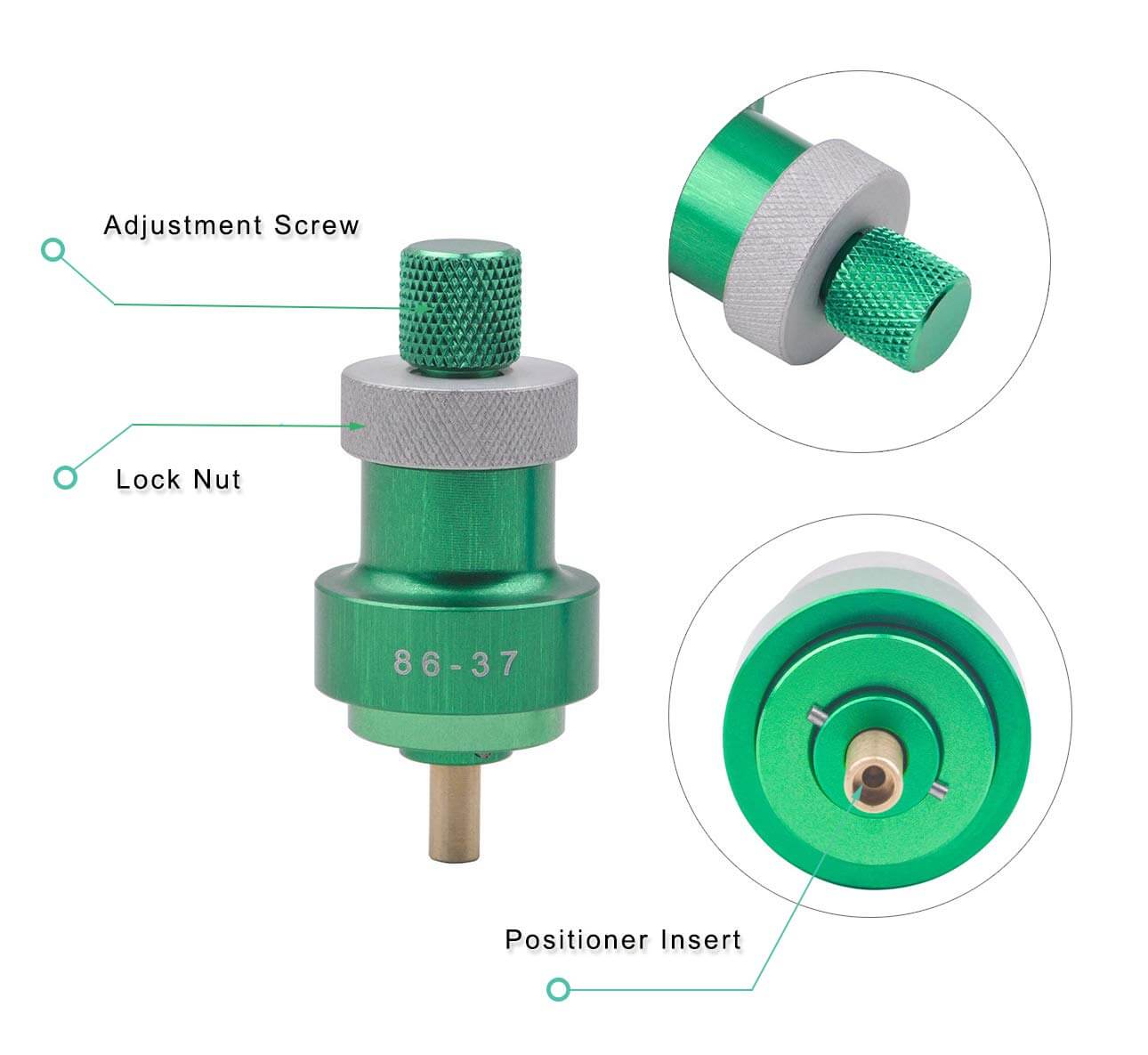

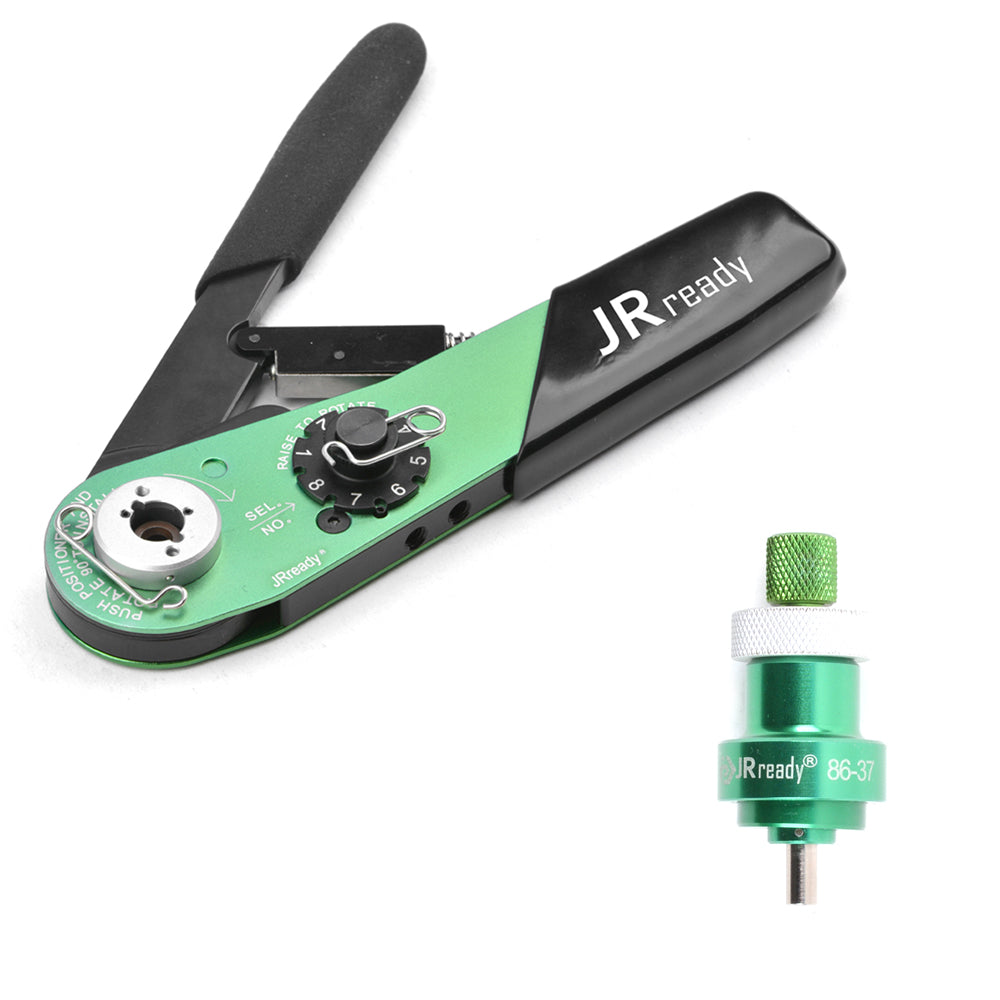

6. Package Including:one YJQ-W7A crimp tool frame,one 86-37 replaceable & adjustable universal positioner

Intender Working Diameter mm/INCH

Crimp Range



Selector

NO.

Intender Working Diameter mm/INCH

A(GO)

B(NO GO)

1

0.41/0.016

0.53/0.021

2

0.48/0.019

0.61/0.024

3

0.56/0.022

0.69/0.027

4

0.64/0.025

0.76/0.030

5

0.74/0.029

0.86/0.034

6

0.84/0.033

0.96/0.038

7

0.94/0.037

1.07/0.042

8

1.04/0.041

1.17/0.046
