JRready ST4011 Pneumatic Crimp Tool Kit (YJQ-W7Q & 86-37 Adjustable Positioner, Send ST5153 or ST5138 Positioner Kit for Free

JRready ST4011 Pneumatic Crimp Tool Kit (YJQ-W7Q & 86-37 Adjustable Positioner, Send ST5153 or ST5138 Positioner Kit for Free

Regular price $619.00 USD
Regular price $718.00 USD Sale price $619.00 USD
Sale Sold out
Shipping calculated at checkout.
TYPE

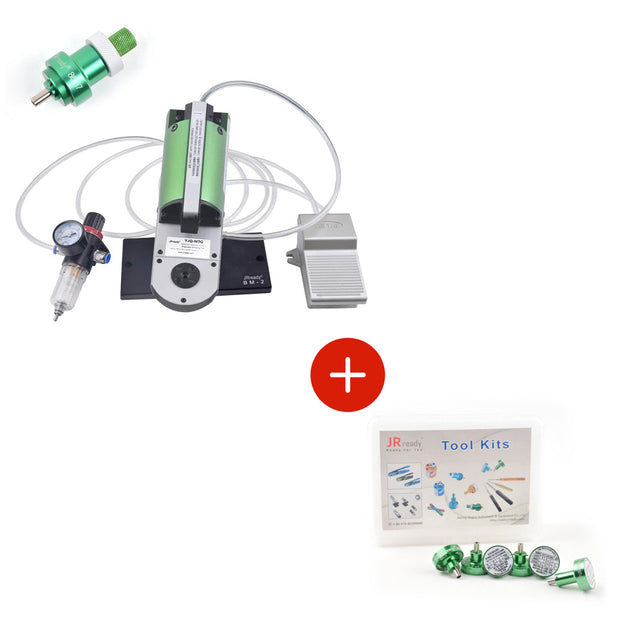

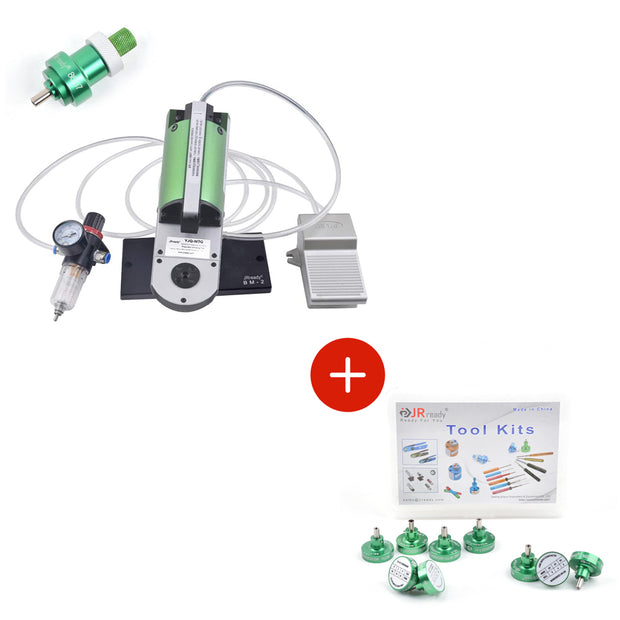

JRready ST4011 Pneumatic Crimp Tool Kit (YJQ-W7Q & 86-37 Adjustable Positioner, Send ST5153 Positioner Kit for Free
JRready ST4011 Pneumatic Crimp Tool Kit (YJQ-W7Q & 86-37 Adjustable Positioner, Send ST5138 Positioner Kit for Free

86-2+86-3+86-4+86-5+86-6 Positioner

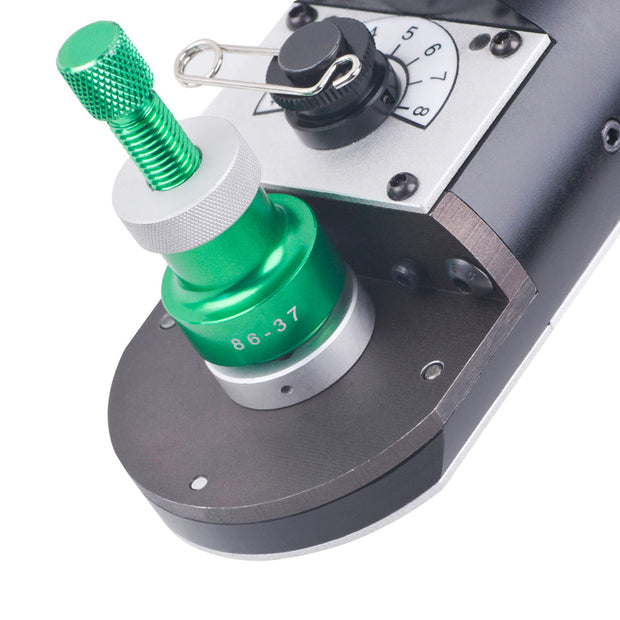

  • ST4011 Crimp Tool Kit includes YJQ-W7Q (Pneumatic Crimp Tool) and 86-37 (Universal Positioner);
  • Suitable for crimping of round contacts of MIL standard, Harting, Wain, TE connectors
  • Wire Crimp Range:16-28AWG (0.08-1.32mm²);
  • Manual Version: ST2011.

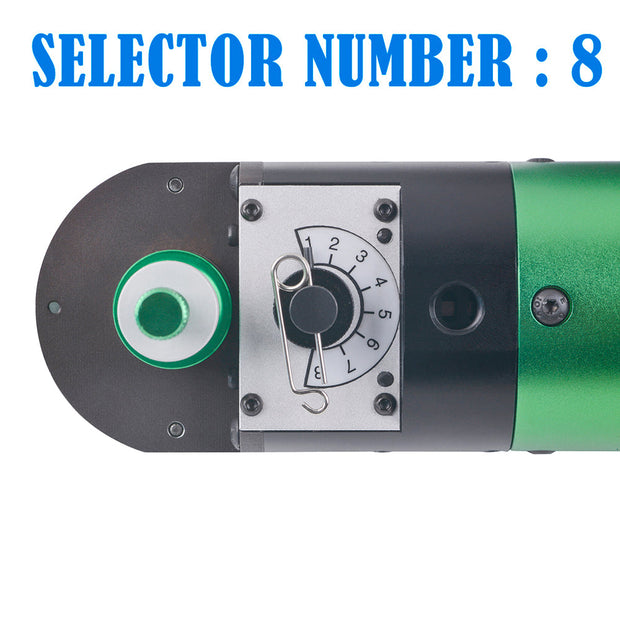

  • Crimp Style: Four-indent Eight-impression

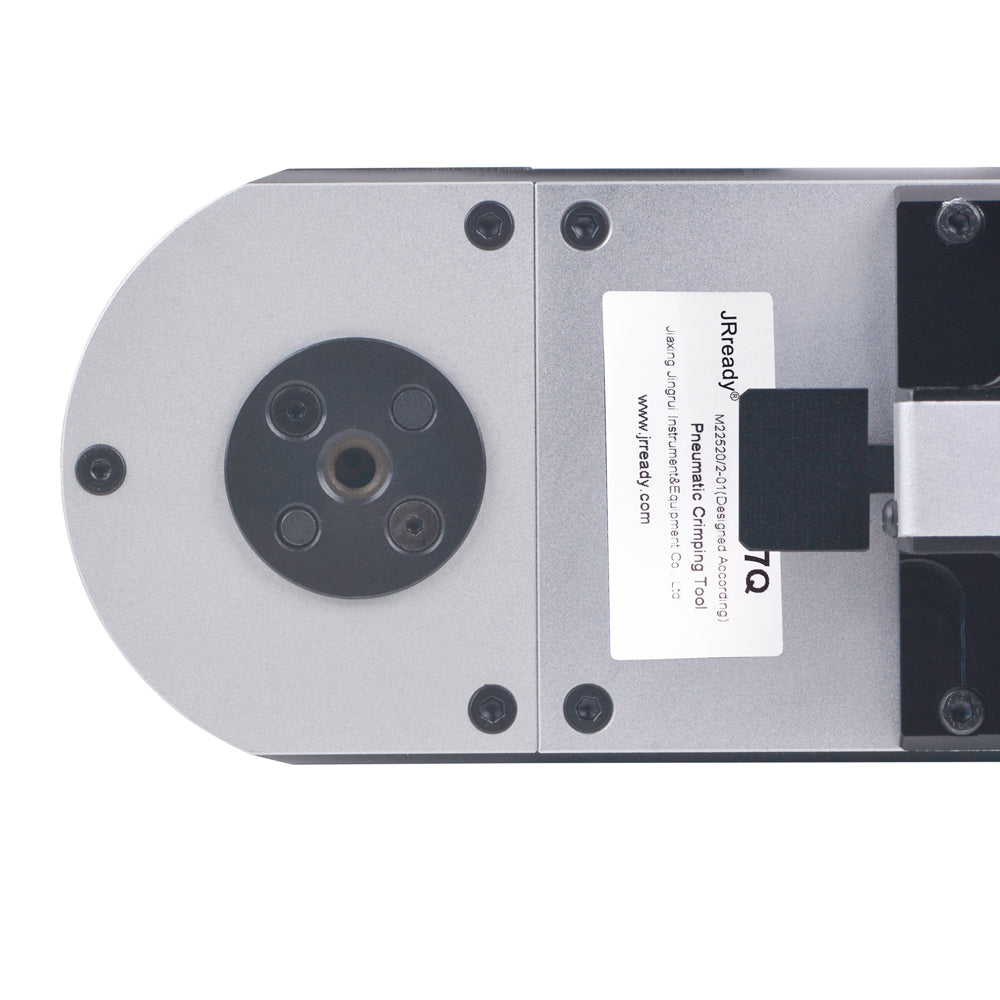

YJQ-W7Q

Net weight: 2881 g / 6.35 lb
Small size, suitable for line operation.
8-impressions crimping to ensure high quality.
Force completely produced from compressed air to ensure safe & energy saving.

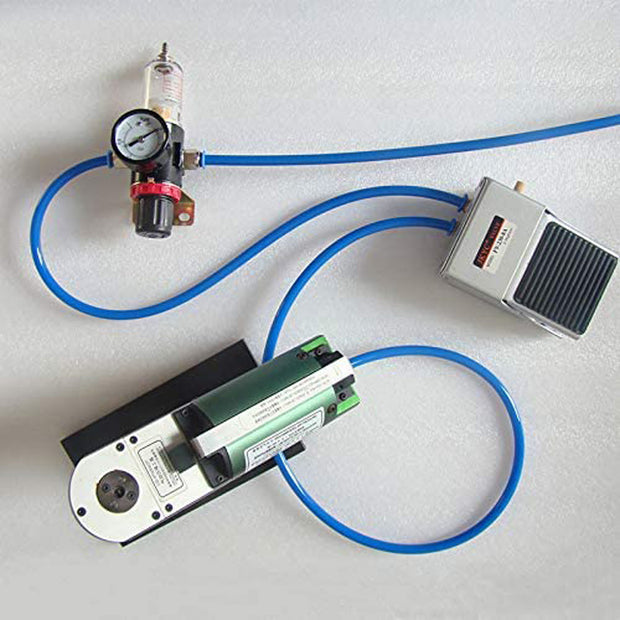

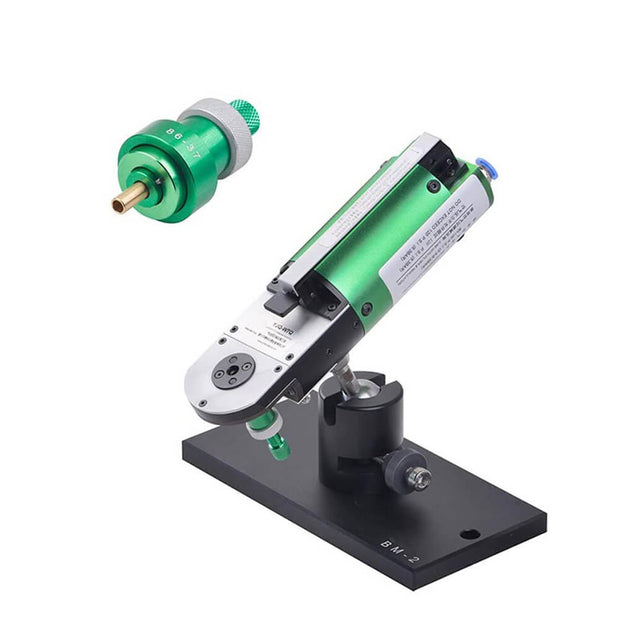

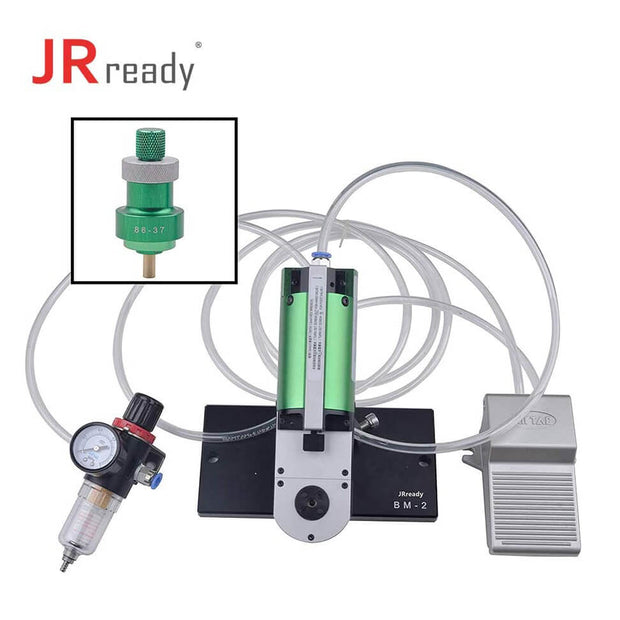

Package including: YJQ-W7Q Crimp Tool Frame & BM-2 Bench Mount & PC-SUITE1 Pneumatic Kit & 86-37 Universal Positioner.
Suitable for military connectors, heavy duty connectors, electric connectors, terminals, wiring harness manufacturing industry, cable assembly.

THE MODE SWITCH INSTRUCTION

Setting the setting screw by 1.5 mm hex wrench.
Set the screw 0-1mm above the reference plate when in hand value control.
Set the screw 1-2mm into the reference plate when in foot value control.
PLEASE NOTE: Do not force the screw out to prevent the screw mechanism from damaging.

JRDTOOLS specializes in designing and manufacturing hand/ pneumatic indents crimping tools, open frame die crimper, positioners, turret heads for wire crimpers . We make every efforts to provide our customers with tool selection services, product customization services, after-sales services and product maintenance services.
