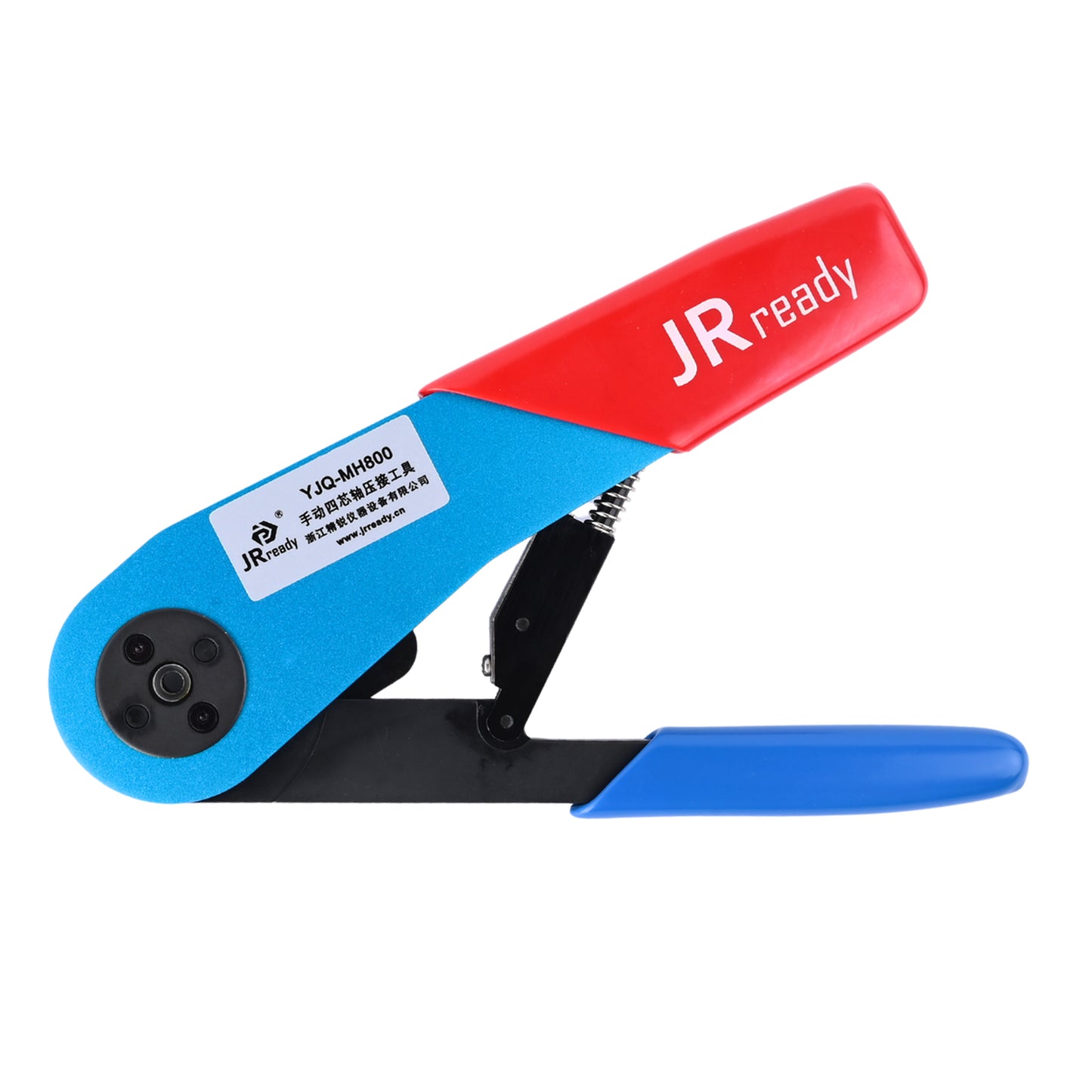

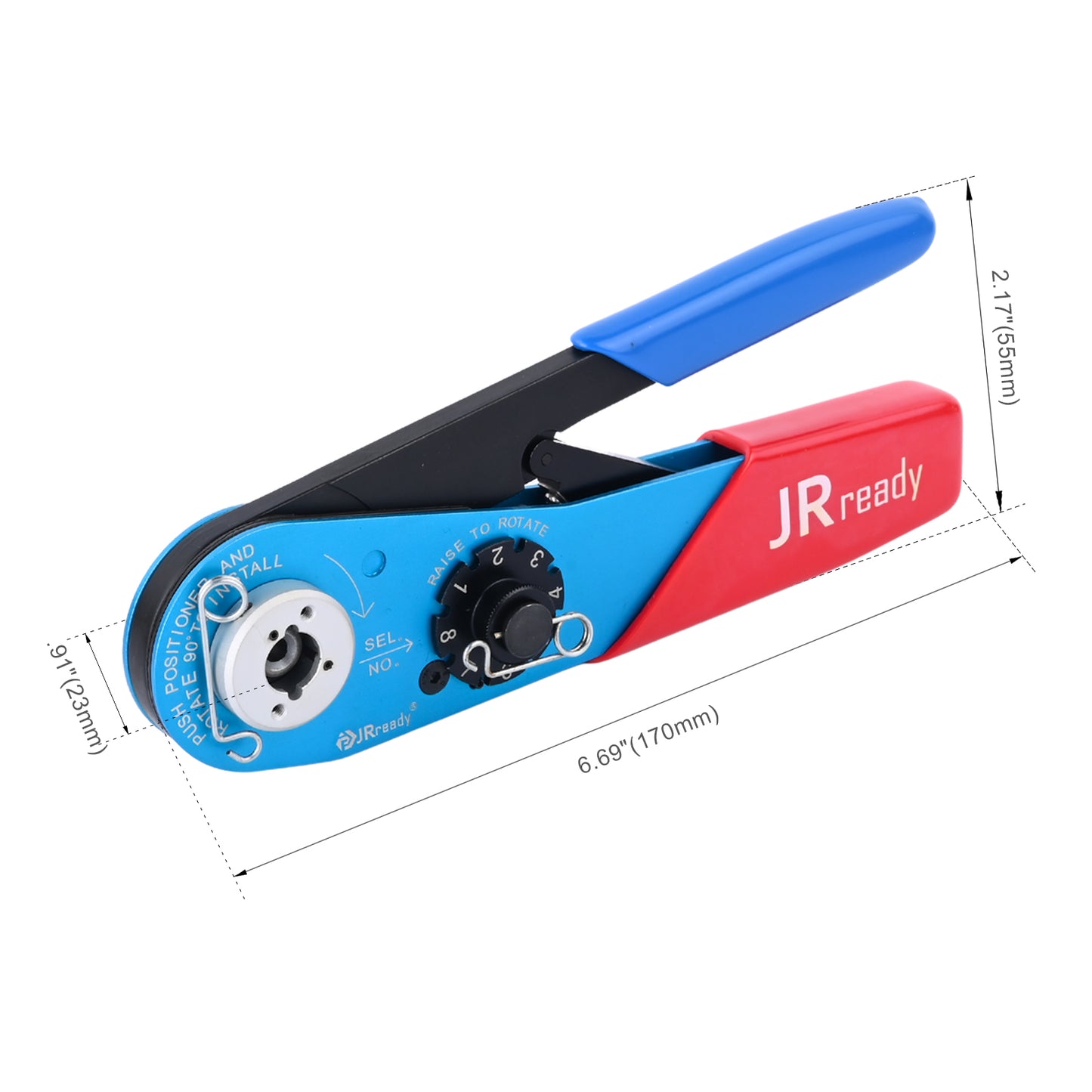

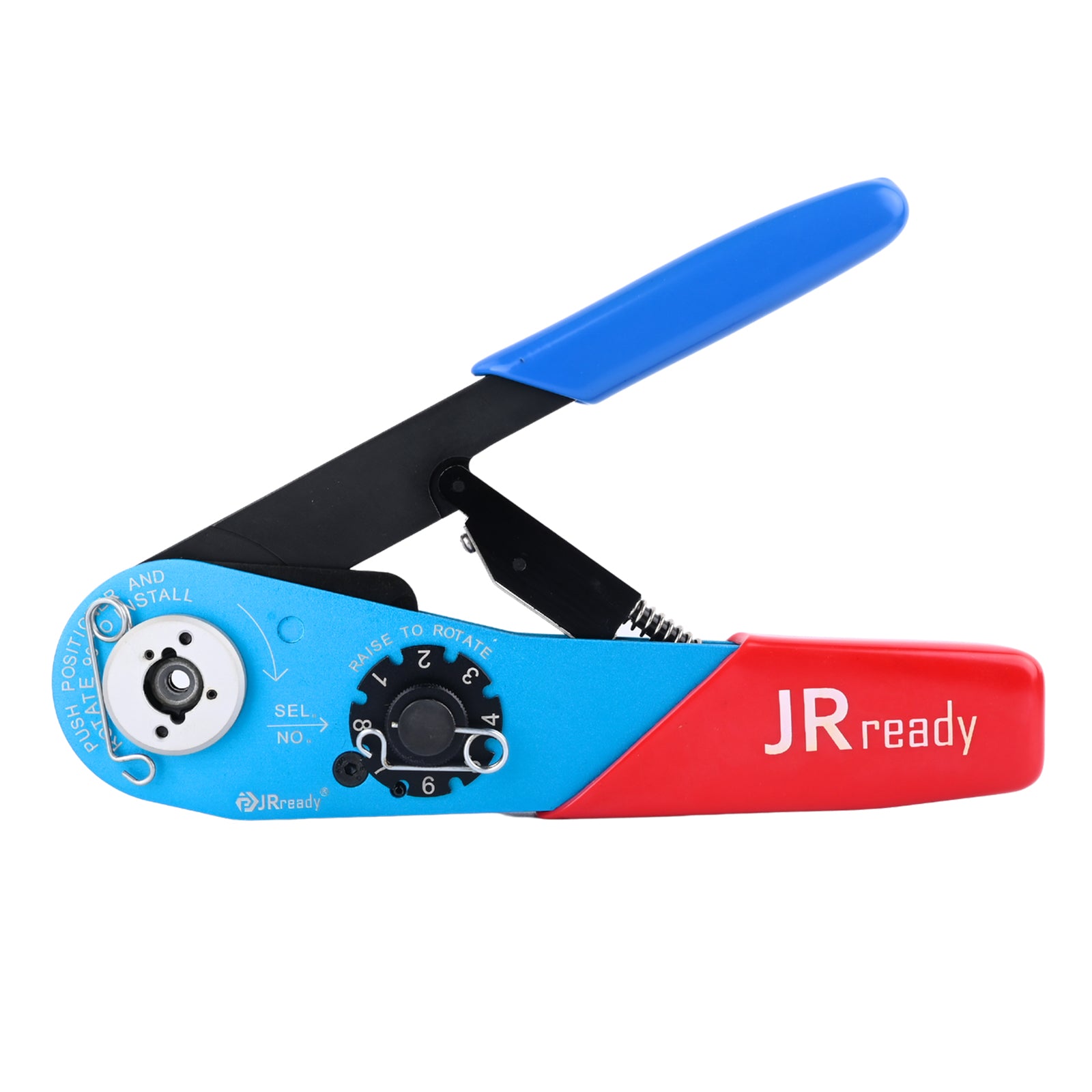

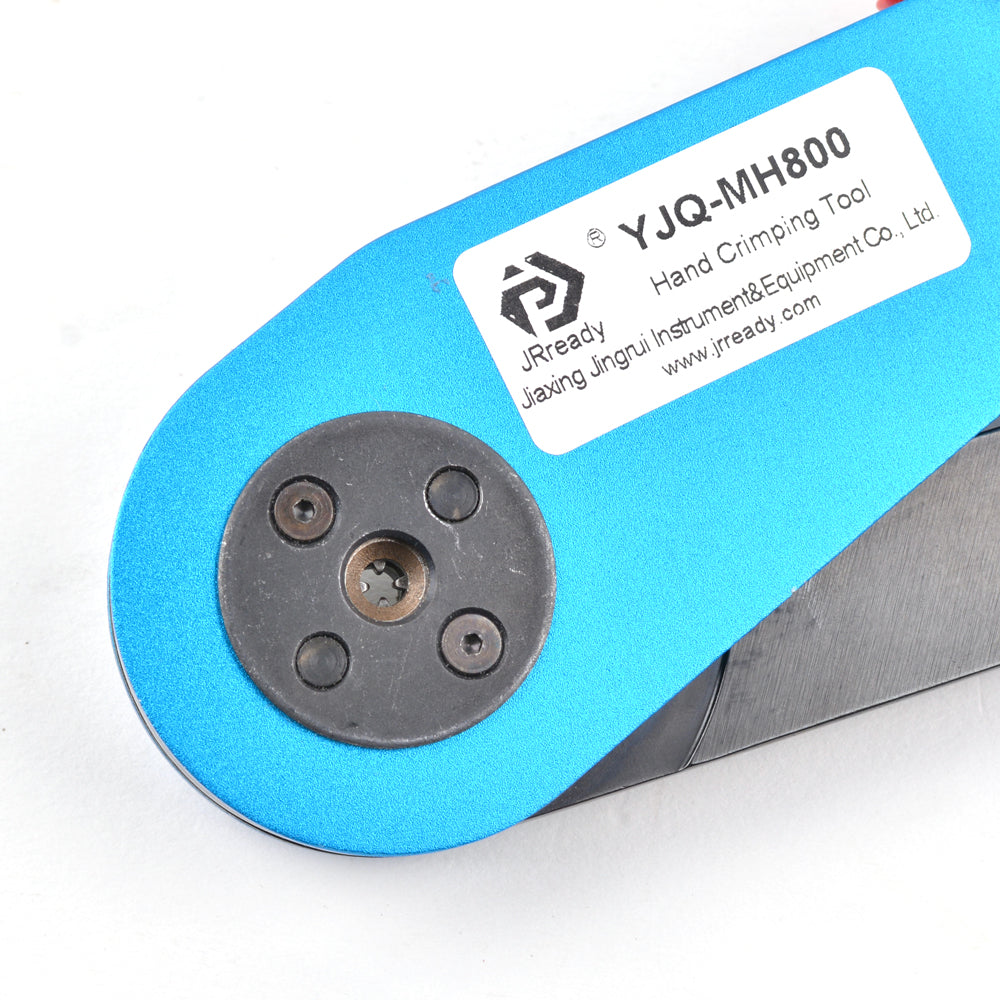

YJQ-MH800 Miniature Adjustable Crimp Tool ULTRA-PRECISION Crimper Wire Range 20-32 AWG

ULTRA-PULTRA-PRECISION Crimping Tool YJQ-MH800

• 4-way 8-impression crimp style
• Wire Range 20-32 AWG

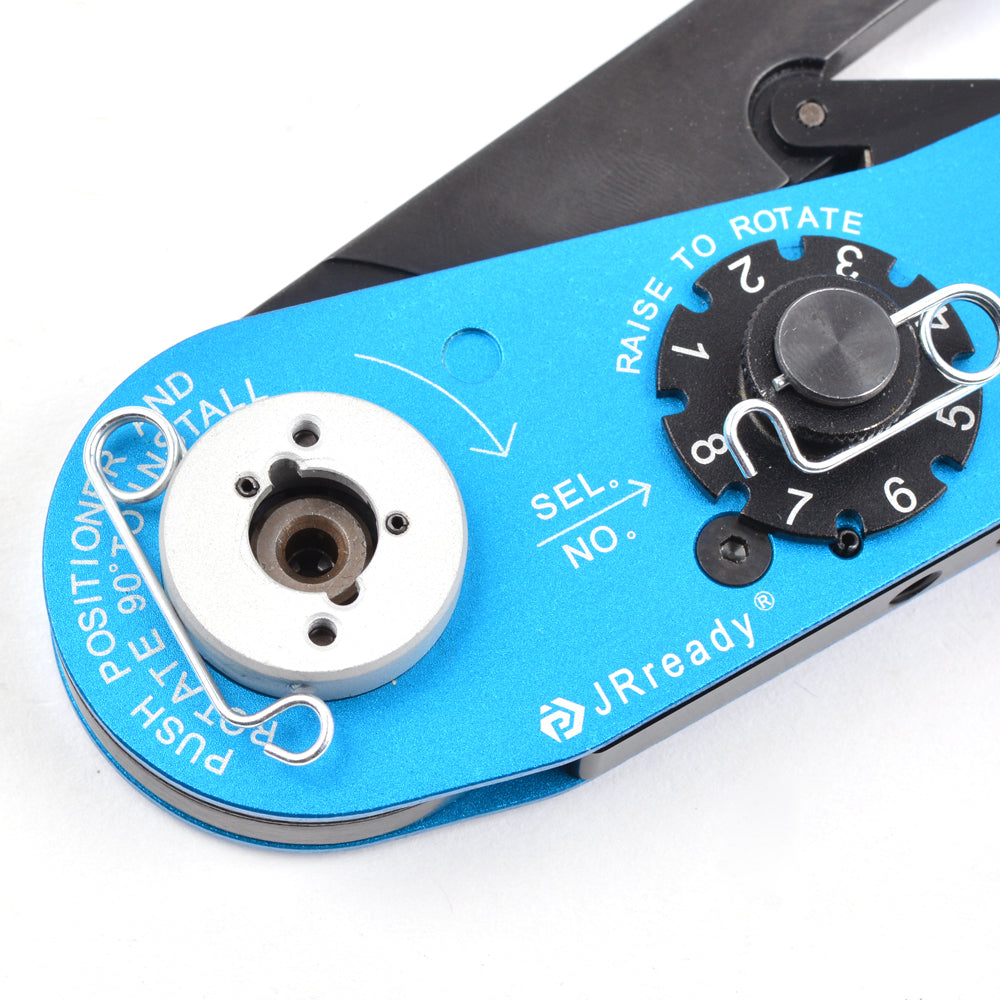

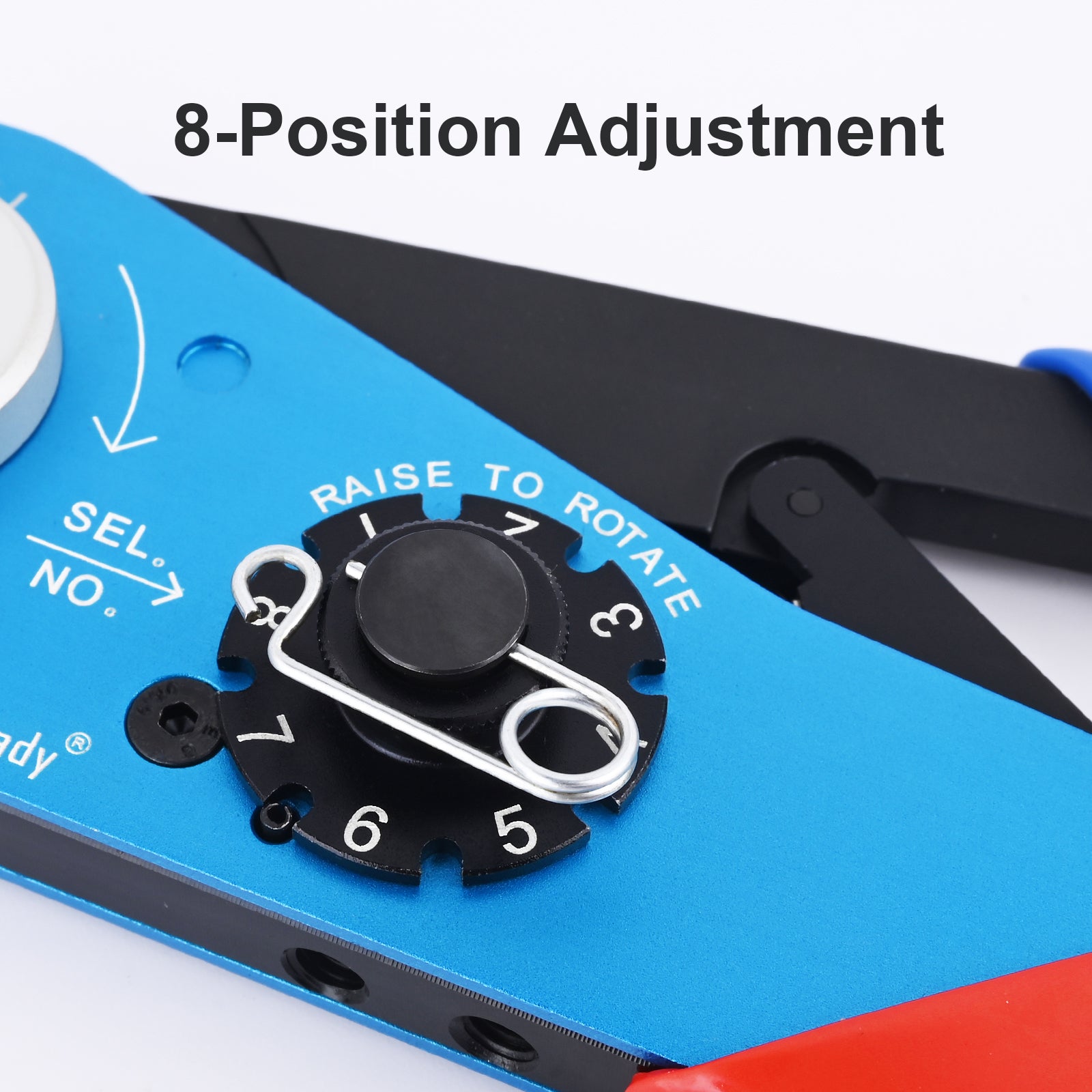

• Crimp depth is controlled by an 8 position selector knob
• Compared with YJQ-W1A, YJQ-MH800 has a smaller gaging limits of indents

GO-NOGO GAGUE:G100(NOT SUPPLTED WITH TOOL)

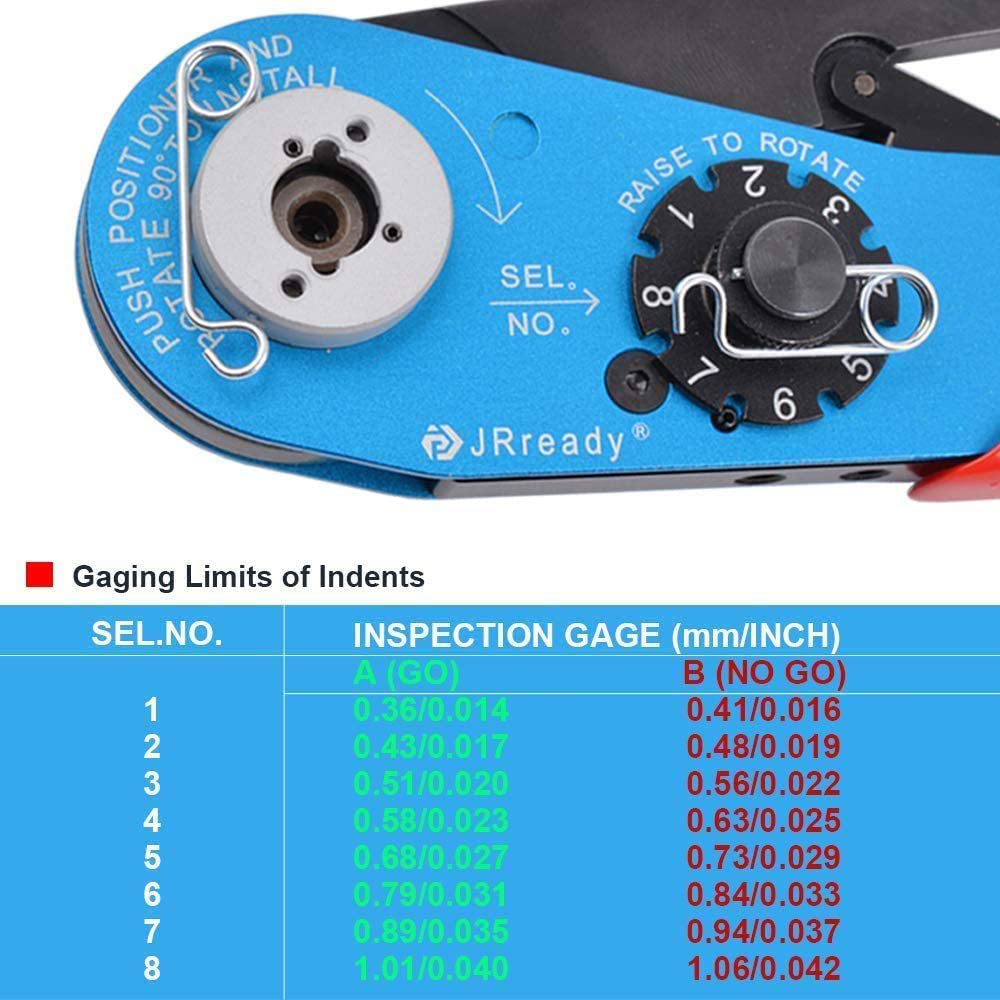

GAGING LIMITS OF INDENTERS(mm/inch):
A (GO) B (NO GO)
1 0.36/0.014 0.41/0.016
2 0.43/0.017 0.48/0.019
3 0.51/0.020 0.56/0.022
4 0.58/0.023 0.63/0.025
5 0.68/0.027 0.73/0.029
6 0.79/0.031 0.84/0.033
7 0.89/0.035 0.94/0.037
8 1.01/0.040 1.06/0.042
