JRready Deutsch DTHD Series 1-Pin Kit with #8 Solid Contacts, 8-12 AWG - High-Current Waterproof Marine, Truck, Agricultural & Alternative Energy

PACKAGE LIST:

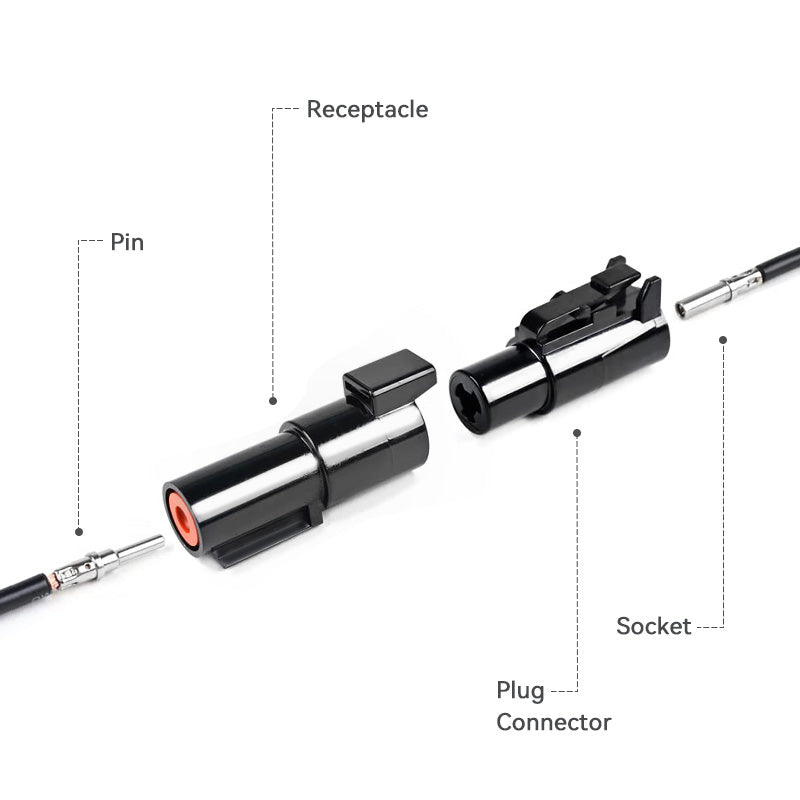

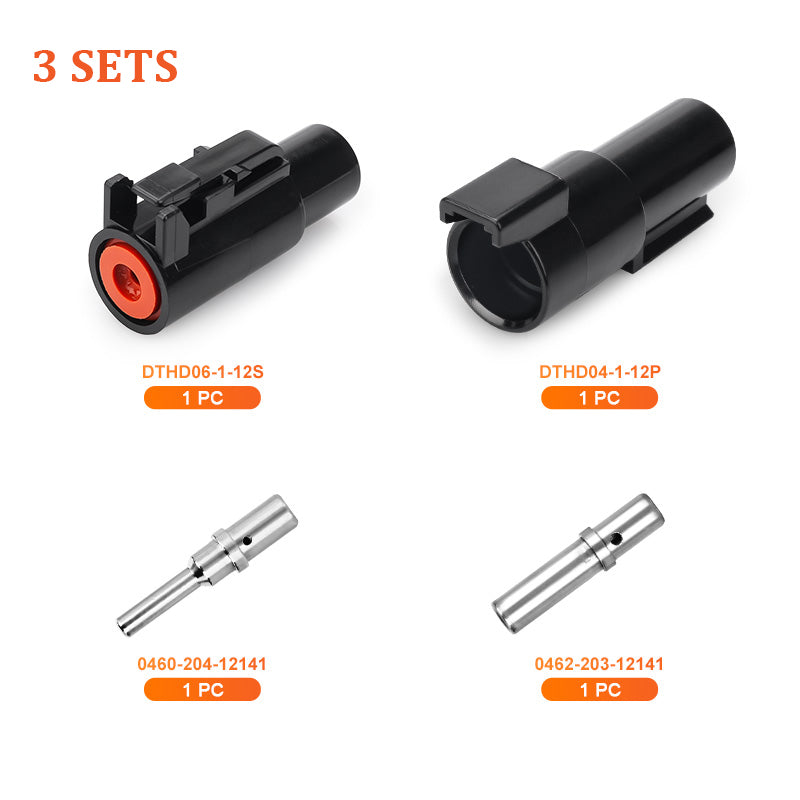

JRready DTHD Series (12#) 1-Pin connector housings (1 male + 1 female) with solid contacts, 3 Sets.
(DTHD06-1-12S+DTHD04-1-12P+0462-203-12141+0460-204-12141)*3

[ONE CIRCUIT, ONE SEALED PATH]

When a single dedicated run carries the full load — a winch, a motor drive, or an auxiliary power feed — a 1-pin connector keeps that circuit isolated and purpose-routed without sharing a housing with unrelated signals. Rated at 25A and 250V AC/DC, this kit handles the electrical demands of high-draw loads on 12V and 24V systems across trucks, marine vessels, and off-highway equipment.

[WATERPROOF HOUSING RATED ACROSS AN EXTENDED TEMPERATURE RANGE]

The PE housing carries an IP67 waterproof rating and operates continuously from -55°C to +125°C — a low-temperature threshold that covers cold-climate deployments where seal materials in standard connectors begin to lose compliance. Insulation resistance is rated at ≥1000MΩ, with dielectric strength verified at 1500V for 1 minute without breakdown.

[MACHINED SOLID CONTACTS — CONSISTENT PERFORMANCE OVER 500 CYCLES]

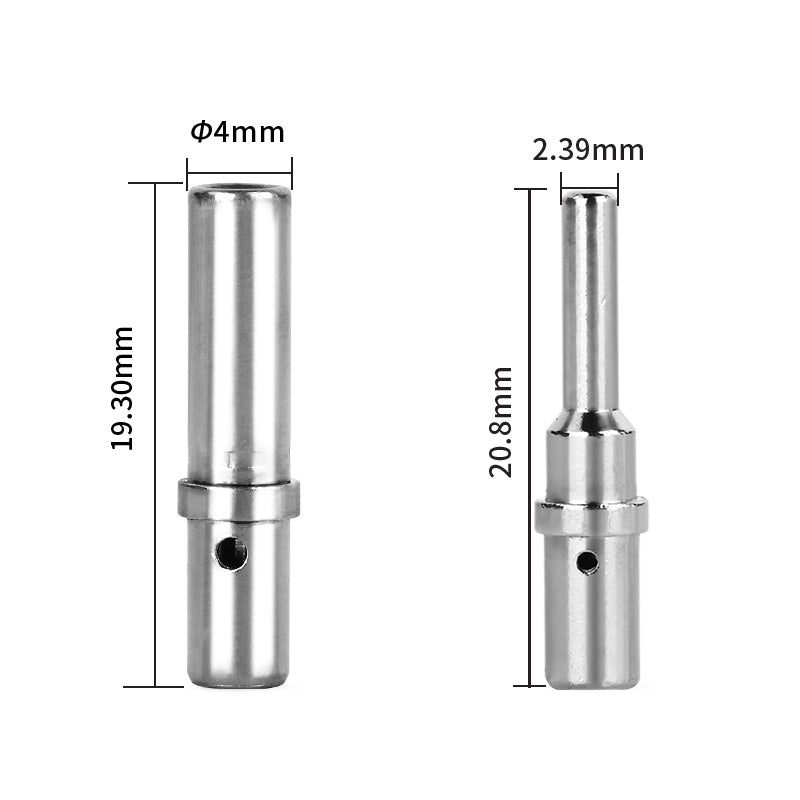

These contacts hold their dimensional precision and contact surface geometry across ≥500 insertion and extraction cycles — a service life that accommodates regular disconnection during maintenance, diagnostics, or seasonal storage without degrading connection quality. The quad-axis crimp method compresses the conductor from four directions simultaneously, achieving pull force of 334N on 12AWG wire for a mechanically secure, gas-tight termination.

[FULL NICKEL PLATING — OXIDATION RESISTANCE OVER TIME]

The entire contact surface is nickel-plated to resist oxidation and maintain stable contact resistance across the connector's service life, while the crimp tail carries tin plating for reliable wire bonding on 12-16AWG (3.0–1.0mm²) wire. This two-layer surface treatment keeps the electrical interface performing consistently whether the connector is in continuous service or stored between seasonal uses.

[CYLINDRICAL FORMAT WITH CROSS-SERIES CONTACT COMPATIBILITY]

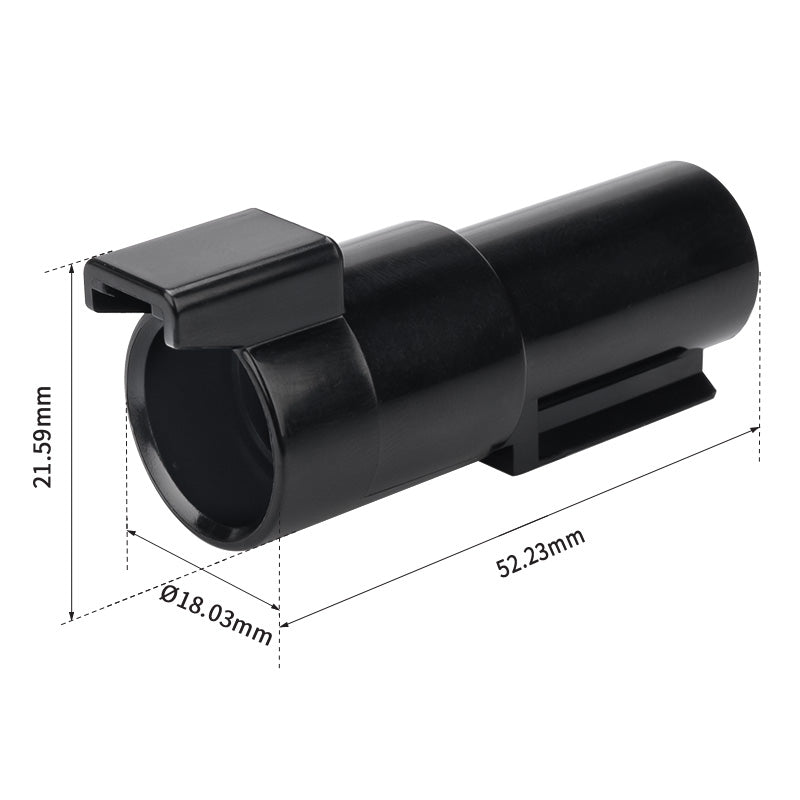

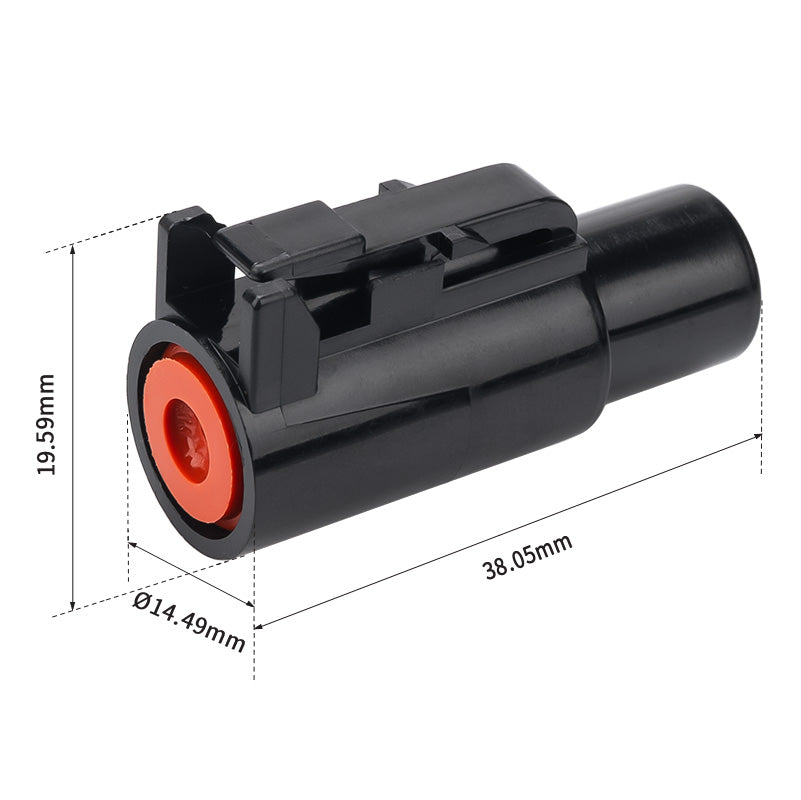

The DTHD cylindrical inline housing routes cleanly through grommets and conduit runs where rectangular formats don't fit, with a positive-locking receptacle tab that secures the mated connection without additional hardware. The machined solid contacts are also compatible with DTP, HD10, HDP20, HD30, and DRB series connectors, giving you flexibility to integrate this kit into existing multi-series harness builds.
