JRready 4-Pin Deutsch DTM Connector Kit with #20 Stamped Contacts, 16-22 AWG - Waterproof Marine, Truck, Motorcycle, Agricultural & Alternative Energy

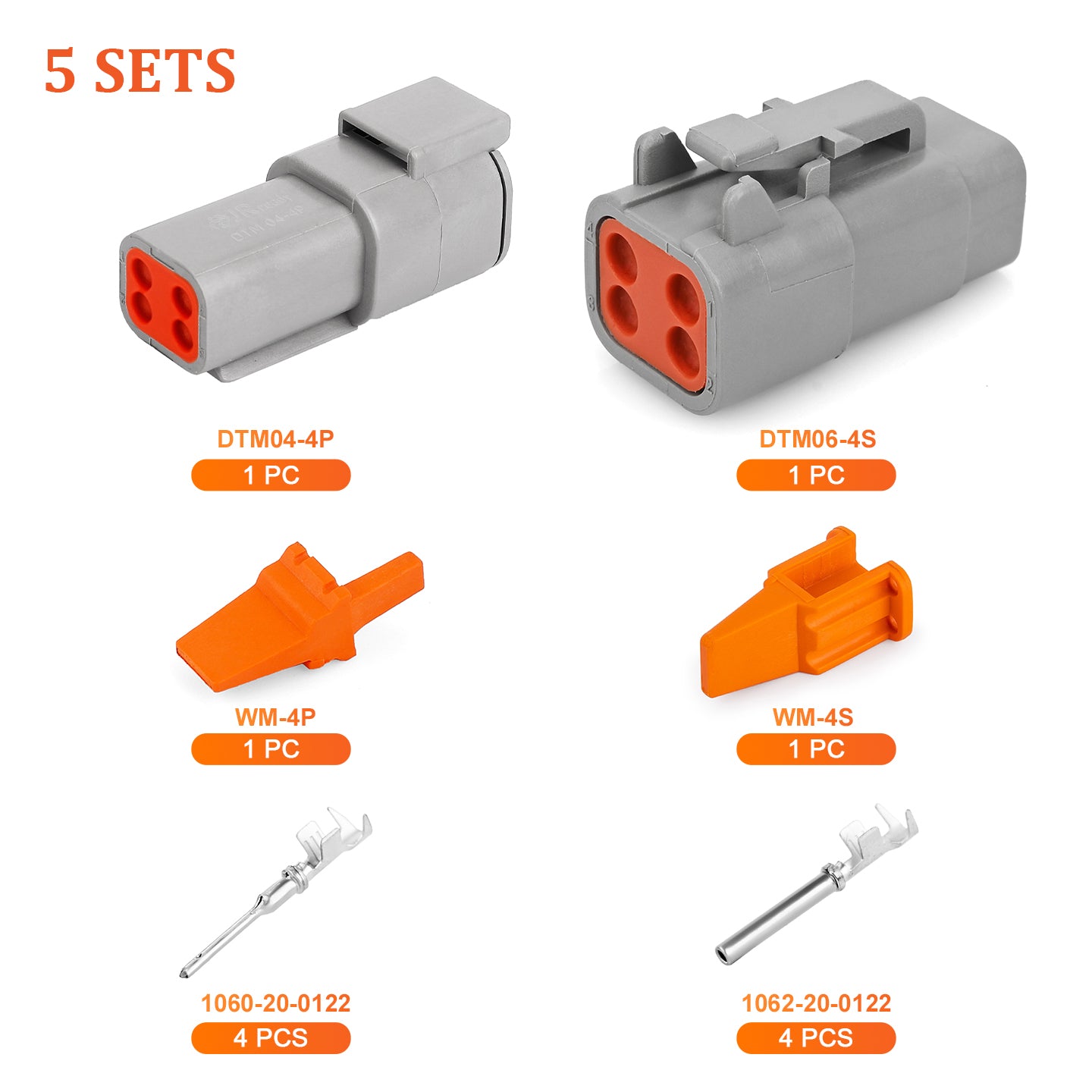

PACKAGE LIST:

JRready DTM Series 4-Pin connector housings (1 male + 1 female) with stamped contacts, 5 Sets
(WM-4P+WM-4S+DTM04-4P+DTM06-4S+1060-20-0122*4+1062-20-0122*4)*5

[SEALED FOR THE WORST CONDITIONS]

Molded from PA66 nylon with UL94V-0 flame retardancy, these 4-pin housings carry an IP67 waterproof rating that keeps moisture and contaminants out even in prolonged submersion conditions. Operating range holds steady from -40°C to +125°C, making this kit equally at home in a sun-baked engine bay or a saltwater-exposed marine installation.

[DUAL-LAYER PLATED CONTACTS FOR LASTING CONDUCTIVITY]

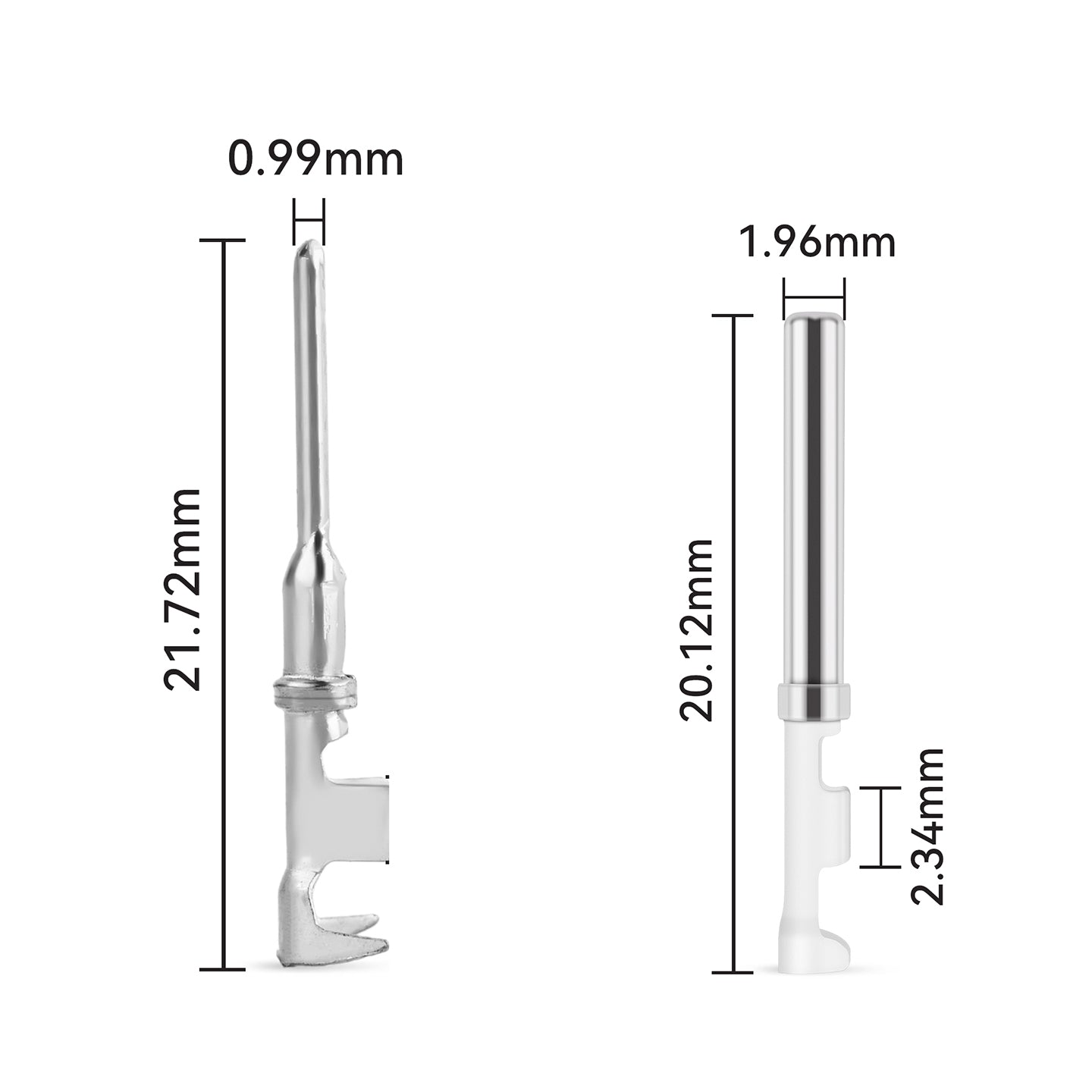

Each stamped terminal in this kit is made from phosphor bronze, striking the right balance between electrical conductivity and mechanical spring retention. A nickel layer over the full contact surface resists oxidation at the mating interface, while a tin-plated crimp tail forms a gas-tight bond around the wire — rated 7.5A / 250V AC/DC across 16-22AWG (1.5–0.35mm²).

[FOUR-CIRCUIT CAPACITY, COMPACT FORM FACTOR]

Four independent circuits in a single compact housing — no need for multiple connectors where space is already tight. Whether you're routing transmission control signals, consolidating sensor inputs, or distributing auxiliary power, this 4-pin configuration handles it cleanly in one connection point without adding bulk to the harness.

[WEDGE LOCKS KEEP EVERY TERMINAL SECURED]

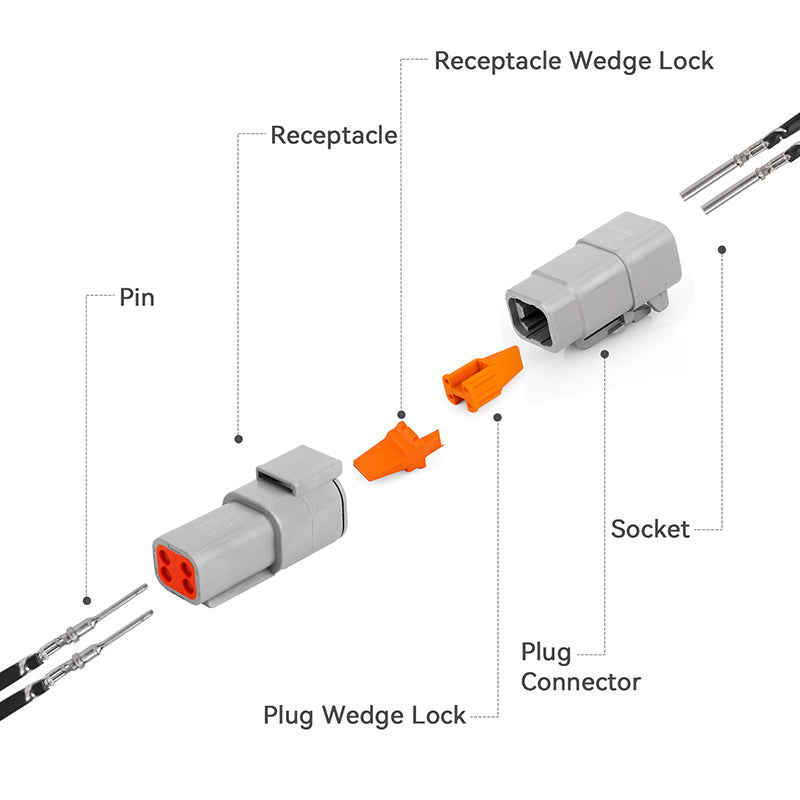

With four terminals per connector, secondary retention matters more than ever. The included wedge locks — one for the plug, one for the receptacle — slide in behind all four terminals simultaneously, mechanically preventing back-out regardless of vibration level or cable pull direction. Terminal retention force exceeds 60N per position, tested against the mechanical stress of heavy-duty automotive and off-road applications.

[BROAD COMPATIBILITY ACROSS DTM AND RELATED SERIES]

These housings mate directly with same-specification DTM series connectors on the market, and the included stamped terminals extend compatibility further — fitting DT, HDP20, HD30, HD10, DRC, and Jiffy Splice series as well. A practical choice for 4-pin wiring across trucks, agricultural machinery, marine vessels, and alternative energy systems where standardized connectivity is essential.
