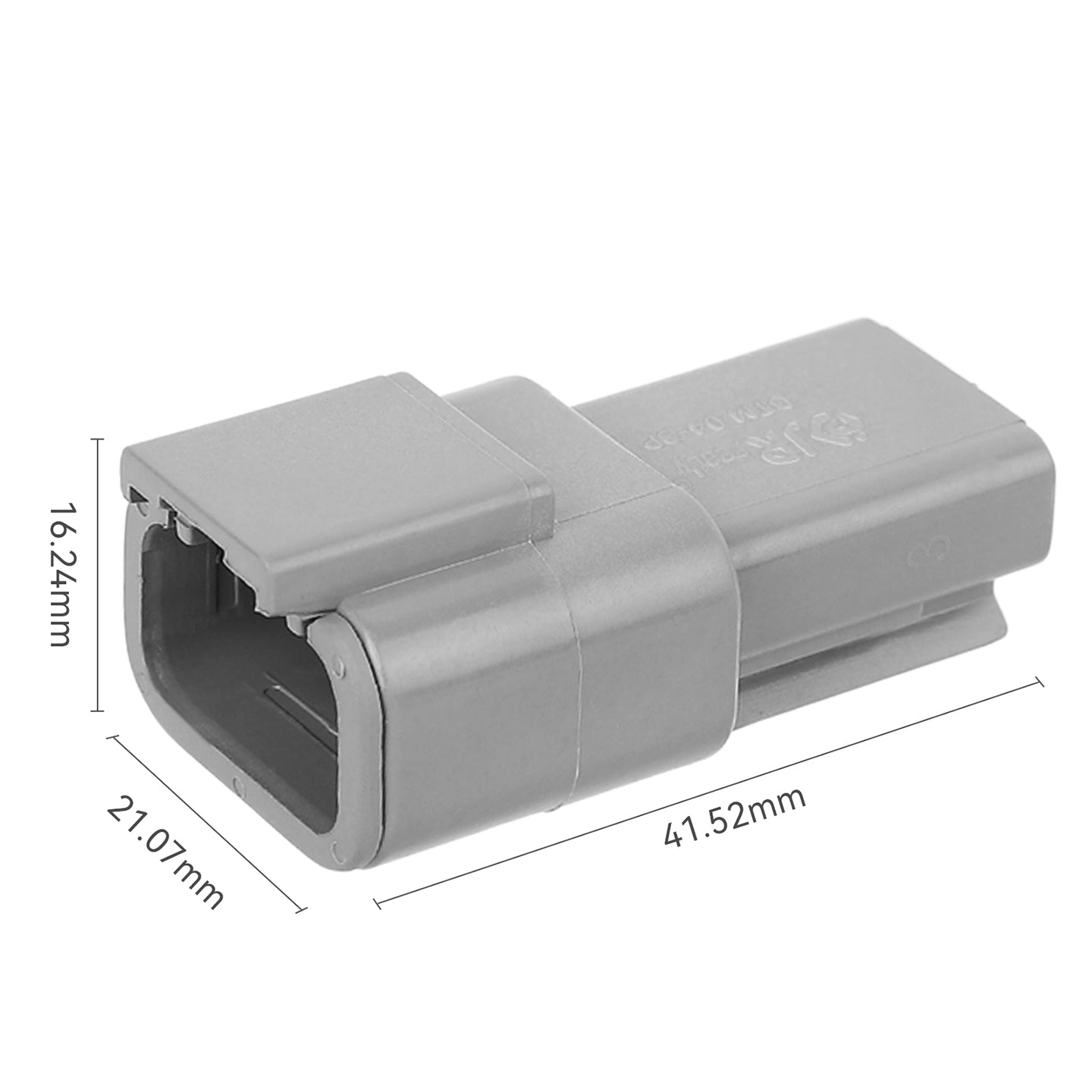

JRready 3-Pin Deutsch DTM Connector Kit with #20 Stamped Contacts, 16-22 AWG - Waterproof Marine, Truck, Motorcycle, Agricultural & Alternative Energy

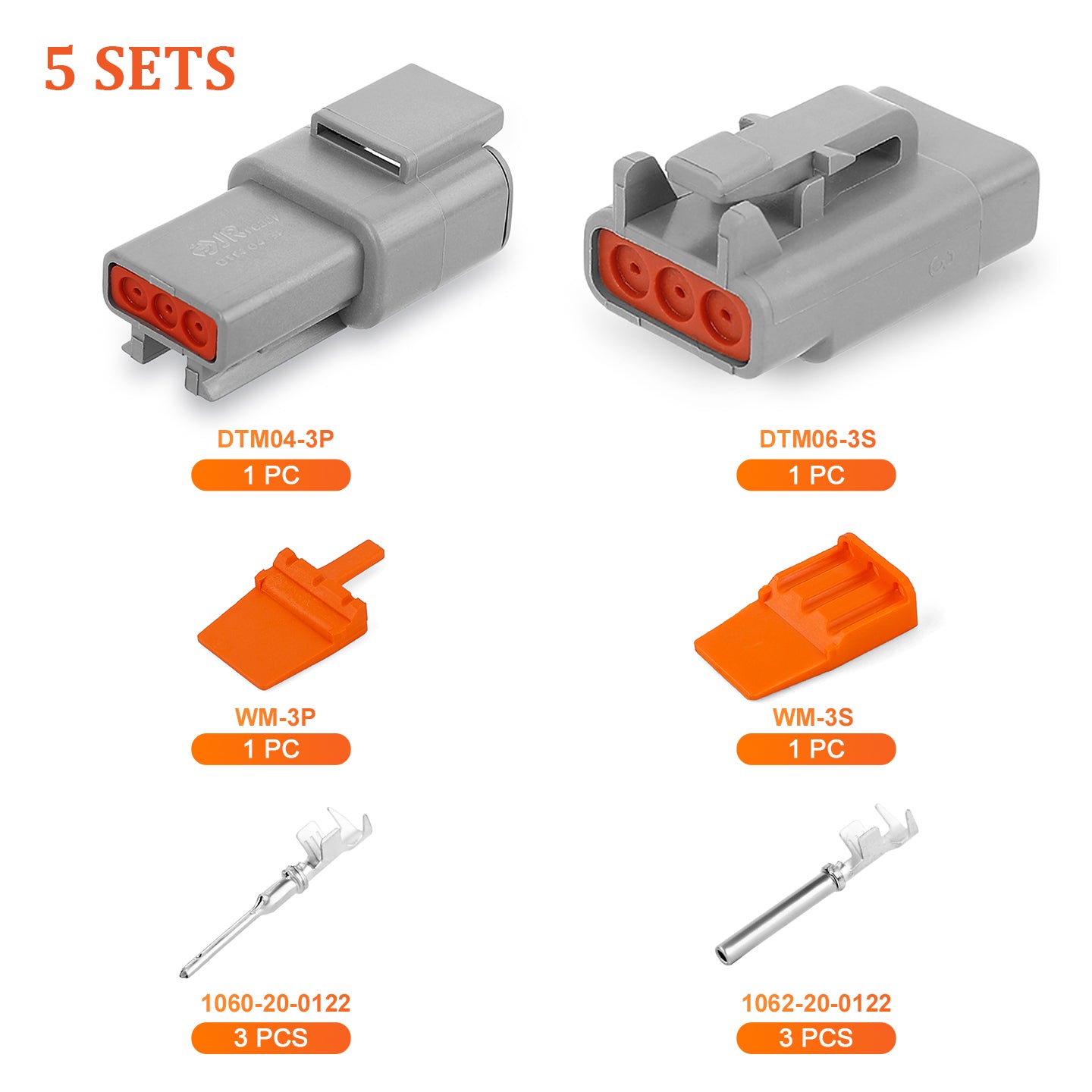

PACKAGE LIST:

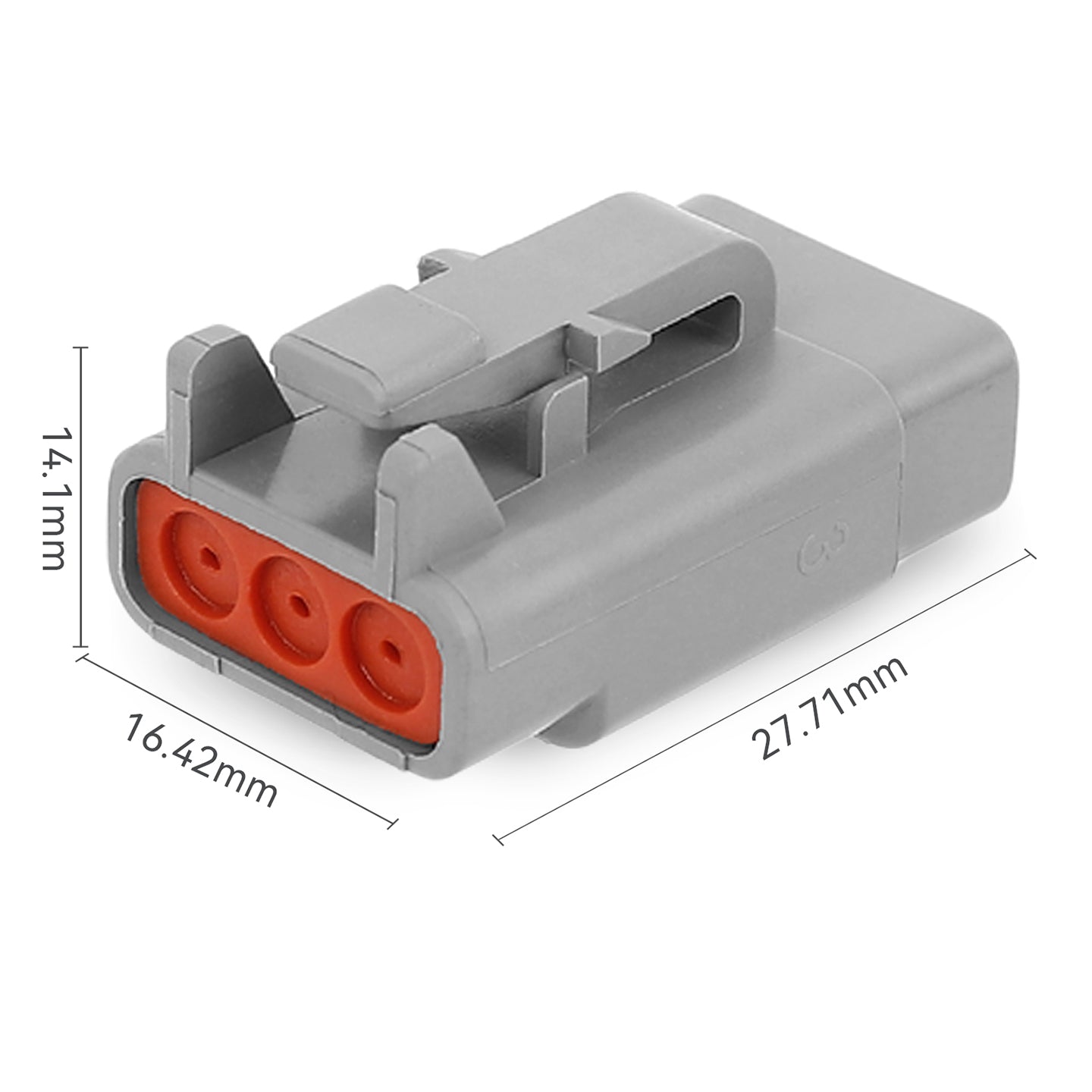

JRready DTM Series 3-Pin connector housings (1 male + 1 female) with stamped contacts, 5 Sets
(WM-3P+WM-3S+DTM04-3P+DTM06-3S+1060-20-0122*3+1062-20-0122*3)*5

[LONGEVITY TESTED — 100+ MATING CYCLES]

Reliability isn't just about the first connection. The DTM series housings are rated for a minimum of 100 insertion and extraction cycles with stamped contacts, maintaining consistent electrical performance throughout their service life. Precision-molded PA66 housing holds its dimensional stability across repeated mating, so the locking mechanism still engages cleanly after years of field use.

[WATERPROOF-RATED FOR HARSH ENVIRONMENTS]

IP67-sealed and flame-retardant to UL94V-0, these PA66 housings are built for environments where moisture, dust, and heat are unavoidable. Operating range spans -40°C to +125°C, with insulation resistance exceeding 1000MΩ and withstand voltage tested at 1500V for 1 minute — the kind of protection that matters most in engine bays, marine decks, and agricultural equipment.

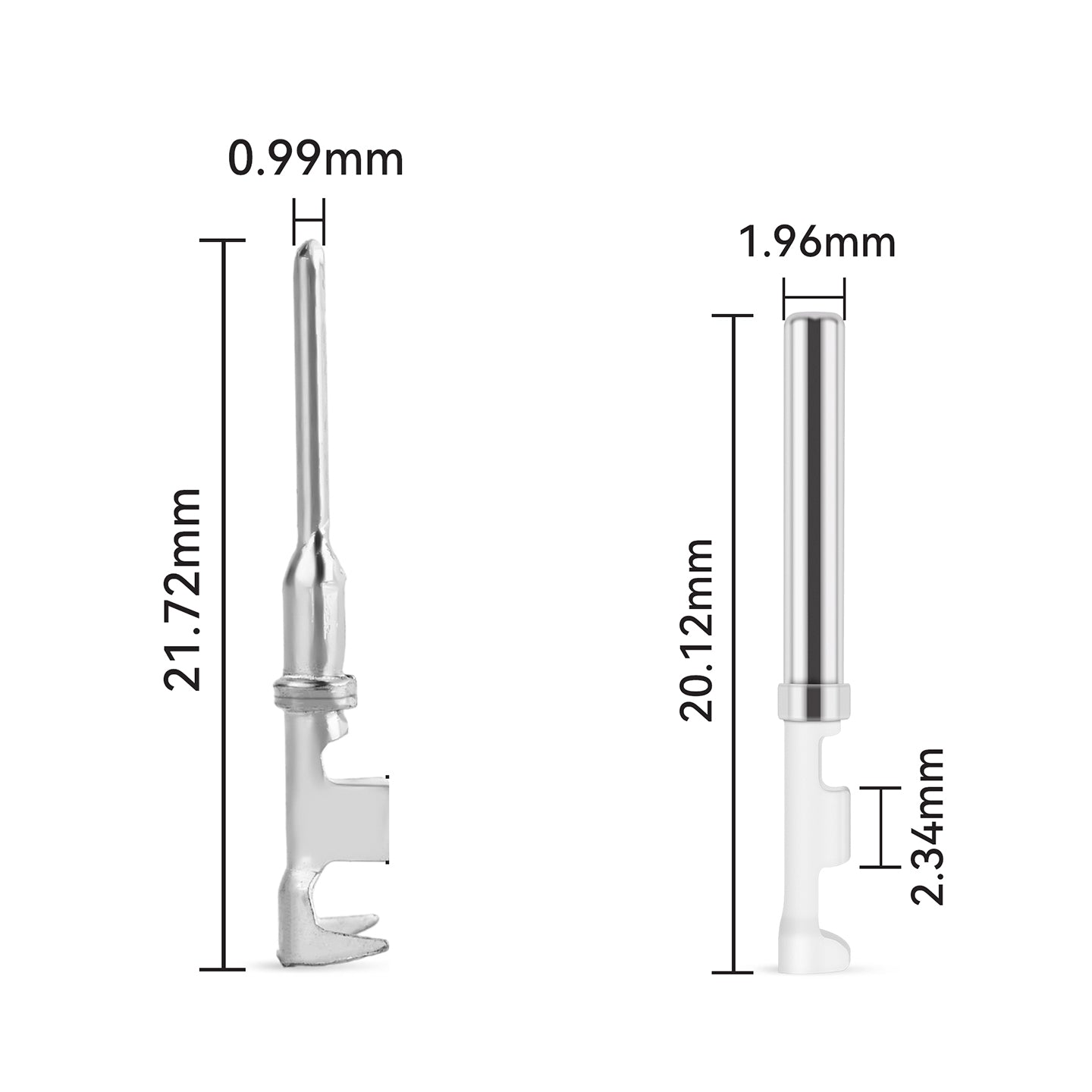

[PRECISION-STAMPED CONTACTS, BUILT TO LAST]

Phosphor bronze construction gives these terminals the spring elasticity to maintain contact pressure over thousands of hours of operation. Full-surface nickel plating fights oxidation at the mating interface, while the tin-plated crimp tail forms a gas-tight seal around the wire. Rated 7.5A / 250V AC/DC across 16-22AWG (1.5–0.35mm²).

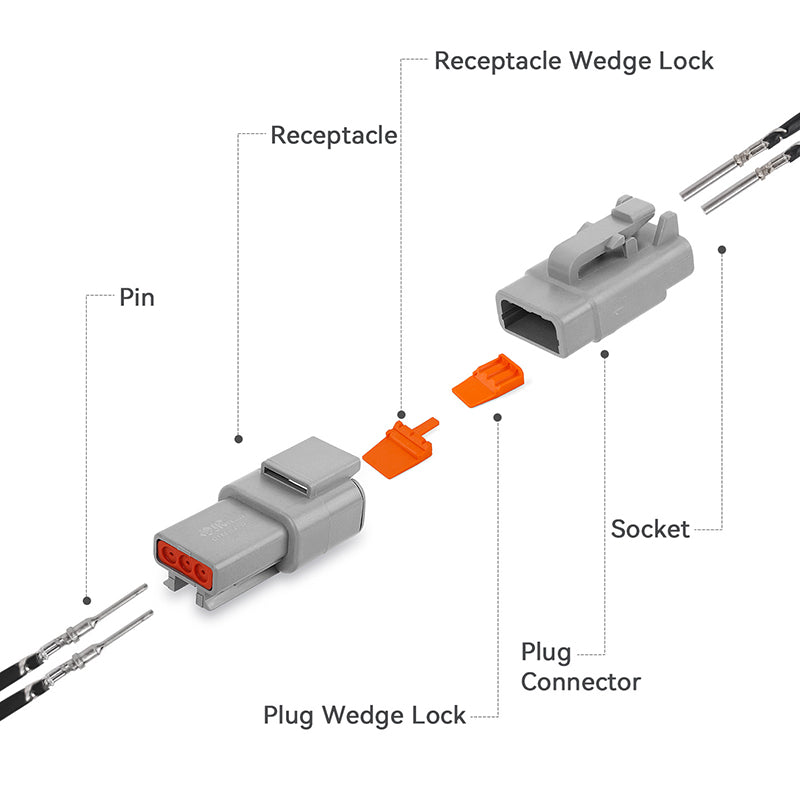

[WEDGE LOCK SECONDARY RETENTION]

Each connector set ships with both a plug wedge lock and a receptacle wedge lock. Once inserted, the wedge mechanically locks each terminal in position, adding a secondary retention layer beyond the terminal's own locking tab. With terminal retention force exceeding 60N, this assembly resists back-out under vibration and mechanical stress common in automotive and marine applications.

[DROP-IN REPLACEMENT FOR DTM SERIES WIRING]

Built to DTM series mating dimensions and cross-compatible with same-specification connectors on the market. These stamped terminals extend beyond DTM — also fitting DT, HDP20, HD30, HD10, DRC, and Jiffy Splice series, making them a practical choice wherever existing wiring needs a reliable 3-pin solution across motorcycles, trucks, marine vessels, and alternative energy systems.
