JRready 6-Pin Deutsch DTM Connector Kit with #20 Stamped Contacts, 16-22 AWG - Waterproof Marine, Truck, Motorcycle, Agricultural & Alternative Energy

PACKAGE LIST:

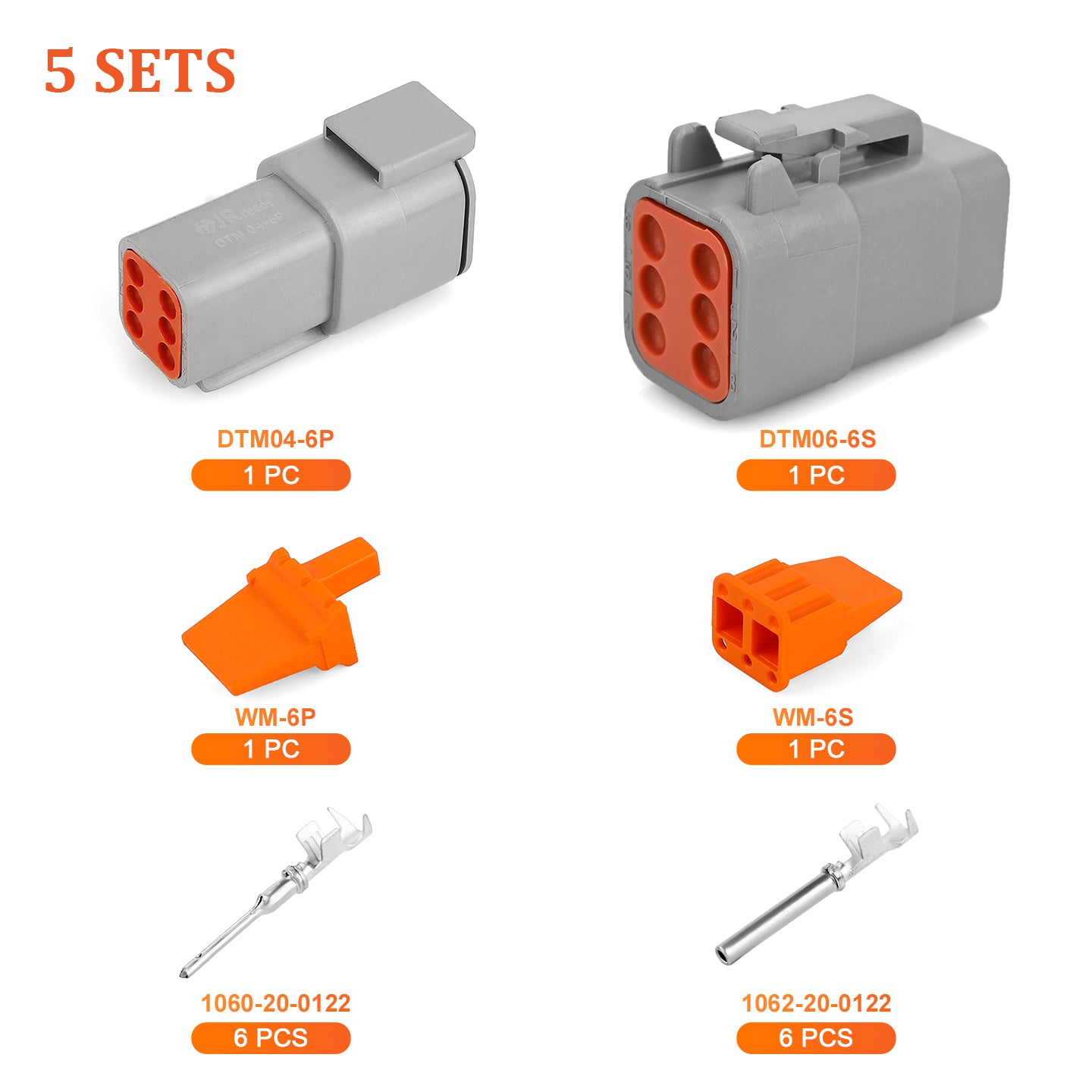

JRready DTM Series 6-Pin connector housings (1 male + 1 female) with stamped contacts, 5 Sets
(WM-6P+WM-6S+DTM04-6P+DTM06-6S+1060-20-0122*6+1062-20-0122*6)*5

[WEATHERPROOF HOUSING, ZERO COMPROMISES]

These 6-pin housings are IP67-rated and molded from PA66 nylon with UL94V-0 flame retardancy, blocking moisture, dust, and contaminants even under sustained exposure. With an operating range of -40°C to +125°C and withstand voltage tested at 1500V for 1 minute, the housing holds its seal whether you're dealing with underhood heat, coastal humidity, or off-road mud.

[GAS-TIGHT CRIMP, CIRCUIT-READY OUT OF THE BOX]

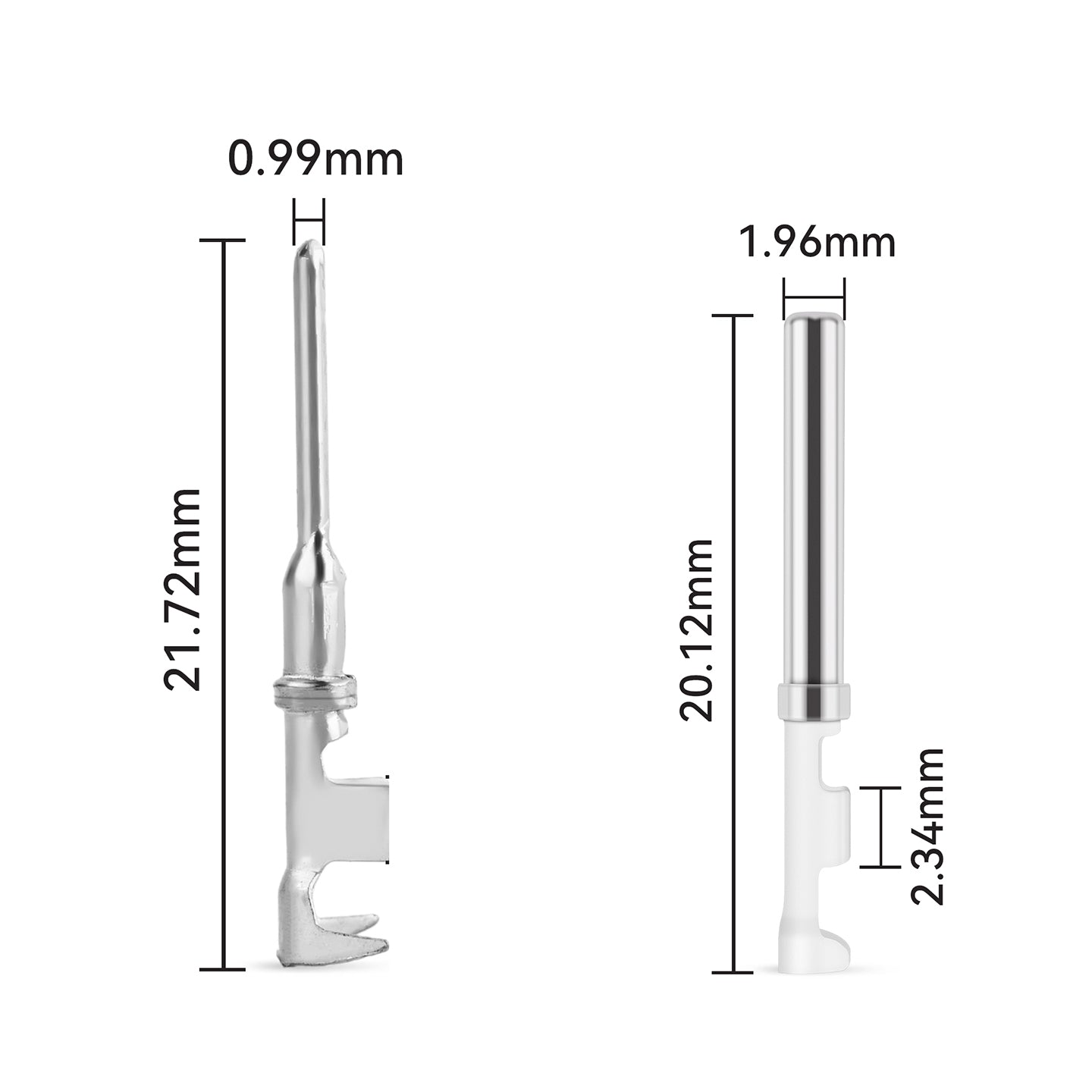

Stamped terminals with full-surface nickel plating resist oxidation at every mating point, while the tin-plated crimp tail locks down a gas-tight connection around the wire. Six contacts per connector, each rated 7.5A / 250V AC/DC, handling 16-22AWG (1.5–0.35mm²) — consistent performance across every circuit in the harness.

[SIX CIRCUITS, ONE CLEAN CONNECTION]

Consolidating six signal or power circuits into a single mated pair keeps wiring harnesses organized and reduces the number of connection points that could fail in the field. A practical solution for multi-sensor arrays, lighting control clusters, engine management systems, or any application where circuit density and harness cleanliness matter.

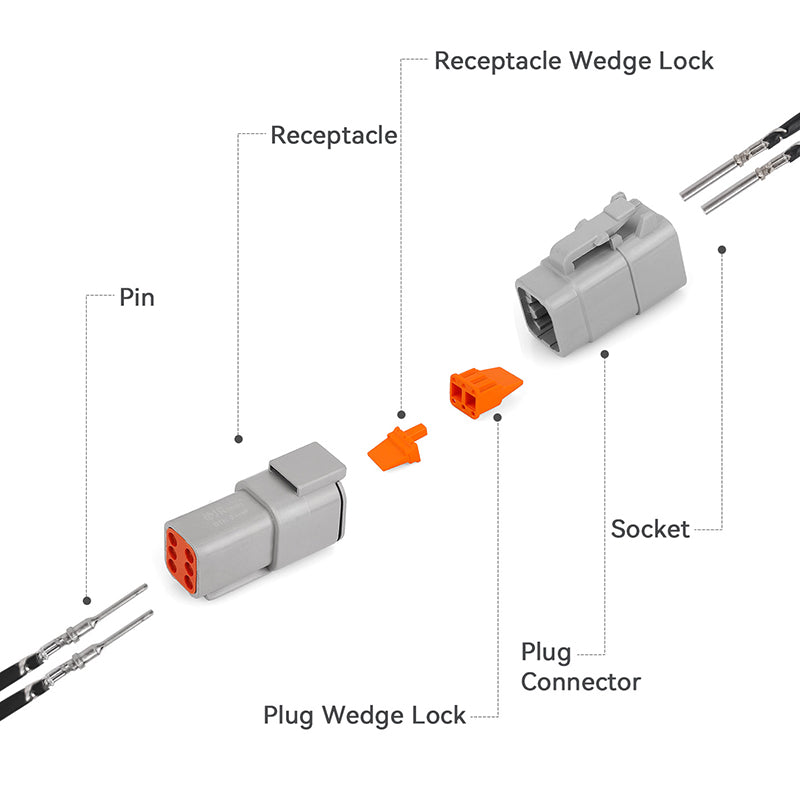

[SECONDARY RETENTION ACROSS ALL SIX POSITIONS]

The wedge locks included in each set engage all six terminal positions at once, adding a mechanical retention layer that works independently of the terminal's primary locking tab. Even under sustained vibration or sudden cable tension, terminal retention force exceeds 60N per position — keeping every circuit in contact when the conditions turn rough.

[FITS DTM SERIES AND BEYOND]

Built to DTM series mating specifications and cross-compatible with same-spec connectors on the market. The stamped terminals also work across DT, HDP20, HD30, HD10, DRC, and Jiffy Splice series — covering the most common connector families used in trucks, marine vessels, agricultural equipment, and alternative energy installations requiring reliable 6-pin connectivity.
