JRready 2-Pin Deutsch DTP Connector Kit with #12 Solid Contacts, 12-14 AWG (25A) - Waterproof Marine, Truck, Agricultural & Alternative Energy

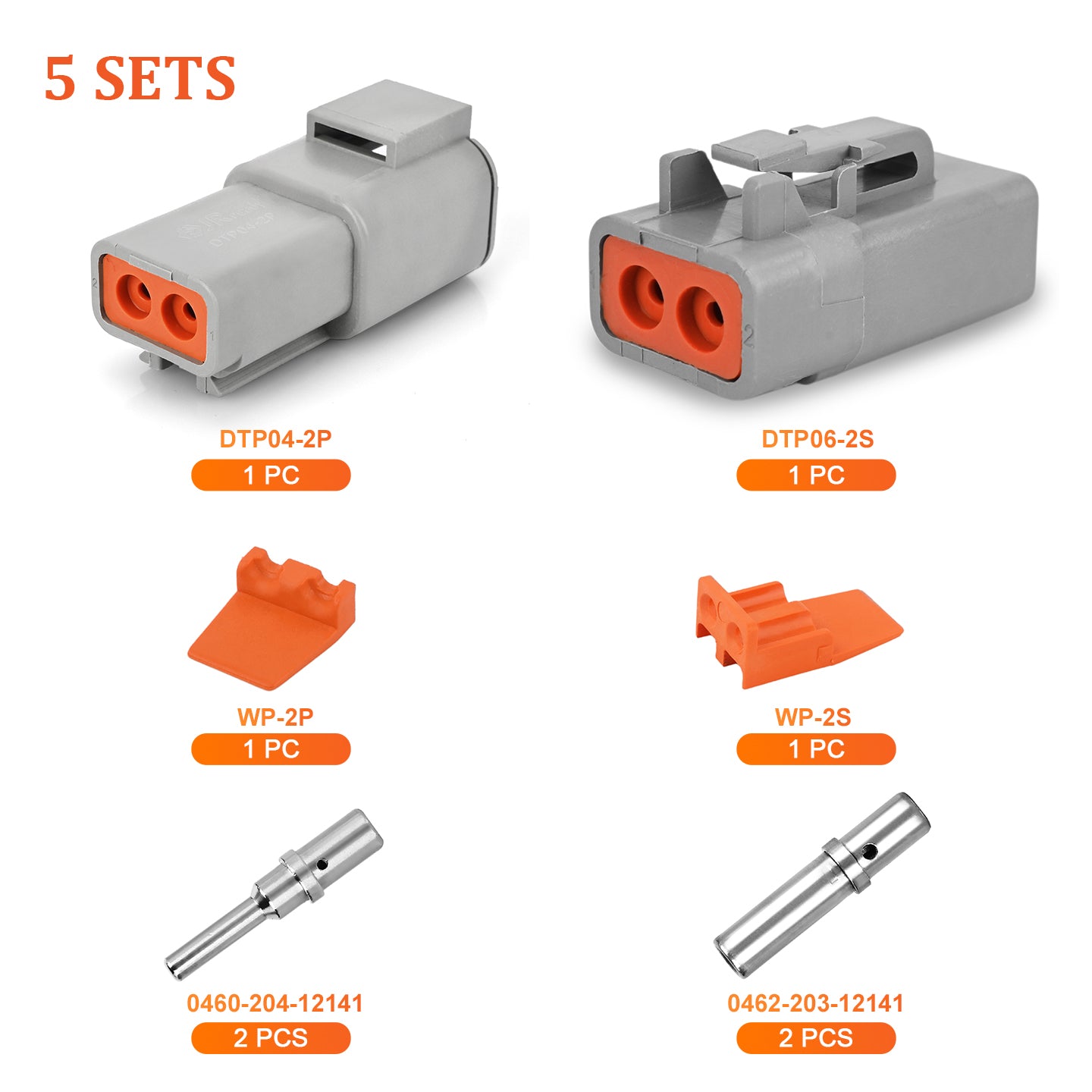

PACKAGE LIST:

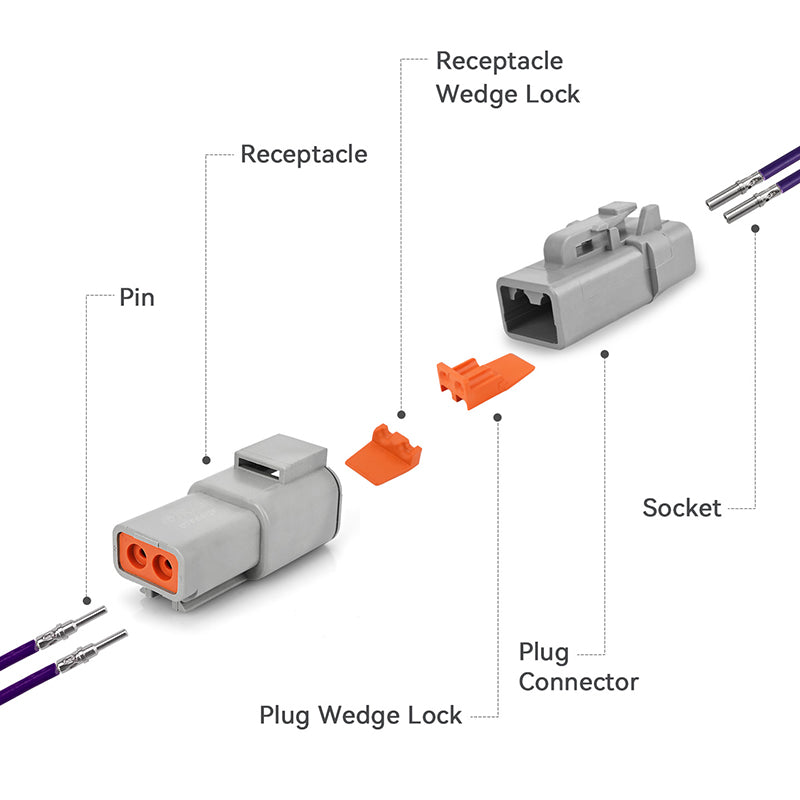

JRready DTP Series 2-Pin connector housings (1 male + 1 female) with solid contacts, 5 Sets.
(WP-2P+WP-2S+DTP04-2P+DTP06-2S+0462-203-12141*2+0460-204-12141*2)*5

[25A CONTINUOUS LOAD — WIRED FOR REAL POWER]

When a circuit carries sustained current, the connector in the path needs to keep up. These contacts are rated at 25A on 12AWG (3.0mm²) wire, stepping down to 18A at 14AWG and 13A at 16AWG — matched to the wire, not just the housing. At 250V AC/DC, this kit handles the power demands of winches, lighting arrays, and heavy equipment distribution circuits without derating.

[WATERPROOF HOUSING, FIELD-TESTED TOUGH]

The PA66 housing carries an IP67 waterproof rating and UL94V-0 flame retardancy, operating continuously from -40°C to +125°C through engine heat, saltwater exposure, and outdoor cycling. Insulation resistance stays at ≥1000MΩ under normal conditions, with dielectric strength verified at 1500V for 1 minute — built for environments where connector failure isn't an option.

[CONTACTS THAT OUTLAST THE JOB]

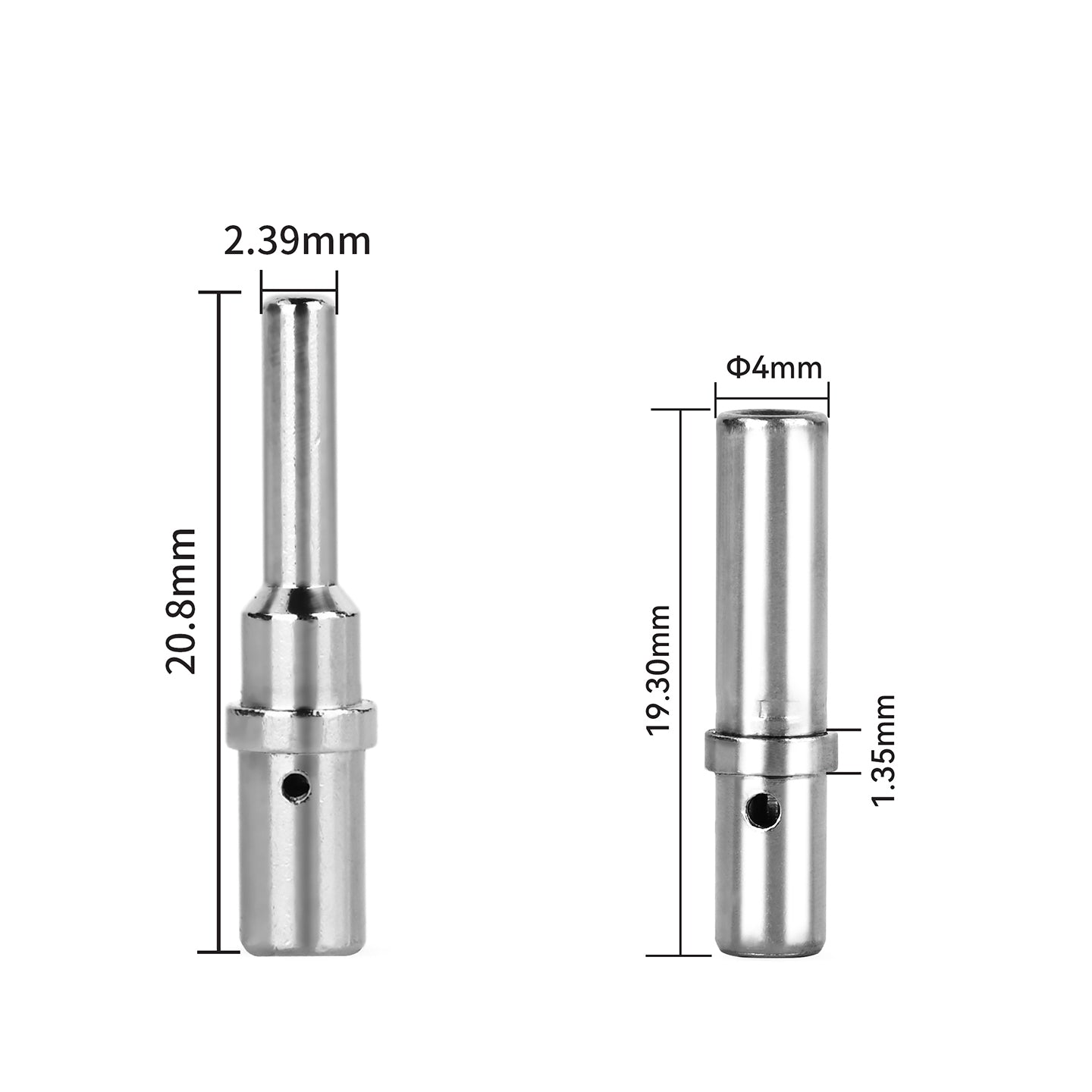

Full nickel plating across the entire contact surface resists oxidation and corrosion, maintaining low-resistance connections over a rated service life of ≥500 mating cycles. For systems that get disconnected during seasonal storage, diagnostics, or field servicing, that consistency means the connection performs the same on cycle 400 as it did on day one.

[TERMINALS THAT LOCK AND STAY LOCKED]

A quad-axis crimp compresses the conductor uniformly from four directions, forming a gas-tight mechanical bond with pull force reaching 334N on 12AWG wire. The wedge lock adds a second layer of retention, physically securing each terminal in the housing cavity against vibration and shock loads — with overall terminal retention force exceeding 130N.

[FITS YOUR EXISTING WIRING SYSTEM]

These housings and contacts are manufactured to DTP series mating dimensions and are fully compatible with same-specification connectors available on the market. The contacts also adapt to HD10, HDP20, HD30, and DRB series connectors, so this kit integrates cleanly into mixed harness builds across marine vessels, agricultural equipment, and heavy transport without requiring a full system change.
