DRK-T270320

Dual-Forged Construction For Dimensional Stability
The DRK-T270320 pairs a forged stainless steel needle bar with a forged aluminum alloy handle, each shaped through a precision cold drawing process that keeps tolerances tighter than standard manufacturing allows. This approach to construction means the tool retains its true geometry across extended use rather than gradually drifting out of spec the way lower-quality tools often do.

Sized For Amphenol RT360 And SOURIAU TRIM TRIO Terminals
The DRK-T270320 features a tip with an inner diameter of 2.7mm and outer diameter of 3.2mm, matched to 16# terminals in Amphenol RT360 series connectors as well as SOURIAU TRIM TRIO series terminals. A single tool covering both connector standards saves bench space and reduces the number of dedicated tools a technician needs to carry.

Angled Tip Helps Guide Initial Contact

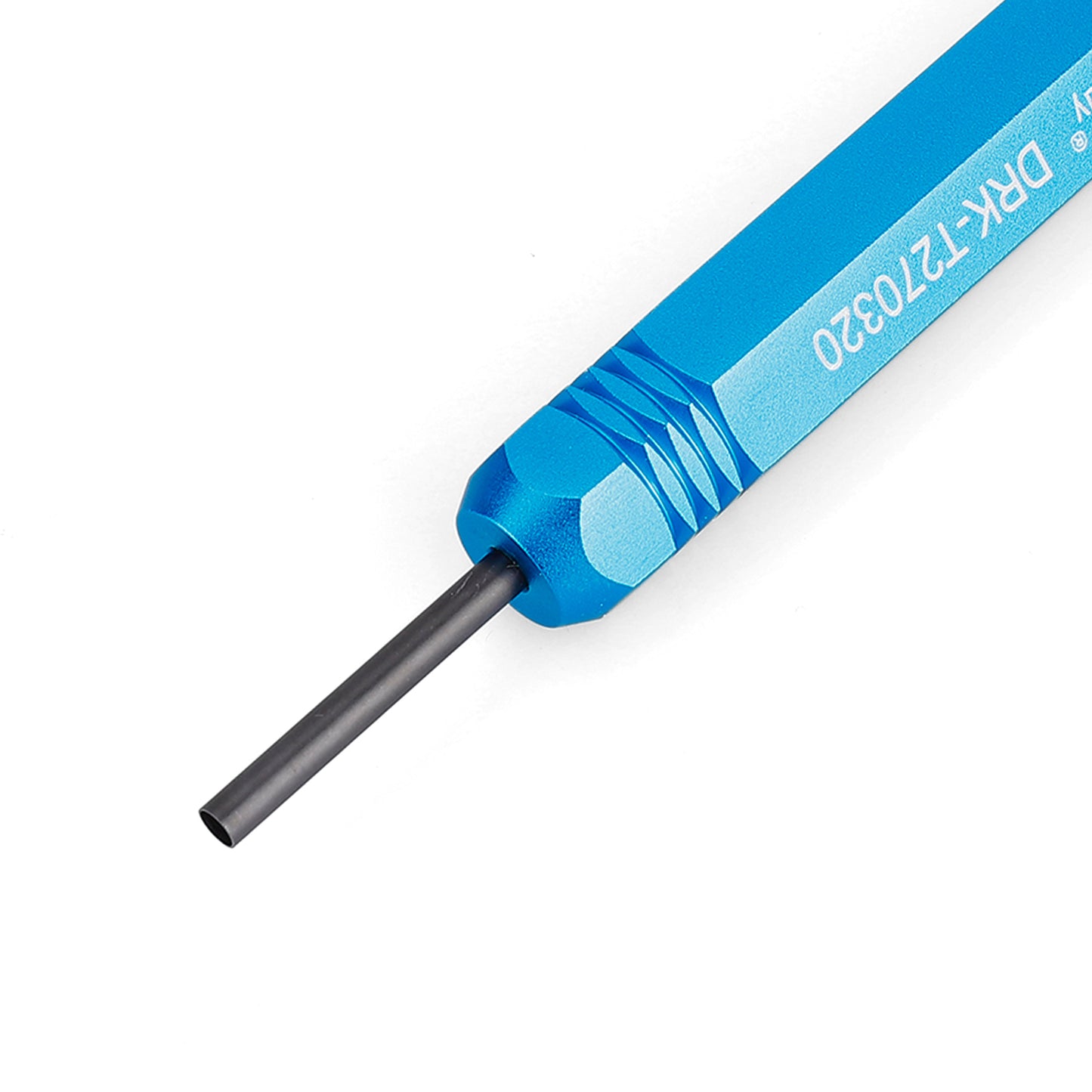

The tip of the needle bar is shaped with a slight angle rather than a flat cut, which helps the tool find its way into the terminal cavity even when the approach isn't perfectly straight. This is particularly helpful when working in connector positions that are partially blocked by surrounding wires or housing features.

700HV Steel Tip Stays True Under Pressure
The needle bar is hardened to 700HV, giving it the strength to resist bending under the repeated force involved in terminal extraction. Where softer materials tend to bow out of shape after extended use, this hardness level keeps the tip straight and reliable session after session.

Suited To Aerospace And Industrial Connector Servicing
Technicians working with Amphenol RT360 and SOURIAU TRIM TRIO connectors — both common in aerospace, military, and rugged industrial wiring applications — will find the DRK-T270320 a practical tool for individual terminal replacement without requiring full connector teardown.
