JRready 2-Pin Deutsch DTM Connector Kit with #20 Stamped Contacts, 16-22 AWG - Waterproof Marine, Truck, Motorcycle, Agricultural & Alternative Energy

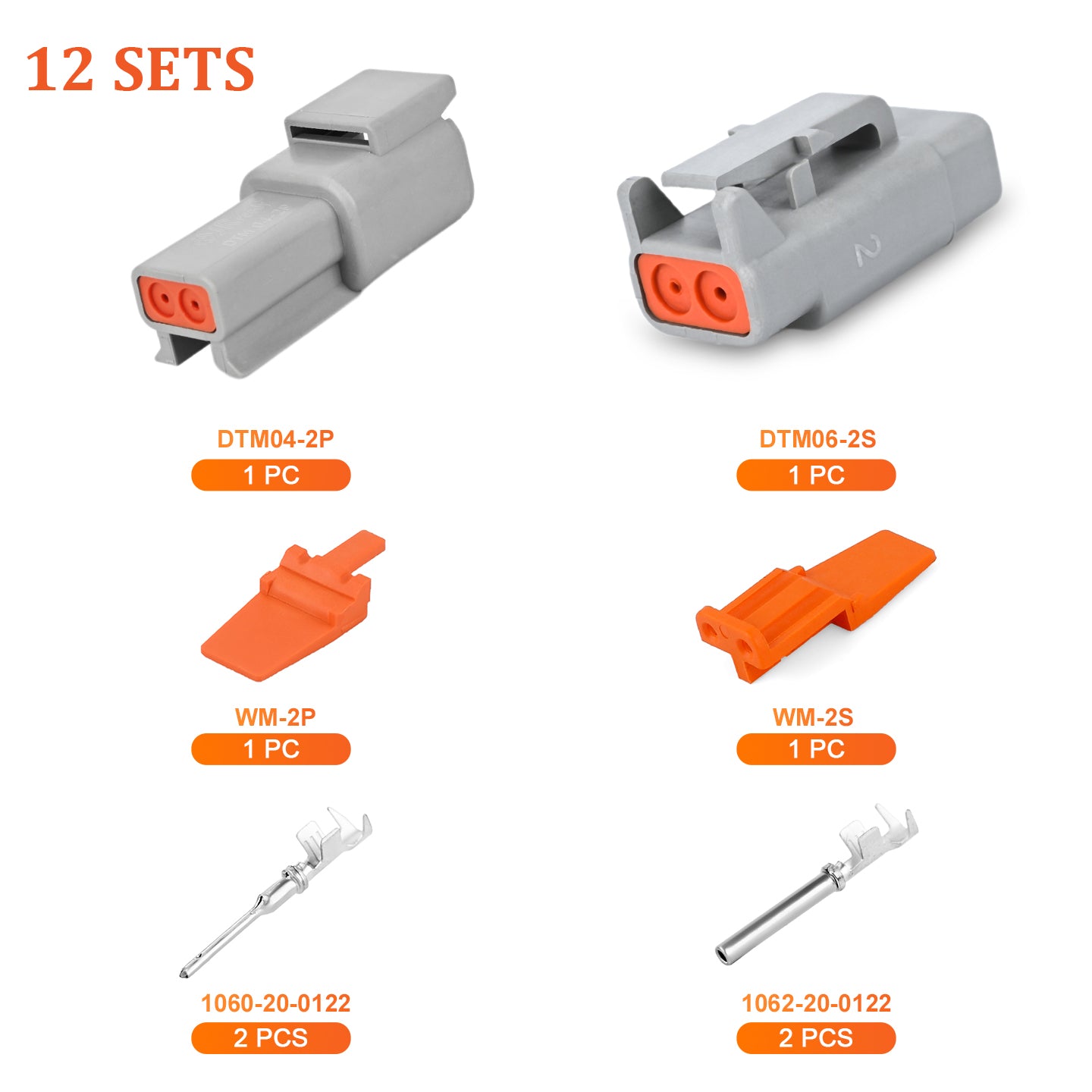

PACKAGE LIST:

JRready DTM Series 2-Pin connector housings (1 male + 1 female) with stamped contacts, 12 Sets
(WM-2P+WM-2S+DTM04-2P+DTM06-2S+1060-20-0122*2+1062-20-0122*2)*12

[TESTED FOR LONGEVITY — RATED FOR 100+ MATING CYCLES]

Reliability isn't just about the first connection. The DTM series housings in this kit are rated for a minimum of 100 insertion and extraction cycles with stamped contacts, holding consistent electrical performance throughout their service life. The precision-molded PA66 housing maintains dimensional stability across repeated mating, ensuring the locking mechanism engages cleanly every time — whether you're installing once in a permanent harness or reconnecting regularly during maintenance and diagnostics.

[WATERPROOF-RATED FOR REAL-WORLD HARSH ENVIRONMENTS]

Rain, mud, engine bay heat, saltwater spray — this kit is engineered to take it. The DTM series housings carry an IP67 waterproof rating and are molded from PA66 nylon with UL94V-0 flame retardancy, surviving continuous operation from -40°C to +125°C. Voltage resistance is tested at 1500V for 1 minute without breakdown, with insulation resistance exceeding 1000MΩ — protection that holds up where ordinary connectors fail.

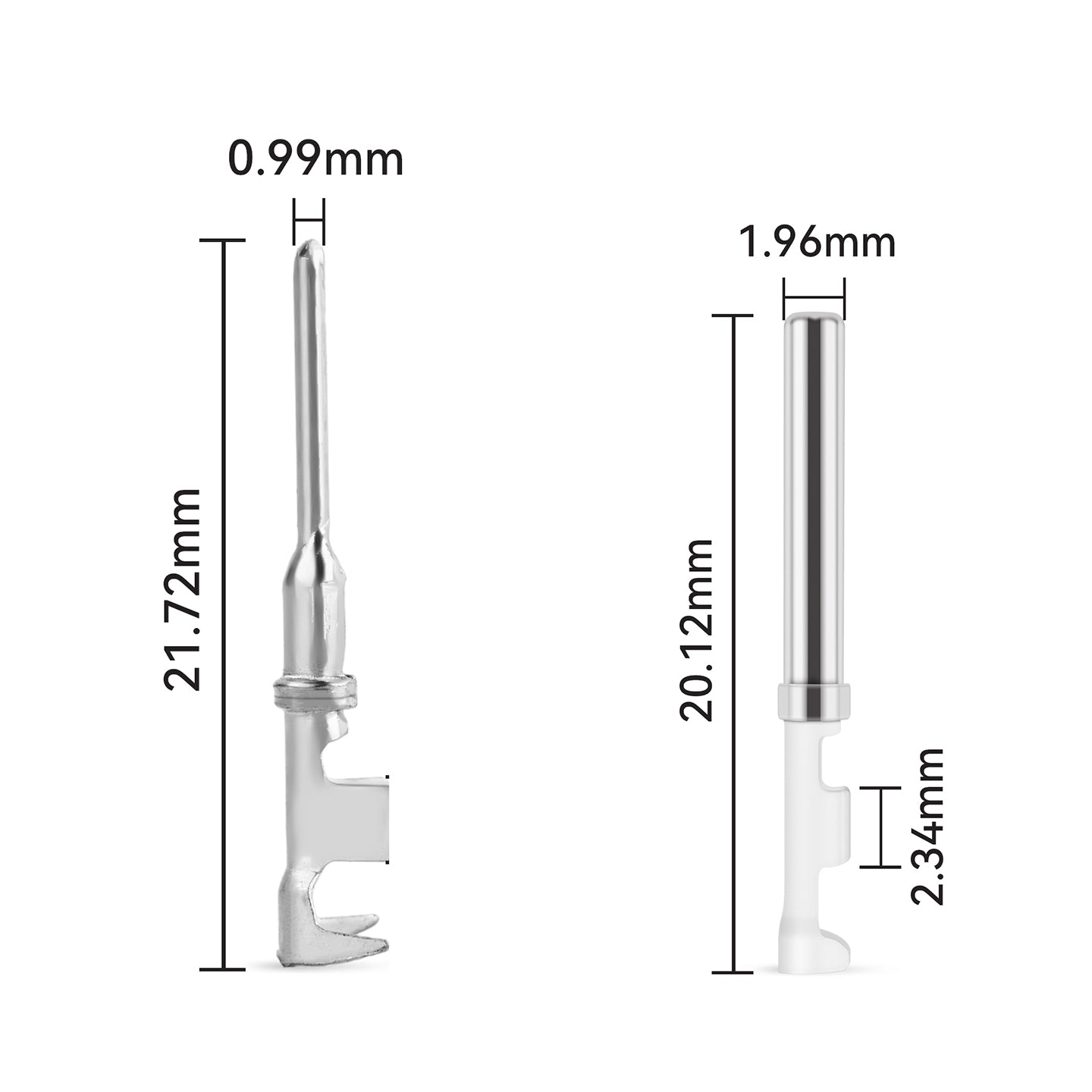

[PRECISION-STAMPED CONTACTS FOR CONSISTENT LOW-RESISTANCE CONNECTION]

The stamped terminals inside this kit are made from phosphor bronze — a material chosen for its combination of spring elasticity, fatigue resistance, and excellent electrical conductivity. A nickel plating layer covers the full contact surface for oxidation resistance, while a tin-plated tail ensures a reliable gas-tight crimp. Rated at 7.5A / 250V AC/DC, these contacts handle 16-22AWG wire (1.5–0.35mm²) with consistent low-resistance connections over time.

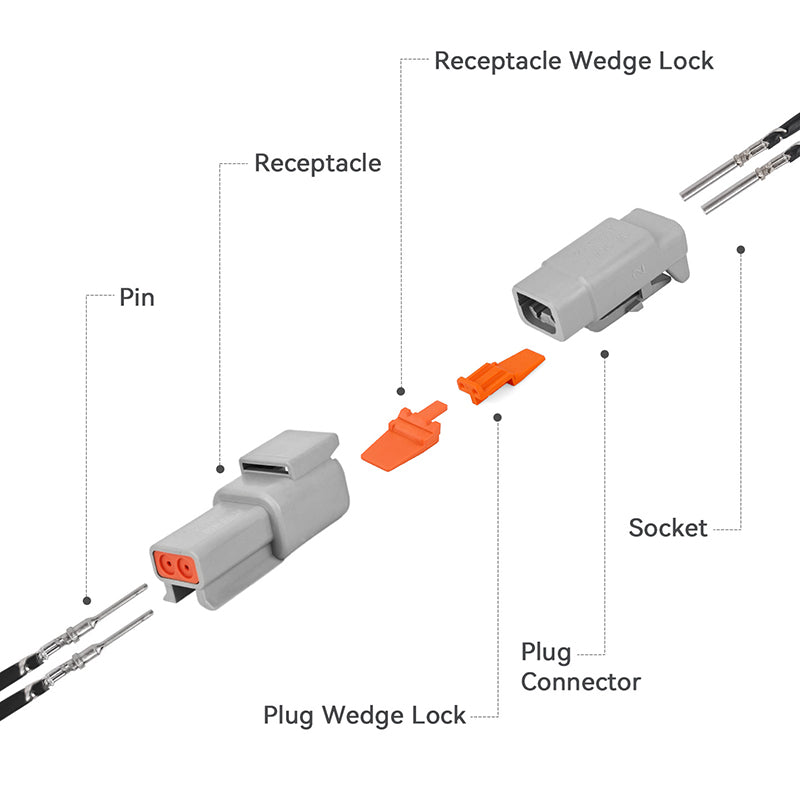

[WEDGE LOCK SECONDARY RETENTION — TERMINALS STAY PUT]

Each connector set ships with both a plug wedge lock  and a receptacle wedge lock. Once inserted, the wedge mechanically locks each terminal in position, adding a secondary retention layer beyond the terminal's own locking tab. With terminal retention force exceeding 60N, this assembly resists terminal back-out under vibration, sudden load shifts, and the mechanical stress common in automotive and marine wiring harnesses.

[DTM SERIES DIRECT-FIT — CROSS-COMPATIBLE WITH MARKET-STANDARD CONNECTORS]

These housings and terminals are manufactured to DTM series mating dimensions and are fully compatible with same-specification connectors available on the market. The stamped terminals (1060/1062-20-0122) also adapt to DT, HDP20, HD30, HD10, DRC, and Jiffy Splice series connectors, giving you flexibility across existing wiring systems. Ideal for motorcycles, trucks, agricultural equipment, marine vessels, and alternative energy installations requiring compact, reliable 2-pin connectivity.
