JRready JRN002 3 Pin Standard.093 Pin and Socket Connectors 3 Circuits (20 Matched Sets), 14-20 AWG, Compatible with Molex Standard.093 Male& Female Connector, 5.03 mm Pitch, Free Hanging

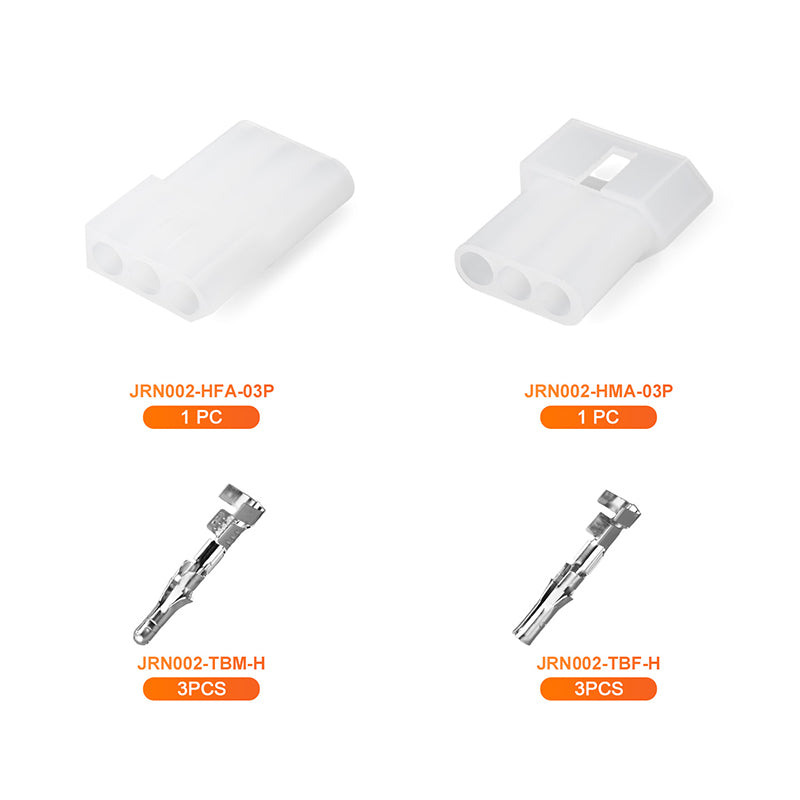

Package List：3 pin male and female connector housing 20 pairs, pin and sockets 60 pairs.

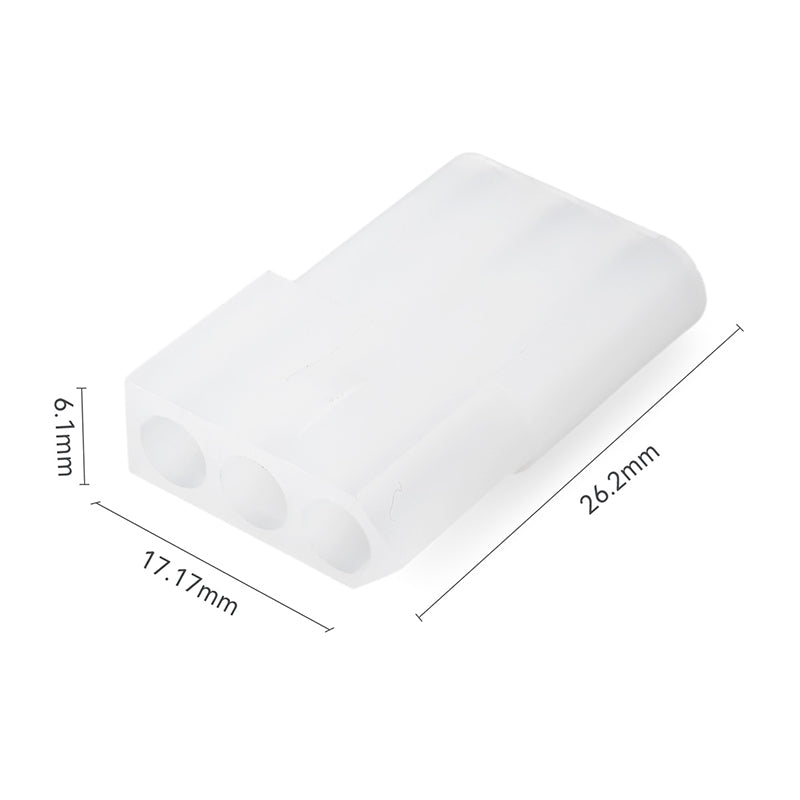

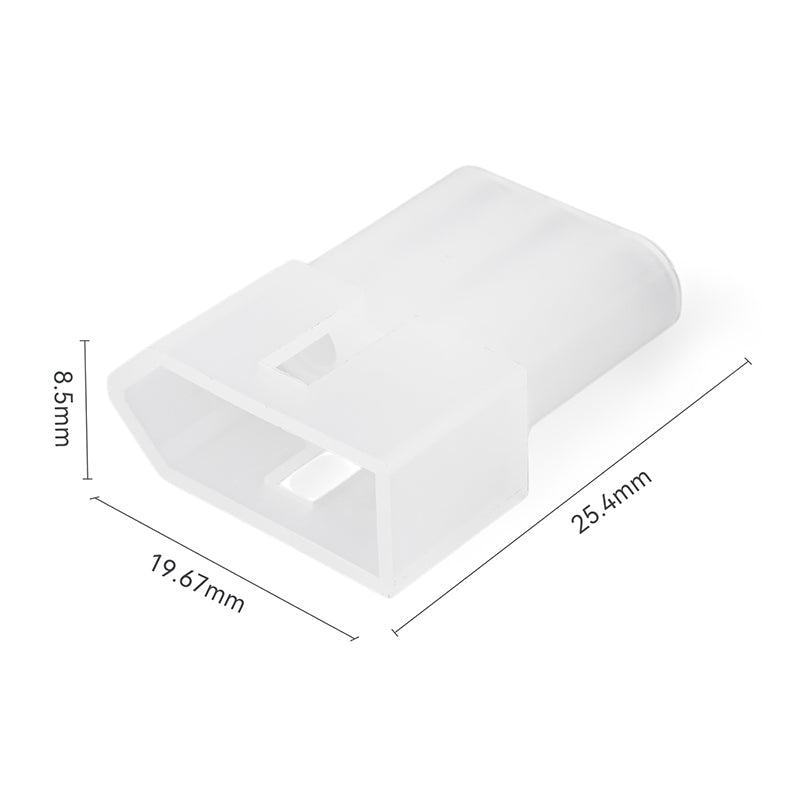

Description: 2.36mm diameter standard .093" pin and socket receptacle housing, 3 Circuits, 5.03 pitch, without mounting ears, free hanging.
Housings: made of high quality PA66 material，sturdy and durable，high and low temperature resistance -40-105℃.

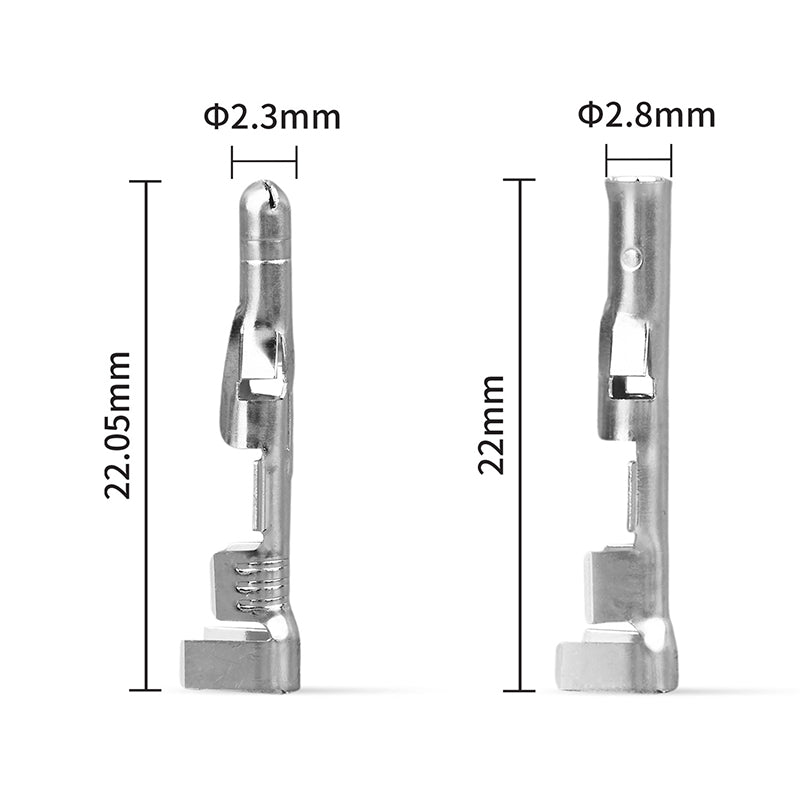

Contacts: Brass tin plated material, high temperature resistance, corrosion resistance, high conductivity, wire range 14-20 AWG, rated current 12A.
Compatible Molex Models: Connector Housings: 03091032 / 03092032, contacts pin: 02092101 / 02092103，socket: 02091102 / 02091104.

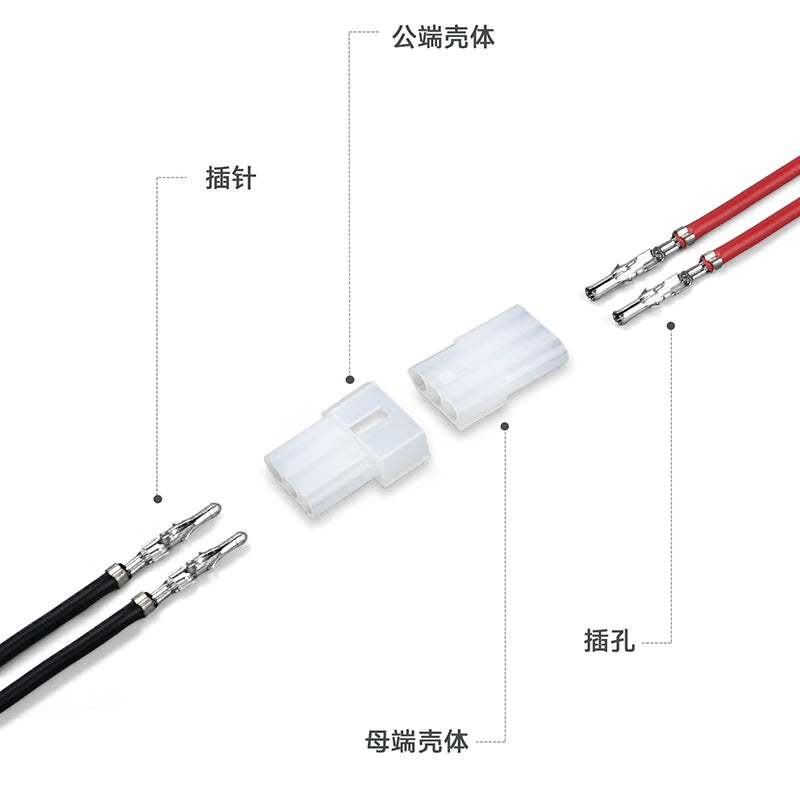

Application：Standard 0.093"(2.36mm) Pin and Socket, Wire to Wire Connection are ideal for consumer, networking, and data/communications applications.
Applicable crimping tool: ACT-LY-JRN002-H
Pin removal tool: DAP-T320360
                             JRconDRK-T320360
                             JRDDS-T320360
