JRready JRN002 4 Pin Standard.093 Pin and Socket Connectors 4 Circuits (20 Matched Sets), 14-20 AWG, Compatible with Molex Standard.093 Male& Female Connector, 5.03 mm Pitch, Free Hanging

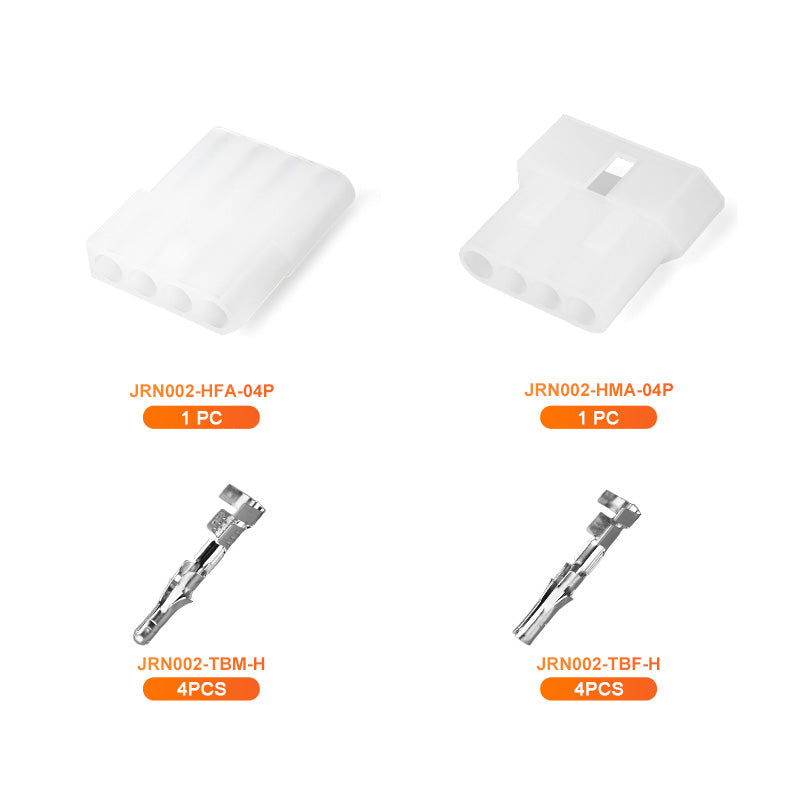

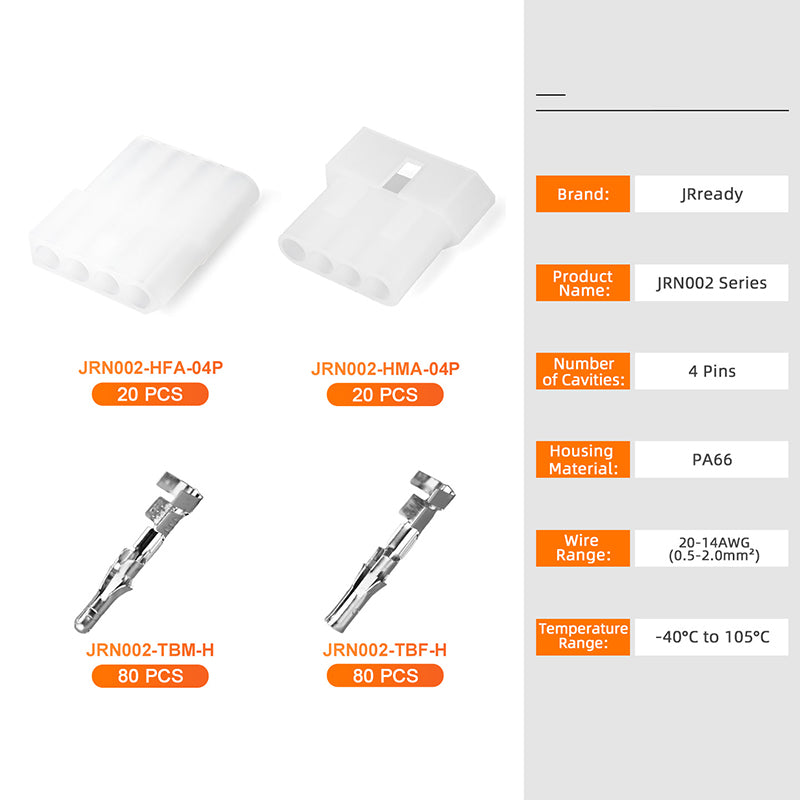

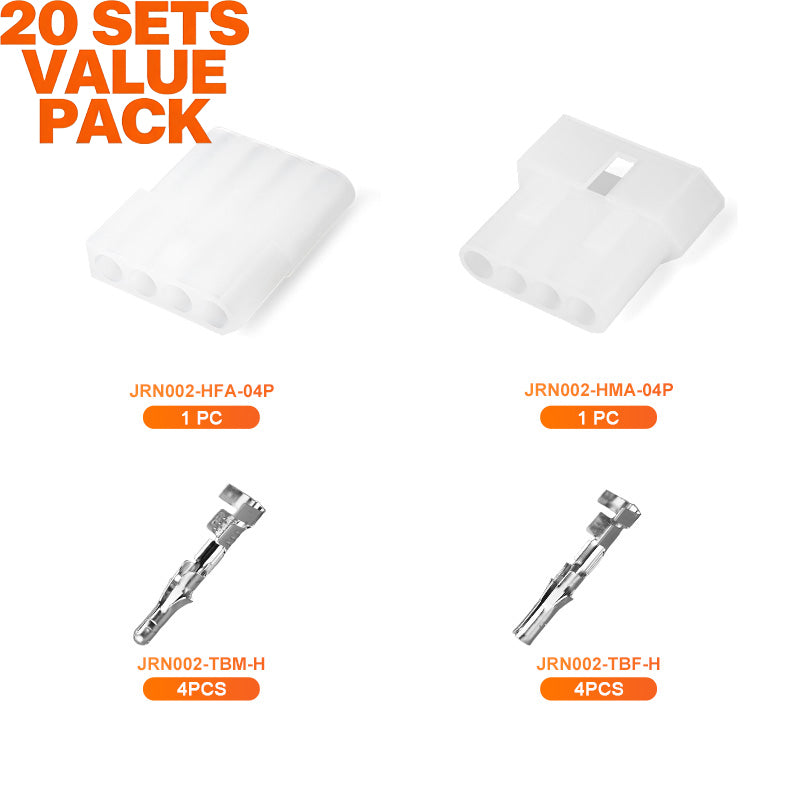

Package List：4 pin male and female connector housing 20 pairs, pin and sockets 80 pairs.

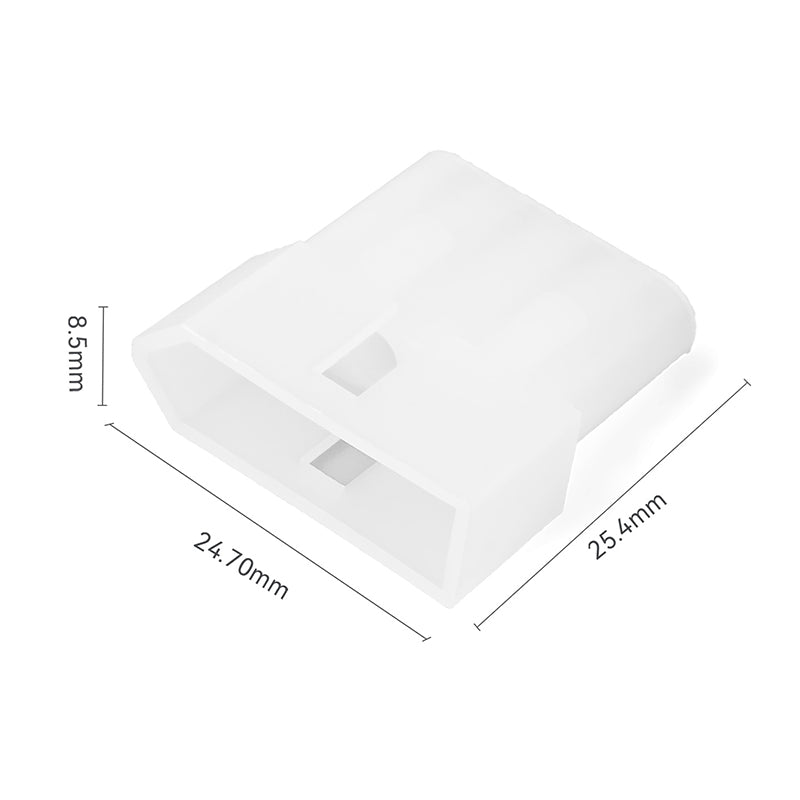

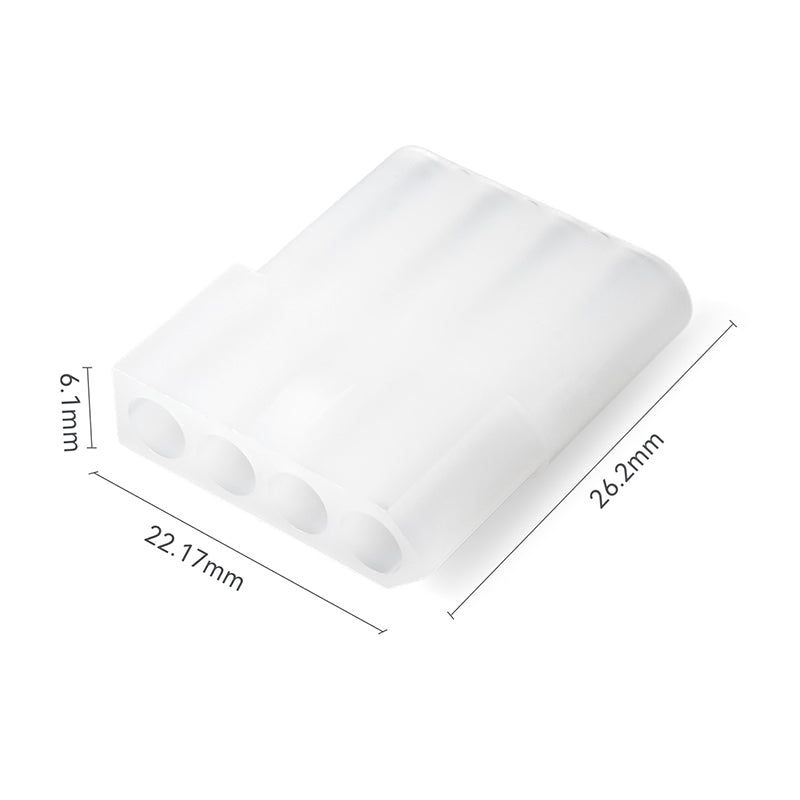

Description: 2.36mm diameter standard .093" pin and socket receptacle housing, 4 Circuits, 5.03 pitch, without mounting ears,free hanging
Housings: made of high quality PA66 material，sturdy and durable，high and low temperature resistance -40-105℃.

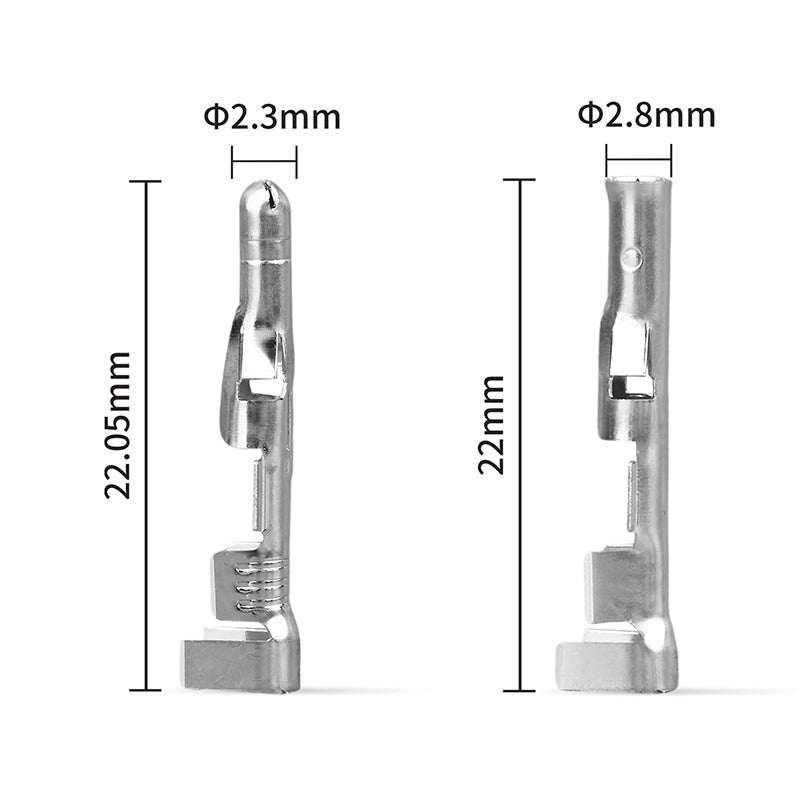

Contacts: Brass tin plated material, high temperature resistance,corrosion resistance,high conductivity, wire range 14-20 AWG, rated current 12A.
Compatible models: Connector Housings:03091042 / 03092042, contacts pin: 02092101 / 02092103，socket: 02091102 / 02091104.

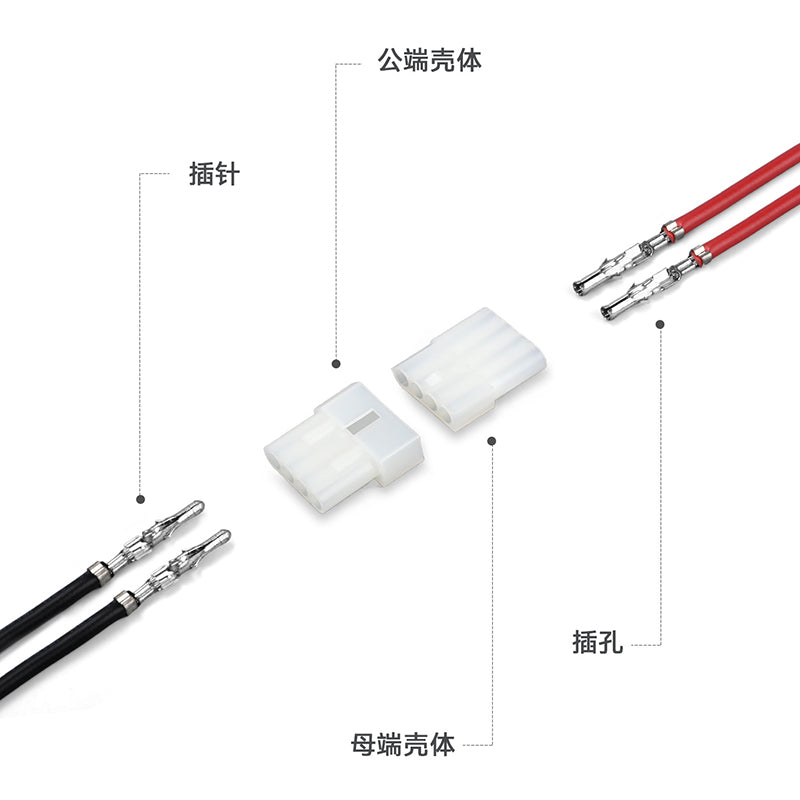

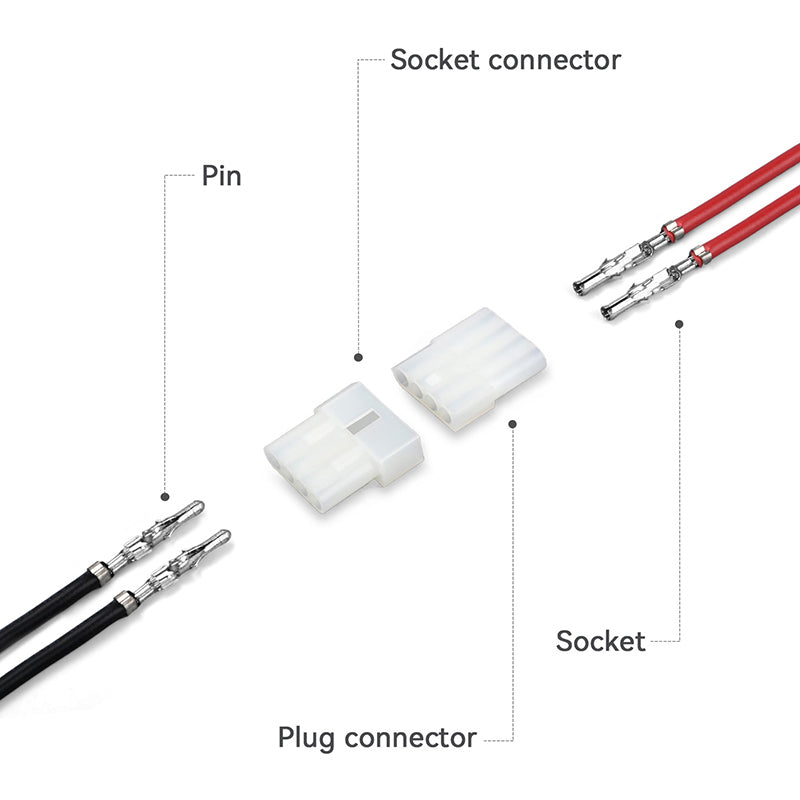

Application：Standard 0.093"(2.36mm) Pin and Socket, Wire to Wire Connection are ideal for consumer, networking, and data/communications applications.
Applicable crimping tool: ACT-LY-JRN002-H
Pin removal tool: DAP-T320360
                            JRconDRK-T320360
                            JRDDS-T320360
