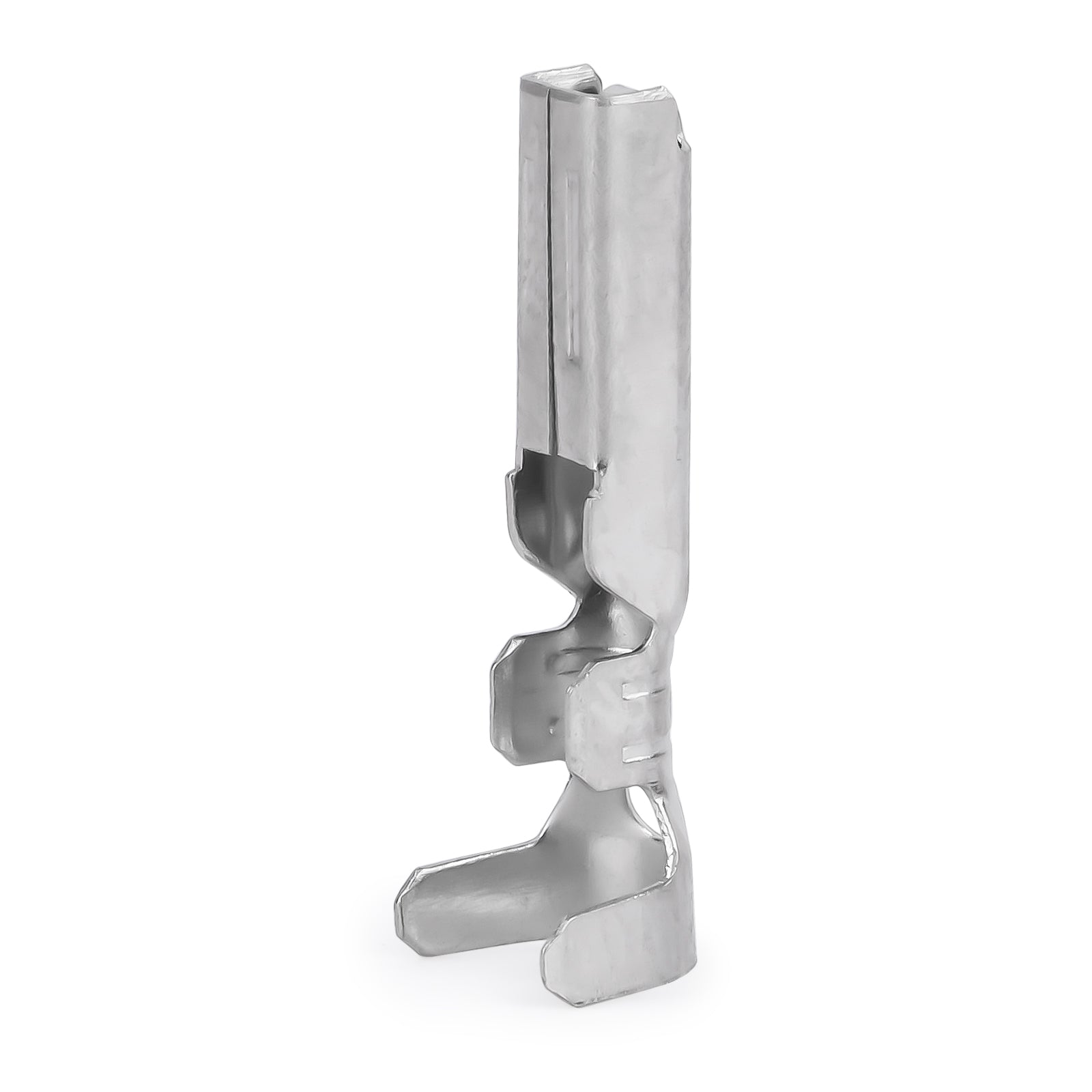

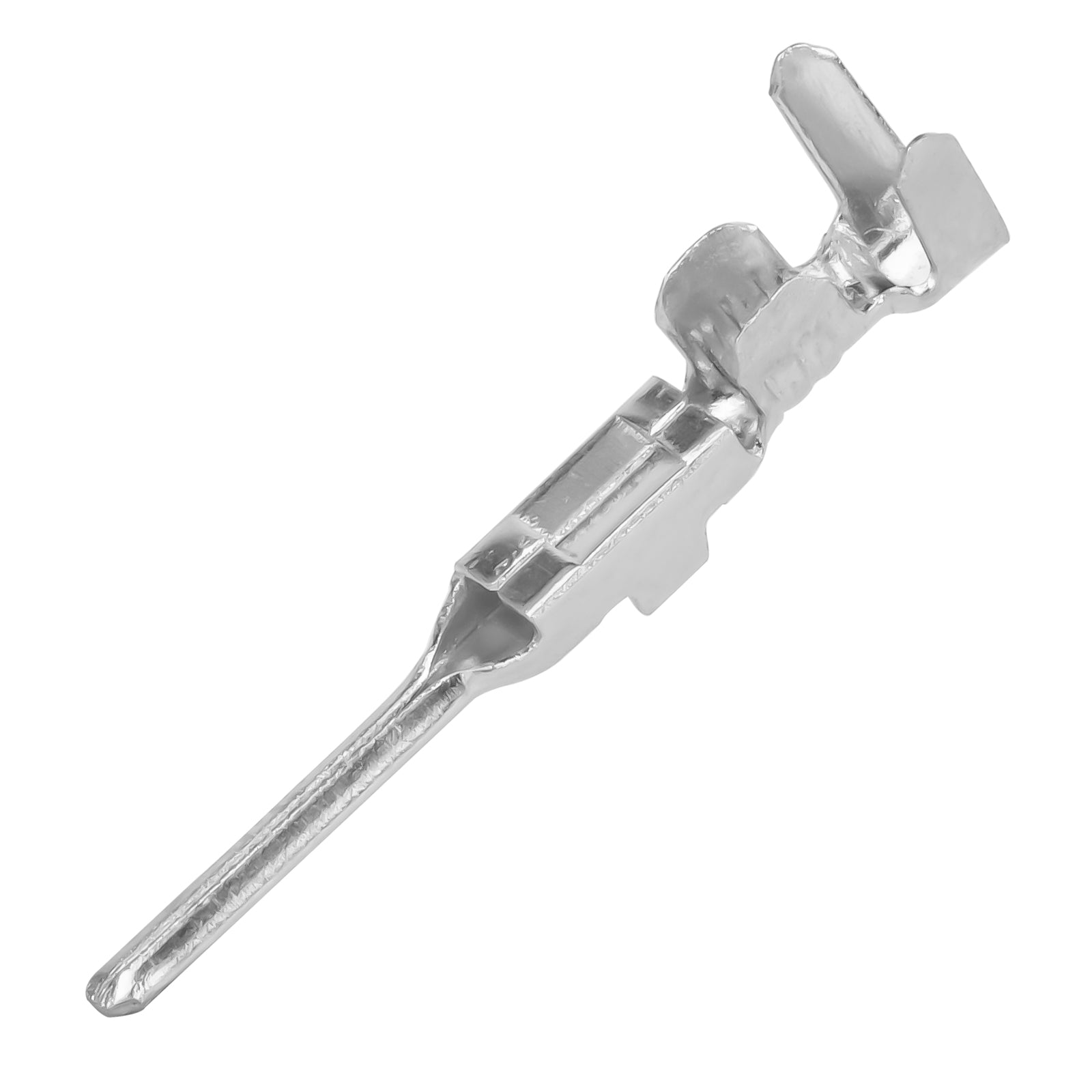

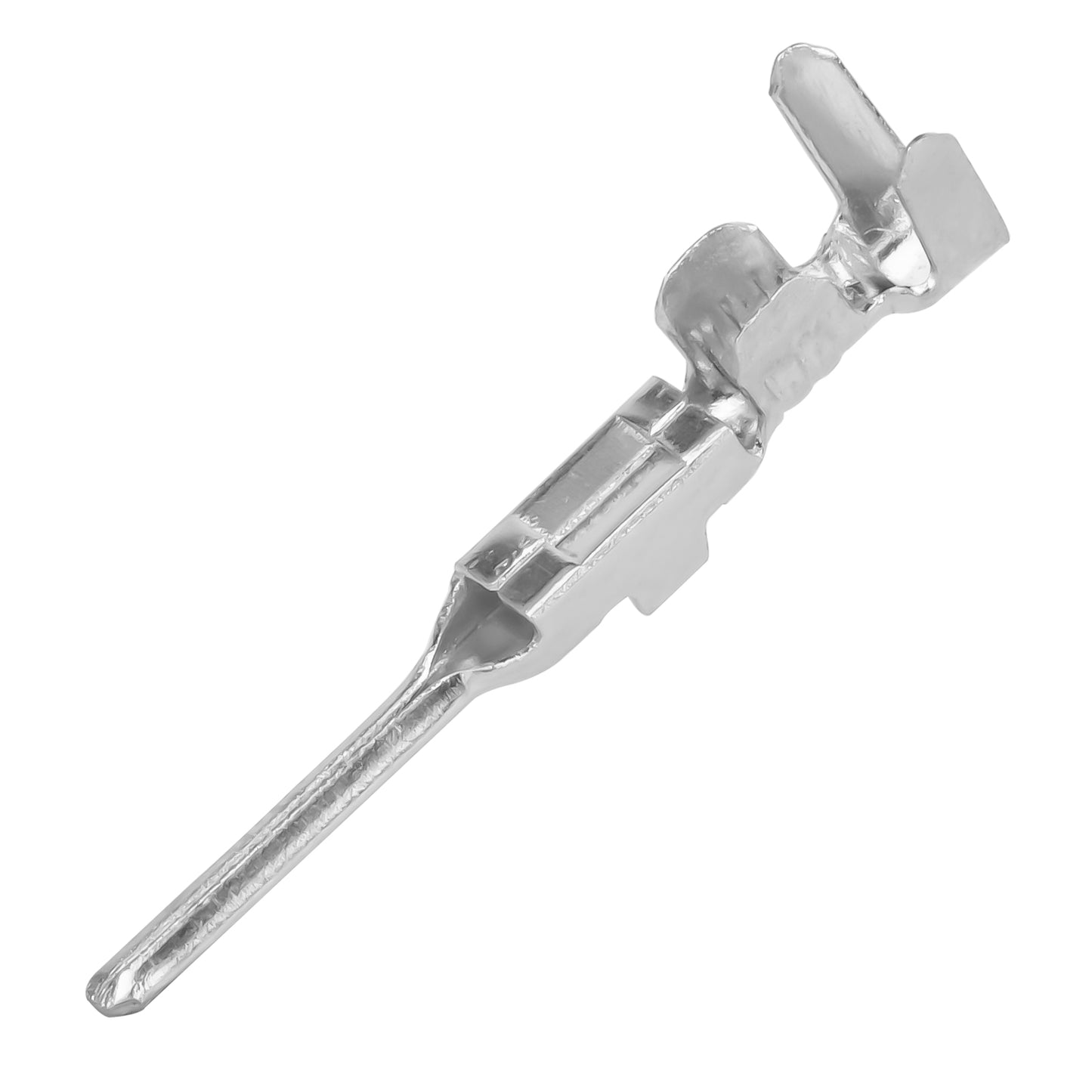

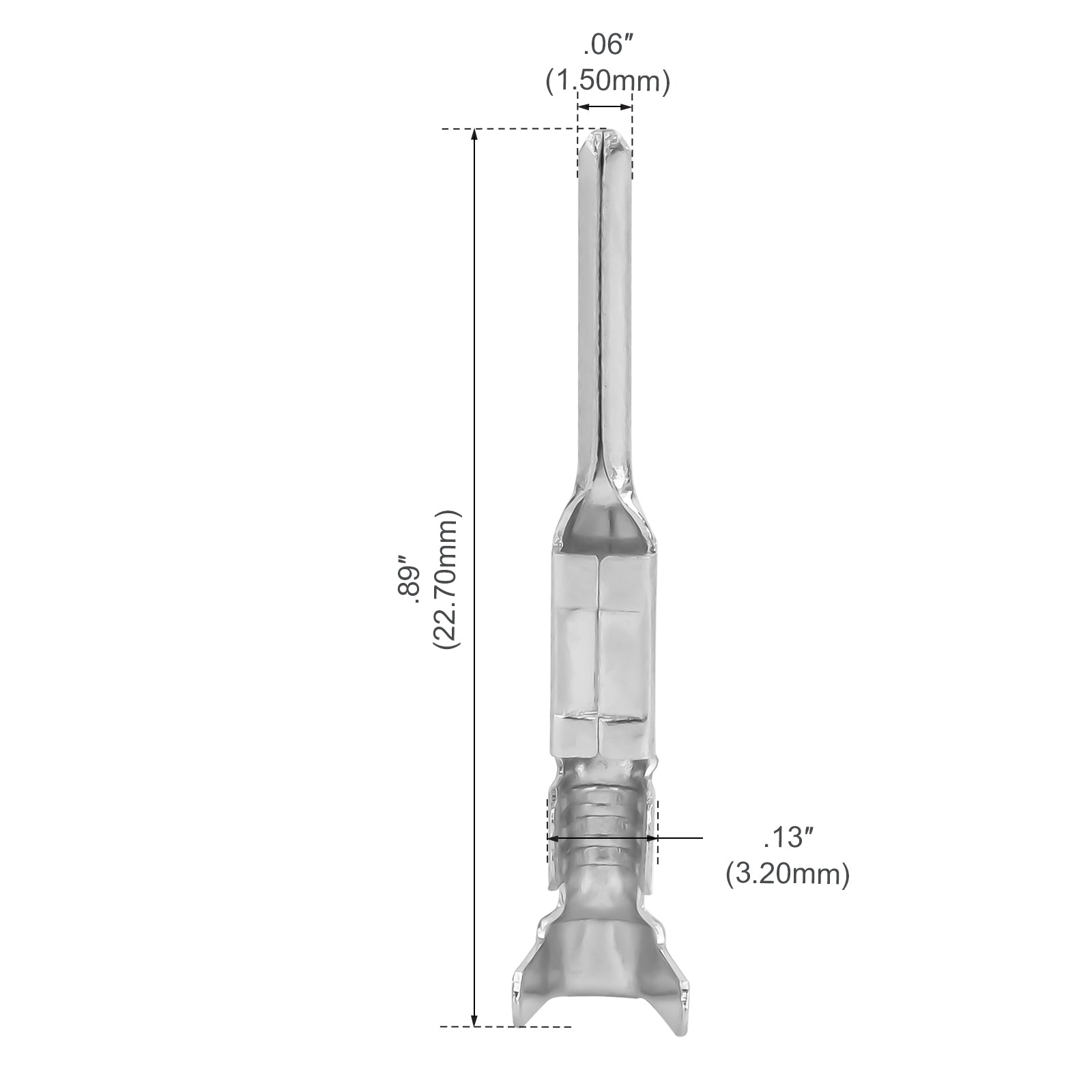

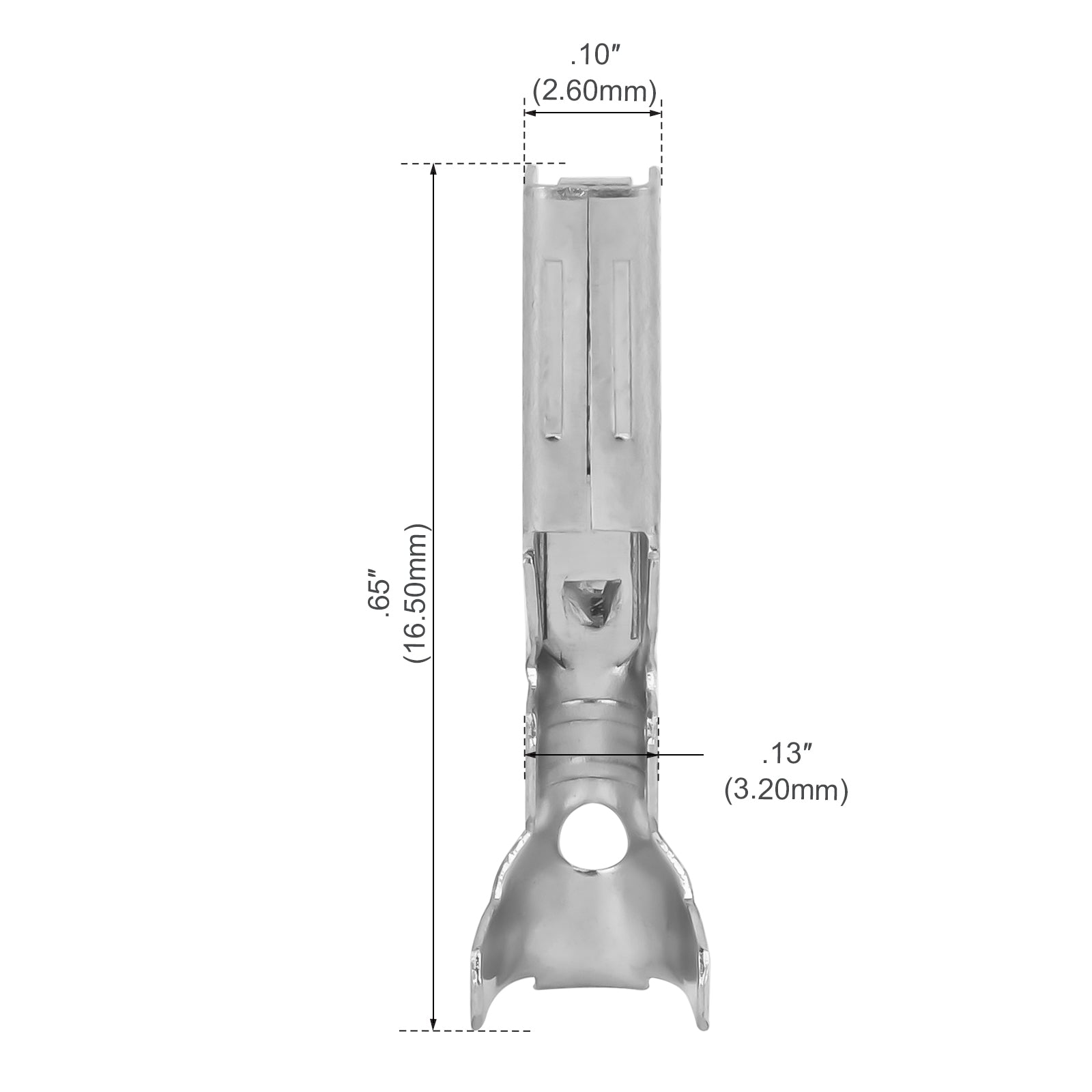

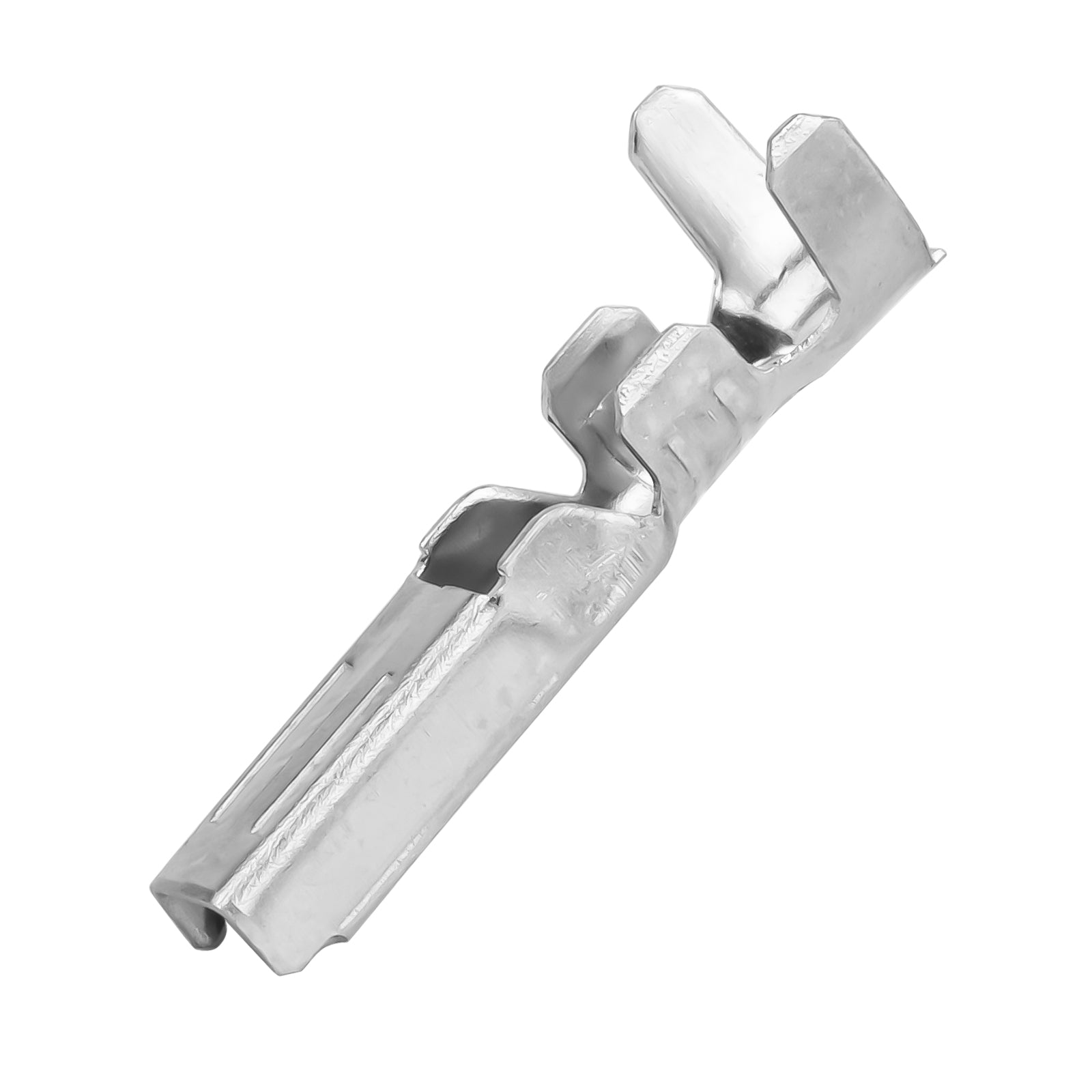

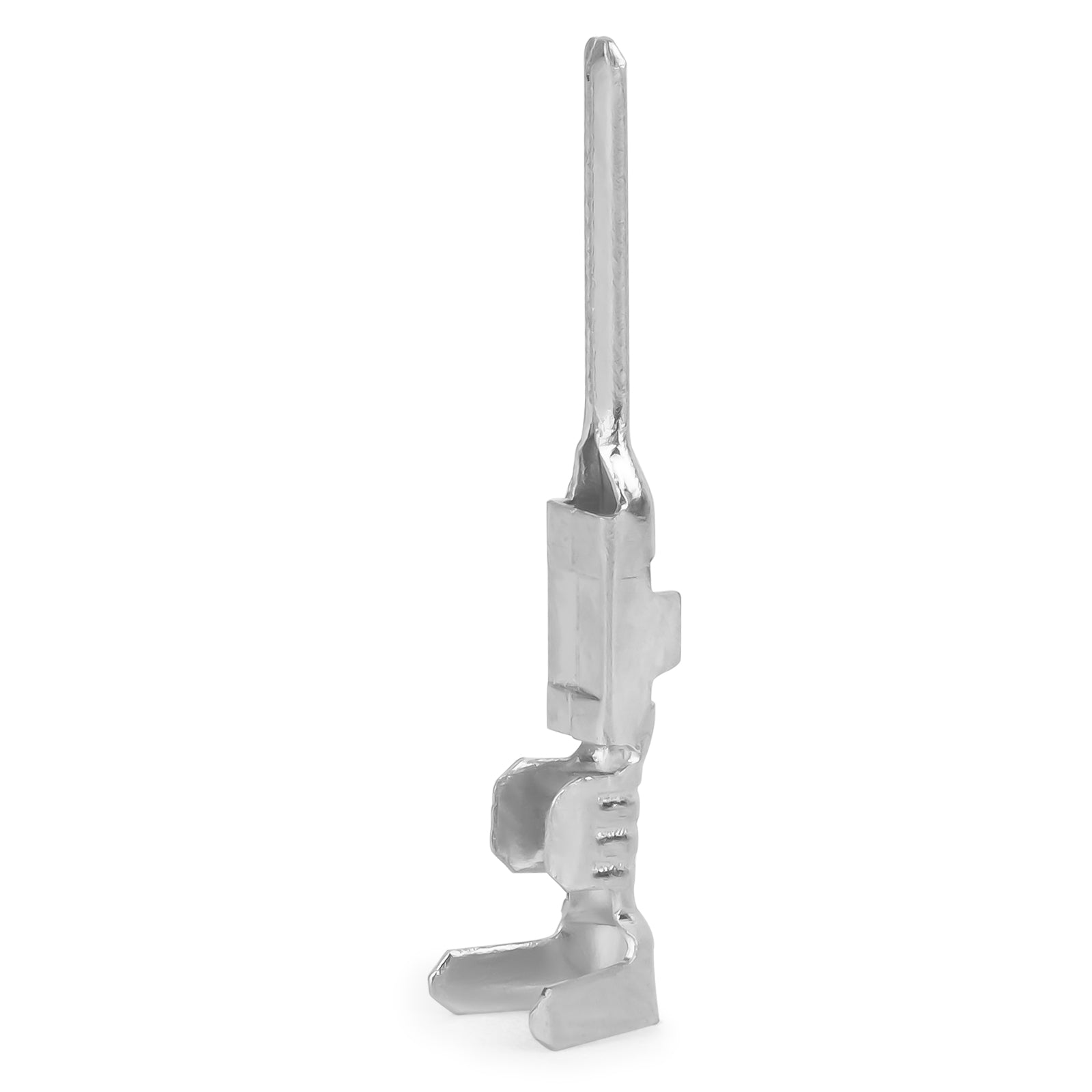

The 282109-1 and 282110-1 terminals are rated at 14A and 24VDC, accommodating 18-16 AWG (0.75–1.50mm²) wire across a -40°C to +125°C operating range. The stamped construction ensures consistent contact geometry across the batch, delivering reliable crimp performance in sealed connector assemblies.
[NICKEL-PLATED BRASS FOR RELIABLE CONDUCTIVITY]
The brass base material combined with nickel plating provides stable contact resistance and corrosion resistance across the mating interface, maintaining conductivity through the moisture exposure and thermal cycling common in sealed automotive connector applications.
[TOOL-CRIMPED TERMINATION, NO SOLDERING NEEDED]

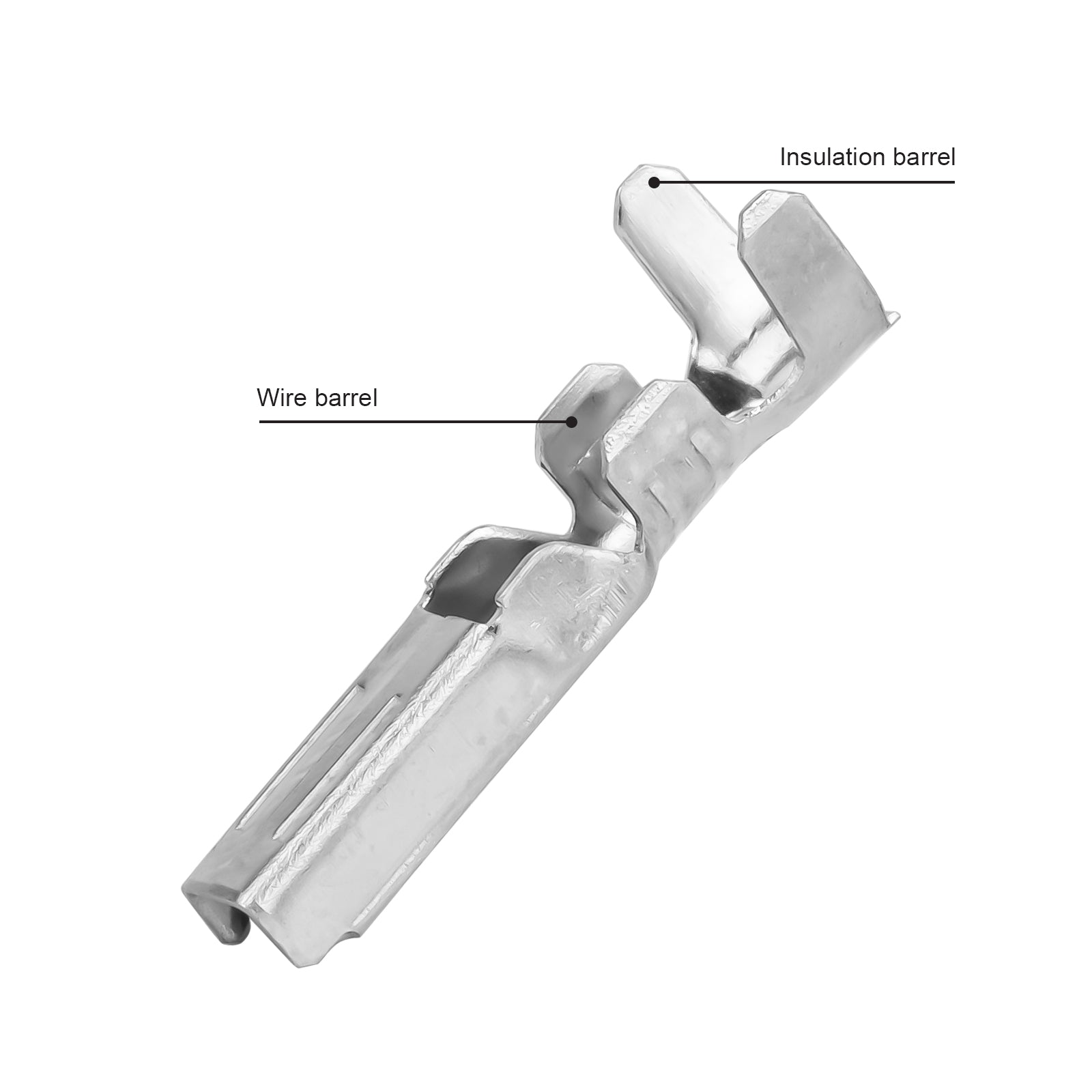

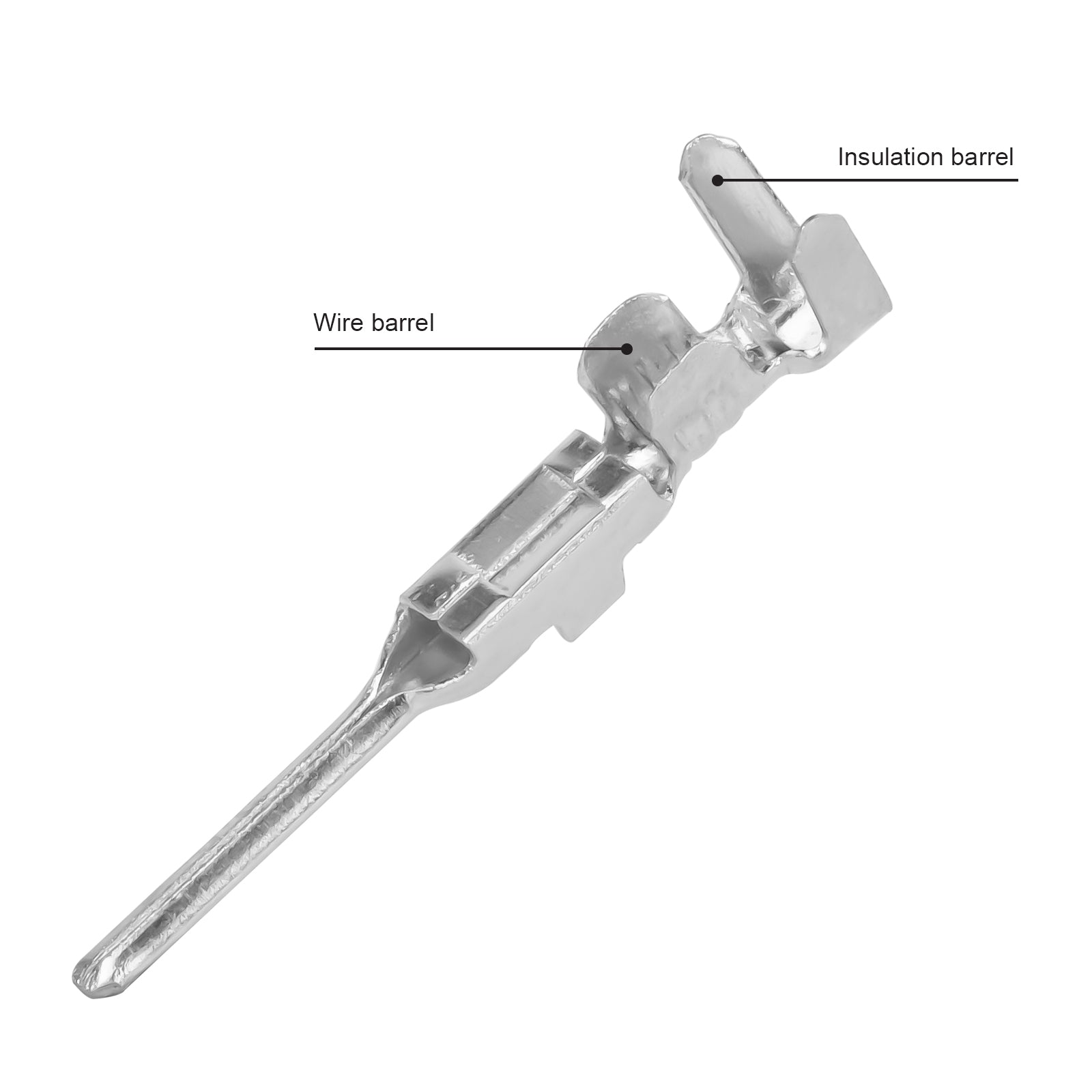

These terminals connect through crimping alone — no soldering required, making them straightforward to terminate in the field or on the production line without specialized heat equipment. For consistent and reliable crimps, the ACT-LY-AMP1.5 is the recommended crimp tool for this terminal series. Learn more about the Crimp Tool ACT-LY-AMP1.5 here: JRready ACT-LY-AMP1.5 Crimp Tool for TE AMP Superseal 1.5 Series, 16-2
[COMPLETE KIT WITH WIRE SEALS INCLUDED]

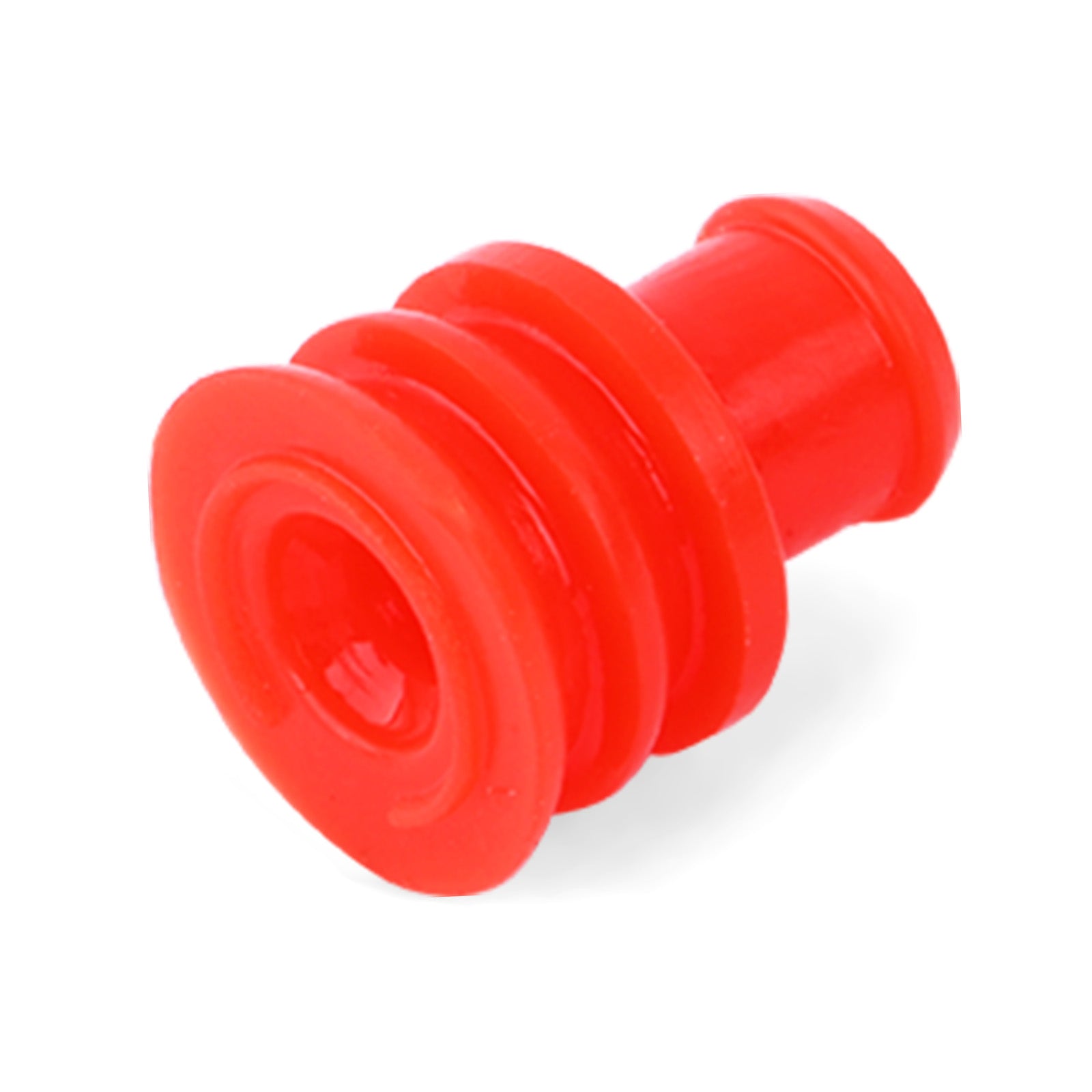

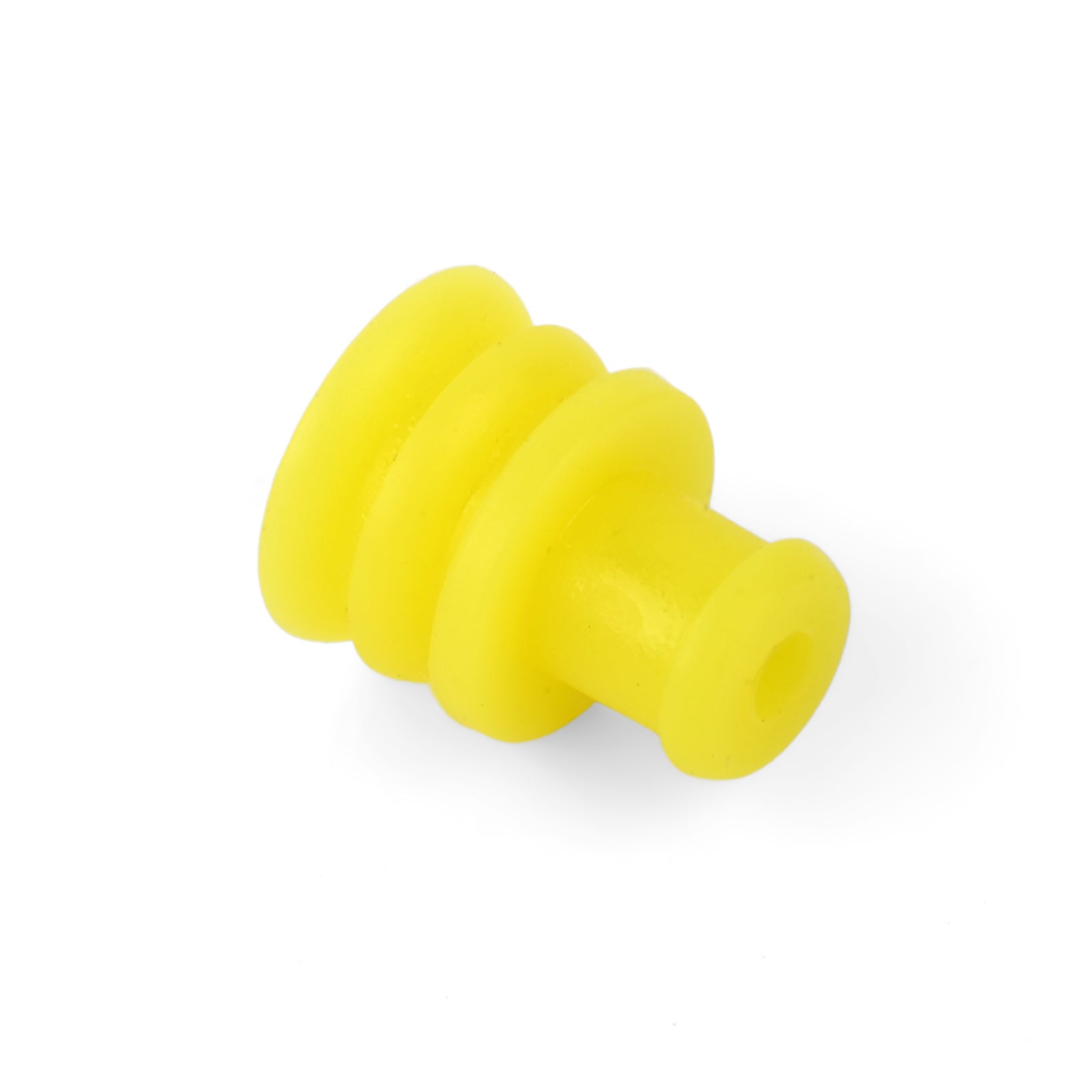

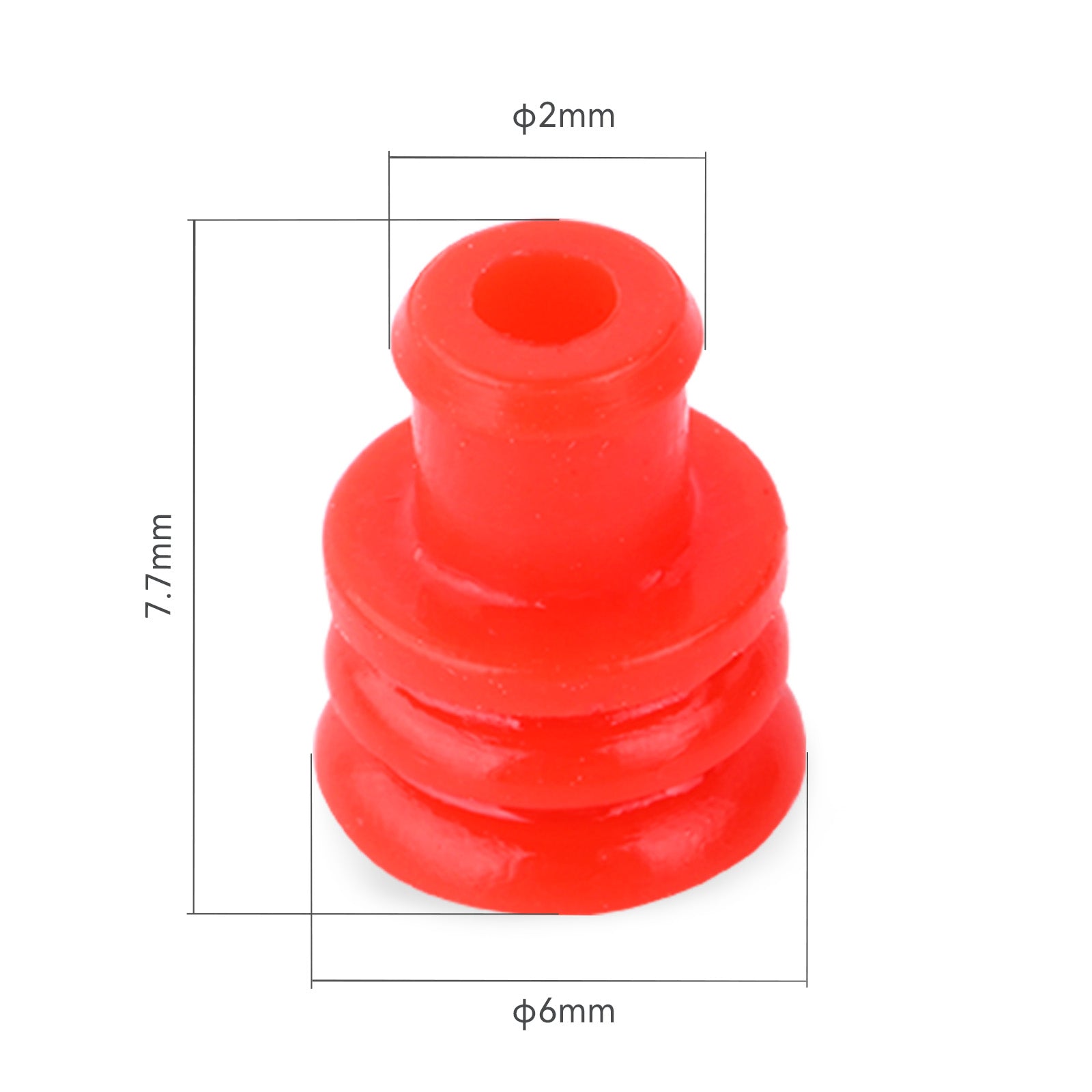

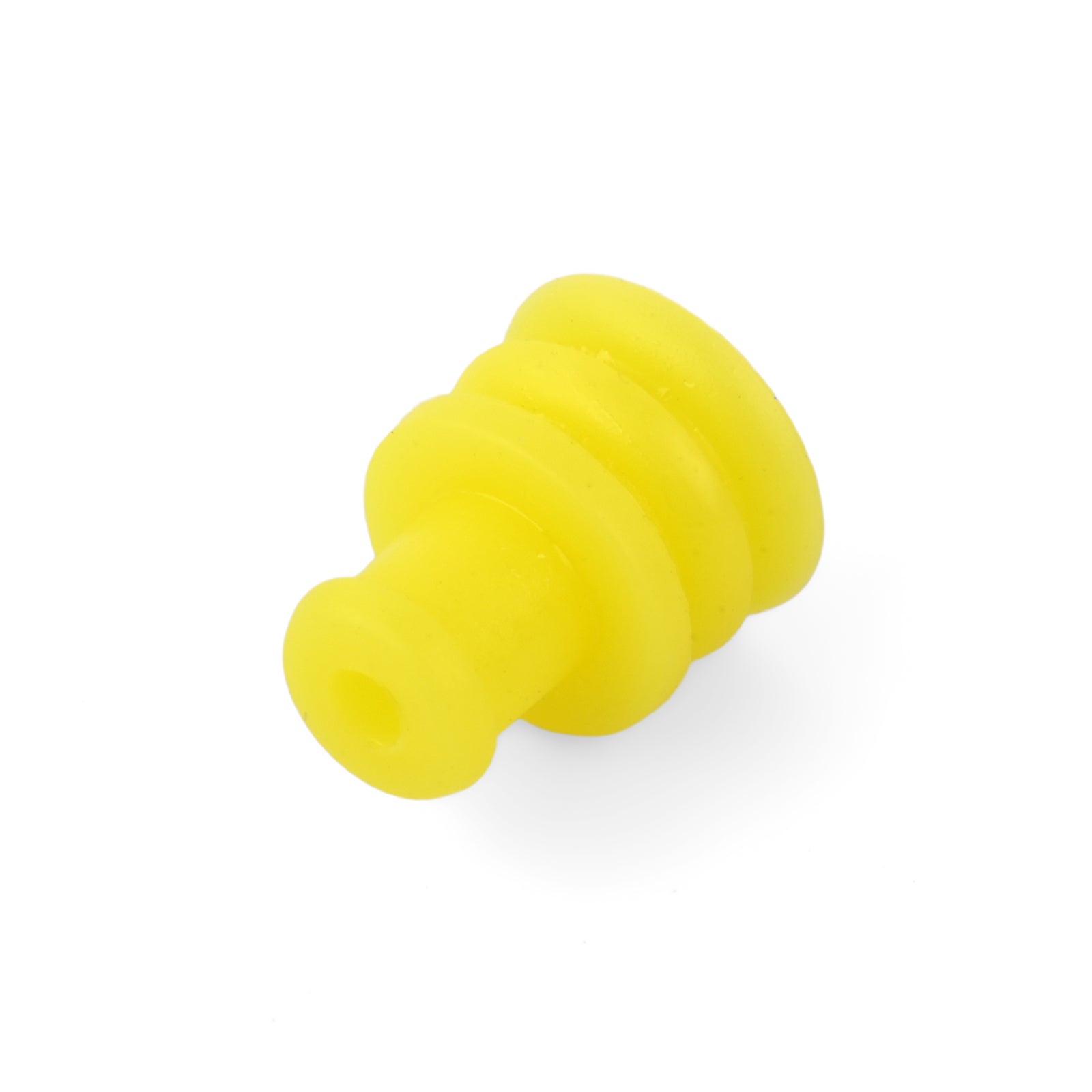

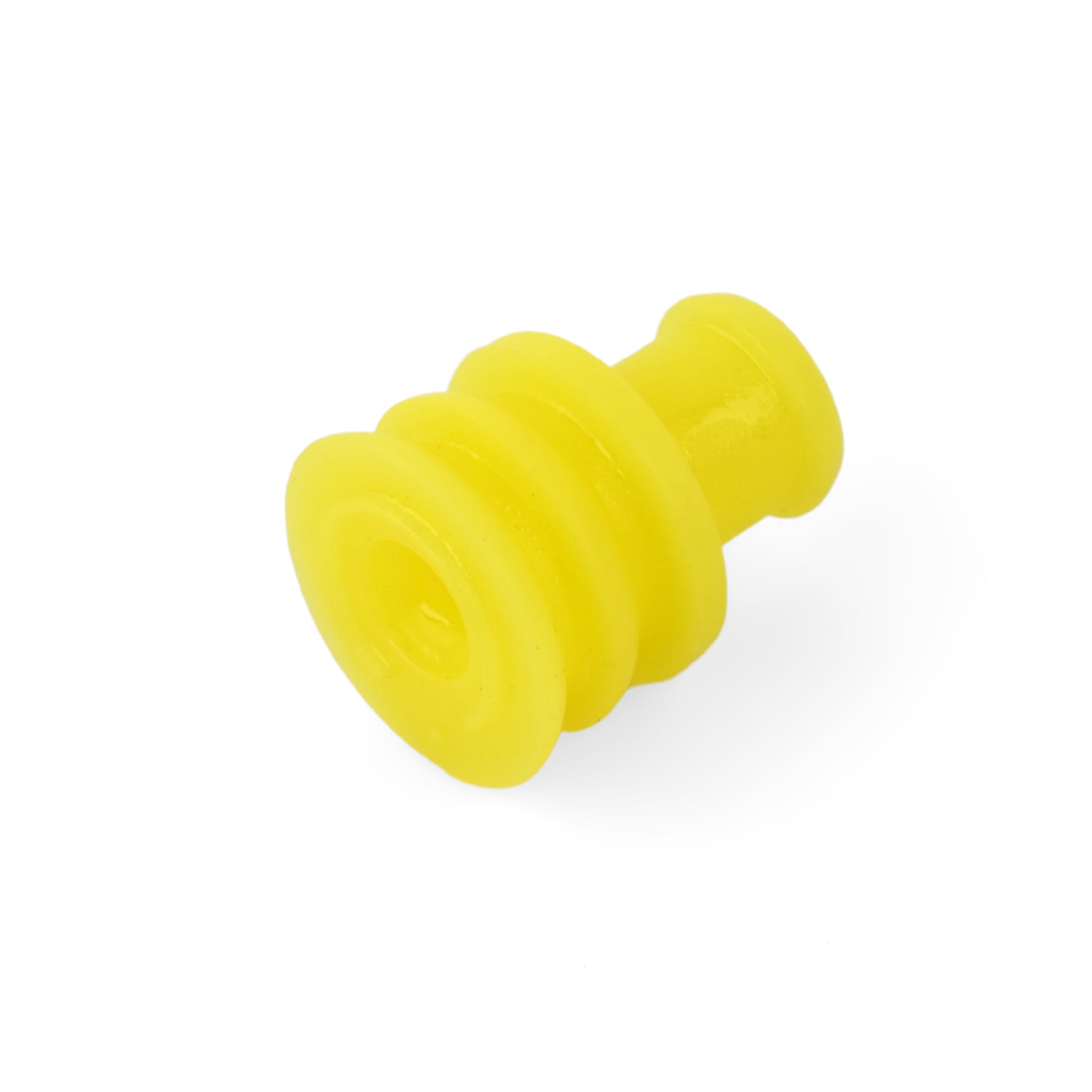

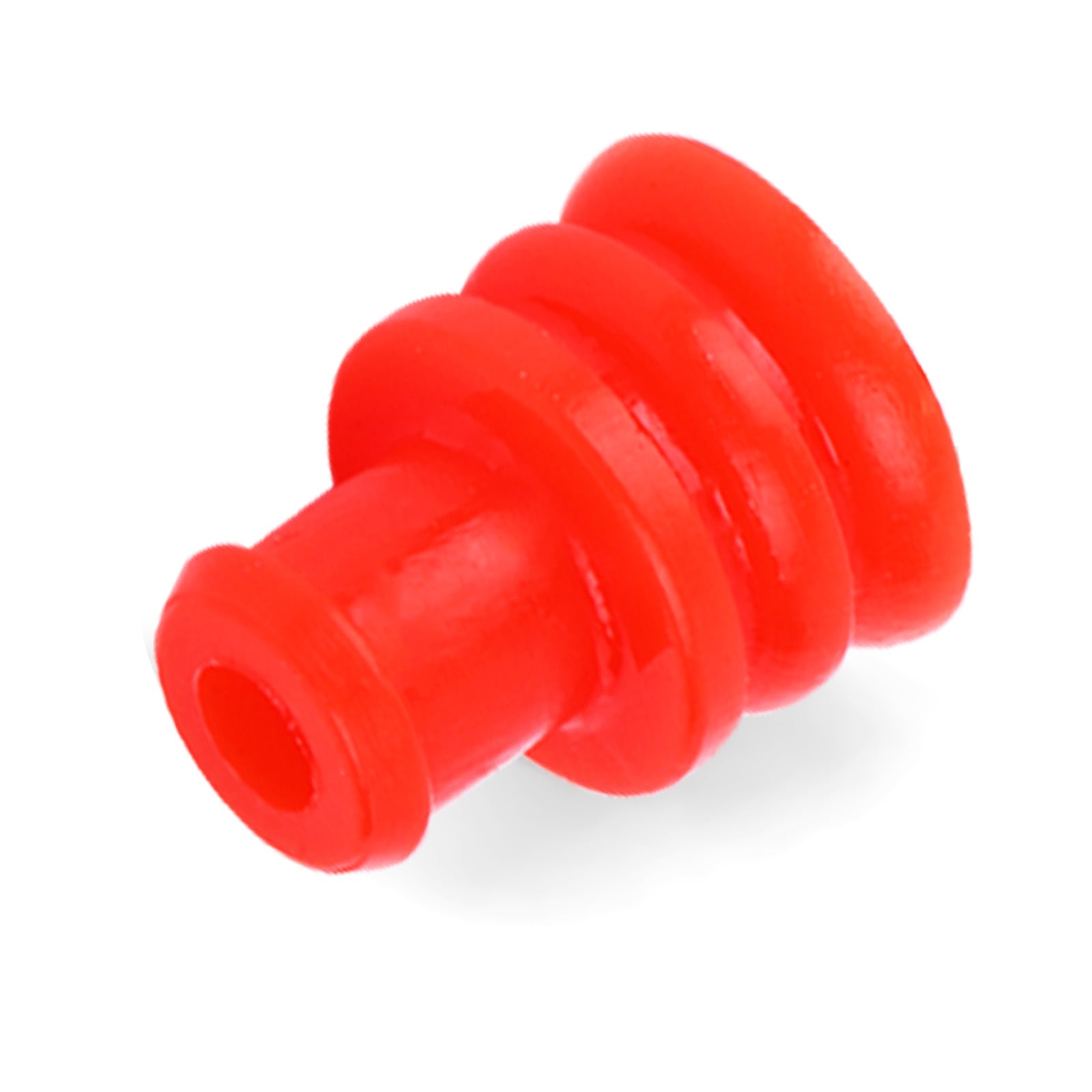

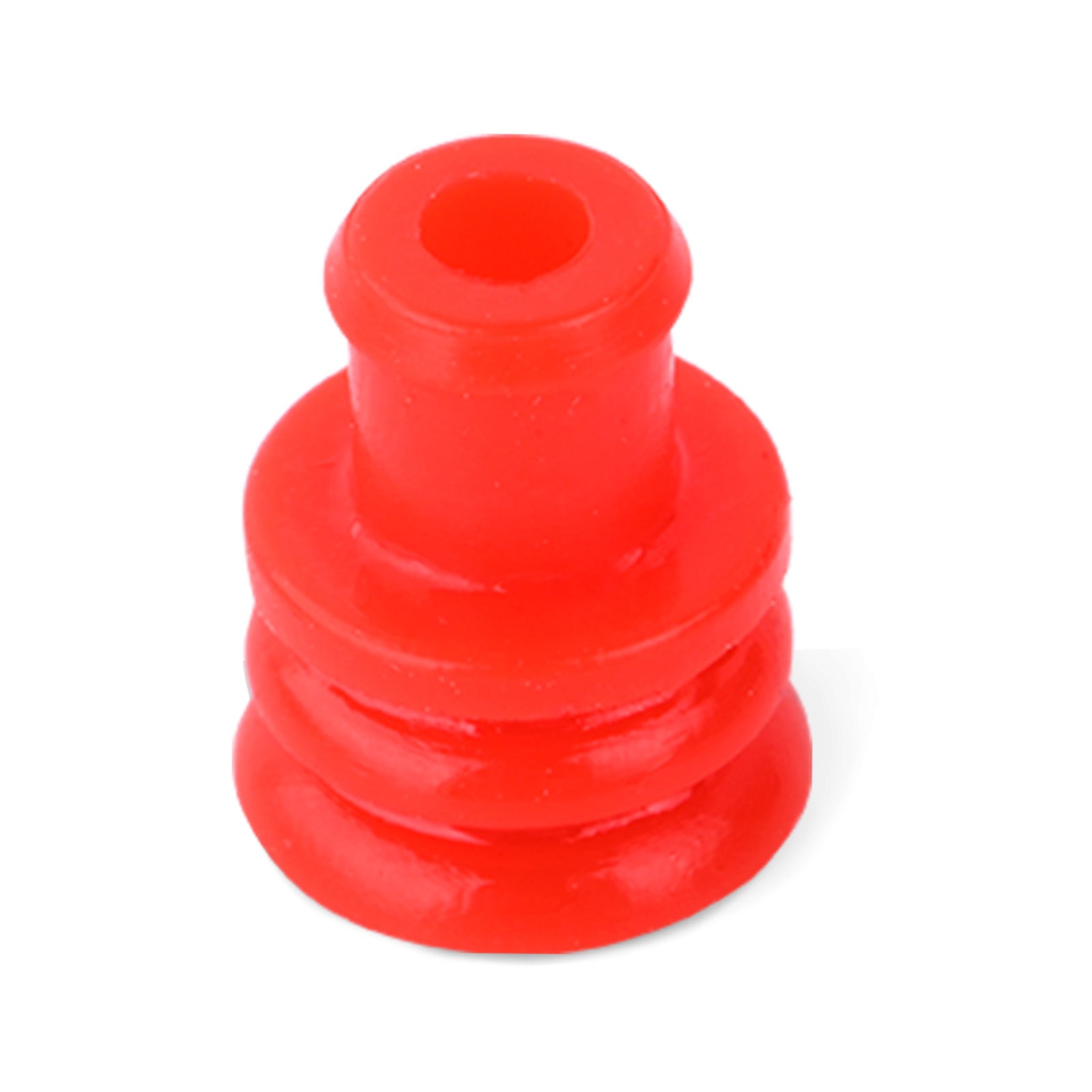

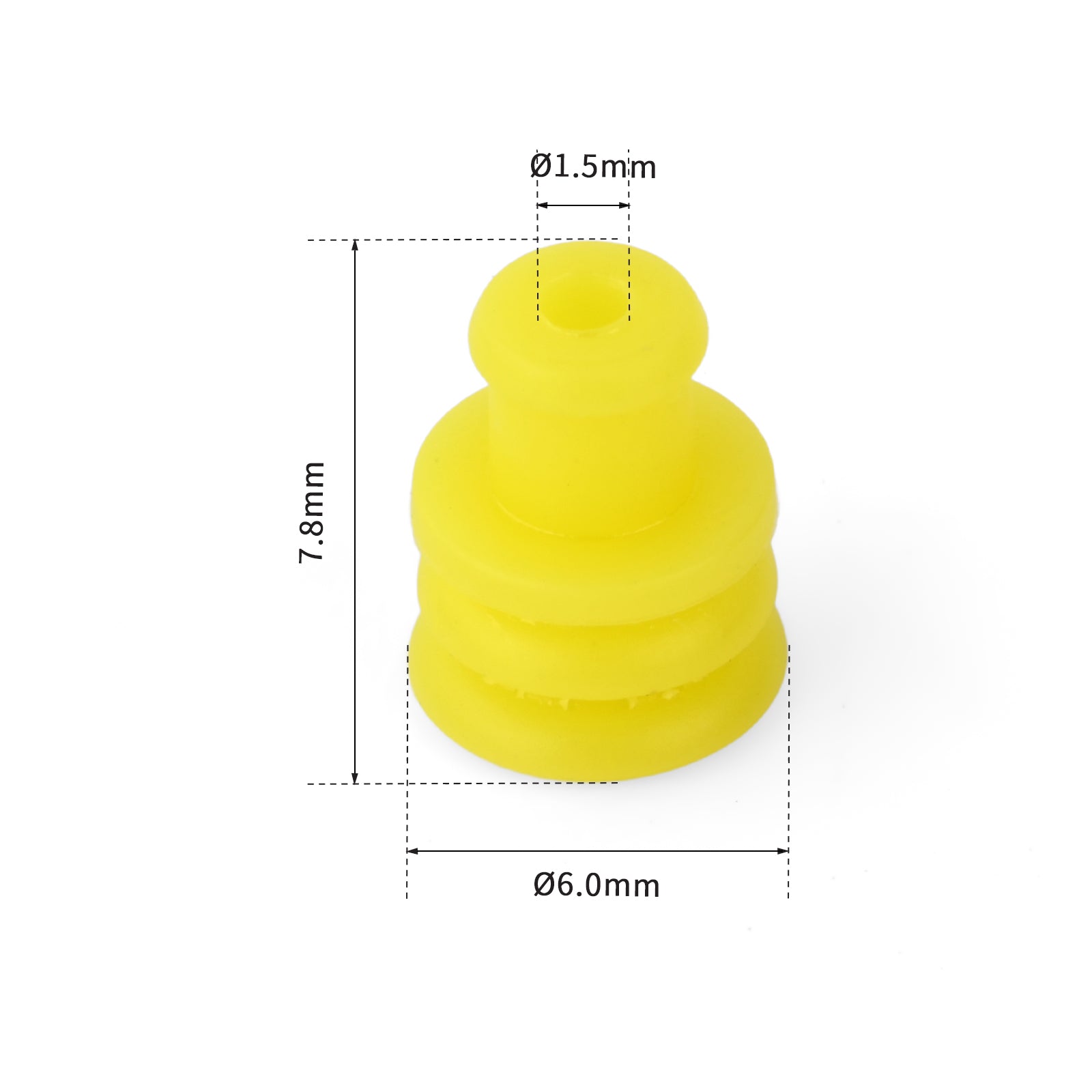

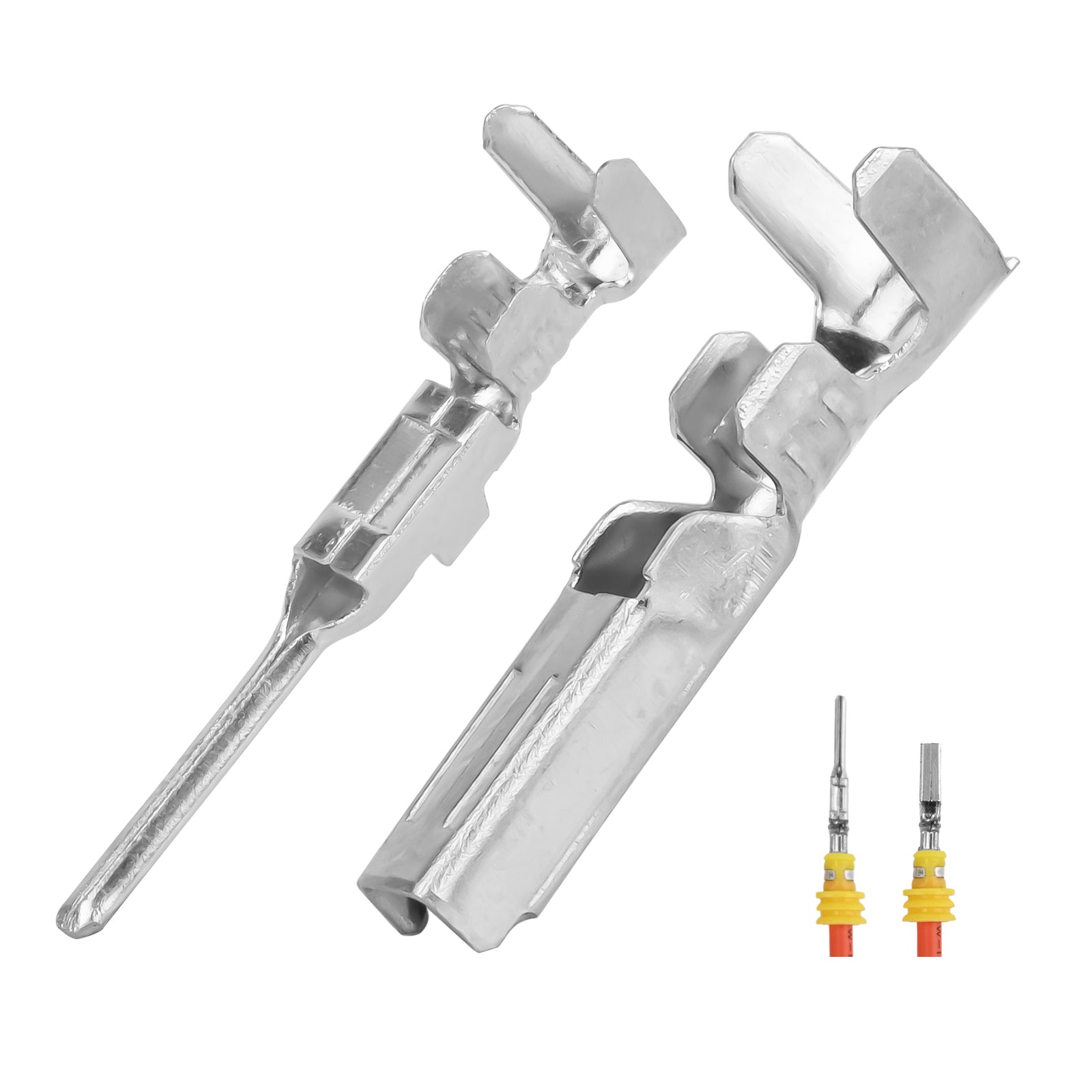

The ST6571 kit pairs the 282109-1 and 282110-1 crimp terminals with 281934-2 and 281934-3 wire seals covering two insulation diameter ranges, giving technicians everything needed for a complete SUPERSEAL 1.5 assembly without separate sourcing.
[AUTOMOTIVE & MARINE SEALED CONNECTOR ASSEMBLY]
The ST6571 kit is suited for harness assemblers and technicians building or repairing SUPERSEAL 1.5 sealed connector assemblies in automotive, marine, and outdoor equipment applications. The SUPERSEAL 1.5 series is widely used in sensor circuits, lighting systems, and low-voltage control wiring where reliable sealing against moisture and contaminants is required.
