JRready 12-16 AWG Butt Connectors Kit (20 Sets) - Waterproof Wire Connectors & Wire Splice Connectors with Heat Shrink Tubes

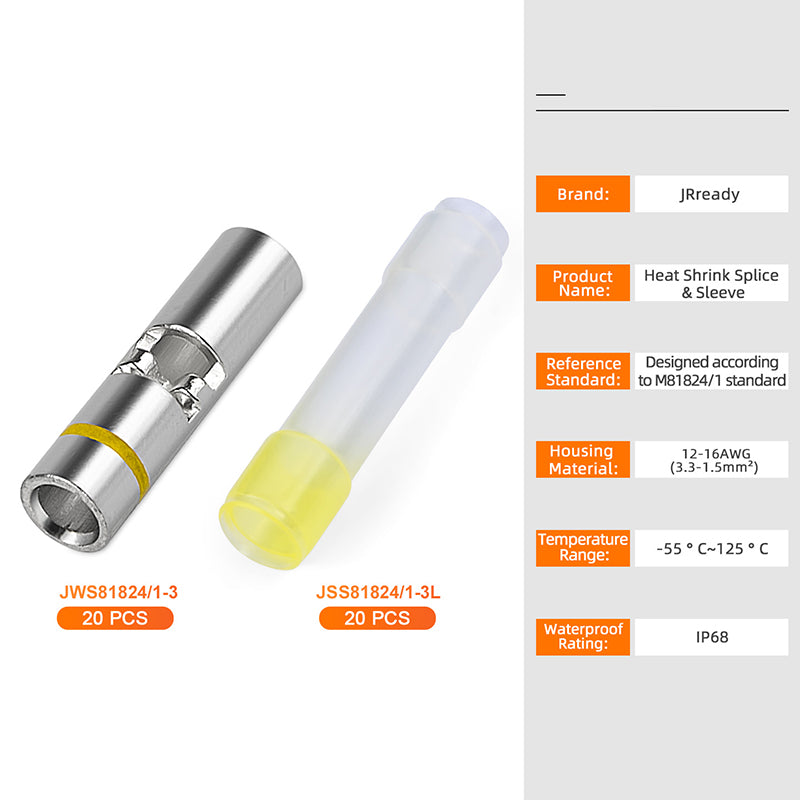

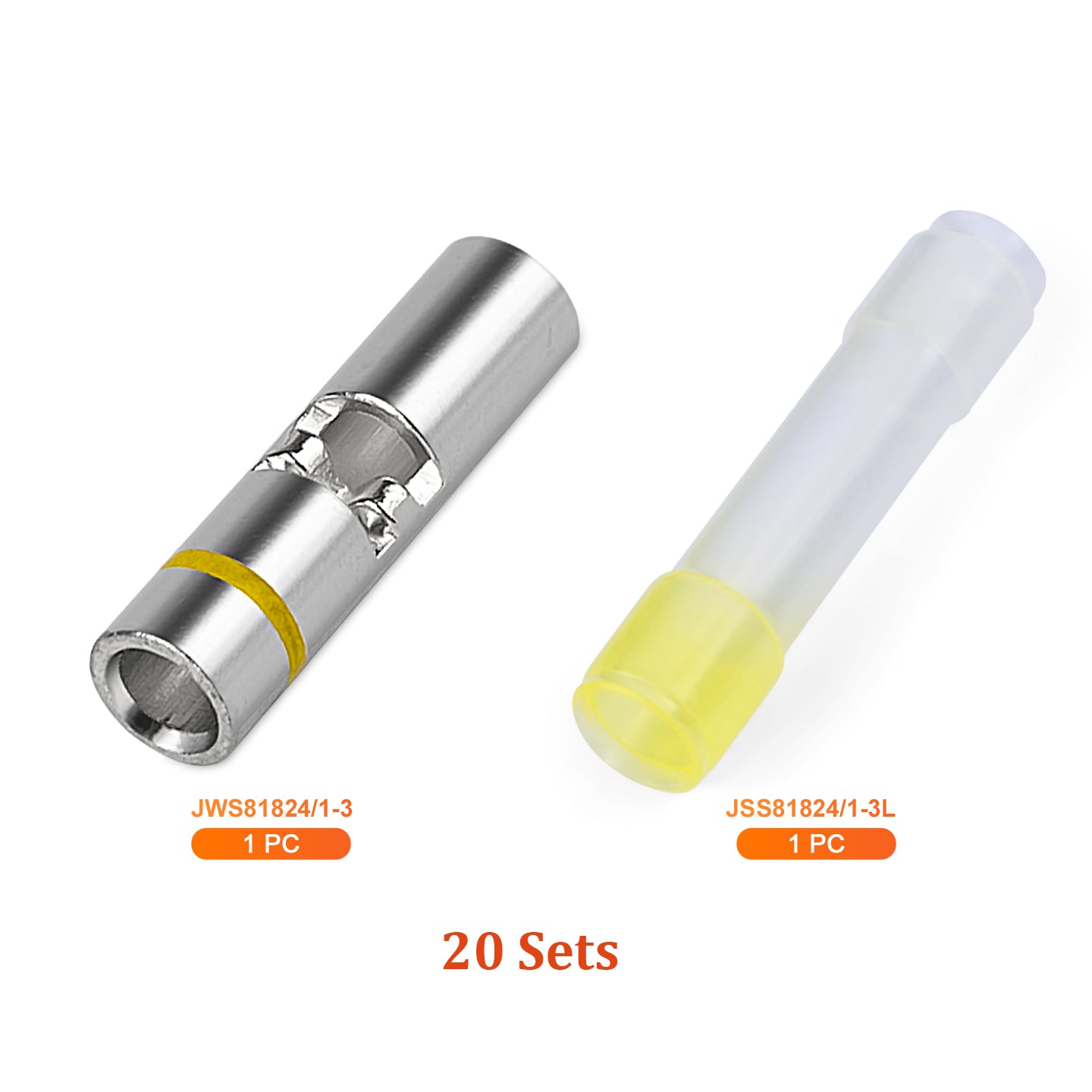

Package List: QH6016*20 Master-Grade Kit: Includes 20 PCS JWS81824/1-3 Yellow Butt Contacts and 20 PCS JSS81824/1-3L Transparent Low-Temp Sleeves.

[IP68 CERTIFIED ENVIRONMENTAL BARRIER]

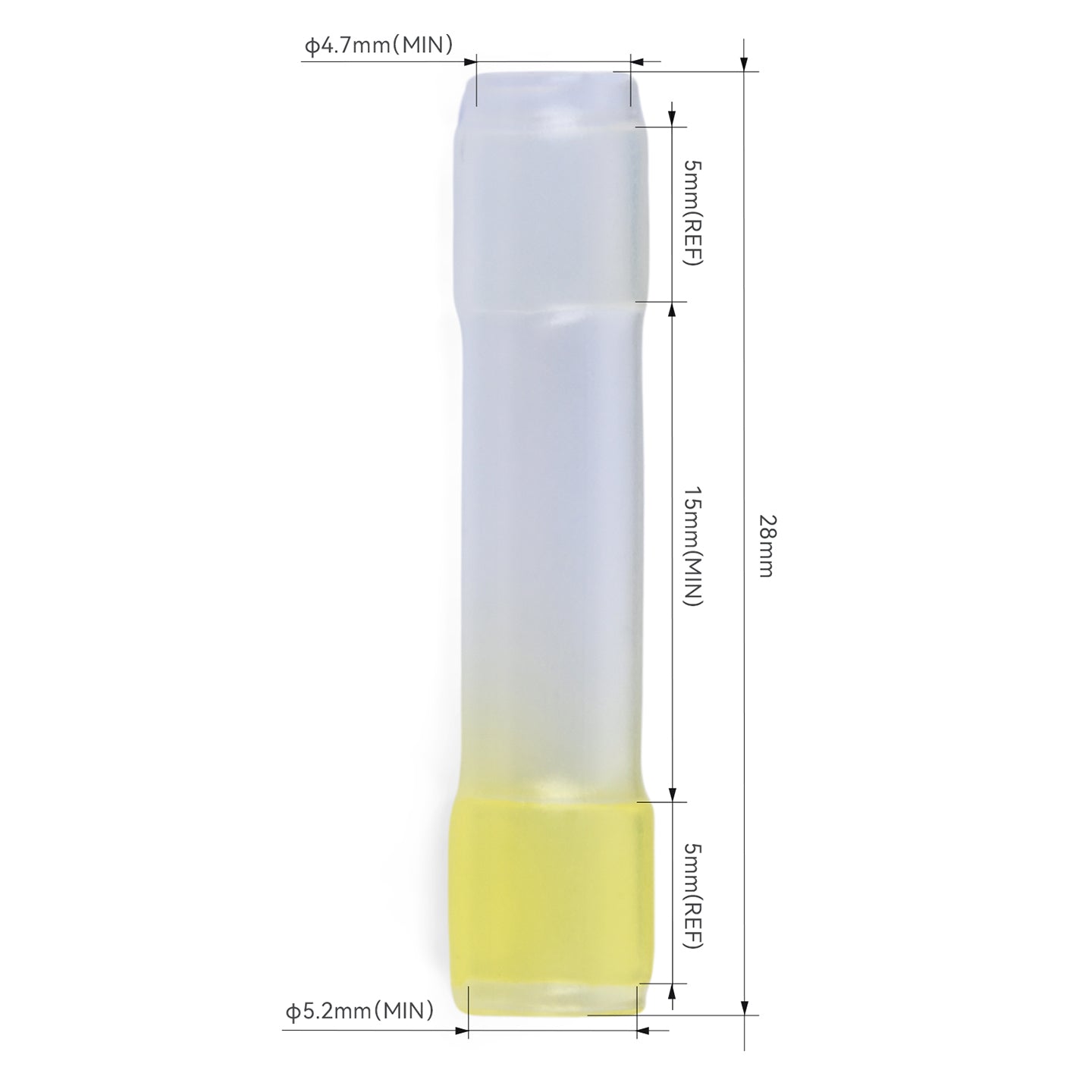

Engineered for uncompromising protection, this splicing kit achieves an IP68 waterproof rating. During heat application, the polyolefin tubing and internal EVA hot-melt adhesive liquefy to create a permanent, hermetic seal. This prevents moisture, dust, and pressurized water from compromising your electrical junctions in exposed automotive and marine environments.

[M81824/1 AEROSPACE STANDARD DESIGN]

Trust in a system designed according to the M81824/1 standard. This ensures the JWS81824 series meets elite benchmarks for structural integrity and vibration resistance. Capable of enduring thermal shifts from -55°C to 150°C, it is the preferred choice for mission-critical electronics in aviation, defense, and high-end industrial machinery.

[HIGH-PURITY COPPER METALLURGY]

Crafted from 99.9% Pure Copper with a specialized Matte Tin plating, these contacts are built to survive 48H salt spray tests. Through a controlled tempering process, the metal achieves a hardness value of 35-55, ensuring the material remains sufficiently ductile to avoid structural cracks during cold-crimp procedures, preserving long-term electrical conductivity.

[PRECISION ALIGNMENT & SYSTEM ORGANIZATION]

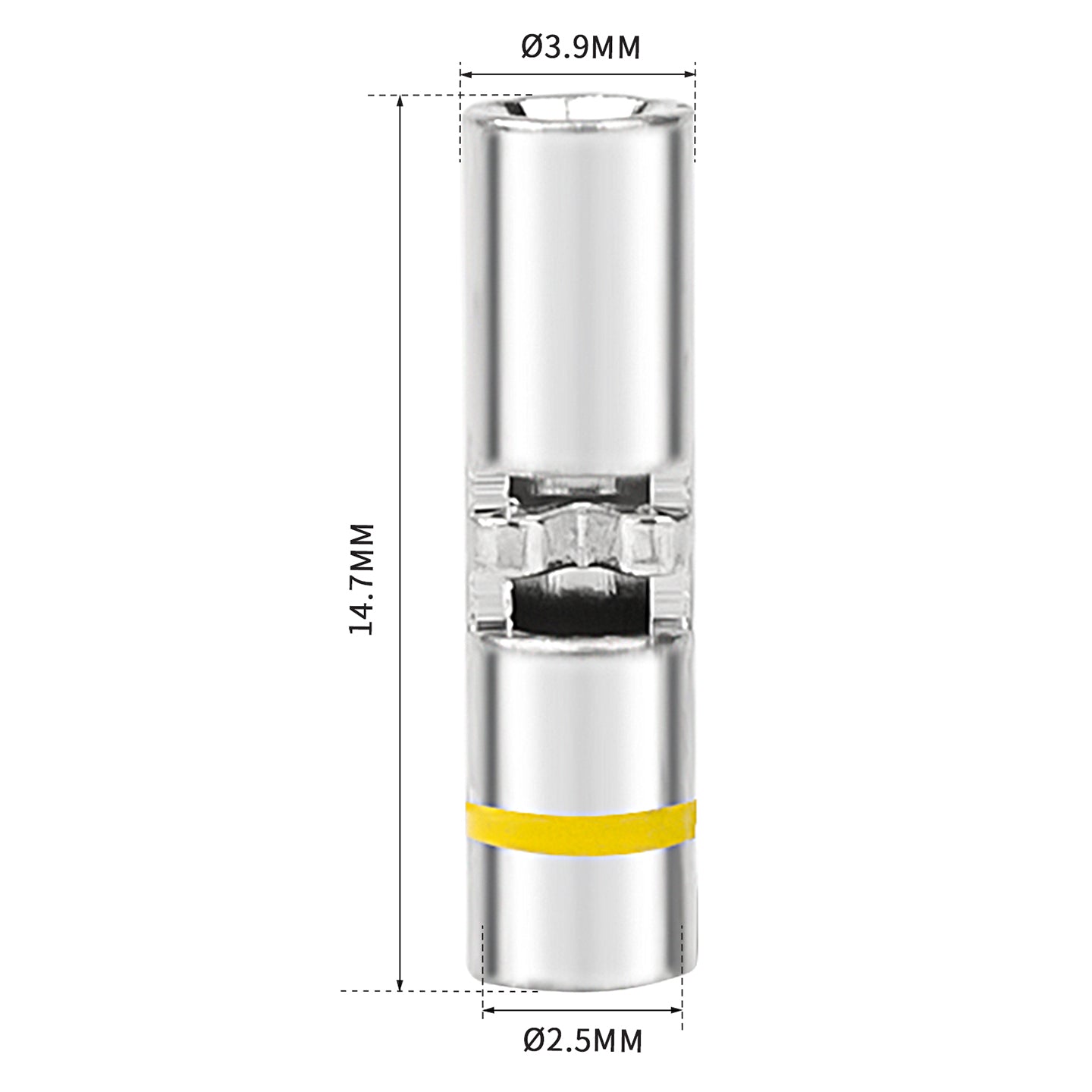

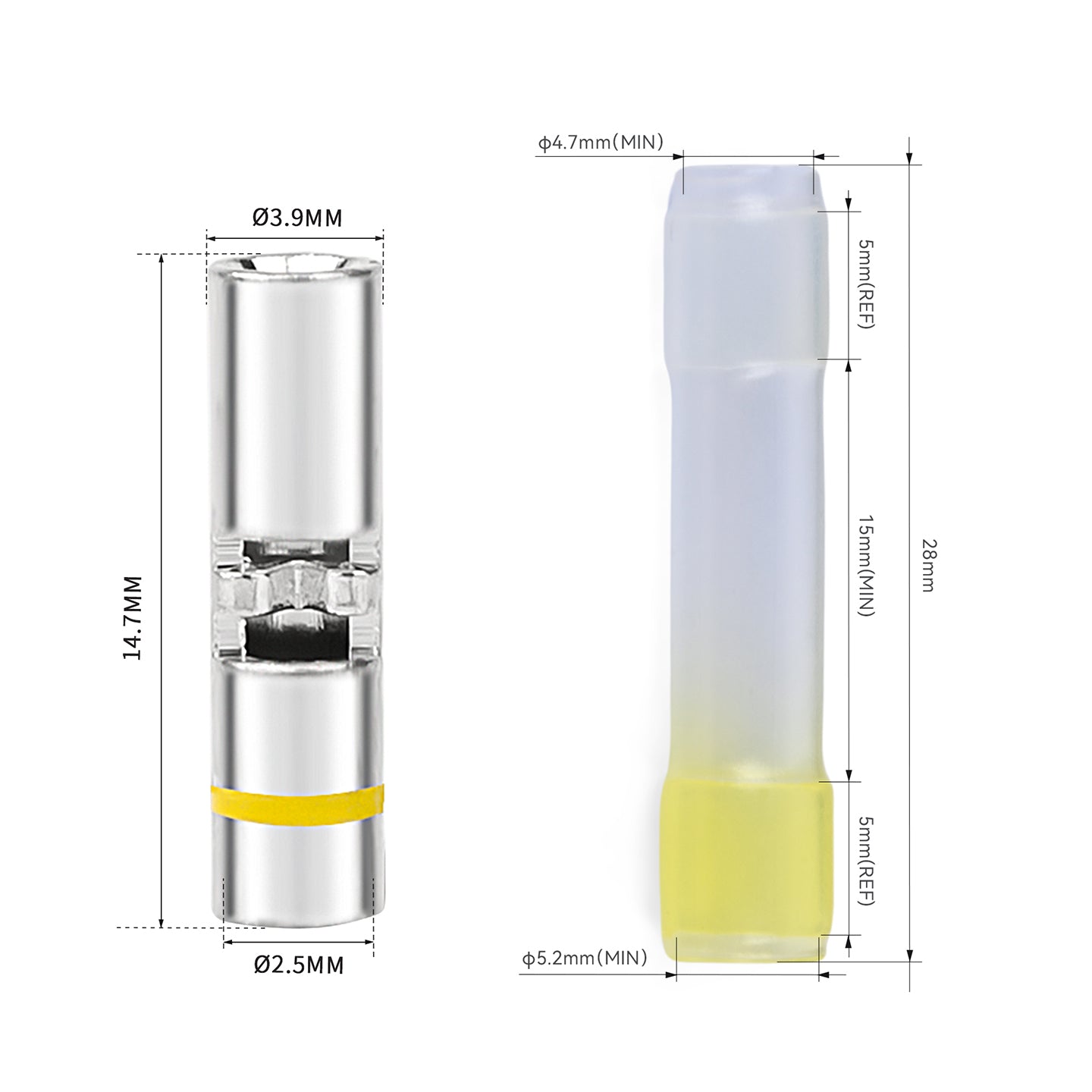

Optimized for the 12-16 AWG (3.3-1.3mm²) range, each yellow contact features an integrated wire stop and inspection window for perfect conductor placement. The specialized color band is designed to resist detachment after crimping, facilitating effortless circuit identification and management in complex industrial wire harnesses.

[MIL-SPEC PRECISION CRIMPING SYSTEM]

To achieve optimal mechanical performance, this kit is perfectly matched with the ACT-232 crimper (According to M22520/37-01). With a high-carbon steel head hardened to HRC 45-50, the tool’s 3-cavity die and high-precision ratchet ensure repeatable, gas-tight terminations, providing an aerospace-standard bond without the need for unreliable soldering.

Learn more about the Crimp Tool ACT-232 here: JRready CRIMP TOOL KIT: ACT-232(RED) (M22520/37-01 AD-1377) Crimp Tool – JRDTOOLS
