JRready 20-26 AWG Butt Connectors Kit (30 Sets) - Waterproof Wire Connectors & Wire Splice Connectors with Heat Shrink Tubes

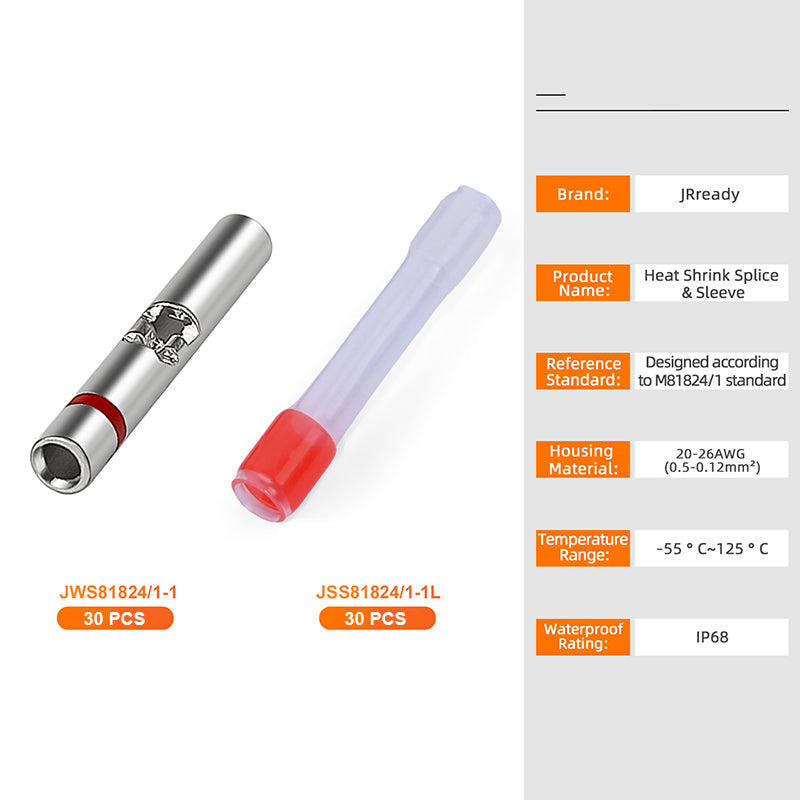

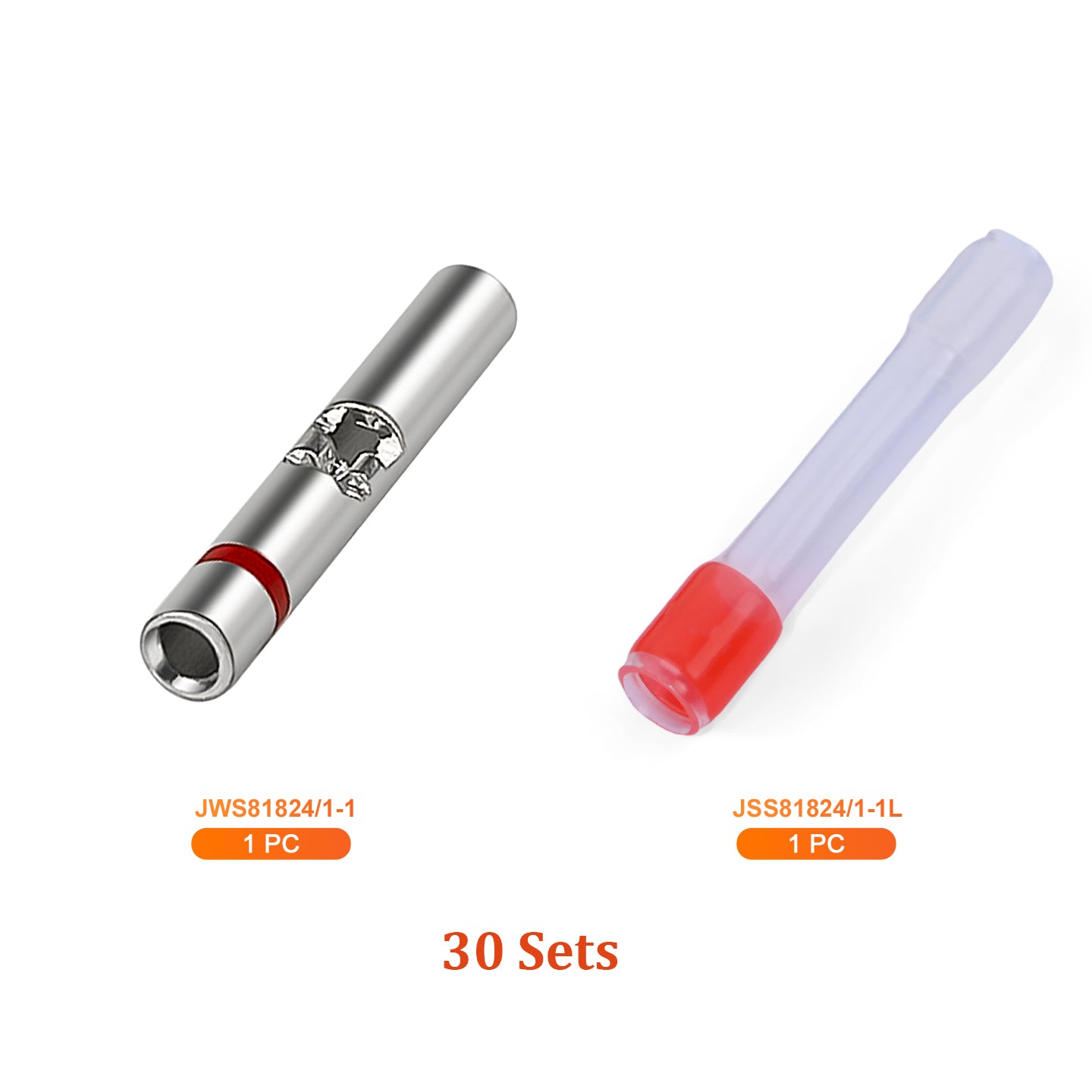

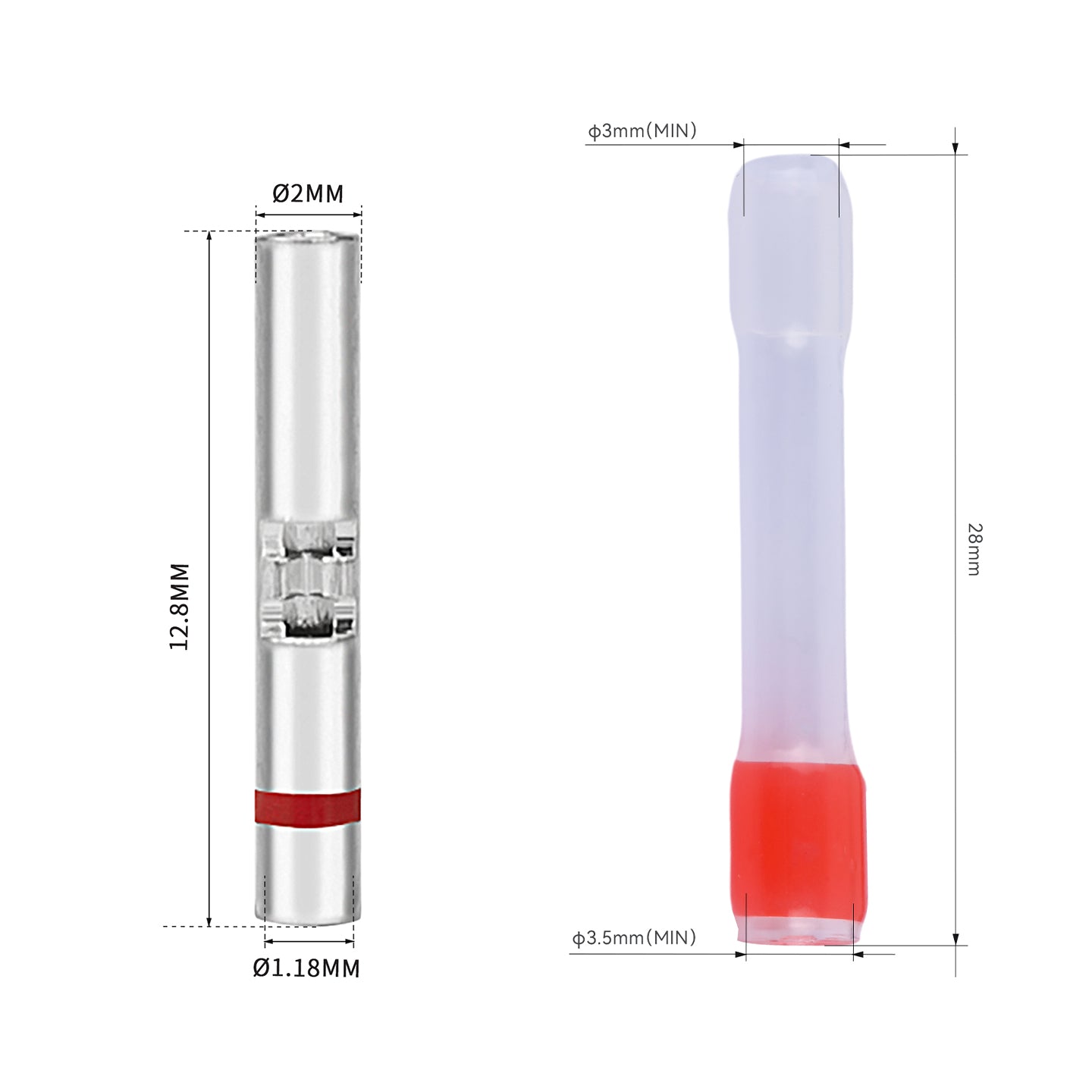

Package List: QH6012*30 Environmental Splice Kit includes 30 PCS JWS81824/1-1 Red Butt Splice Connectors and 30 PCS JSS81824/1-1L Transparent Heat Shrink Tubes. Optimized for high-reliability electrical joining.

[IP68 RATED WATERPROOF ARCHITECTURE]

Engineered for the most demanding environmental sealing, this splice kit achieves an IP68 waterproof rating. The polyolefin heat shrink tubing, lined with EVA hot-melt adhesive, creates a hermetic seal against pressurized water and dust, making it the definitive choice for exposed automotive and marine systems.

[ADVANCED POLYMER THERMAL RESISTANCE]

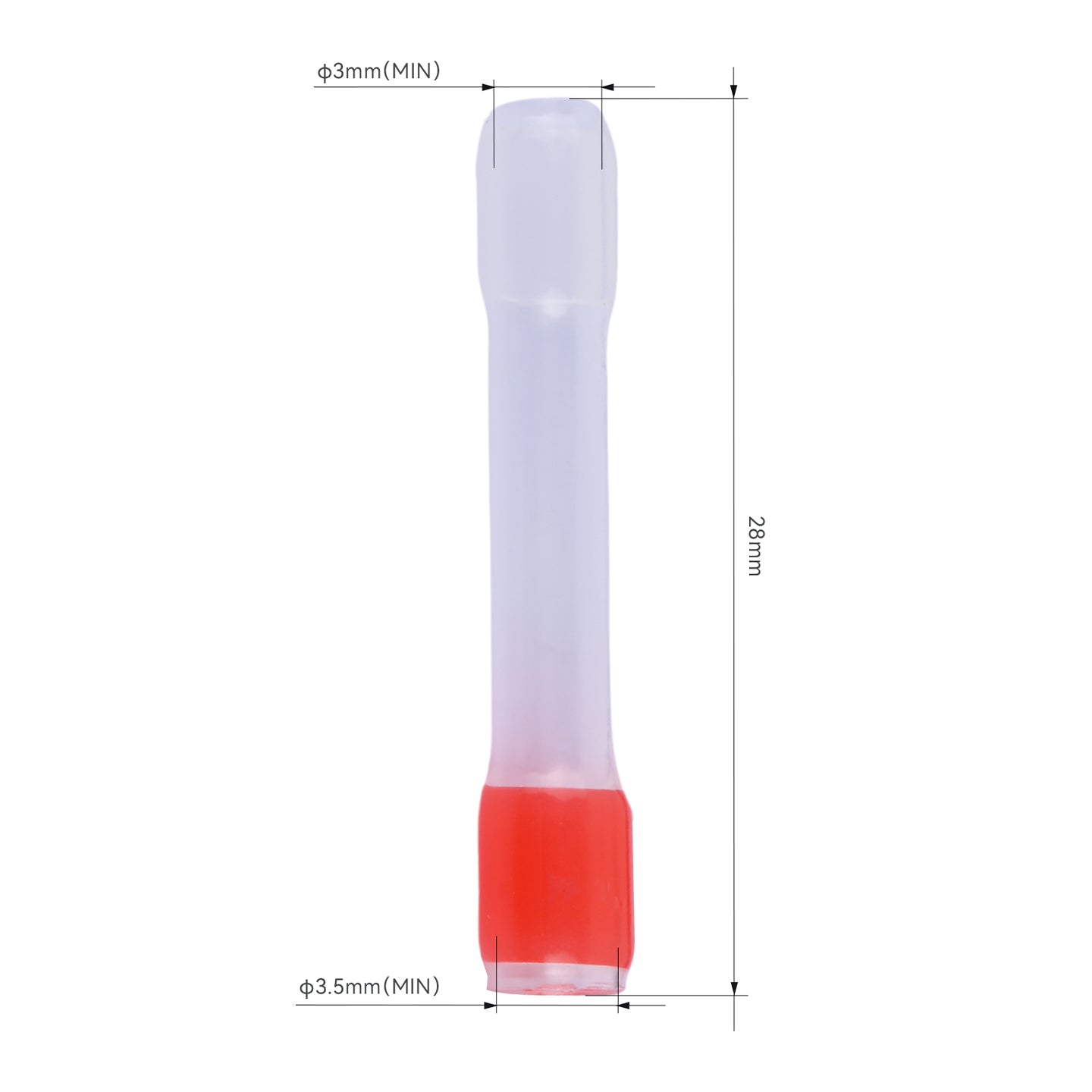

Constructed from high-performance heat-shrinkable materials (PE: -55°C to 125°C / PVDF: -55°C to 150°C), these transparent sleeves offer exceptional clarity for visual inspection and superior chemical stability. The material is engineered to resist abrasion and environmental cracking, providing a reliable insulated shield for critical sensors in engine compartments and industrial machinery.

[HIGH-PURITY COPPER & CRACK-FREE METALLURGY]

The JWS81824 series utilizes 99.9% Pure Copper treated with a Matte Tin plating process to ensure maximum conductivity and resistance to 48H salt spray. Through a specialized tempering process (Vickers Hardness HV35-55), these connectors are designed for ductile deformation, ensuring zero structural cracks after crimping for a permanent, high-tenacity electrical link.

[PRECISION WIRE GAUGE ADAPTABILITY]

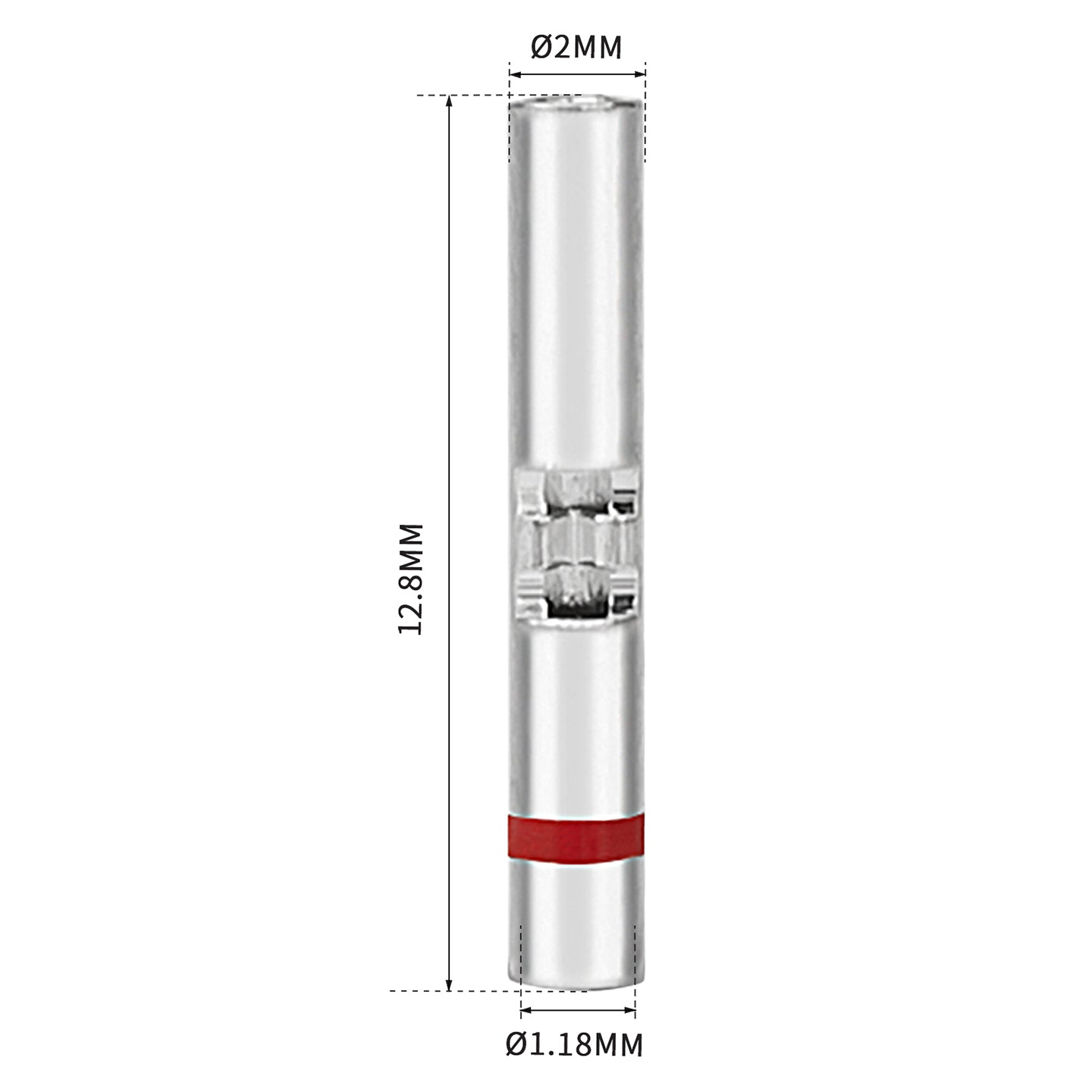

Perfectly calibrated for 20-26 AWG (0.5-0.12mm²) conductors. Every red butt splice features an integrated wire stop and inspection window, facilitating precise wire positioning and full-surface contact. This ensures stable, low-resistance signal transmission in aerospace, military, and new energy communication equipment.

[PROFESSIONAL MIL-SPEC INSTALLATION SYSTEM]

Achieve OEM-standard results with the ACT-232 precision crimper, following the M22520/37-01 design. Built with a high-carbon steel head (HRC 45-50), the tool’s 3-cavity die and specialized ratchet mechanism guarantee uniform compression every time. This solderless system replaces complex wiring methods with a fast, gas-tight, and mechanical-grade termination.

Learn more about the Crimp Tool ACT-232 here: JRready CRIMP TOOL KIT: ACT-232(RED) (M22520/37-01 AD-1377) Crimp Tool – JRDTOOLS
