JRready DTHD Series 1-Pin Waterproof Connector Kit, 3 Sets with 8# Solid Contacts, 8-10AWG, 60A

PACKAGE LIST:

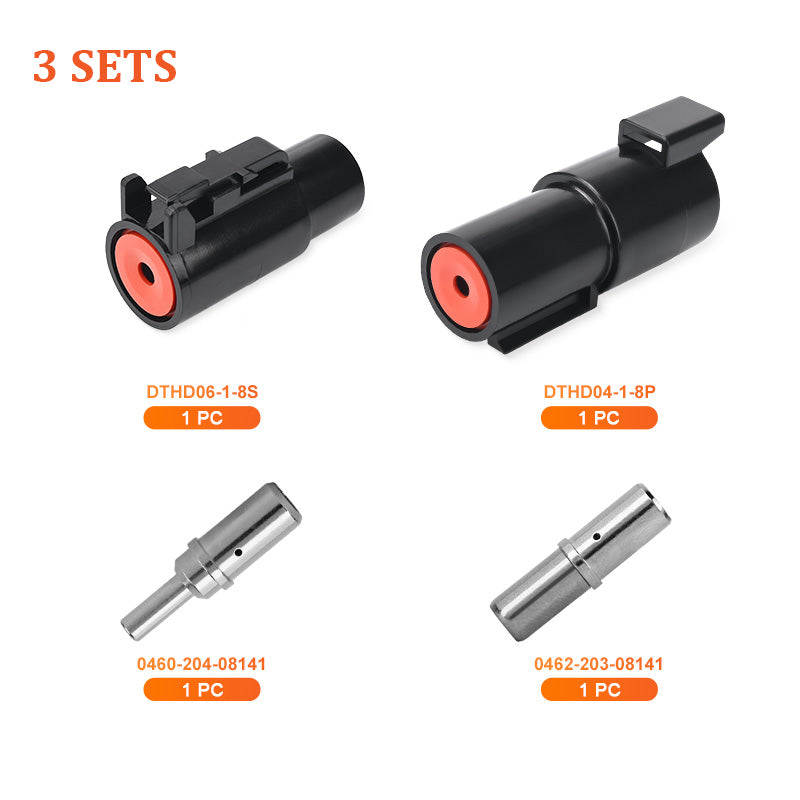

JRready DTHD Series (8#) 1-Pin connector housings (1 male + 1 female) with solid contacts, 3 Sets.
(DTHD06-1-8S+DTHD04-1-8P+0462-203-08141+0460-204-08141)*3

[ULTRA-HIGH CURRENT CAPACITY FOR POWER-INTENSIVE RUNS]

Step up to 60A performance where standard multi-pin connectors fail. The DTHD series 1-pin system is engineered for single, high-draw circuits—delivering a continuous 60A current for heavy winches, trolling motors, emergency light bars, and off-grid power feeds. Rated at 250V AC/DC, it provides a dedicated and isolated power path that meets the rigorous energy demands of modern 12V and 24V industrial and automotive electrical architectures.

[SUPERIOR SEALING AGAINST HARSH ENVIRONMENTAL EXPOSURE]

Featuring an IP67 waterproof rating, this connector keeps your critical high-power connections dry under driving rain and temporary submersion. The rugged PE housing is built for continuous operation from -55°C to +125°C—an extended low-temperature range that ensures sealing integrity in arctic climates where standard plastics become brittle, and high-altitude deployments where reliability is non-negotiable.

[PRECISION-MACHINED CONTACTS FOR UNCOMPROMISED CONDUCTIVITY]

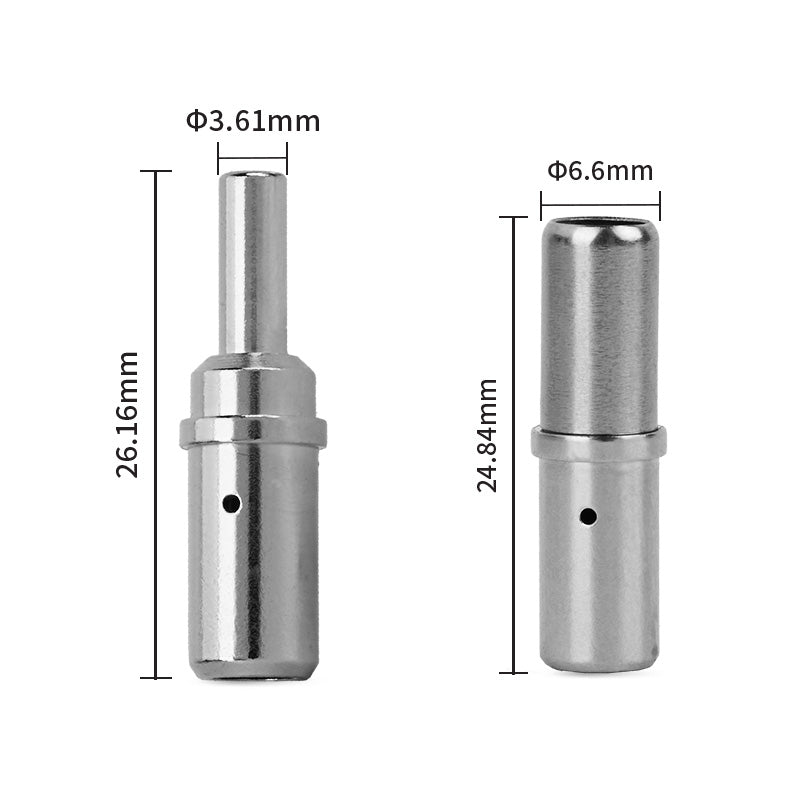

The 8# solid contacts included in this kit are machined for maximum surface area engagement, minimizing resistance and heat buildup during 60A continuous loads. A full nickel plating provides a robust shield against oxidation and atmospheric corrosion, ensuring a gas-tight, high-reliability termination on heavy-duty 8-10AWG (8.0–5.0mm²) cabling used in marine engines and heavy transport platforms.

[STREAMLINED CYLINDRICAL FORMAT FOR TIGHT-SPACE ROUTING]

Engineered with a compact cylindrical inline housing, the DTHD series is significantly easier to route through firewalls, bulkheads, and protective conduits than bulky rectangular alternatives. The integrated locking tab on the receptacle provides a secure, vibration-proof engagement that won't rattle loose on agricultural machinery or off-road vehicles, requiring no additional mounting hardware for a clean, professional finish.

[UNIVERSAL SYSTEM COMPATIBILITY AND EXPANDABILITY]

Built to industry-standard DTHD series mating dimensions, these housings are fully compatible with same-specification connectors across the market. The versatile 8# solid contacts offer cross-series flexibility, integrating seamlessly into HDP20, HD30, and DRB series heavy-duty housings, allowing you to maintain high-performance electrical standards while simplifying your inventory for renewable energy, transportation, and heavy-duty field repairs.
