JRready 12-Pin Deutsch DTM Connector Kit with #20 Stamped Contacts, 16-22 AWG - Waterproof Marine, Truck, Motorcycle, Agricultural & Alternative Energy

PACKAGE LIST:

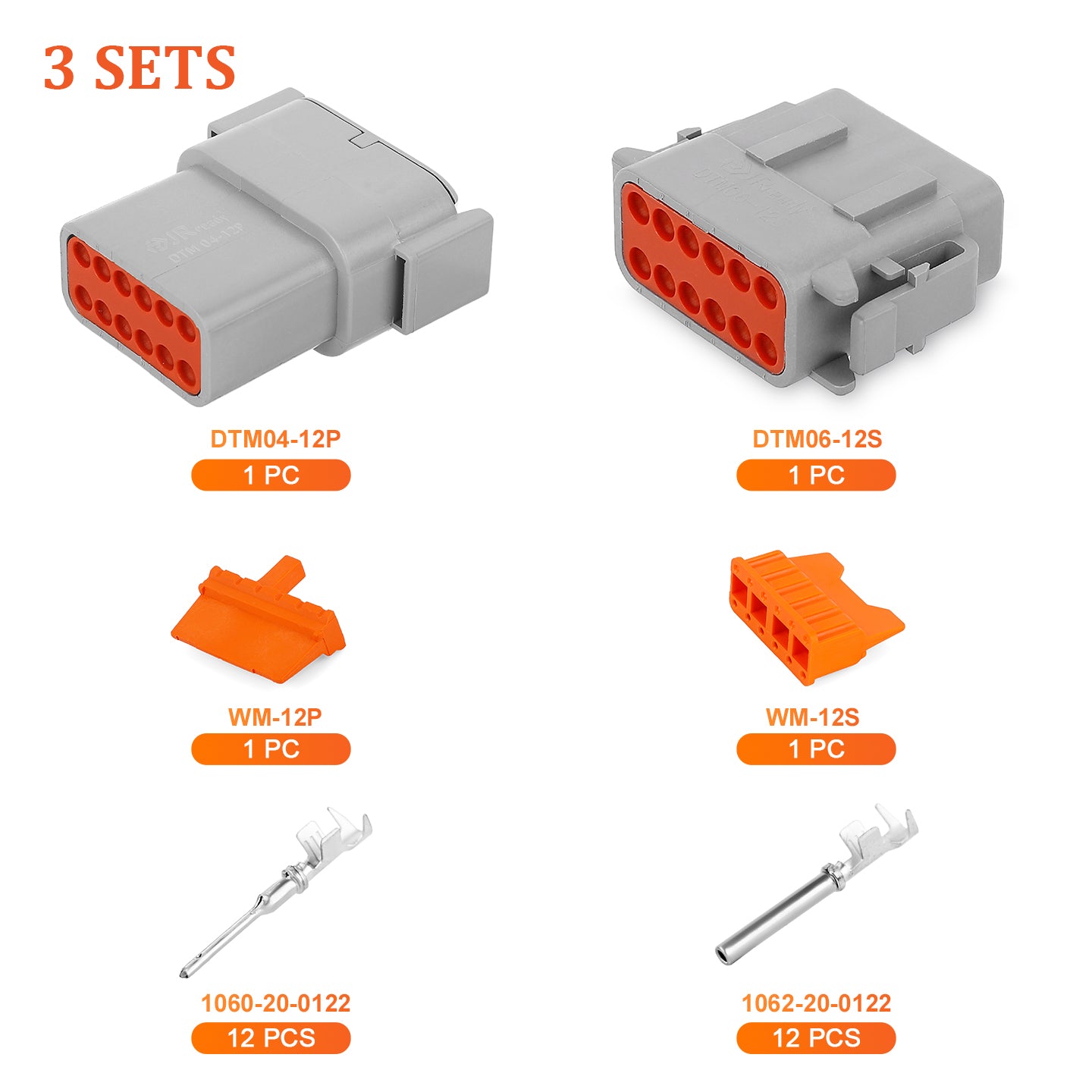

JRready DTM Series 12-Pin connector housings (1 male + 1 female) with stamped contacts, 3 Sets
(WM-12P+WM-12S+DTM04-12P+DTM06-12S+1060-20-0122*12+1062-20-0122*12)*3

[MAXIMUM CIRCUIT DENSITY, MINIMUM FOOTPRINT]

Twelve independent circuits through a single mated connector pair — the highest pin count in the DTM series lineup. Ideal for complex wiring applications like full ECU harnesses, multi-channel sensor arrays, or consolidated body control modules where routing twelve separate connectors simply isn't practical.

[WATERPROOF WHERE COMPLEXITY IS HIGHEST]

More circuits mean more exposure risk — and this 12-pin housing is built to handle it. IP67-rated and molded from PA66 nylon with UL94V-0 flame retardancy, it seals all twelve wire entry points against moisture and dust. Operating range spans -40°C to +125°C, with withstand voltage tested at 1500V for 1 minute and insulation resistance exceeding 1000MΩ.

[NICKEL-PLATED CONTACTS ACROSS ALL 12 POSITIONS]

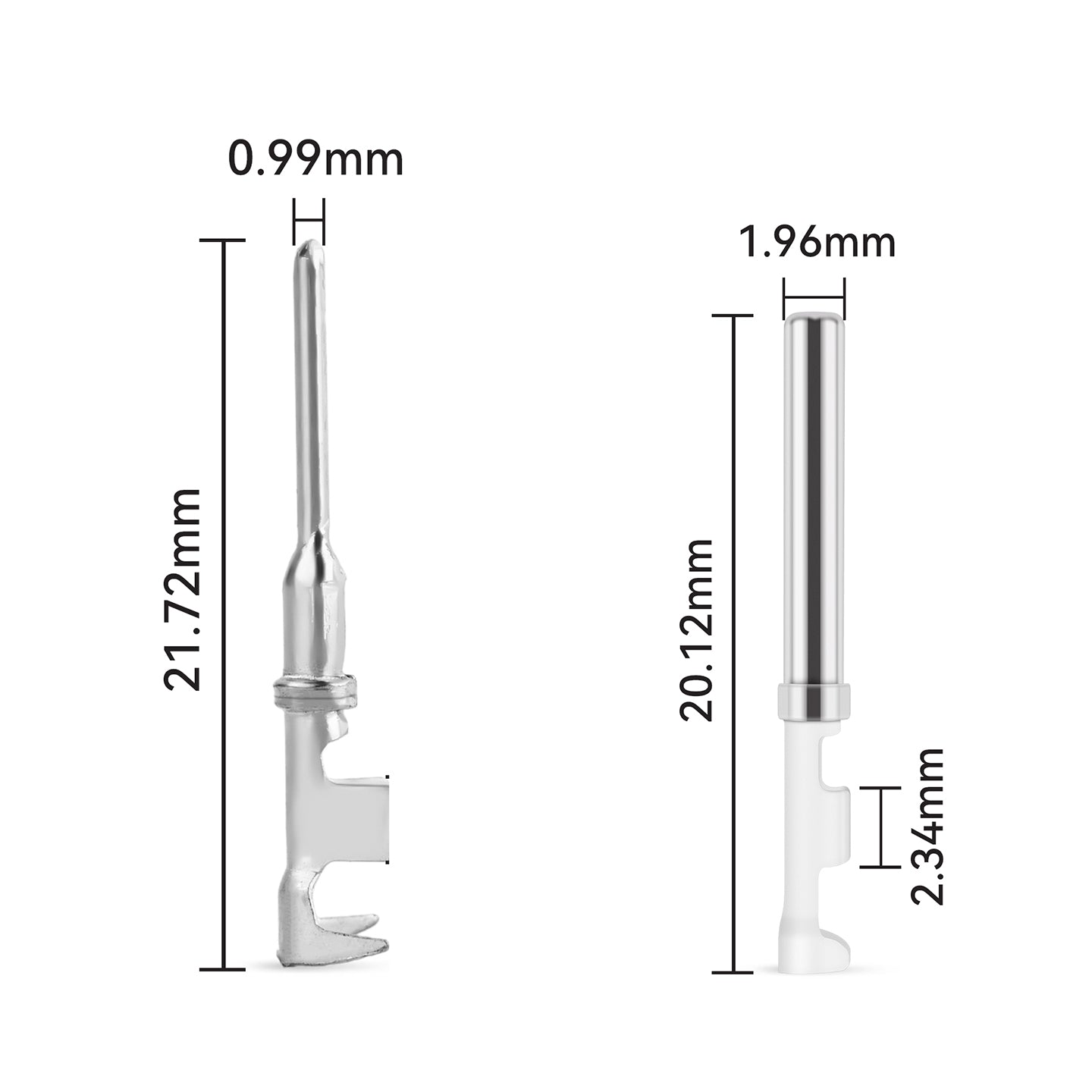

Each stamped terminal features full-surface nickel plating to resist oxidation at the mating interface, paired with a tin-plated crimp tail for a gas-tight wire connection. With twelve contacts per connector each rated 7.5A / 250V AC/DC across 16-22AWG (1.5–0.35mm²), the kit delivers consistent low-resistance performance at every position in the harness.

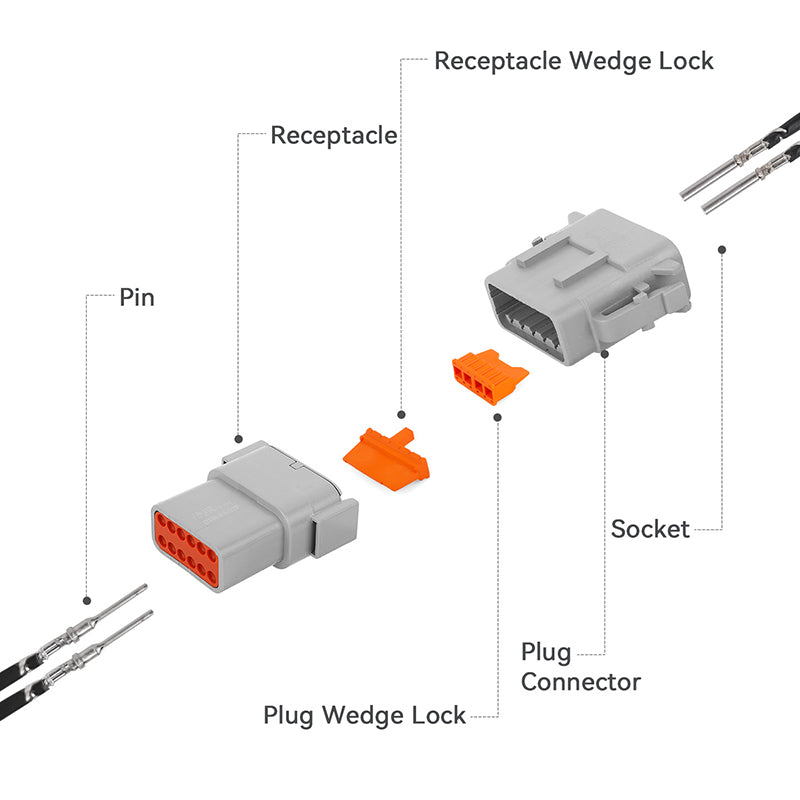

[ONE WEDGE LOCK SECURES ALL TWELVE TERMINALS]

At twelve positions, terminal back-out isn't just inconvenient — it can take down an entire control system. The included wedge locks engage all twelve terminal positions simultaneously, adding mechanical retention on top of each terminal's primary locking tab. Retention force exceeds 60N per position, holding firm under the vibration and shock loads common in heavy-duty truck and off-road applications.

[DROP-IN REPLACEMENT FOR DTM SERIES WIRING]

Manufactured to DTM series mating dimensions and fully compatible with same-specification connectors already in the field. The stamped terminals also cross-reference to DT, HDP20, HD30, HD10, DRC, and Jiffy Splice series — making this kit a direct replacement option for existing 12-pin wiring on trucks, agricultural equipment, marine vessels, and alternative energy systems without rewiring from scratch.
