JRready DTM Series 2-Pin Connector Kit, 12 Sets with Wedge Locks & 20# Machined Solid Pin/Socket, 20-22AWG, Heavy-Duty for Truck Marine Agricultural

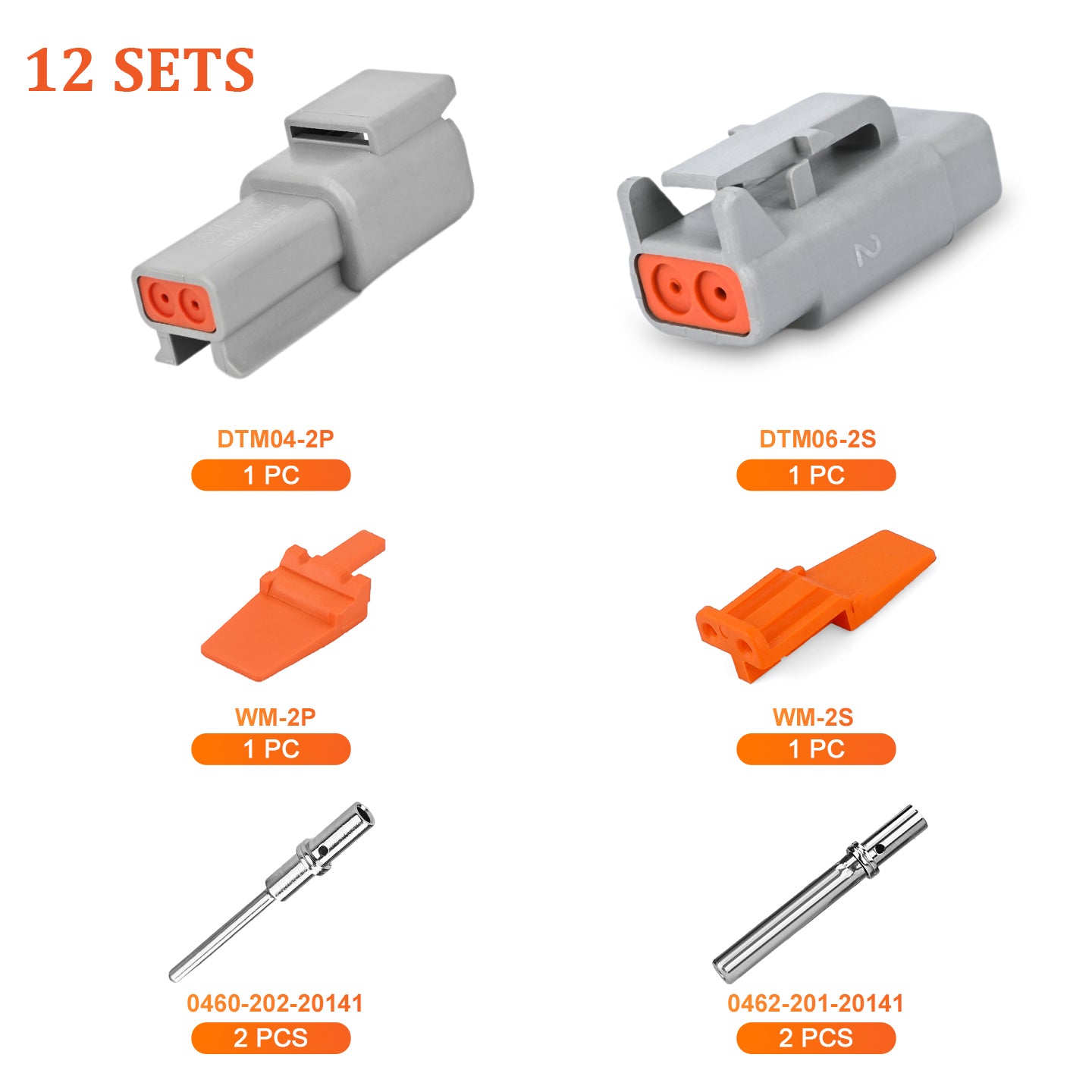

PACKAGE LIST:

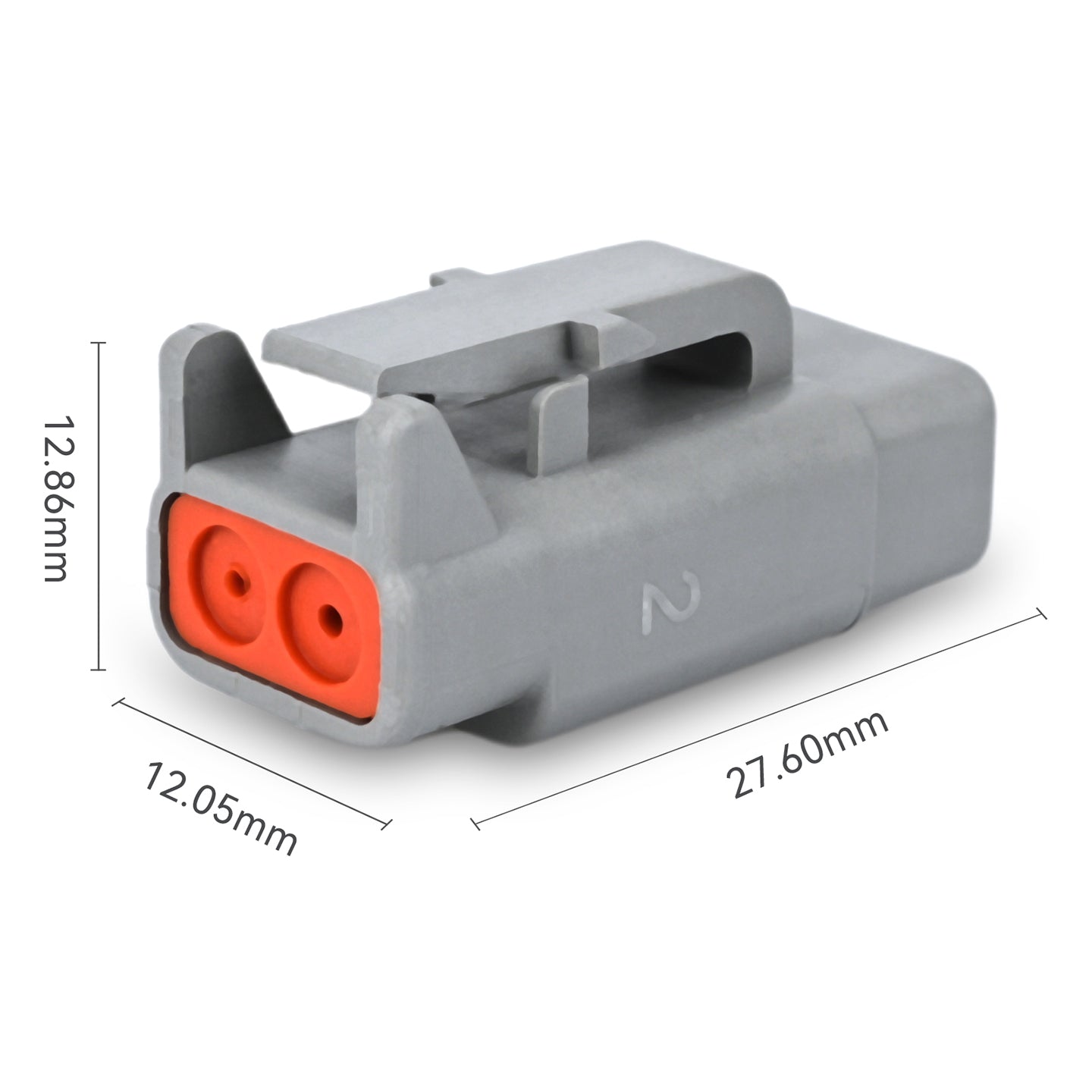

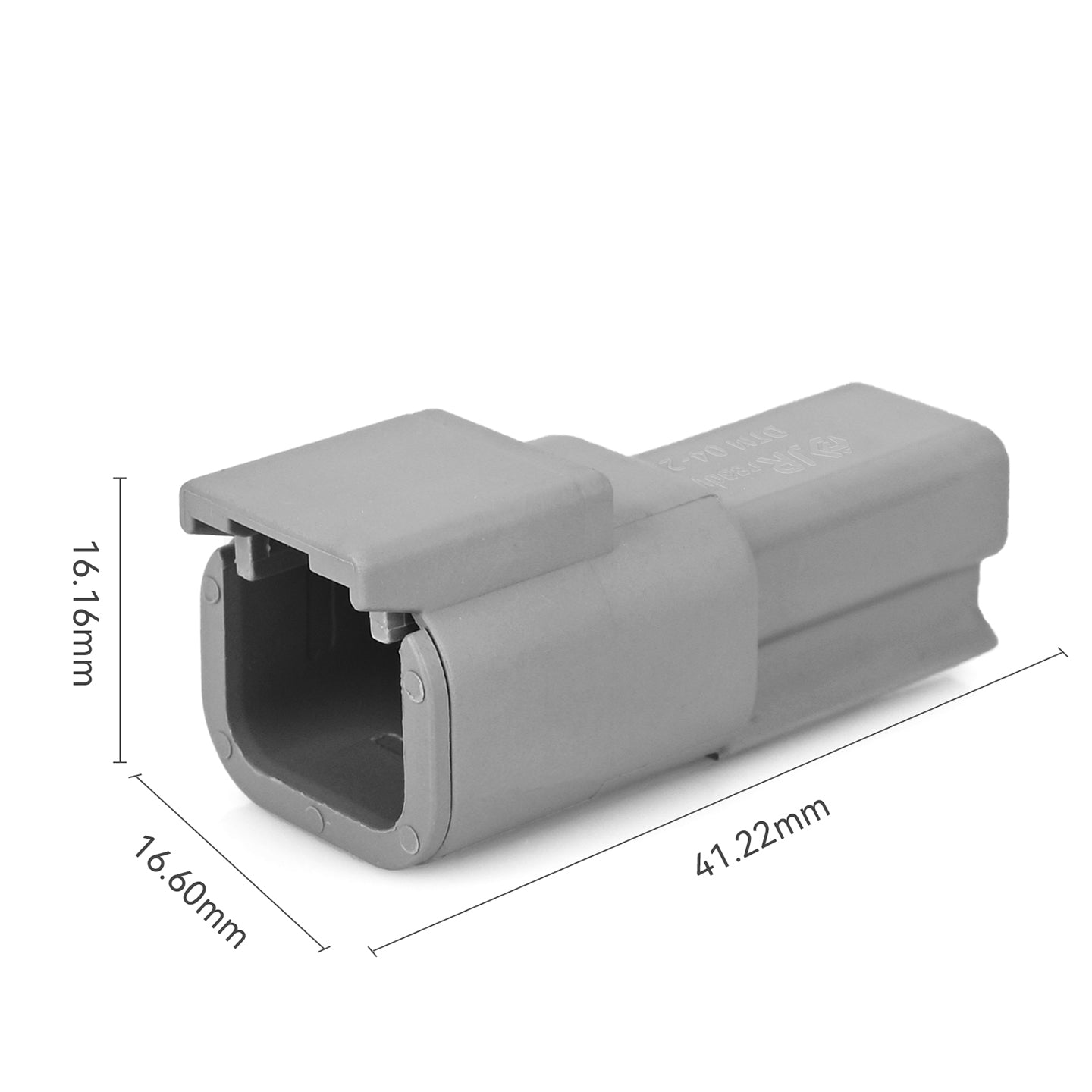

JRready DTM Series 2-Pin connector housings (1 male + 1 female) with solid contacts, 12 Sets
(WM-2P+WM-2S+DTM04-2P+DTM06-2S+0462-201-20141*2+0460-202-20141*2)*12

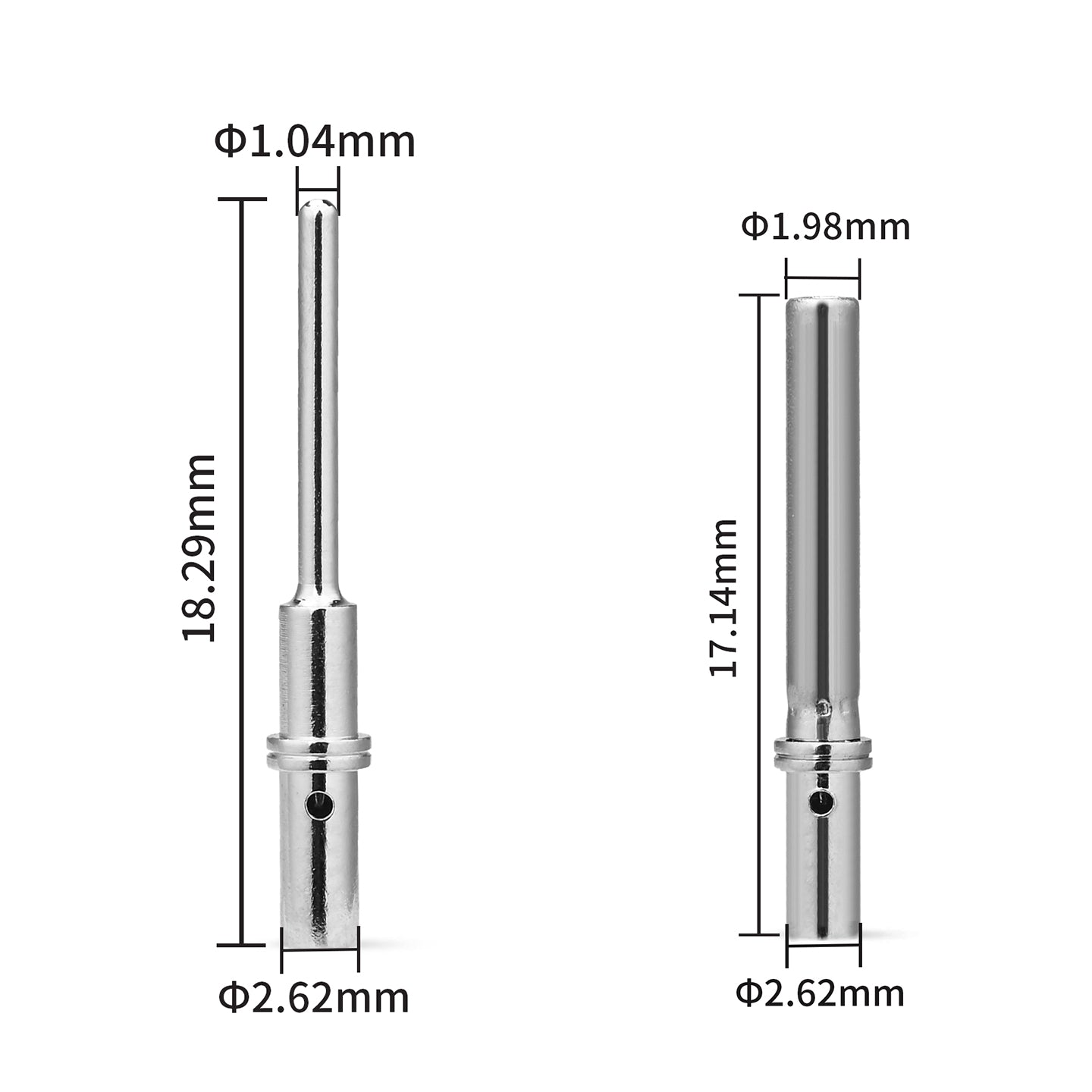

[MACHINED SOLID CONTACTS]

Unlike stamped terminals, the solid machined contacts in this kit are rated for a minimum of 500 insertion and extraction cycles — five times the lifespan of standard stamped alternatives. Precision-turned from tin bronze with full nickel plating, each contact maintains consistent dimensional tolerances that stamped parts simply can't match, making this kit the right choice for applications involving frequent reconnection or high-reliability requirements.

[FULL NICKEL PLATING, ZERO WEAK POINTS]

Every contact surface is nickel-plated end to end — no bare metal exposed at any point in the mating interface. This uniform plating eliminates the localized corrosion that starts at plating boundaries in lesser terminals, maintaining low contact resistance over years of service in humid, salt-laden, or chemically aggressive environments. Rated 7.5A / 250V AC/DC across 20-22AWG (0.5–0.35mm²).

[IP67 HOUSING BUILT FOR CRITICAL SIGNAL CIRCUITS]

Solid machined contacts are typically chosen for data signals and precision electronic circuits where connection integrity is non-negotiable. The IP67-rated PA66 housings in this kit match that standard — sealing every wire entry point against moisture and dust, with UL94V-0 flame retardancy and an operating range of -40°C to +125°C that covers even the most demanding underhood or marine installations.

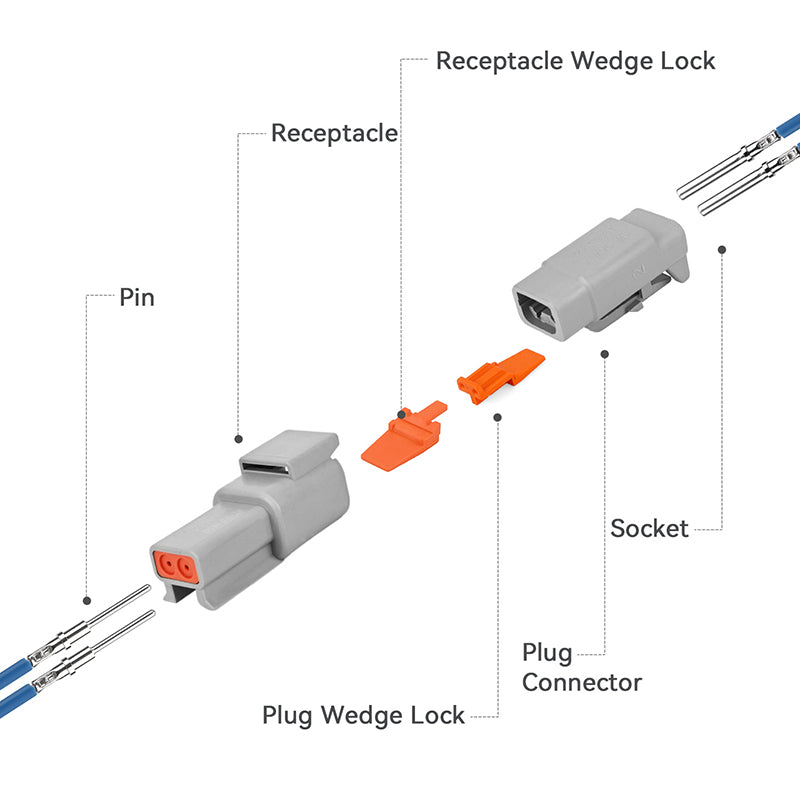

[WEDGE LOCK RETENTION FOR HIGH-CYCLE APPLICATIONS]

When connectors are mated and unmated repeatedly, terminal retention matters more with every cycle. The plug and receptacle wedge locks included in each set add a mechanical secondary lock behind each terminal position, preventing back-out even as primary retention wears with repeated use. Terminal retention force exceeds 60N, keeping connections secure between every reconnection.

[COMPATIBLE ACROSS DTM, HDP20, HD30 AND DRC SERIES]

The solid machined contacts in this kit fit DTM series housings and extend compatibility to HDP20, HD30, and DRC series connectors — covering a broad range of existing wiring systems without requiring additional terminal inventory. A practical upgrade for motorcycles, trucks, marine vessels, and agricultural equipment where long service life and 2-pin reliability matter most.
