JRready 8-Pin Deutsch DTM Connector Kit with #20 Stamped Contacts, 16-22 AWG - Waterproof Marine, Truck, Motorcycle, Agricultural & Alternative Energy

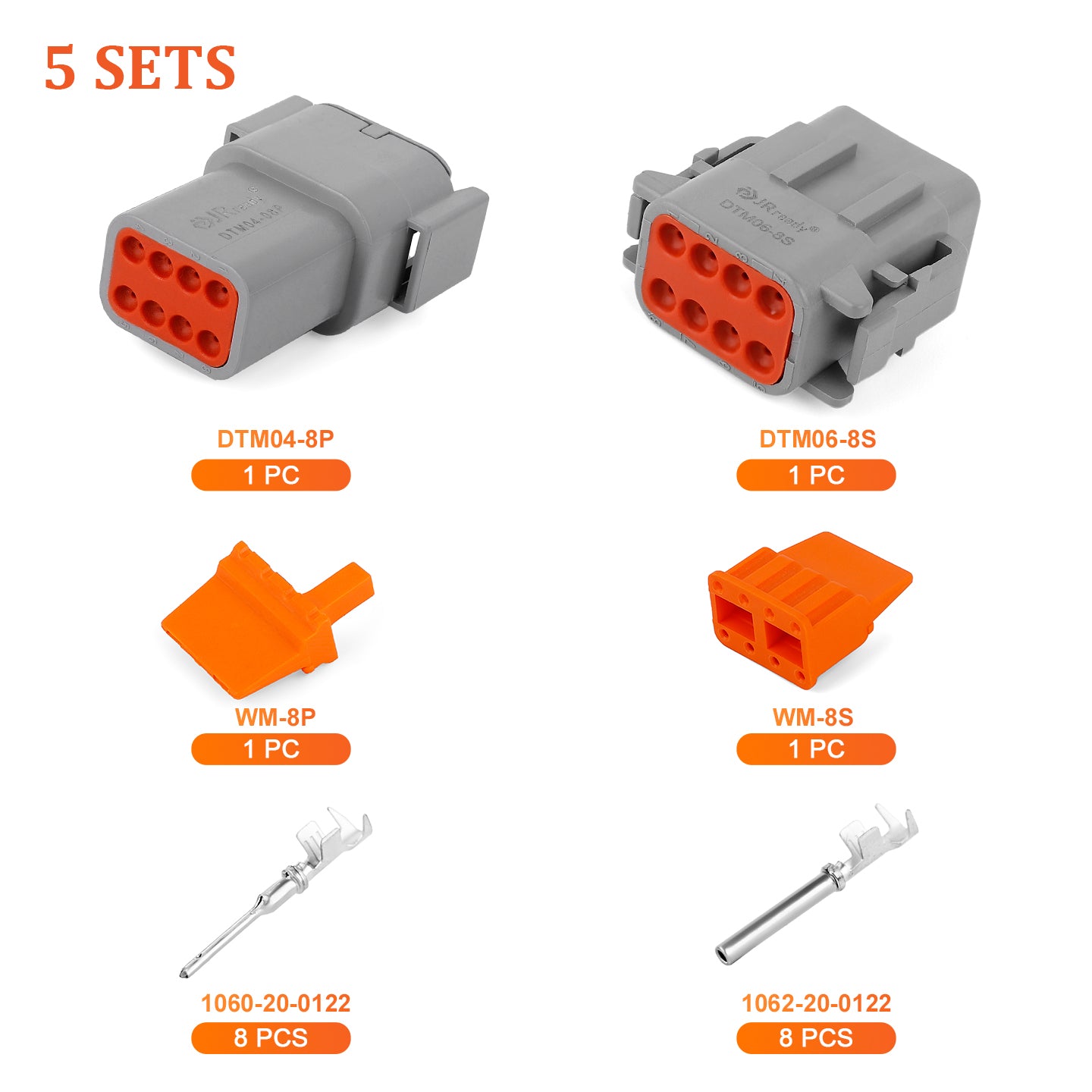

PACKAGE LIST:

JRready DTM Series 8-Pin connector housings (1 male + 1 female) with stamped contacts, 5 Sets
(WM-8P+WM-8S+DTM04-8P+DTM06-8S+1060-20-0122*8+1062-20-0122*8)*5

[IP67 SEALED, FLAME-RETARDANT, FIELD-PROVEN]

PA66 nylon housings with UL94V-0 flame retardancy and IP67 waterproof rating keep all eight circuits protected from moisture, dust, and chemical exposure in the toughest installations. Continuous operation from -40°C to +125°C, with insulation resistance exceeding 1000MΩ — built for the environments where connection failure has real consequences.

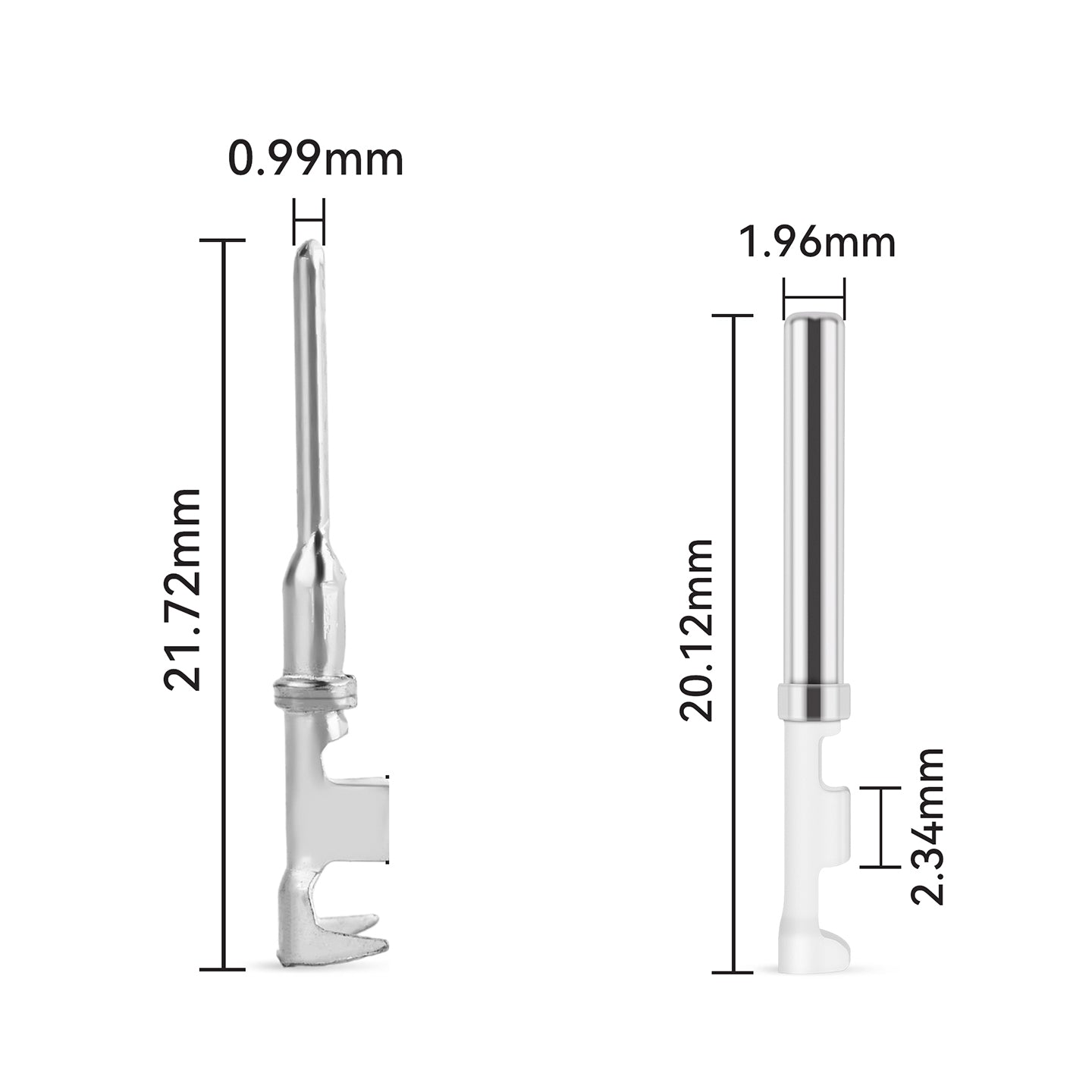

[OXIDATION-RESISTANT CONTACTS THAT HOLD THEIR RATING]

Nickel-plated phosphor bronze contacts maintain low contact resistance over time, resisting the oxidation that degrades conductivity in humid or corrosive environments. The tin-plated crimp tail forms a reliable gas-tight seal around the wire, keeping each of the eight circuits rated at 7.5A / 250V AC/DC across 16-22AWG (1.5–0.35mm²).

[EIGHT CIRCUITS, ONE RELIABLE MATING POINT]

Eight independent circuits through a single connector pair — ideal for complex wiring tasks like full lighting harnesses, multi-axis sensor systems, or consolidated control modules. Fewer connection points mean fewer potential failure sites, and the compact DTM housing keeps the harness tight even with eight wires running through it.

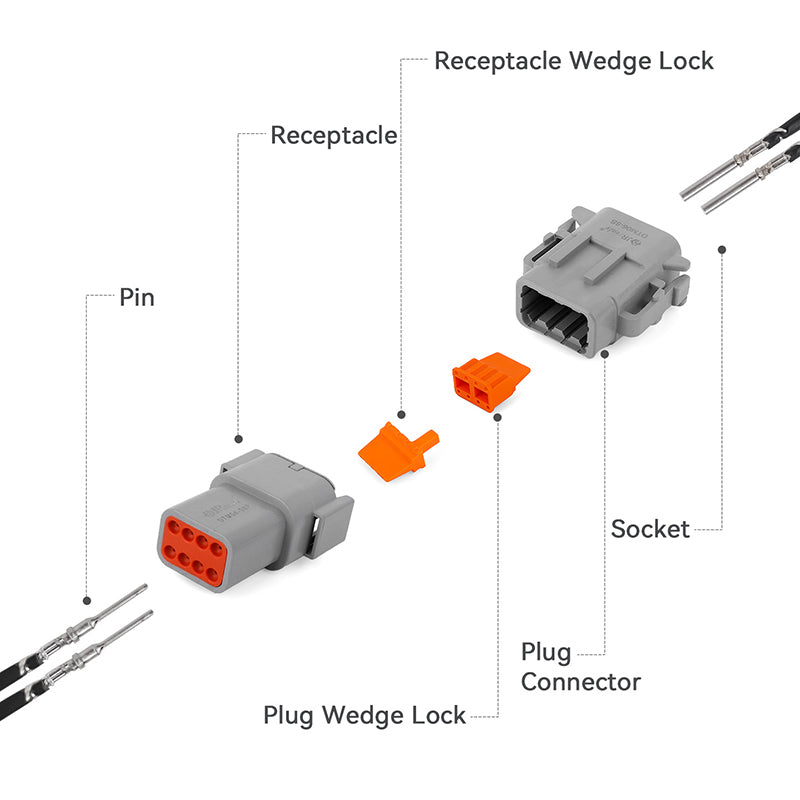

[WEDGE LOCKS HOLD FIRM ACROSS ALL EIGHT POSITIONS]

Managing eight terminals in a single connector demands secondary retention you can count on. The wedge lock slides in behind all eight terminal positions at once, adding mechanical back-out prevention on top of each terminal's primary retention tab. With retention force exceeding 60N per position, the assembly stays secure under the vibration loads common in heavy truck and off-road environments.

[CROSS-SERIES COMPATIBILITY FOR EXISTING WIRING]

These housings mate directly with DTM series connectors already in the field, and the stamped terminals extend compatibility to DT, HDP20, HD30, HD10, DRC, and Jiffy Splice series. Whether you're expanding an existing harness or replacing damaged connectors, this kit slots in without rewiring — a practical choice for trucks, marine vessels, agricultural machinery, and alternative energy systems.
