JRready 2-Pin Deutsch DTP Connector Kit with #12 Stamped Contacts, 12-14 AWG (25A) - Waterproof Marine, Truck, Agricultural & Alternative Energy

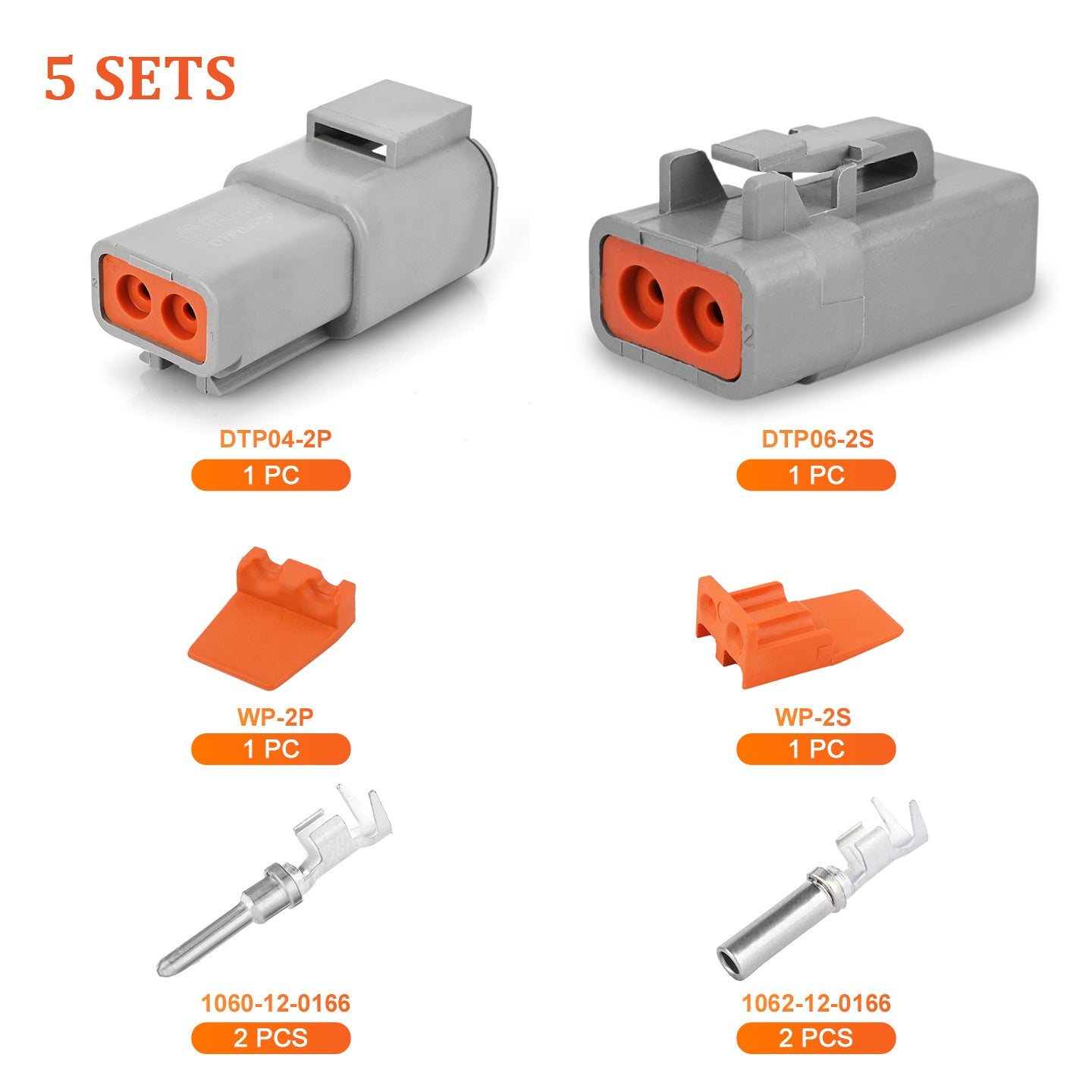

PACKAGE LIST:

JRready DTP Series 2-Pin connector housings (1 male + 1 female) with stamped contacts, 5 Sets.
(WP-2P+WP-2S+DTP04-2P+DTP06-2S+1062-12-0166*2+1060-12-0166*2)*5

[BUILT FOR HIGH-CURRENT WIRING]

Each contact in this kit is rated at 25A / 250V AC/DC — making it the right choice for high-draw circuits like lighting systems, winches, auxiliary power feeds, and motor controls where connection reliability under load is non-negotiable. Handles 12-14AWG (4.0–2.0mm²) wire without compromise, delivering stable performance across the full current range in every installation.

[WATERPROOF-RATED FOR DEMANDING INSTALLATIONS]

IP67-rated PA66 housings with UL94V-0 flame retardancy seal both wire entries against moisture, dust, and contaminants across a -40°C to +125°C operating range. Voltage resistance tested at 1500V for 1 minute without breakdown, with insulation resistance exceeding 1000MΩ — the same environmental standard as the DT and DTM series, scaled up for higher-current applications in engine bays, marine decks, and heavy equipment.

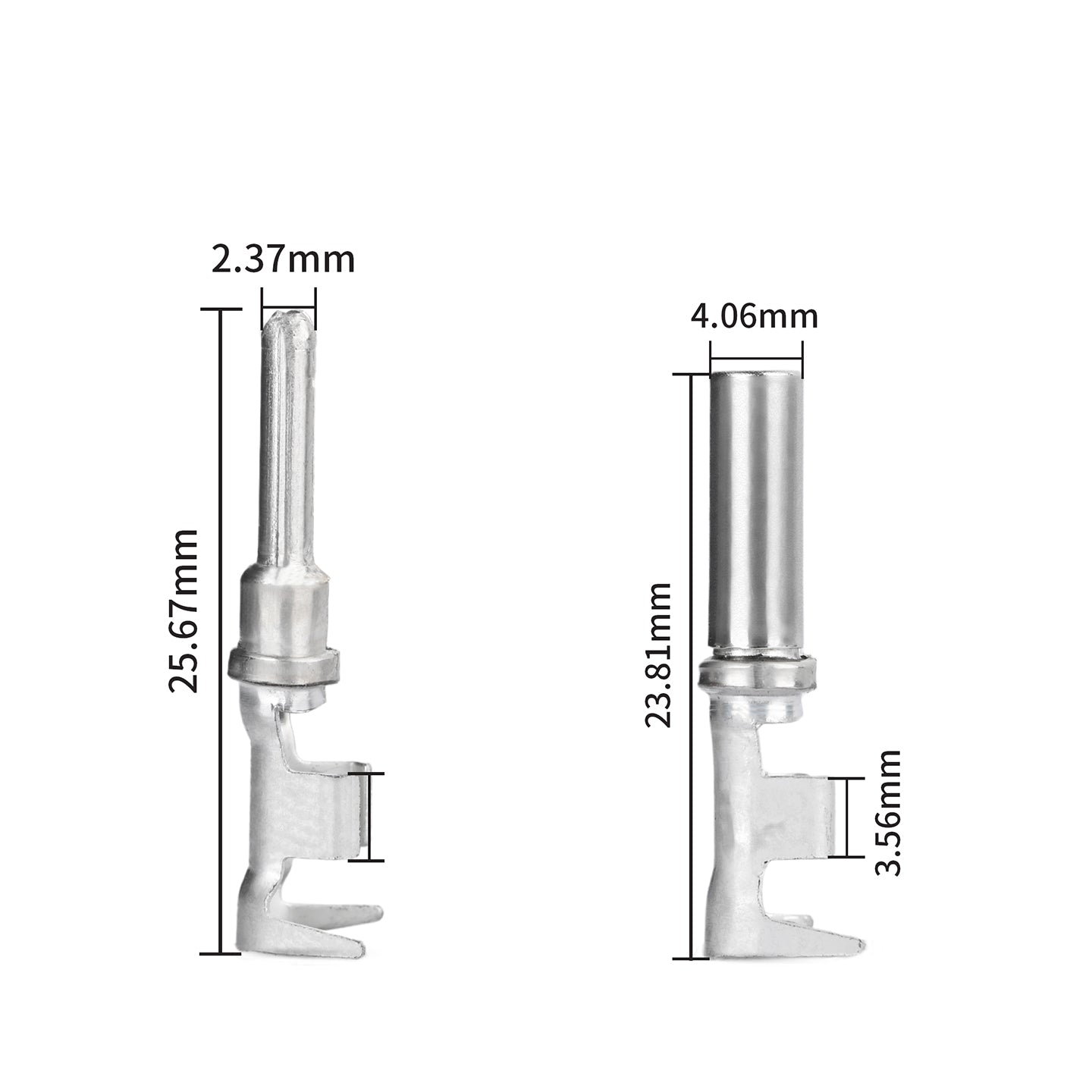

[PHOSPHOR BRONZE CONTACTS WITH GAS-TIGHT CRIMP]

Stamped from phosphor bronze with full-surface nickel plating and a tin-plated crimp tail, these 12# contacts form a reliable gas-tight connection around the wire that holds its conductivity over time. Terminal retention force exceeds 130N — more than double the DTM series standard — keeping each contact firmly locked in position even under the cable tension and vibration loads that come with high-current wiring.

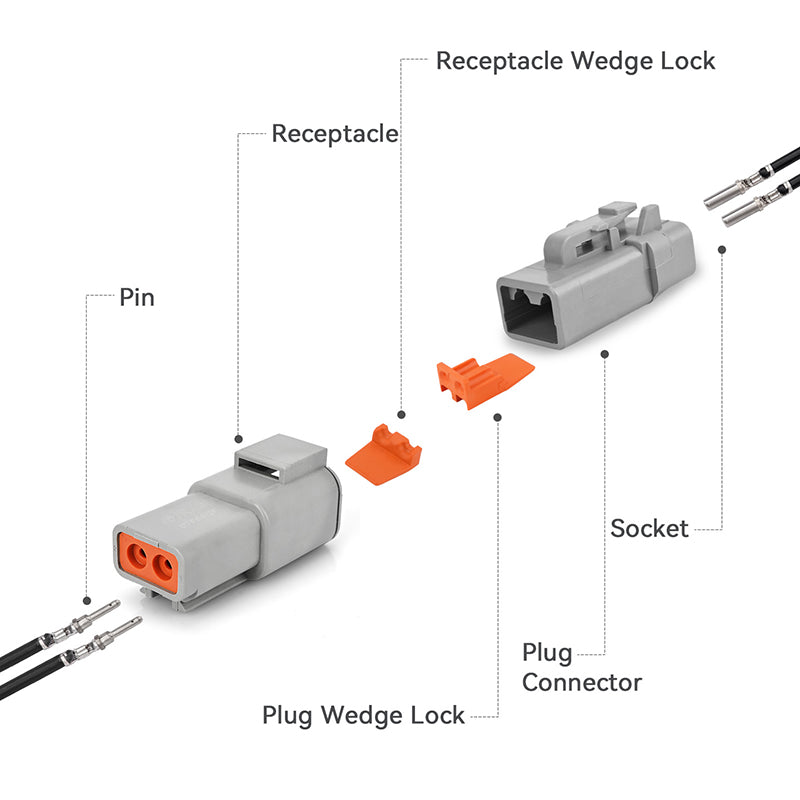

[WEDGE LOCK SECONDARY RETENTION]

Each set includes a plug wedge lock and a receptacle wedge lock that slide in behind both terminal positions, mechanically preventing back-out independent of the primary locking tab. With terminal retention force exceeding 130N, this assembly holds through the sustained vibration, thermal cycling, and cable stress common in trucks, marine vessels, and agricultural machinery running high-current circuits.

[DTP SERIES DIRECT-FIT ACROSS MULTIPLE CONNECTOR FAMILIES]

Designed with the same interface advantages as the DT and DTM series, these DTP housings are compatible with same-specification connectors on the market. The stamped contacts also extend to HDP20, HD30, DTHD, HD10, DRC, and Jiffy Splice series — covering the full range of connector families used in heavy-duty automotive, marine, and alternative energy applications requiring reliable 2-pin, high-current connectivity.
