JRready 4-Pin Deutsch DTP Connector Kit with #12 Solid Contacts, 12-14 AWG (25A) - Waterproof Marine, Truck, Agricultural & Alternative Energy

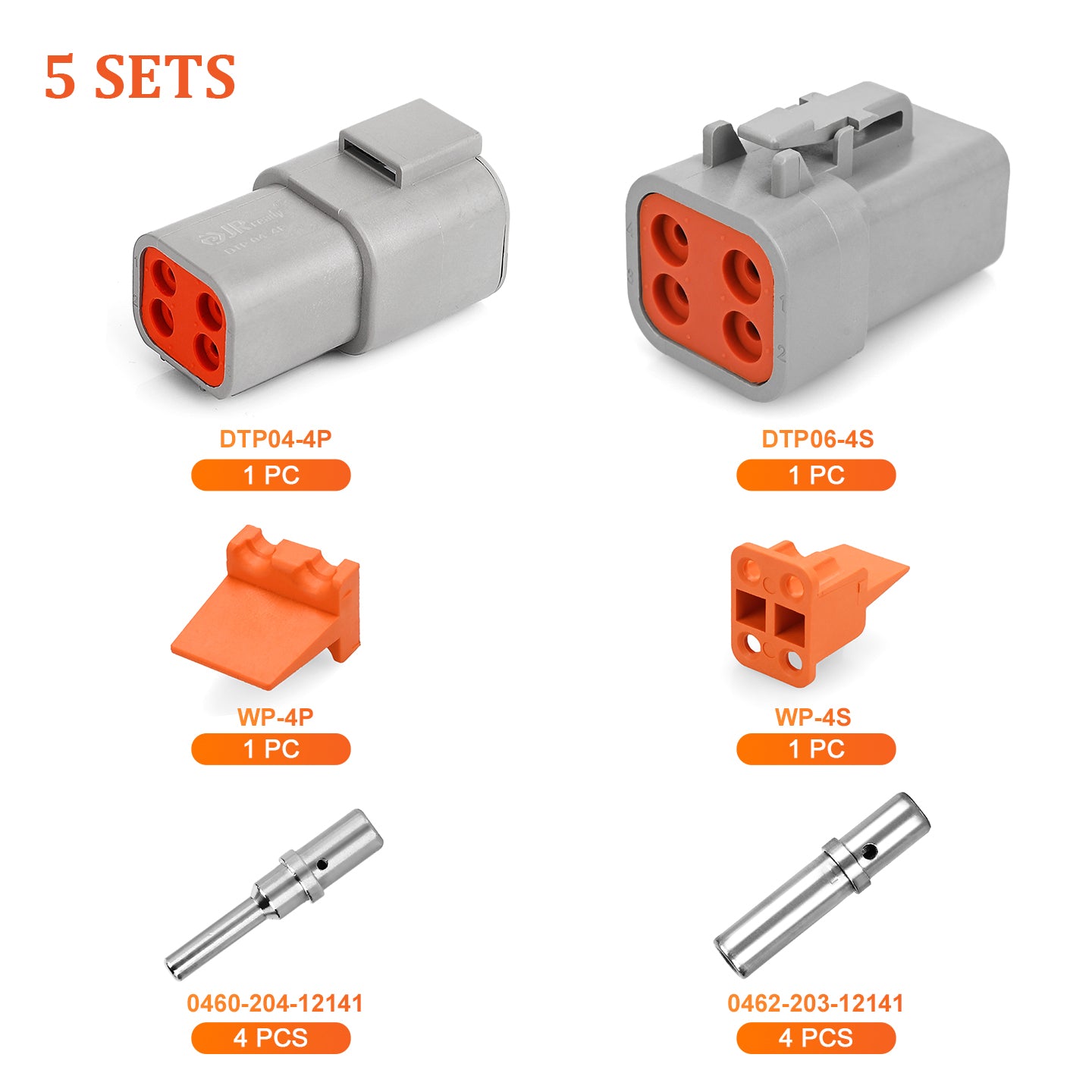

PACKAGE LIST:

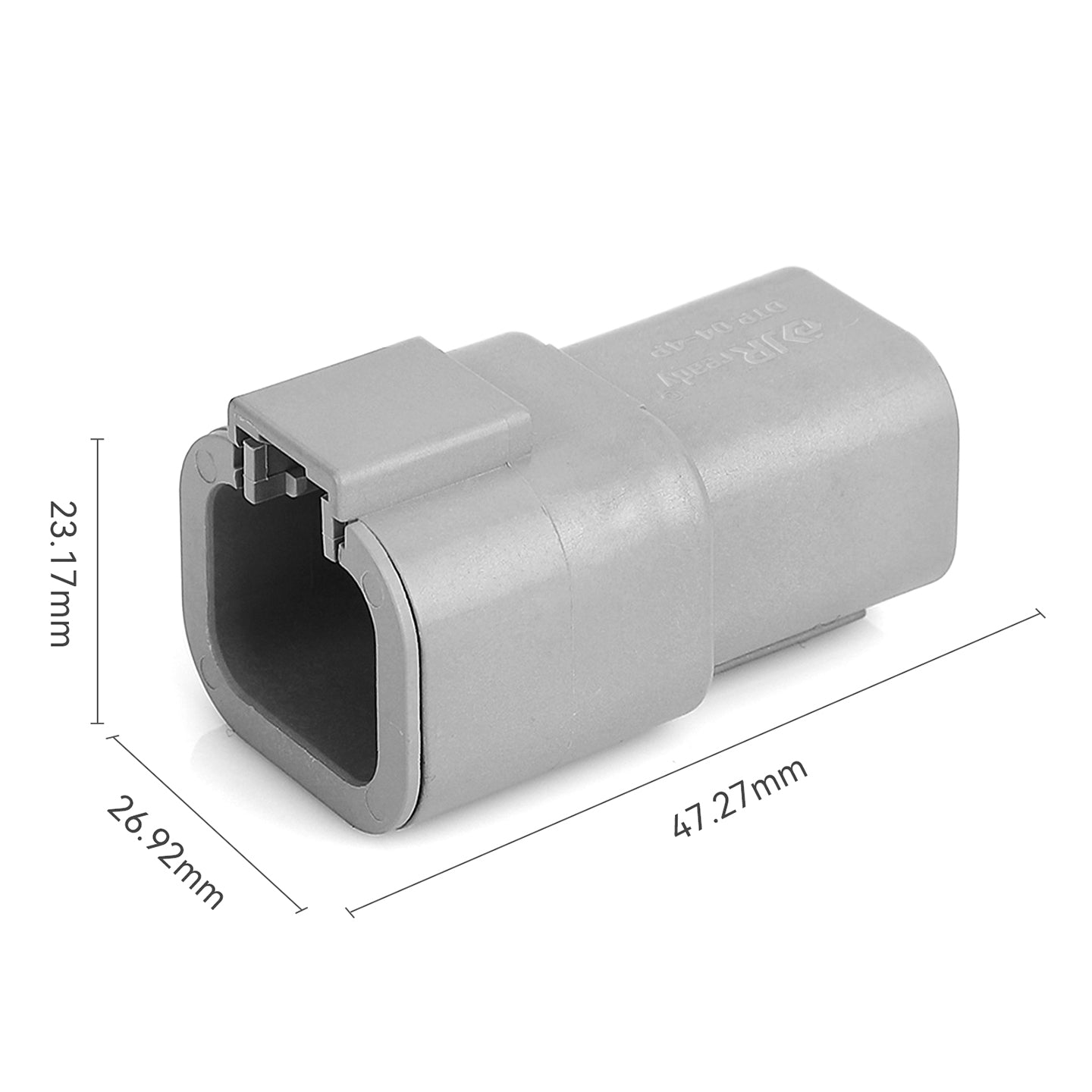

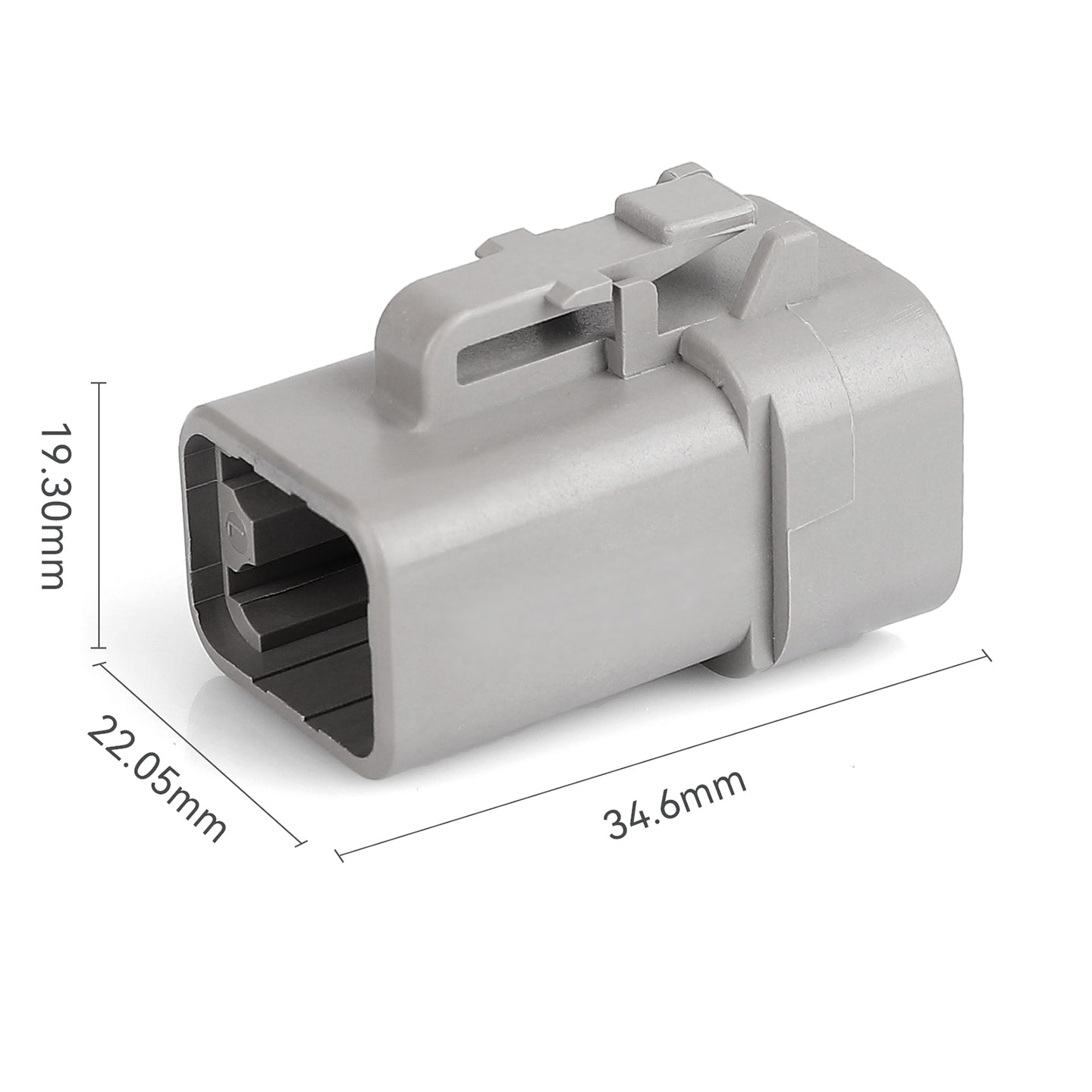

JRready DTP Series 4-Pin connector housings (1 male + 1 female) with solid contacts, 5 Sets.
(WP-4P+WP-4S+DTP04-4P+DTP06-4S+0462-203-12141*4+0460-204-12141*4)*5

[FOUR CIRCUITS, ONE SEALED CONNECTOR]

Where a single high-current connection isn't enough, the 4-pin configuration lets you route multiple independent circuits through one sealed housing — each contact rated at 25A on 12AWG (3.0mm²) wire, 18A at 14AWG, and 13A at 16AWG. That makes this kit a natural fit for multi-function loads like combined lighting, power distribution, or sensor and actuator wiring on trucks, trailers, and off-highway equipment.

[WATERPROOF AGAINST WHATEVER THE JOB THROWS AT IT]

Molded from PA66 with an IP67 waterproof rating and UL94V-0 flame retardancy, the housing operates without issue from -40°C to +125°C — through road spray, engine bay heat, and prolonged outdoor exposure. Insulation resistance is rated at ≥1000MΩ, with dielectric strength verified at 1500V for 1 minute, keeping every circuit isolated and protected regardless of the environment around it.

[PRECISION CONTACTS BUILT TO LAST THROUGH REPEATED USE]

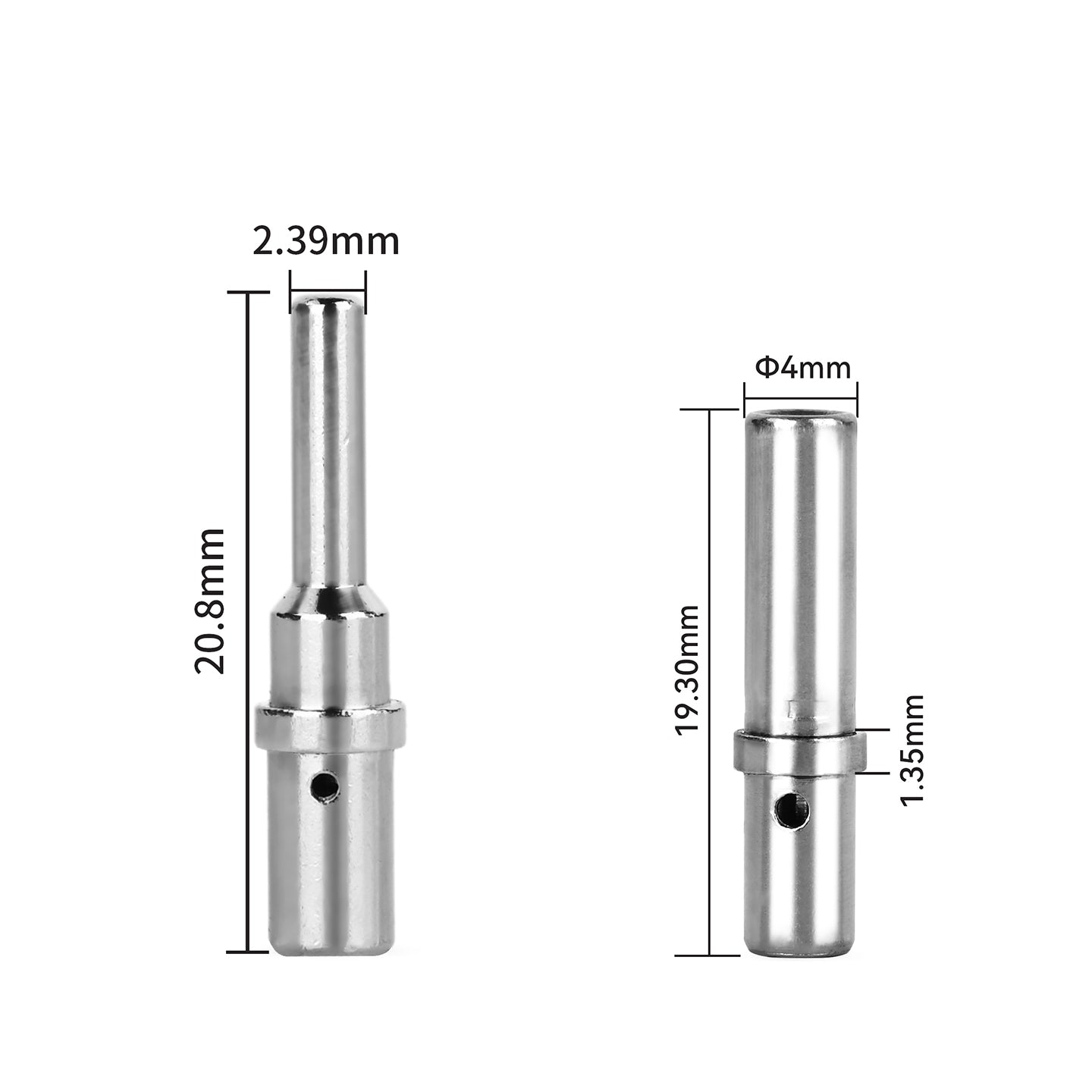

Machined solid contacts with full nickel plating hold their geometry and surface condition across ≥500 insertion and extraction cycles — staying consistent whether the connector is disturbed once a year or once a week. For service access points, diagnostic connectors, or any harness junction that gets regularly disconnected, the performance on the last mating is as reliable as the first.

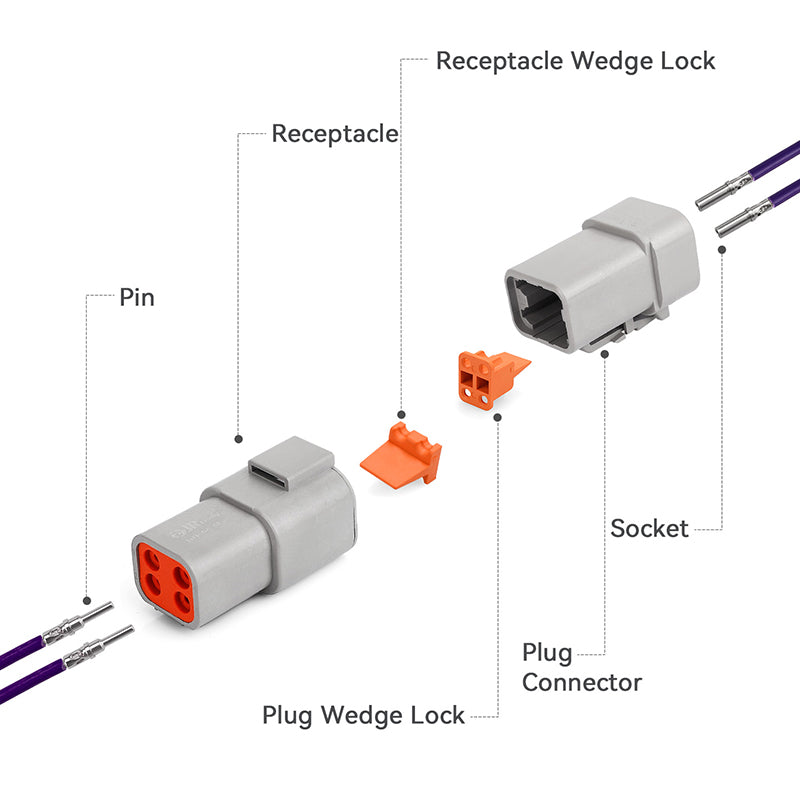

[DUAL-LAYER RETENTION — WEDGE LOCK BACKS UP EVERY TERMINAL]

Each of the four positions is secured by the terminal's own retention tab and reinforced by the wedge lock, which mechanically fixes all terminals in place simultaneously once inserted. With terminal retention force exceeding 130N per cavity and crimp pull force reaching 334N on 12AWG wire, this assembly holds its position under sustained vibration, sudden shock loads, and the mechanical stress typical of mobile equipment wiring.

[DROP-IN COMPATIBLE WITH DTP AND RELATED SERIES]

Housings are manufactured to DTP series mating dimensions, fitting same-specification connectors already in the field without modification. The machined solid contacts are also compatible with HD10, HDP20, HD30, and DRB series connectors, giving you flexibility to extend or integrate this kit into existing multi-series harness builds across marine, agricultural, and heavy transport applications.
