Installing Removal Tool Kit DAK12B+DRK12B DAK16B+DRK16B DAK20B+DRK20BTool Kit for Contact Connector

Regular price $59.00
/

JRready DAK12B M81969 17-05 DAK16B M81969 17-04 DAK20B M81969 17-03 Installing Tool for Contact Connector

  • DAK12B:Designed according to MIL-C-81969/17-05 REV.B ;A small slot on installing rod ensures enough tensile force to install contact into electronic connectors easily
  • DRK12B:Designed according to MIL-C-81969/19-02 REV.B;The brace pipe has an ejector pin to facilitate the removal of contacts
  • DAK16B:Designed according to M81969/17-04 REV.8 ;A small slot on installing rod ensures enough tensile force to install contact into electronic connectors easily
  • DRK16B:Designed according to M81969/19-01 REV.8;The brace pipe has an ejector pin to facilitate the removal of contacts
  • DAK20B:Designed according to MIL-C-81969/17-03 REV.B ;A small slot on installing rod ensures enough tensile force to install contact into electronic connectors easily
  • DRK20B:Designed according to MIL-C-81969/19-06 REV.B;The brace pipe has an ejector pin to facilitate the removal of contacts
  • Small size, convenient to carry,good choice for outdoor using

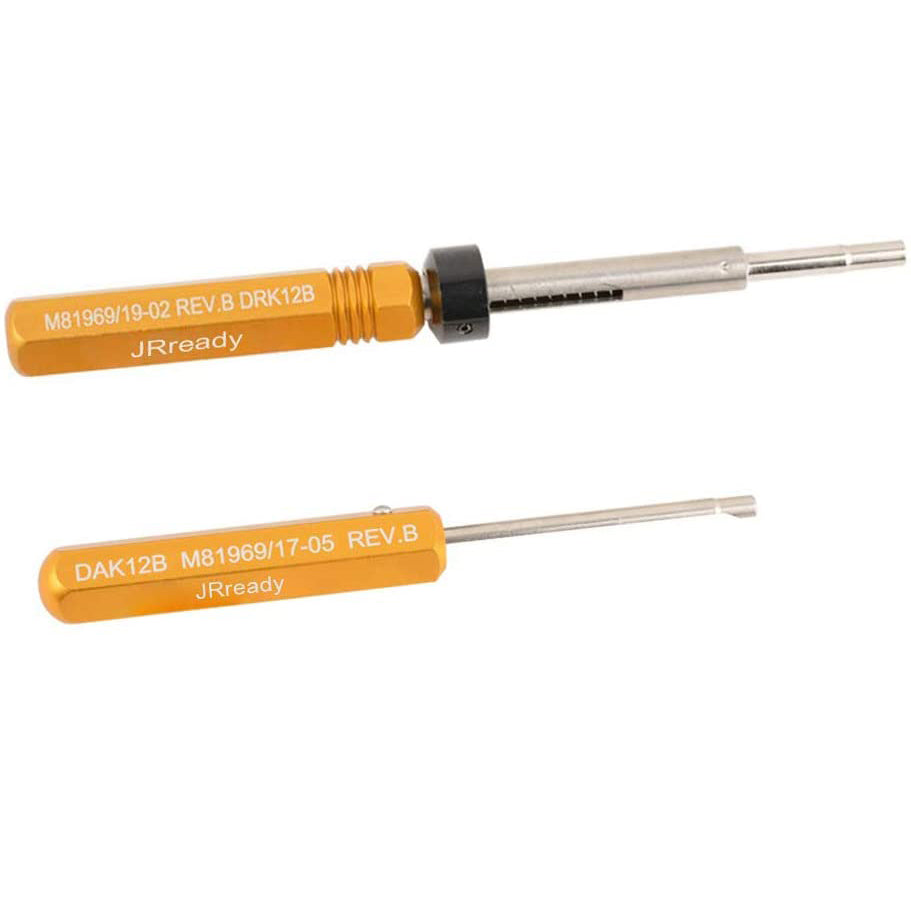

DAK12B DRK12B Installing Removal Tool Kit

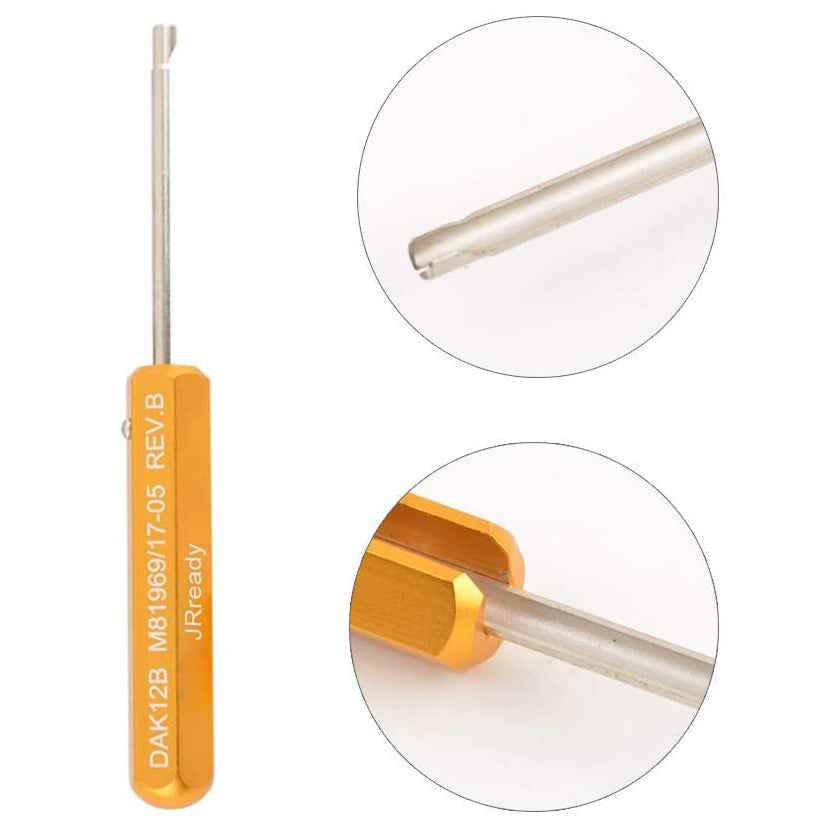

Installing Tool Model:DAK12B

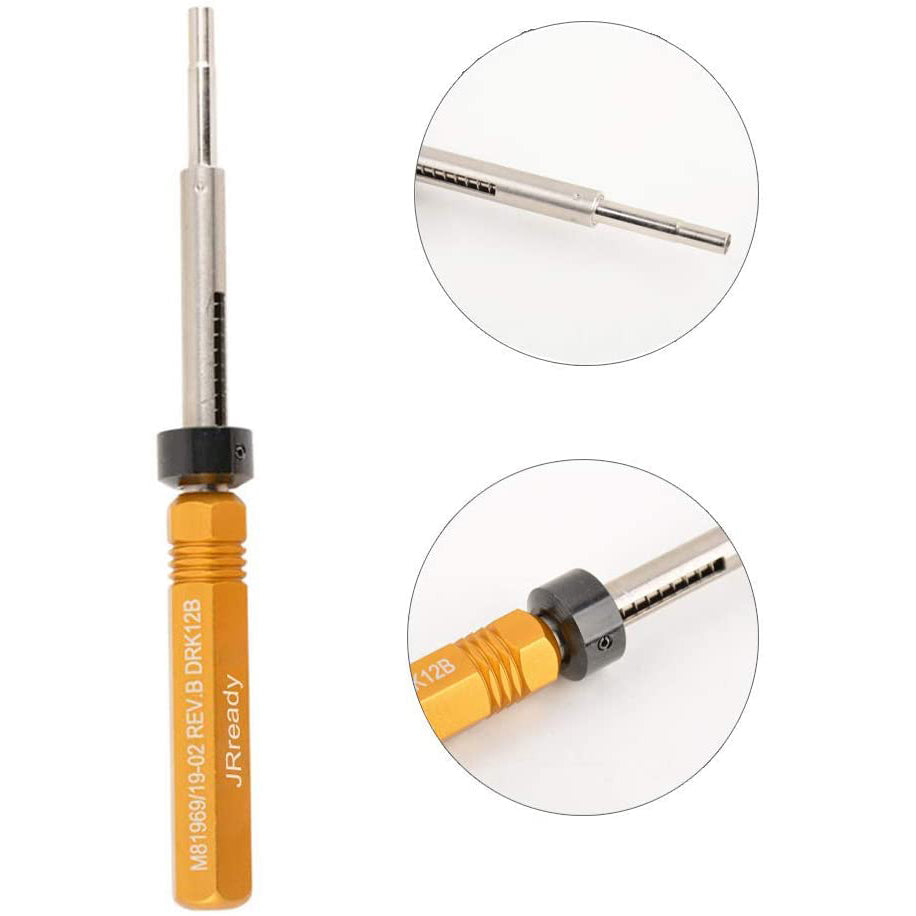

Removal Tool Model:DRK12B



Applications

Connector Model:MIL-DTL-26482 series 1
Connector Model:MIL-DTL-26500
Connector Model:MIL-DTL-26518 CLASSR
Connector Model:MIL-C-81703 CLASSR series 2
Connector Model:MIL-DTL-26482 SERIES 1
Connector Model:MIL-DTL-26482 SERIES 1
Connector Model:MIL-DTL-26500
Connector Model:MIL-DTL-26500

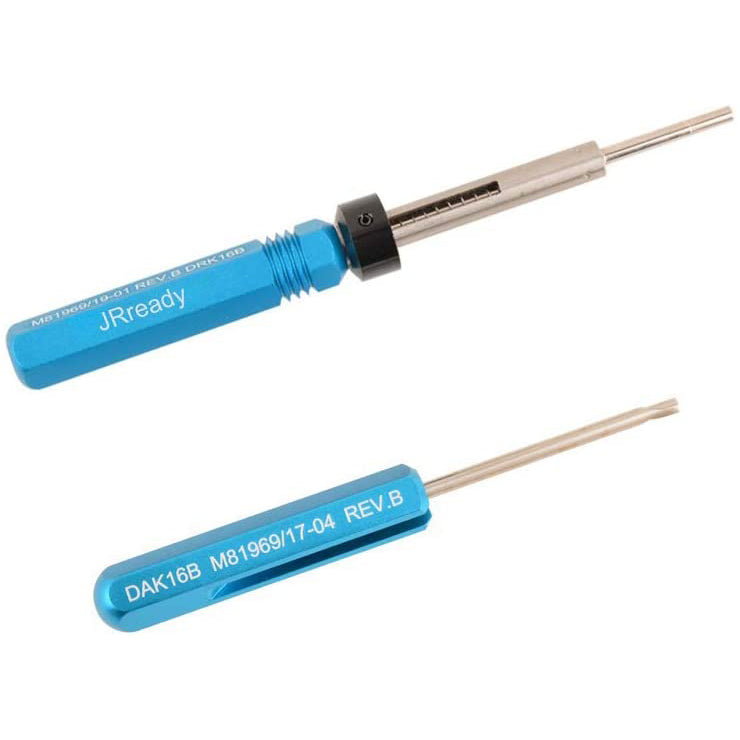

DAK16B DRK16B Installing Removal Tool Kit

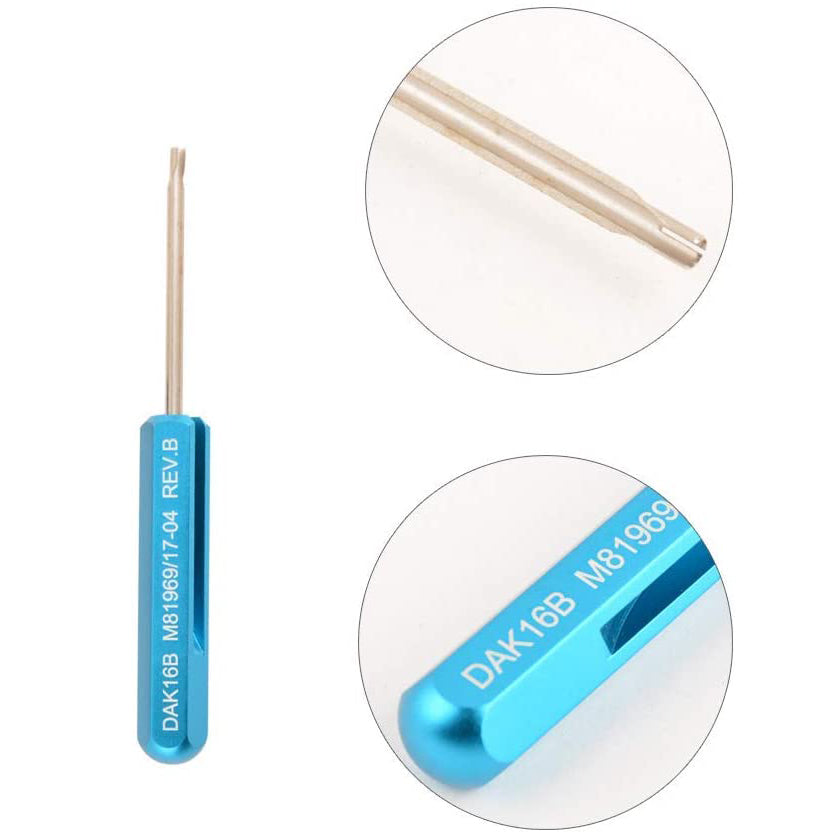

Installing Tool Model:DAK16B

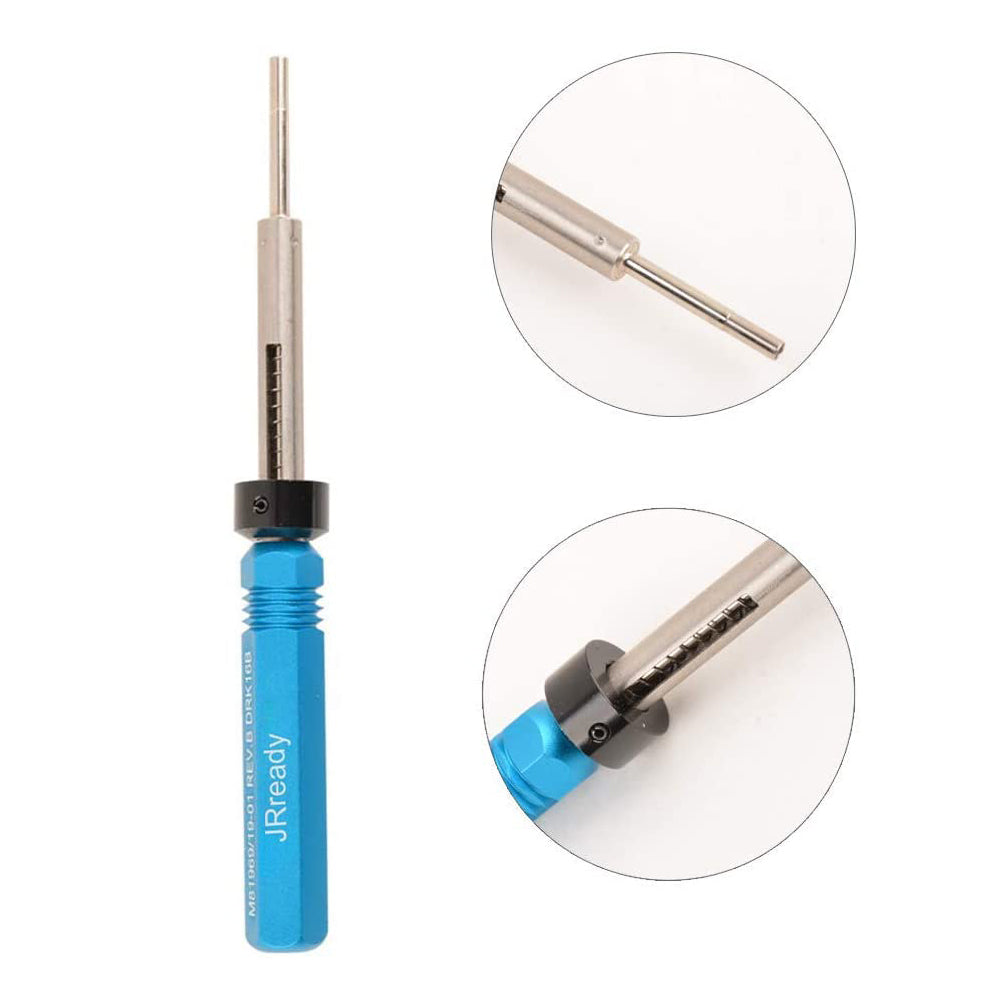

Removal Tool Model:DRK16B


Applications

Connector Model:MIL-DTL-26482 SERIES 1
Connector Model:MIL-DTL-26500
Connector Model:MIL-DTL-26518 CLASSR
Connector Model:MIL-C-81703 CLASSR SERIES 2

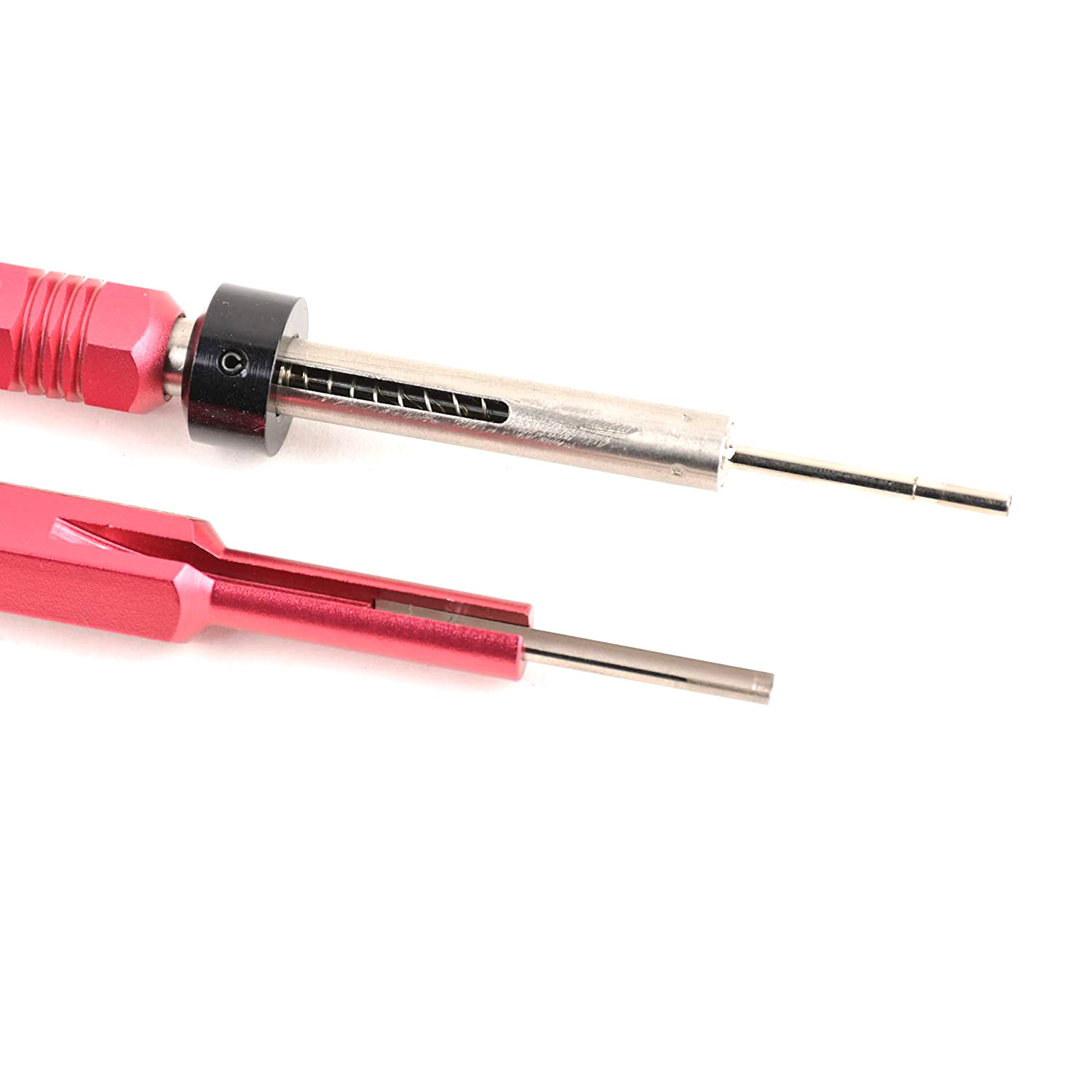

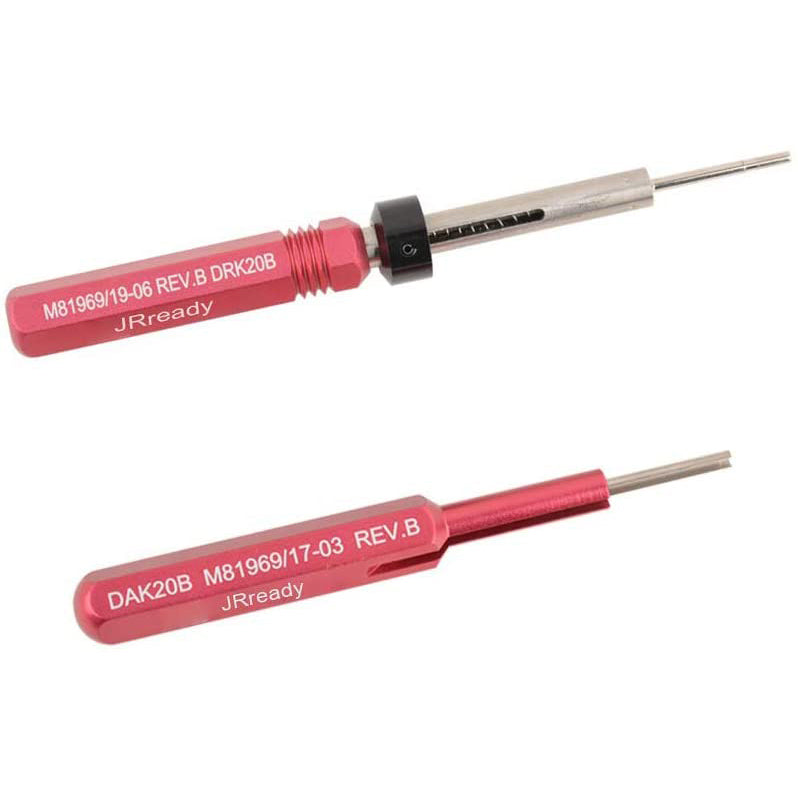

DAK20B DRK20B Installing Removal Tool Kit

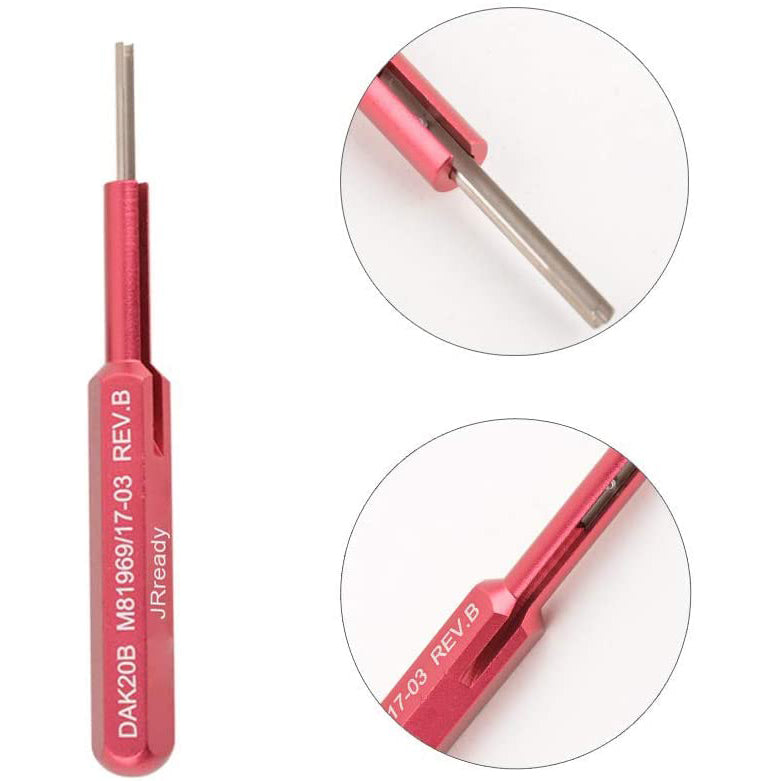

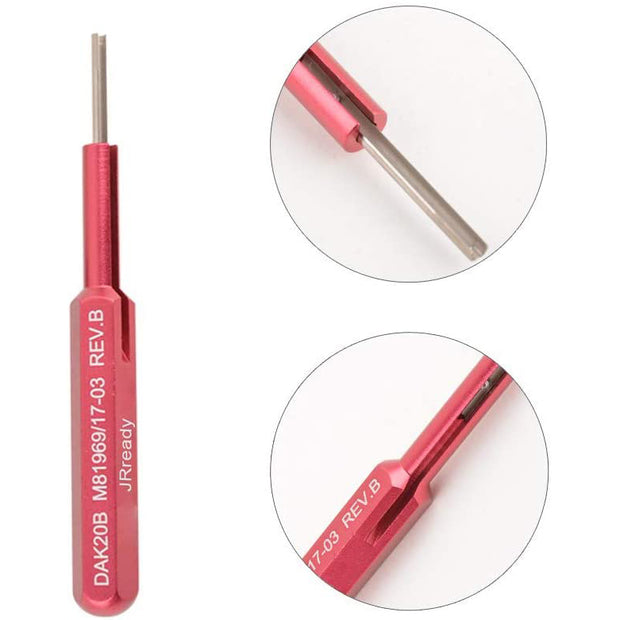

Installing Tool Model:DAK20B

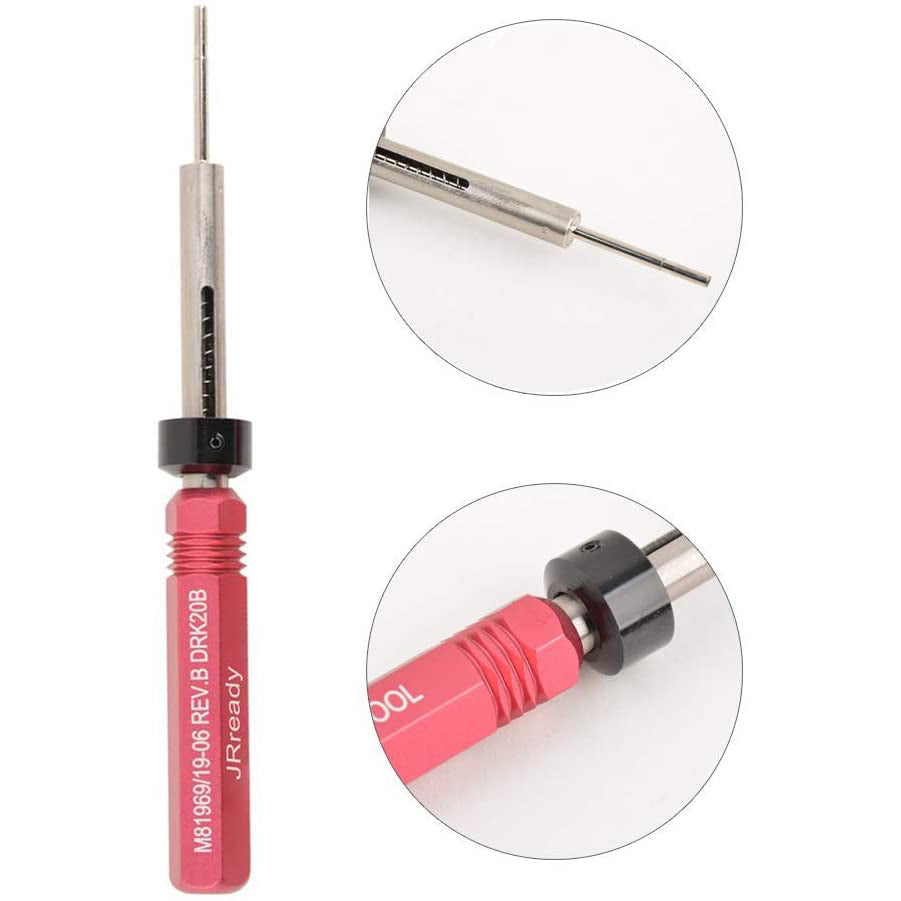

Removal Tool Model:DRK20B

Applications

Connector Model:MIL-DTL-26482 series 1
Connector Model:MIL-DTL-26500
Connector Model:MIL-DTL-26518 CLASSR
Connector Model:MIL-C-81703 CLASSR SERIES 2

Installing Instruction

Step 1: Prepare the tool & put the crimped contact into the tool.
Step 2: Adjust the crimped contact to the right position.
Step 3: Push the crimped contact gently until it reaches the right position.
Step 4: Remove the tool out.

Removal Instruction

Step 1: Prepare the removal tool and find the contact to be taken out
Step 2: Insert the removal tool into the electric connector until it reaches the bottom
Step 3: Push the contact out gently
Step 4: Remove the contact
