JRready DRK-785084 Hook-Type Extraction Tool for AMP Superseal 1.5 Wedge Lock Removal, serving Automotive Harness Assembly & Sealed Connector Repair

[HOOK-TYPE TIP FOR WEDGE LOCK EXTRACTION]

The DRK-785084 uses a hook-shaped tip that slides beneath the wedge lock tab and lifts it clear of the connector housing in a single controlled motion. The hooked geometry allows the operator to engage the wedge lock from the side rather than pushing directly against it, giving precise directional control over the release force and reducing the risk of damaging the surrounding connector body during extraction.

[DEDICATED TO AMP SUPERSEAL 1.5 WEDGE LOCK REMOVAL]

The DRK-785084 is designed specifically for wedge lock extraction on AMP Superseal 1.5 series connectors and similar connector systems. The wedge lock is a secondary retention component that must be removed before terminal extraction can proceed, and using a purpose-made tool for this step ensures the wedge lock releases cleanly without deforming the locking tab or the connector housing.

[SPECIALTY STEEL CONSTRUCTION FOR LASTING PERFORMANCE]

Formed from specialty steel, the hook tip and rod maintain their geometry under the prying and lifting forces involved in wedge lock extraction. The material selection ensures the hook tip does not deform or lose its profile after repeated use cycles, keeping the tool functional across the service life of a busy automotive repair or harness assembly operation.

[COMPACT DIMENSIONS FOR PRECISE HANDLING]

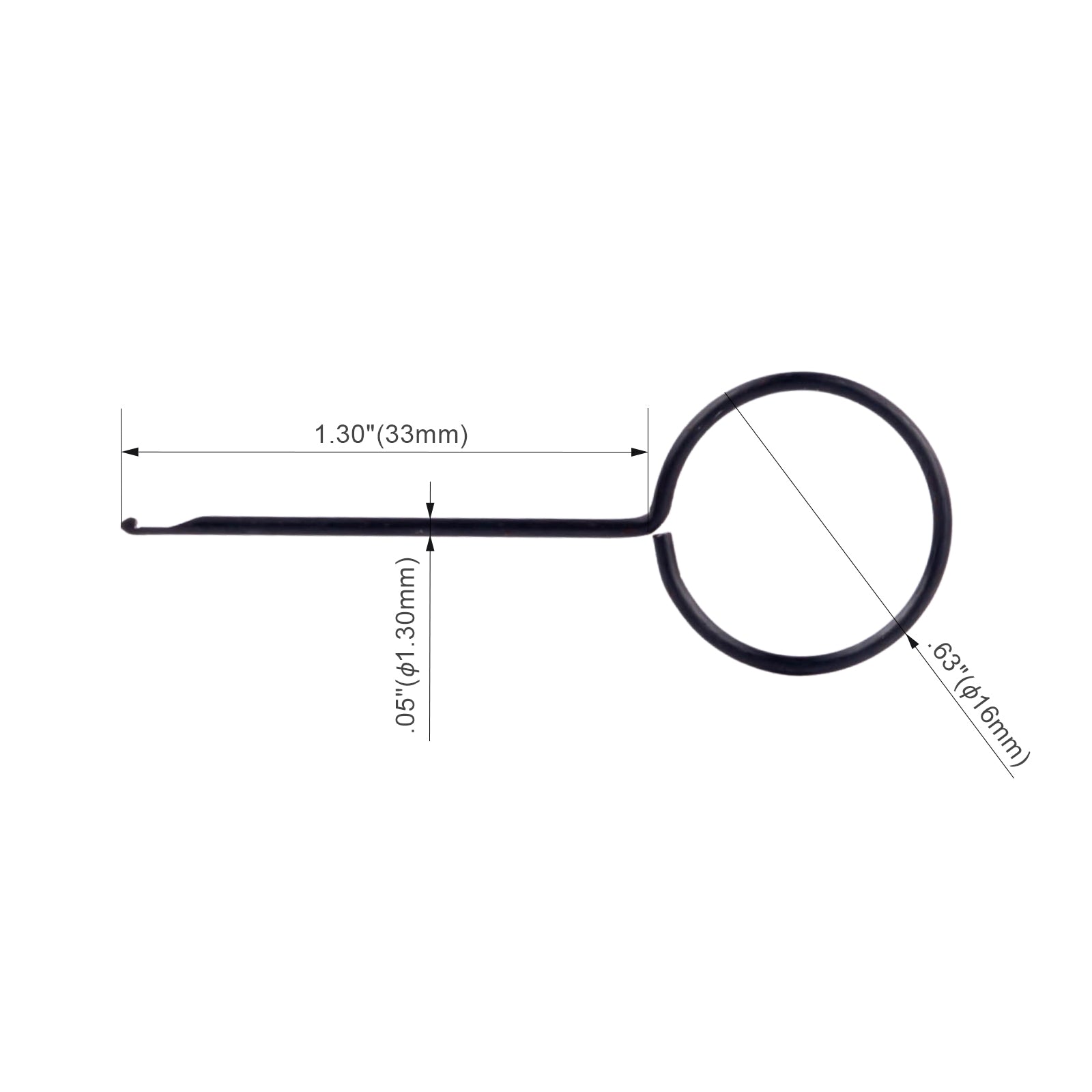

At 51.6mm overall length and just 1g, the DRK-785084 is sized for single-finger operation in tight connector positions. The hook rod measures 33mm in length at φ1.30mm diameter, with a φ16mm finger ring at the rear that provides a stable grip point during the controlled lifting motion required for wedge lock release.

[AUTOMOTIVE SEALED CONNECTOR SERVICE & HARNESS REPAIR]

The DRK-785084 is suited for automotive technicians and harness assemblers who regularly work with AMP Superseal 1.5 sealed connector systems in engine bay wiring, sensor circuits, and body electrical applications. Having a dedicated wedge lock extraction tool on hand ensures this step in the terminal service procedure is handled cleanly and consistently, reducing the risk of connector damage that can result from improvised extraction methods.
