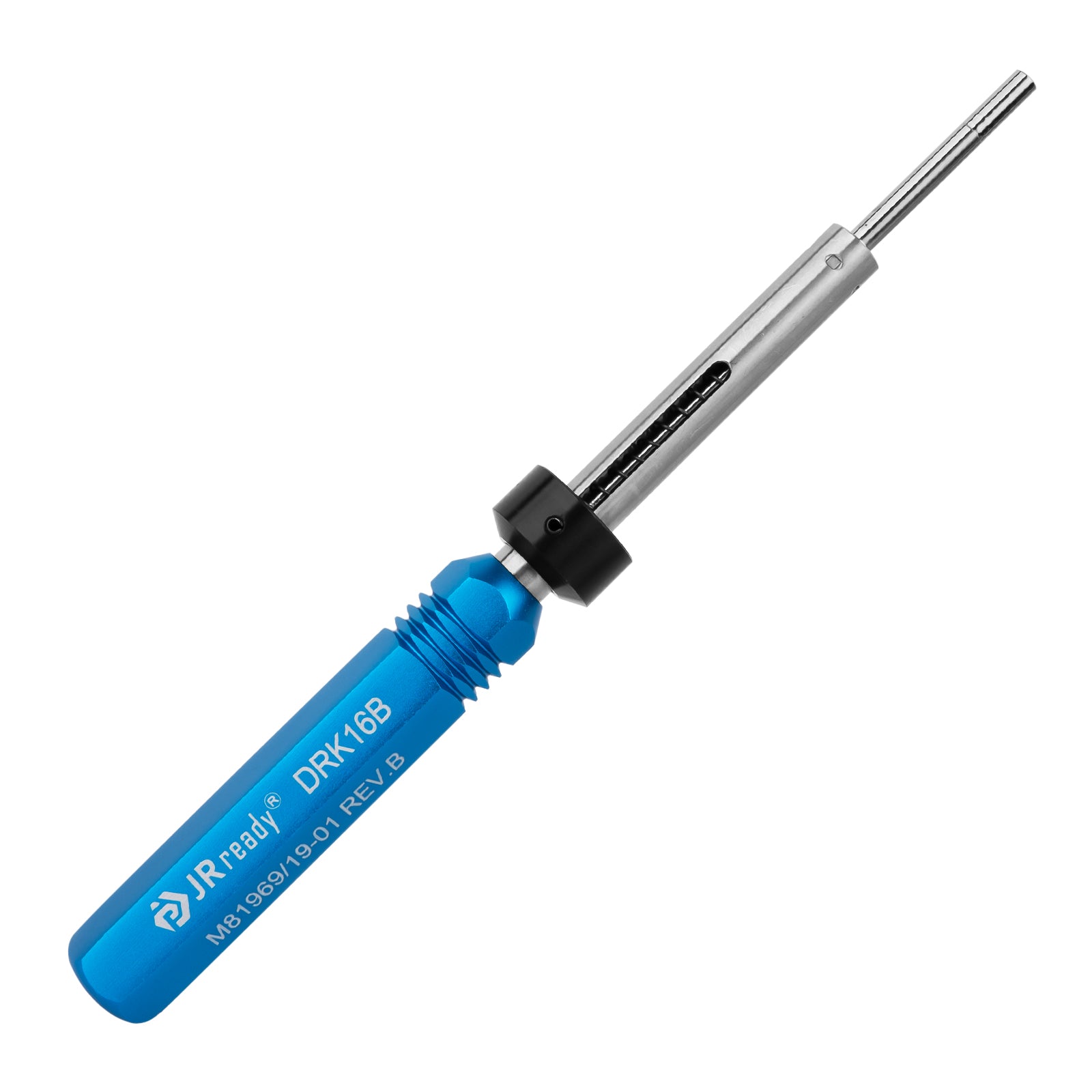

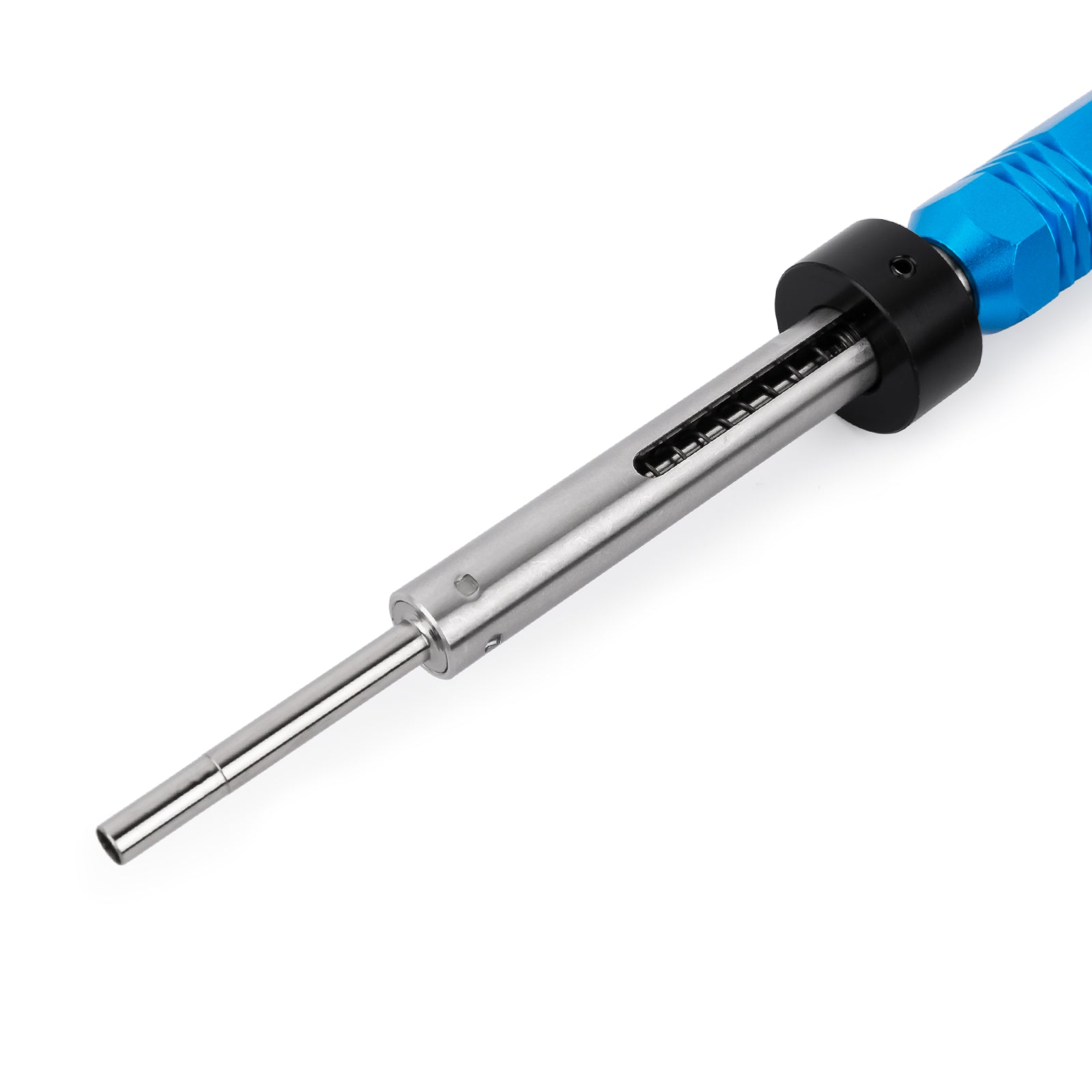

DRK16BL removal tool
JRready DRK12B M81969 19-02/ DRK16B M81969 19-01/ DRK20B M81969 17-03 Removal Tools Designing Refers to M81969 Applied to Remove Contacts

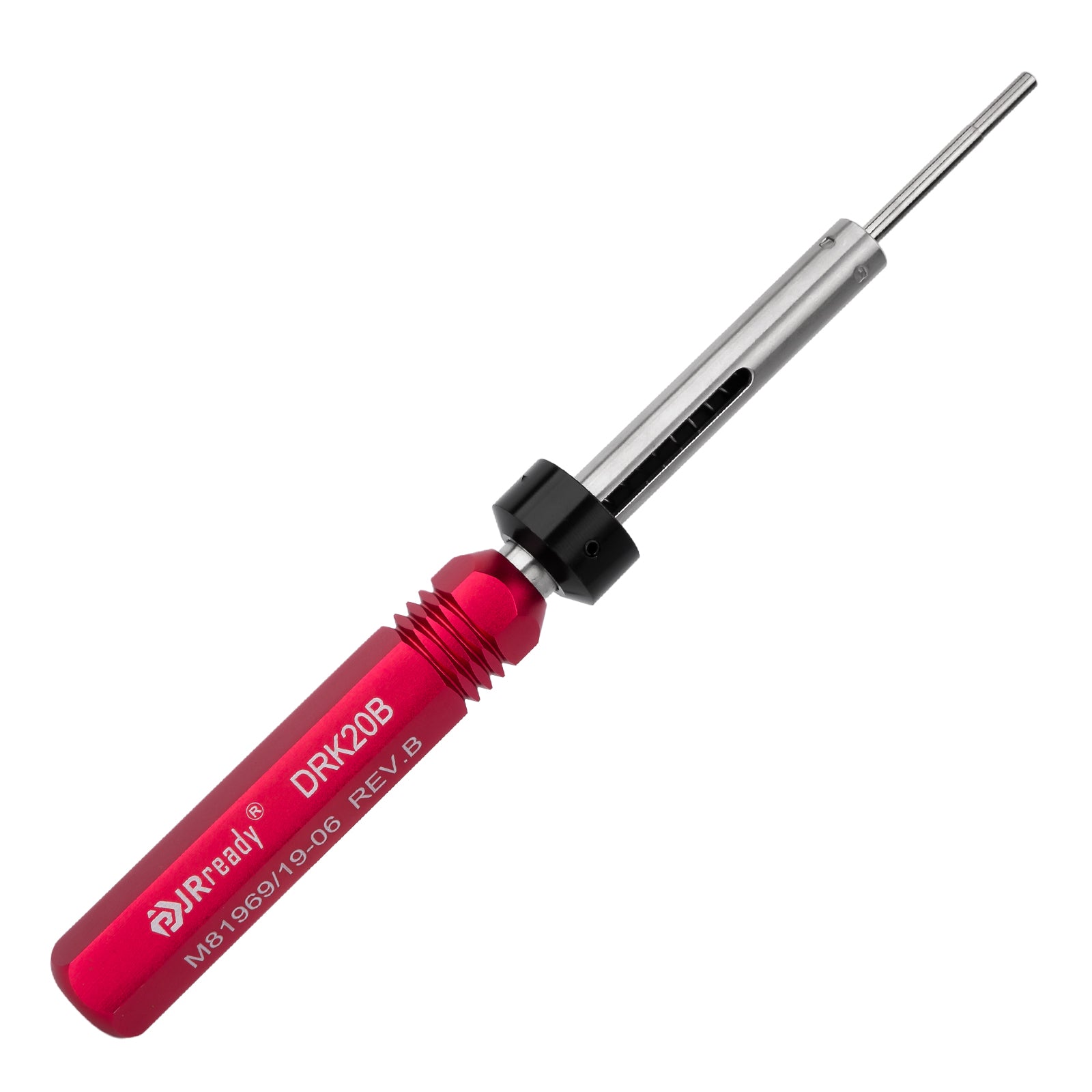

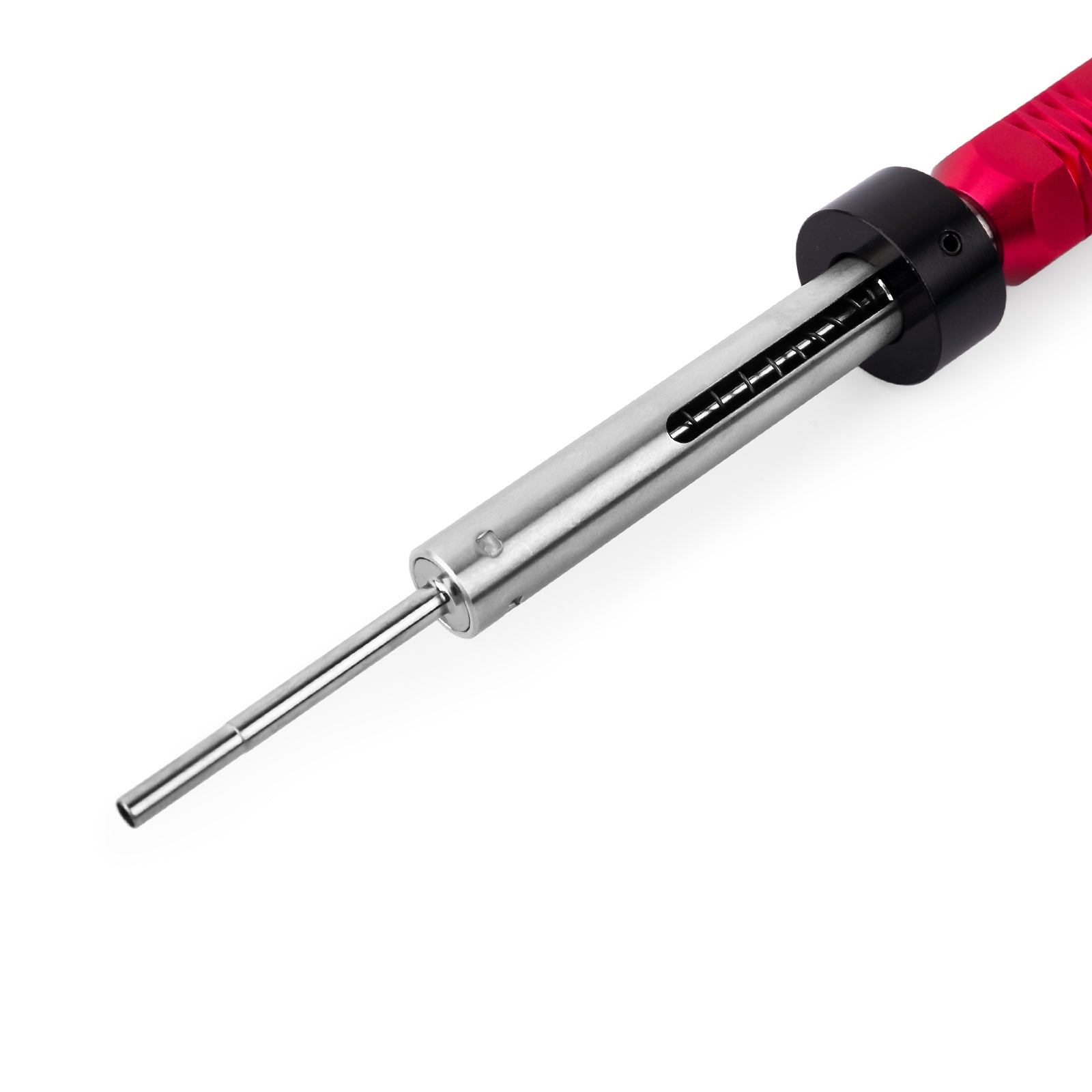

DRK20B removal tool
JRready DRK12B M81969 19-02/ DRK16B M81969 19-01/ DRK20B M81969 17-03 Removal Tools Designing Refers to M81969 Applied to Remove Contacts
JRready DRK12B M81969 19-02/ DRK16B M81969 19-01/ DRK20B M81969 17-03 Removal Tools Designing Refers to M81969 Applied to Remove Contacts
JRready DRK12B M81969 19-02/ DRK16B M81969 19-01/ DRK20B M81969 17-03 Removal Tools Designing Refers to M81969 Applied to Remove Contacts
JRready DRK12B M81969 19-02/ DRK16B M81969 19-01/ DRK20B M81969 17-03 Removal Tools Designing Refers to M81969 Applied to Remove Contacts
JRready DRK12B M81969 19-02/ DRK16B M81969 19-01/ DRK20B M81969 17-03 Removal Tools Designing Refers to M81969 Applied to Remove Contacts
JRready DRK12B M81969 19-02/ DRK16B M81969 19-01/ DRK20B M81969 17-03 Removal Tools Designing Refers to M81969 Applied to Remove Contacts
JRready DRK12B M81969 19-02/ DRK16B M81969 19-01/ DRK20B M81969 17-03 Removal Tools Designing Refers to M81969 Applied to Remove Contacts
DRK16BL removal tool
JRready DRK12B M81969 19-02/ DRK16B M81969 19-01/ DRK20B M81969 17-03 Removal Tools Designing Refers to M81969 Applied to Remove Contacts
DRK20B removal tool
JRready tools

JRready DRK12B M81969 19-02/ DRK16B M81969 19-01/ DRK20B M81969 17-03 Removal Tools Designing Refers to M81969 Applied to Remove Contacts

Regular price $29.00
/

JRready DRK12B M81969 19-02 / DRK16B M81969 19-01 / DRK20B M81969 17-03 Removal Tool for Contact Connector

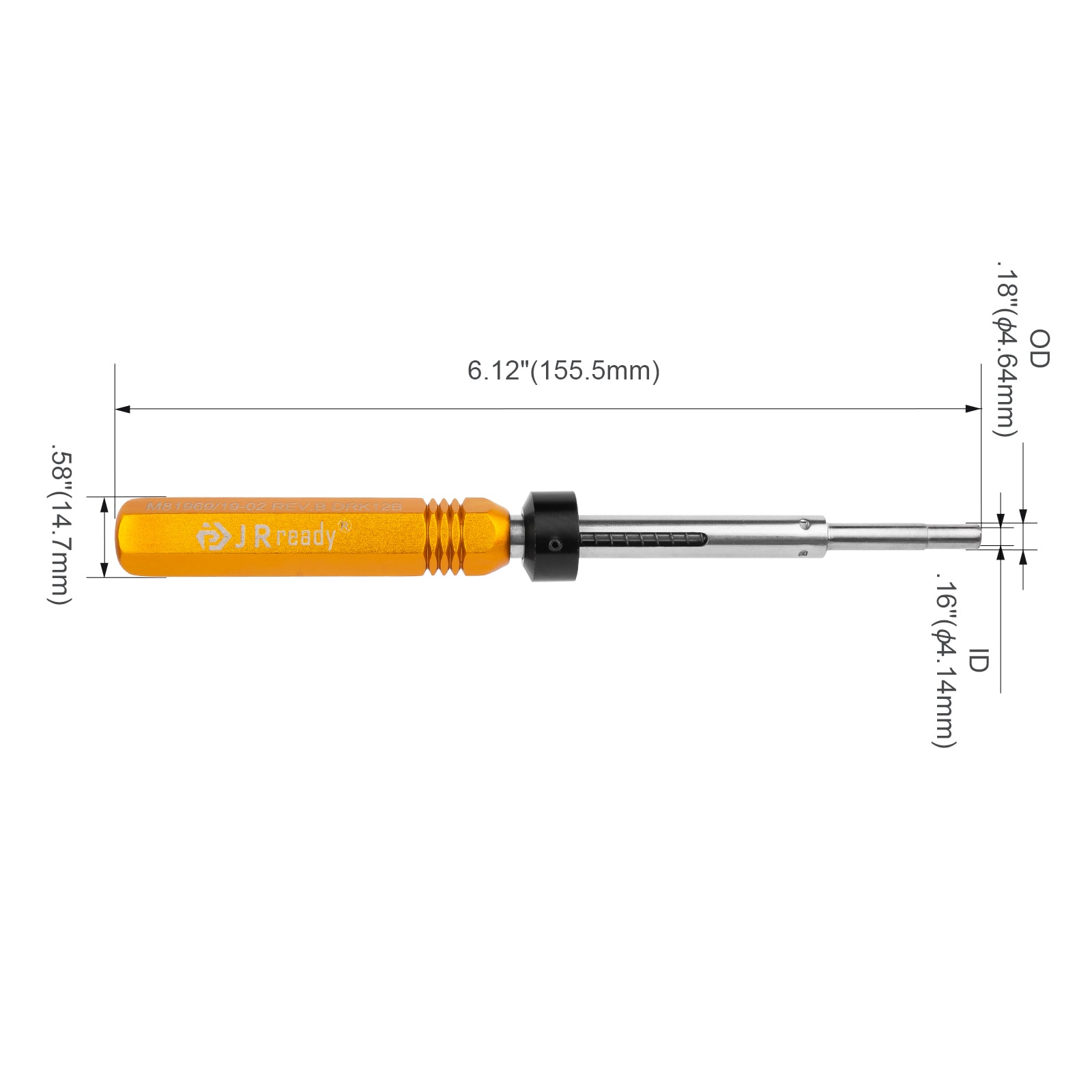

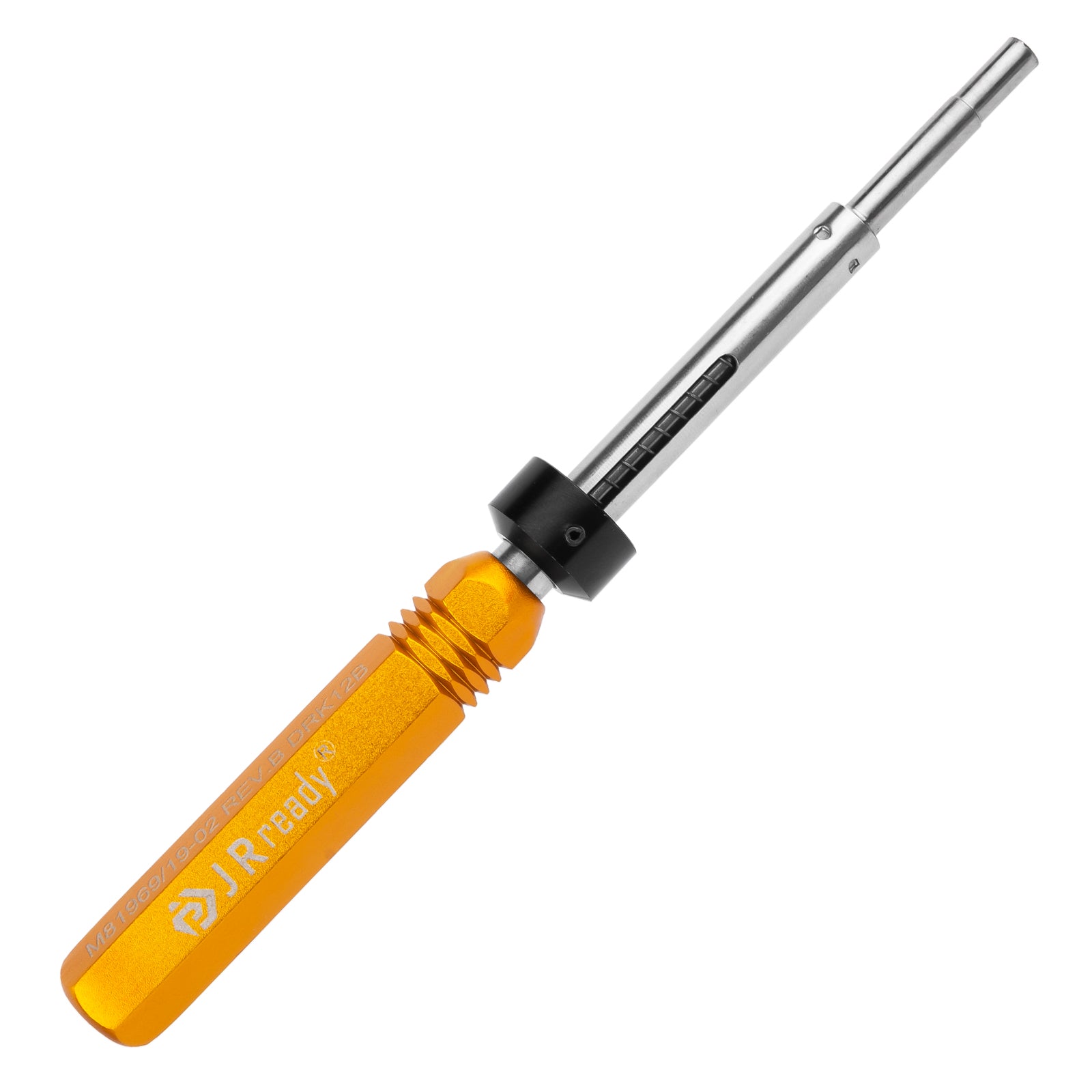

  • DRK12B:Designed according to MIL-C-81969/19-02 REV.B;The brace pipe has an ejector pin to facilitate the removal of contacts

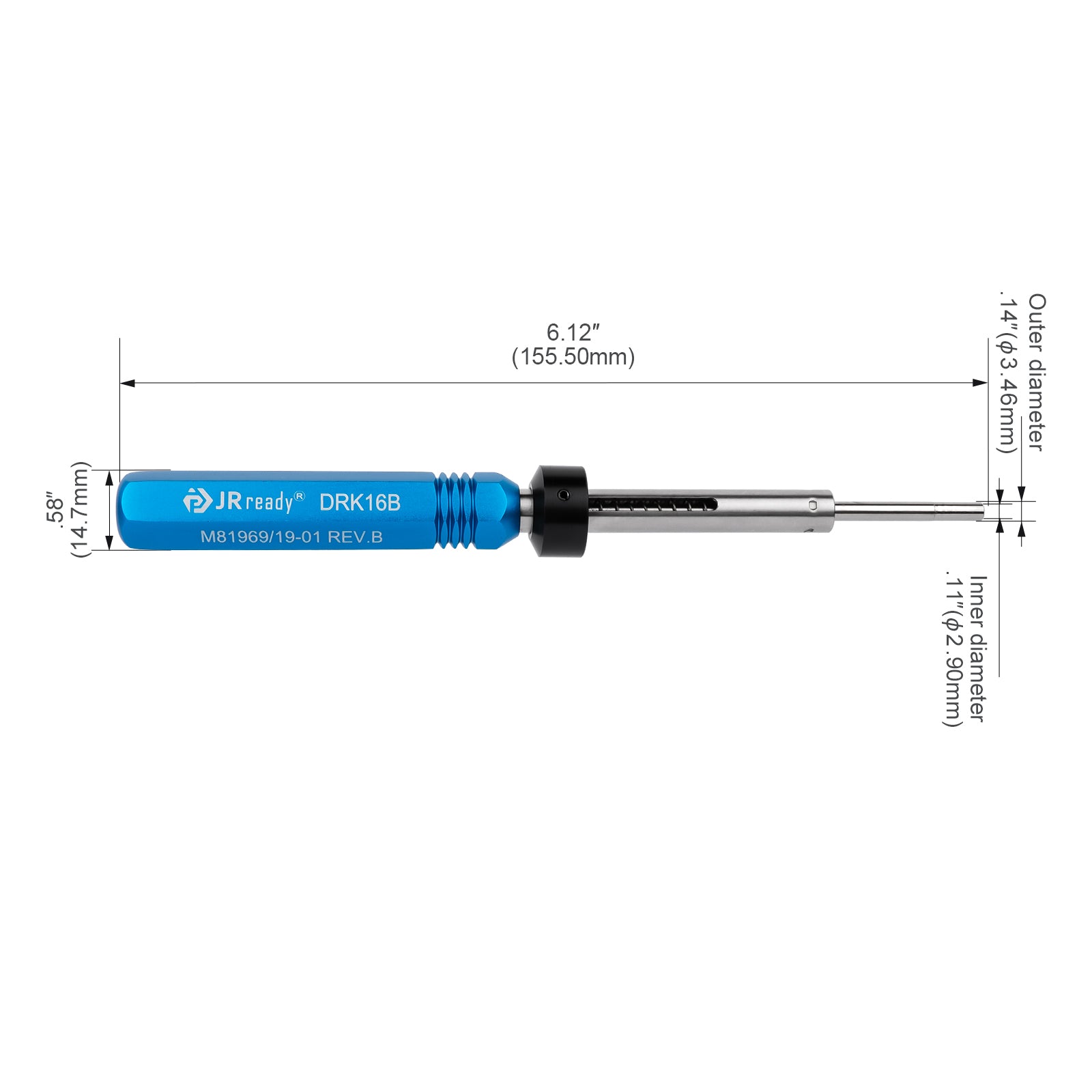

  • DRK16B:Designed according to M81969/19-01 REV.8;The brace pipe has an ejector pin to facilitate the removal of contacts
  • DRK20B:Designed according to MIL-C-81969/19-06 REV.B;The brace pipe has an ejector pin to facilitate the removal of contacts
  • Small size, convenient to carry,good choice for outdoor using


DRK12B Applications
Connector Model:MIL-DTL-26482 series 1 MIL Standard: M39029/31-234 M39029/32-253
Connector Model:MIL-DTL-26500 MIL Standard: M39029/31-235 M39029/32-254
Connector Model:MIL-DTL-26518 CLASSR MIL Standard: M39029/31-235 M39029/32-254
Connector Model:MIL-C-81703 CLASSR series 2 MIL Standard: M39029/31-234 M39029/32-253
Connector Model:MIL-DTL-26482 SERIES 1 MIL Standard: M39029/25-204,205,206 PIN CONTACT
Connector Model:MIL-DTL-26482 SERIES 1 MIL Standard: M39029/25-207,208,209 SKT CONTACT
Connector Model:MIL-DTL-26500 MIL Standard: M39029/55-344 PIN CONTACT
Connector Model:MIL-DTL-26500 MIL Standard: M39029/55-344 PIN CONTACT


DRK16B Applications
Connector Model:MIL-DTL-26482 SERIES 1
Connector Model:MIL-DTL-26500
Connector Model:MIL-DTL-26518 CLASSR
Connector Model:MIL-C-81703 CLASSR SERIES 2


DRK20B Applications
Connector Model:MIL-DTL-26482 SERIES 1
Connector Model:MIL-DTL-26500
Connector Model:MIL-DTL-26518 CLASSR
Connector Model:MIL-C-81703 CLASSR SERIES 2


Removal Instruction


Step 1: Prepare the removal tool and find the contact to be taken out
Step 2: Insert the removal tool into the electric connector until it reaches the bottom
Step 3: Push the contact out gently
Step 4: Remove the contact
