JRready G125 (M22520/3-1) Go-no-go Gage for M22520/2-01 & M22520/1-01 Cable Crimping Tools, GO: 0.039 inch; NO-GO: 0.044 inch

Regular price $29.00
/

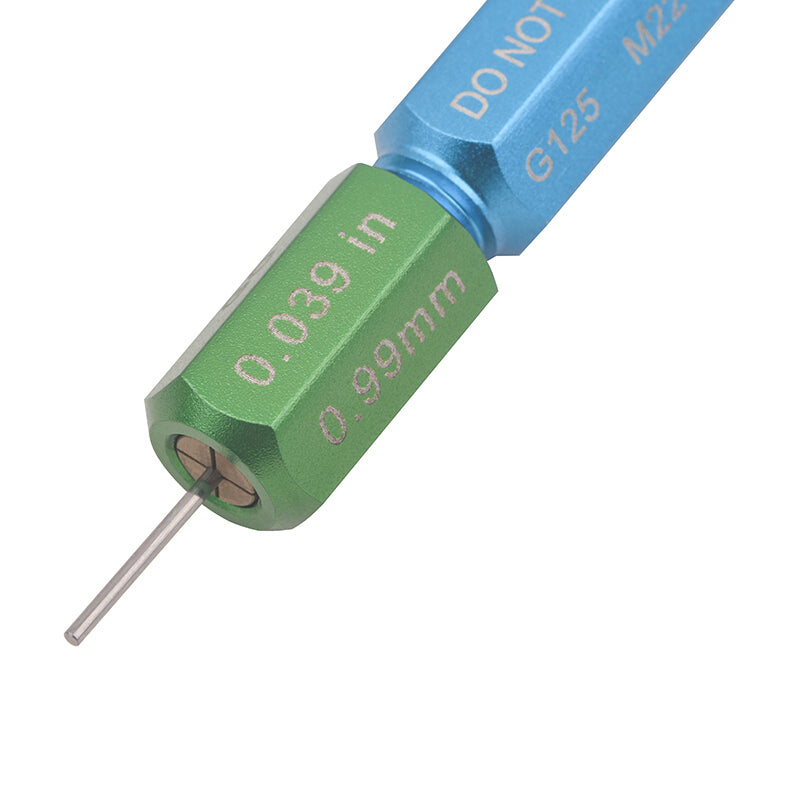

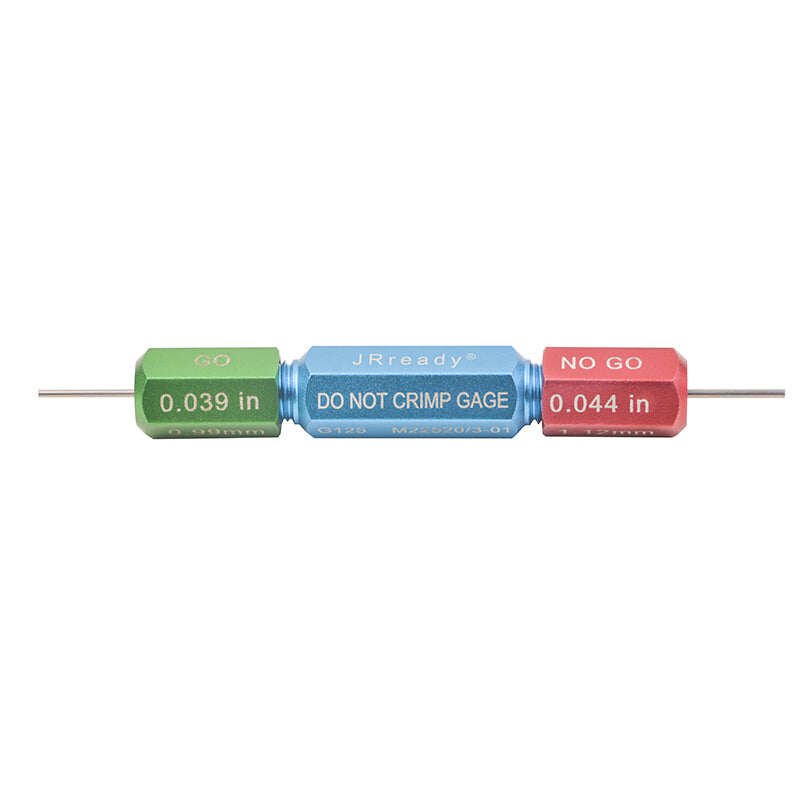

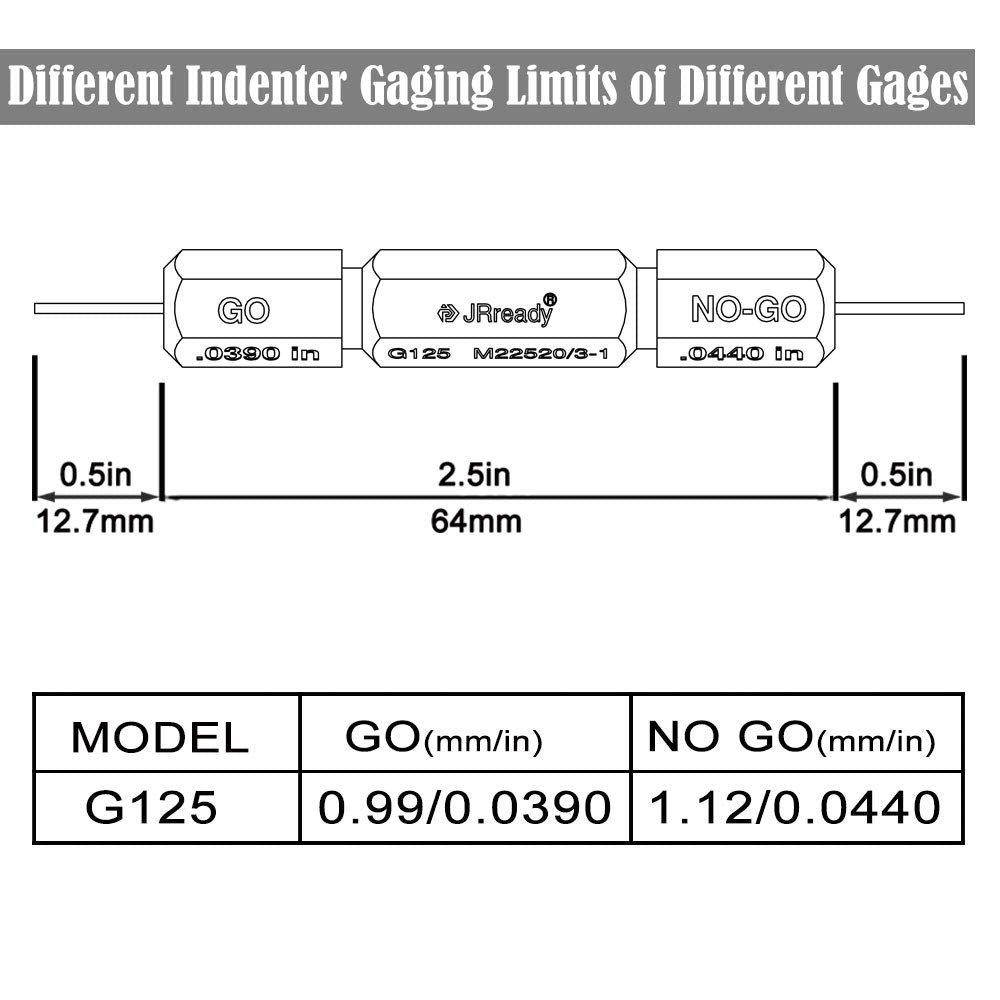

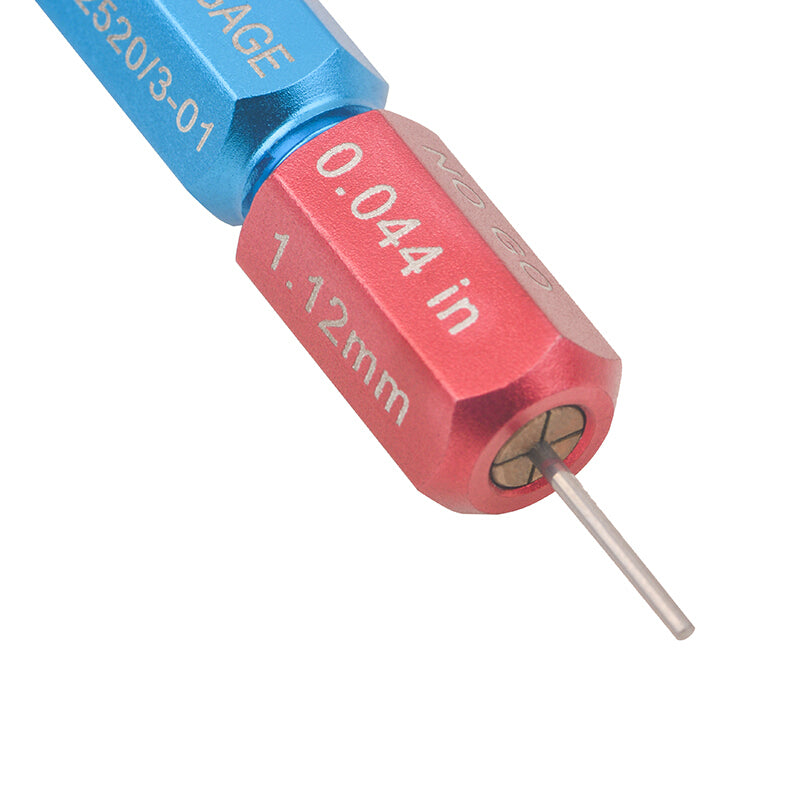

  • G125 GO-NOGO Gage. GO: 0.039 inch; NO-GO: 0.044 inch
  • Use Selec. No. 4 for JRD-ASF1 (M22520/1-01, AF8) CRIMP TOOL
  • Use Selec. No. 8 for YJQ-W1A (M22520/2-01, AFM8) CRIMP TOOL
  • Applied to the YJQ-W1A,JRD-ASF1 Hand Crimping Tool or YJQ-W1Q,YJQ-W2Q Pneumatic Crimping Tool
  • Please note: This tool is designed according to MIL-SPEC and manufactured by JRready. NOT IN QPL & NOT DMC TOOLS.

Instructions

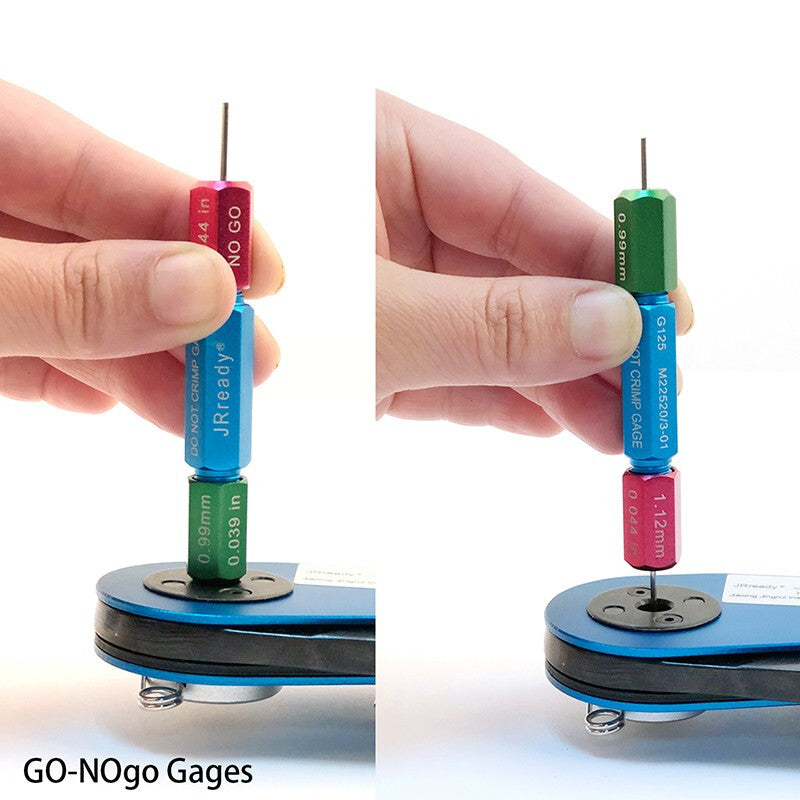

1.Operate the tool to the fully closed working position. Set the crimp tool to the correct selector number

2.If the “GO” gage end (Green) can pass freely, but the NO-GO end (Red) can not pass completely, it means the tool is still qualified

3.If the “GO” gage end (Green) can not pass, but the NO-GO end (Red) can pass completely, it means the tool is not qualified
