JRDDS-H100AS-01

Single-Module Tip Profile for Han 100A Single Contacts
The JRDDS-H100AS-01 is dimensioned for terminal extraction from Harting Han® 100A single modules, covering part numbers 09 14 001 3031 and 09 14 001 3131. Unlike crimp module variants, single module contacts have a distinct housing geometry that requires a tip matched to their specific latch and cavity dimensions for reliable extraction.

Extends Coverage to WAIN HMK Single-Module Terminals
The tool is also compatible with WAIN HMK-001, HMK-001-MC, and HMK-001-FC terminals, which share compatible contact geometry with the Harting Han® 100A single module series. This allows technicians to service both connector brands using a single tool during maintenance sessions involving mixed connector inventories.

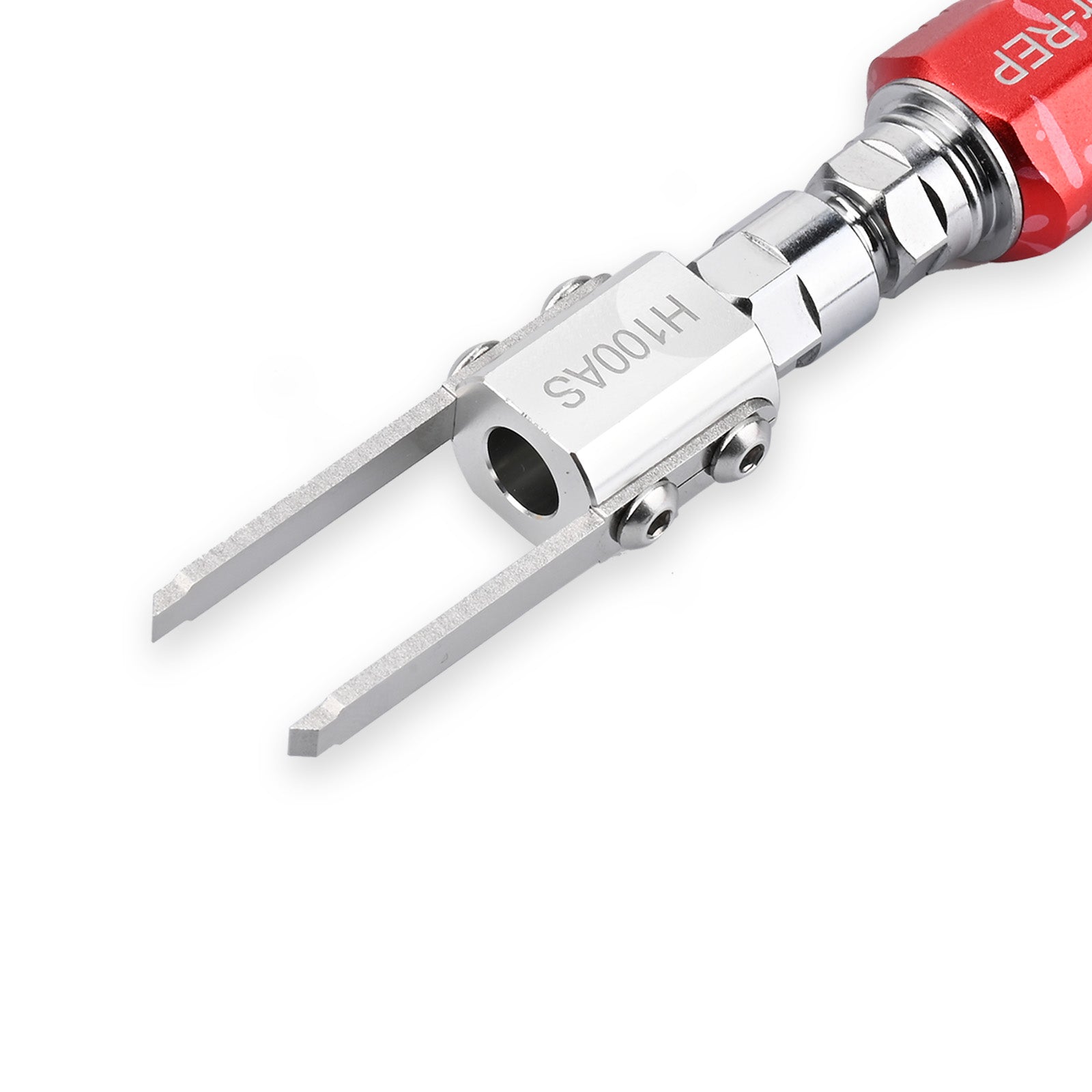

Wide-Fork Tip Maintains Alignment on Large Industrial Contacts
The dual-fork tip structure seats stably against both sides of the large-format single module contact, keeping the tool aligned during latch depression and preventing tip displacement under the engagement force required for 100A-class terminals.

Knurled Aluminum Alloy Handle for Controlled Actuation
The aluminum alloy handle features a knurled grip section that supports controlled force application during extraction, reducing operator fatigue and maintaining precision when working across multiple terminal positions in a single service session.

For Switchgear, Heavy Machinery, and Industrial Field Wiring
The JRDDS-H100AS-01 is intended for engineers and field technicians servicing Harting Han® 100A and WAIN HMK single-module connector systems in switchgear cabinets, heavy industrial machinery, and high-current field wiring installations where single terminal replacement without full module removal is required.
