JRready K1692 NICOMATIC Positioner, Wire Size: 22-28 AWG

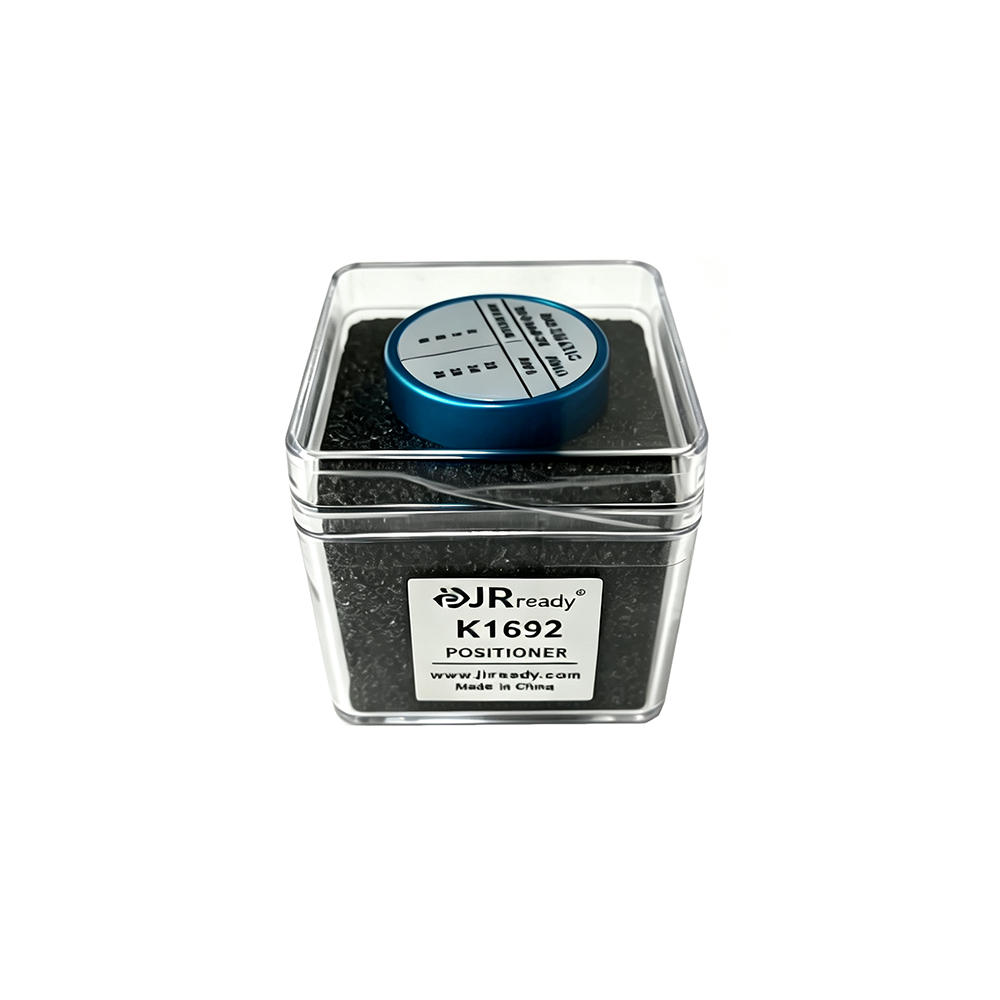

JRready K1692 NICOMATIC Positioner

Wire Size: 22 24 26 28 AWG

Used with the M22520/2-01 tool frame and adapts the tool frame to a particular application. The data plate on each positioner designates which contacts the positioner accommodates for its wire size and indicates selector position.

Installation of Positioner

1. Before installing the positioner, the tool should be open
2. Remove the safety clip from positioner guide
3. Select the correct positioner for terminal crimping
4. Insert the positioner into positioner guide, push down and then rotate 90 °, until bayonet pins lock
5. Remove the spring clip from the selector knob, adjust it to the correct selector position
