ST5135 M81969 DRK12B DRK16B DRK20B Removal Tool Kit for Contact Connector

Regular price $89.00
/

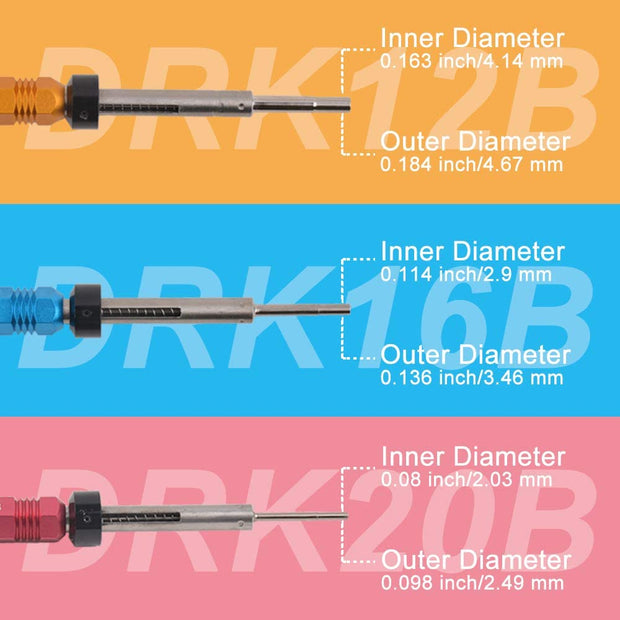

ST5135 DRK12B M81969 19-02 DRK16B M81969 19-01 DRK20B M81969 17-03 Removal Tool Kit for Contact Connector

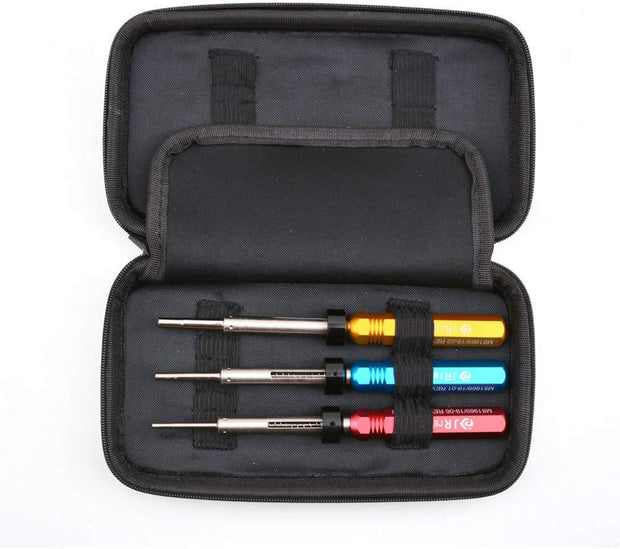

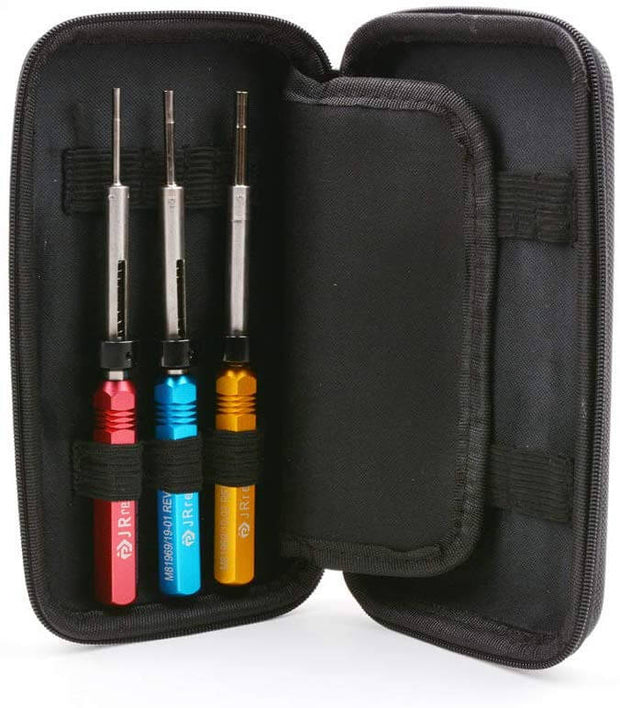

  • Package includes DRK12B & DRK16B & DRK20B removal tool kit

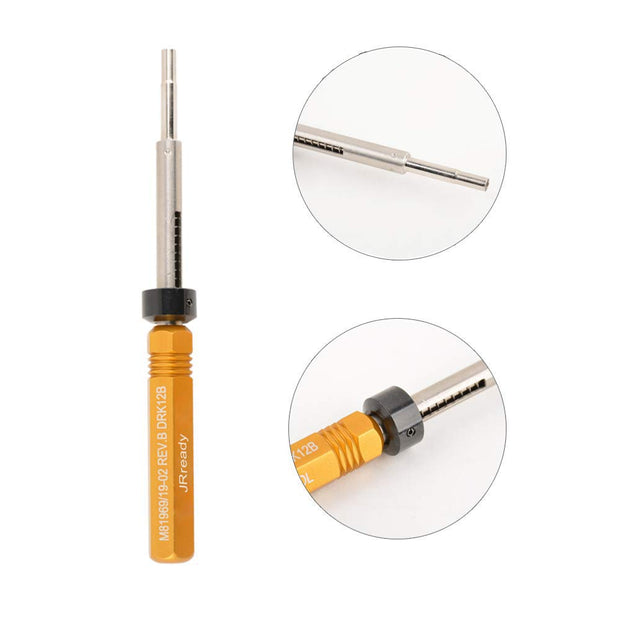

  • DRK12B:Designed according to MIL-C-81969/19-02 REV.B;The brace pipe has an ejector pin to facilitate the removal of contacts

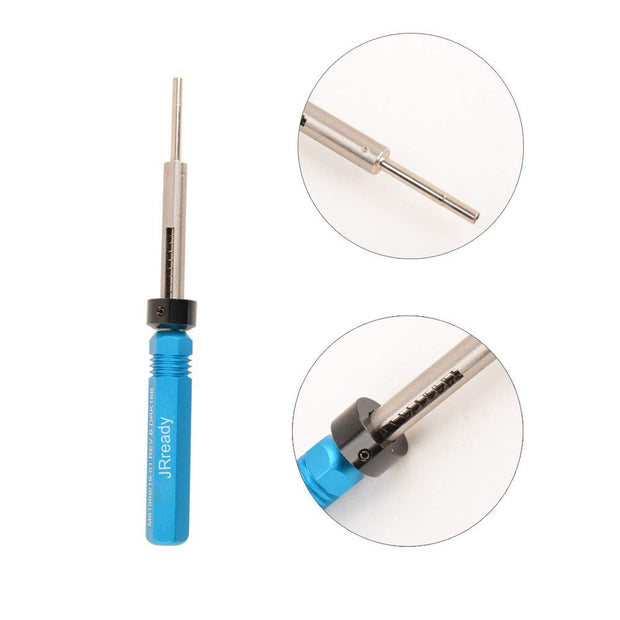

  • DRK16B:Designed according to M81969/19-01 REV.8;The brace pipe has an ejector pin to facilitate the removal of contacts

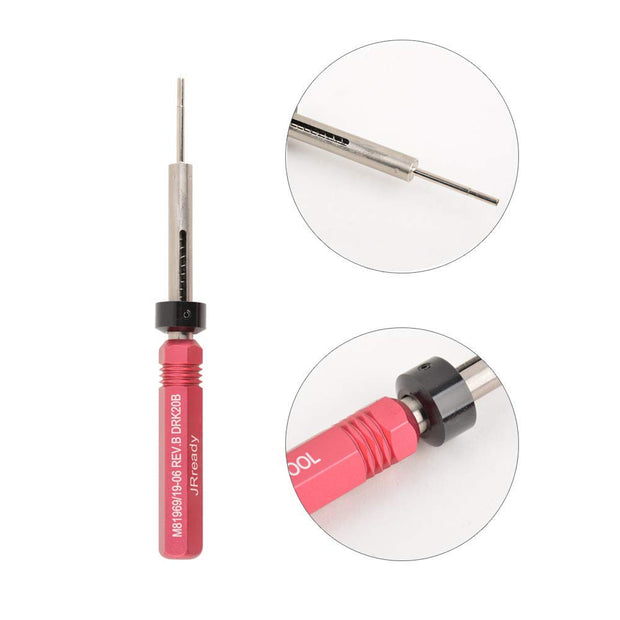

  • DRK20B:Designed according to MIL-C-81969/19-06 REV.B;The brace pipe has an ejector pin to facilitate the removal of contacts
  • Small size, convenient to carry,good choice for outdoor using

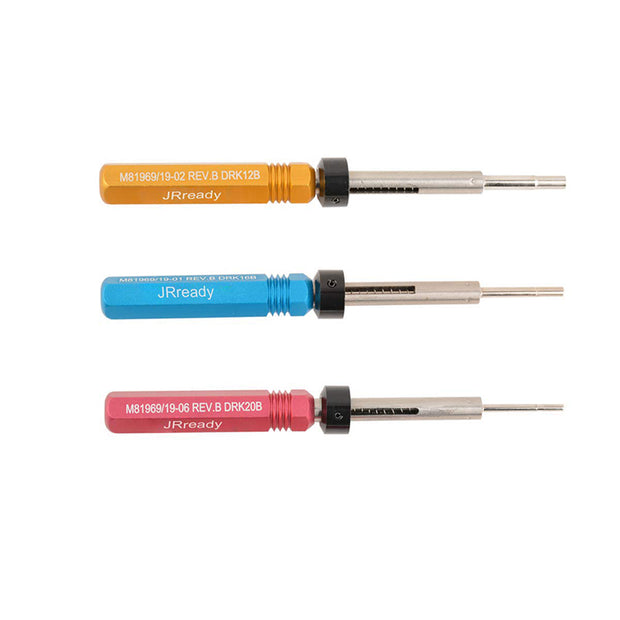

Package including:
1 * DRK12B
1 * DRK16B
1 * DRK20B


DRK12B Applications
Connector Model:MIL-DTL-26482 series 1 MIL Standard: M39029/31-234 M39029/32-253
Connector Model:MIL-DTL-26500 MIL Standard: M39029/31-235 M39029/32-254
Connector Model:MIL-DTL-26518 CLASSR MIL Standard: M39029/31-235 M39029/32-254
Connector Model:MIL-C-81703 CLASSR series 2 MIL Standard: M39029/31-234 M39029/32-253
Connector Model:MIL-DTL-26482 SERIES 1 MIL Standard: M39029/25-204,205,206 PIN CONTACT
Connector Model:MIL-DTL-26482 SERIES 1 MIL Standard: M39029/25-207,208,209 SKT CONTACT
Connector Model:MIL-DTL-26500 MIL Standard: M39029/55-344 PIN CONTACT
Connector Model:MIL-DTL-26500 MIL Standard: M39029/55-344 PIN CONTACT


DRK16B Applications
Connector Model:MIL-DTL-26482 SERIES 1
Connector Model:MIL-DTL-26500
Connector Model:MIL-DTL-26518 CLASSR
Connector Model:MIL-C-81703 CLASSR SERIES 2


DRK20B Applications
Connector Model:MIL-DTL-26482 SERIES 1
Connector Model:MIL-DTL-26500
Connector Model:MIL-DTL-26518 CLASSR
Connector Model:MIL-C-81703 CLASSR SERIES 2


Removal Instruction

removal-tool
Step 1: Prepare the removal tool and find the contact to be taken out
Step 2: Insert the removal tool into the electric connector until it reaches the bottom
Step 3: Push the contact out gently
Step 4: Remove the contact
