JRready ST1023-ASF1 Crimp Tool Kit: NEW-ASF1 (AF8 M22520/1-01) Crimp Tool 12-26 AWG & TH1A M22520/1-02 & TH163 M22520/1-04 Turret Head 的副本

Regular price $268.00
/

JRready ST1023-ASF1 Crimp Tool Kit: NEW-ASF1 (AF8 M22520/1-01) Crimp Tool 12-26 AWG & TH1A M22520/1-02 & TH163 M22520/1-04 Turret Head

Feature:

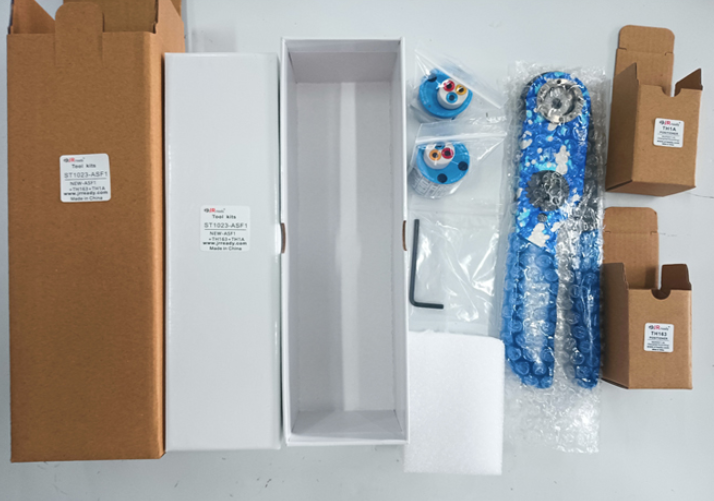

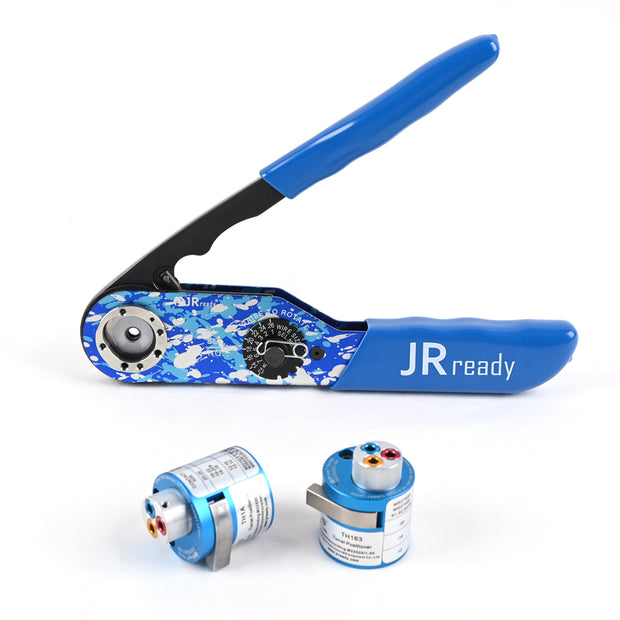

  • The kit included: NEW-ASF1(Hand Crimp Tool) & TH163, TH4, TH1A (Turret Head) & UF6-UF2-5 (Positioner) & G125 (Go-nogo Gage).

  • NEW-ASF1 is compatible with the M22520/1-01 which is widely used for the crimping of wires and contacts in electronic connectors.

  • TH1A is designed referred to MIL-C-22520/1-02.There is no need to change the positioning device for crimping different MIL standard contacts, just rotate the positioning core.

  • TH163 is designed referred to M22520/1-04 and suitable for M38999 Series1,2,3 connectors.

  • TH4 is qualified to MIL-DTL-22520/1-03 and can be adjusted to match the diameter of the connectors and the wires desired. TH4 M22520/1-03 for 12, 16, 20 size contacts of MIL Standard connectors MIL-DTL-28748

  • UH6-UF2-5 is designed according to MIL-SPEC M22520/1-05 and suitable for the positioning of a small part of round contacts of MIL standard.

  • G125 is designed according to M22520/3-1,GO: 0.039 inch; NO-GO: 0.044 inch.

JRready NEW PRODUCT: NEW-ASF1

HIGH-QUALITY CRIMP:

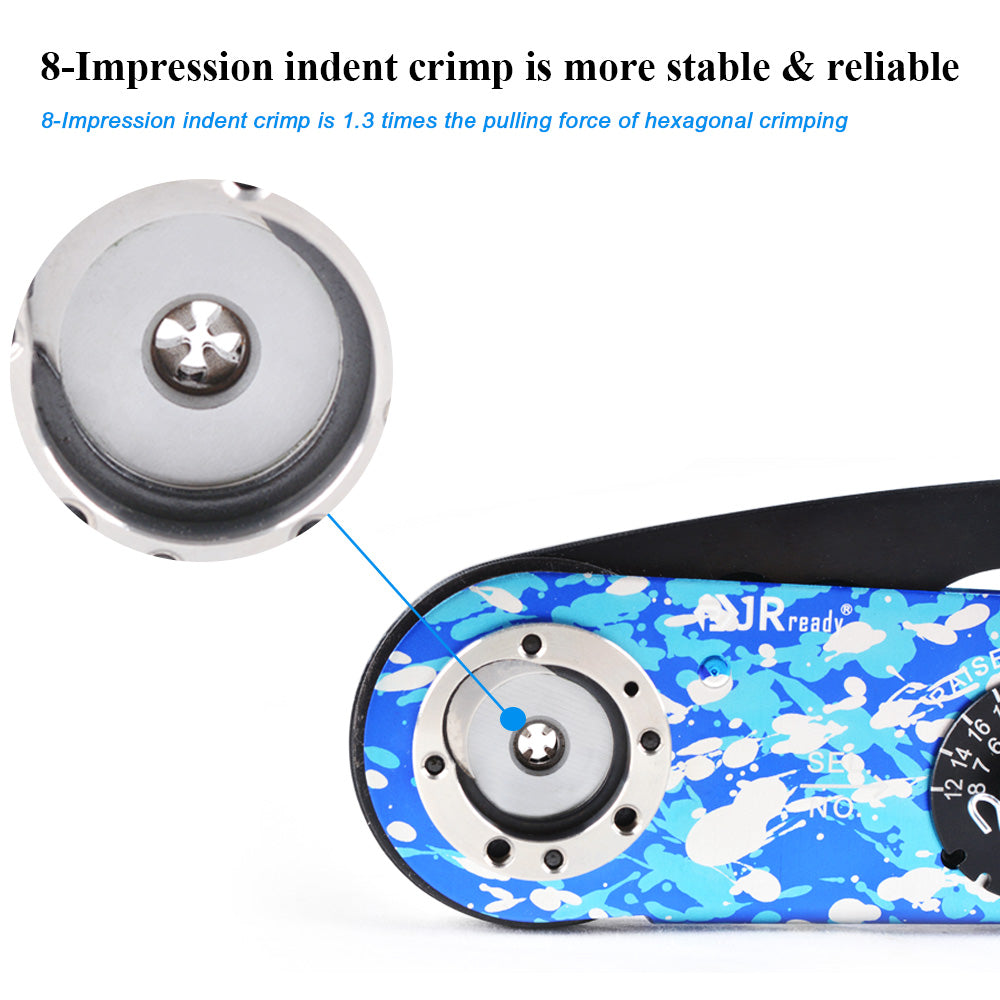

Gives a MilStandard 8 impression crimp, which assures maximum tensile strength with almost every closed barrel contact

This Wire Crimper Uses Camouflage Blue, the pattern of each Crimper is different when it leaves the factory, to ensure that the Crimper you receive are unique !

PROFESSIONAL CRIMPER:
Designed according to M22520/1-01 and AS22520/1-01;The cycle controlled precision ratchet assures consistently accurate crimps every time

8 POSITION SELECTOR KNOB:
Allows operators to control the crimp depth conveniently,selector number 1-8 corresponds to wire 26-12 AWG, please remove the locking pin carefully before using

NEW HANDLE DESIGN: Special wave shaped rubber grips, comfortable hand feeling and not easy to slide off

STRUCTURE UPGRADE:
The upgraded solid structure can provide reliable crimping guarantee.
