JRready ST2060-AS2: NEW-AS2 (Small 615717 M22520/2-01)Crimp Tool+7 M22520/2 Positioners & Universal Positioner+G125 M22520/3-1 Gage 20-32AWG

JRready ST2060-AS2: NEW-AS2 (Small 615717 M22520/2-01)Crimp Tool+7 M22520/2 Positioners & Universal Positioner+G125 M22520/3-1 Gage 20-32AWG

Regular price $265.00 USD
Regular price Sale price $265.00 USD
Sale Sold out
Shipping calculated at checkout.

JRready ST2060-AS2: NEW-AS2 (Small Version 615717 M22520/2-01)Crimp Tool+K1 + M22520/2-07 M22520/2-06 M22520/2-08 M22520/2-09 M22520/2-10 M22520/2-37 Positioners+Universal positioner+G125 M22520/3-1 Gage 20-32AWG

[VALUE TOOL KIT] Includes NEW-AS2 Crimp Tool(615717 M22520/2-01) & K1 & M22520/2-07 M22520/2-06 M22520/2-08 M22520/2-09 M22520/2-10 M22520/2-37 Positioners & Universal Positioner & G125 (M22520/3-1) Go-nogo Gage

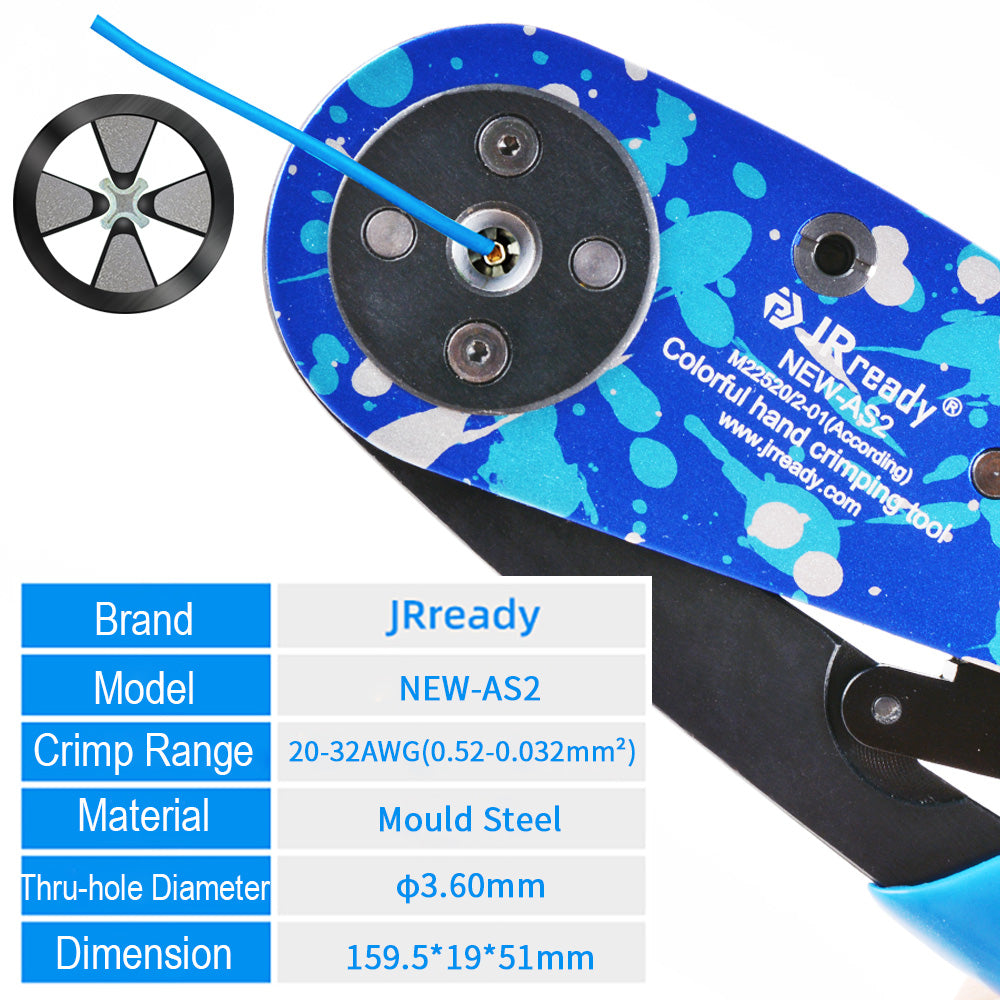

NEW-AS2 Aviation Crimper Miniature Adjustable Crimp Tool for Cable Assembly 20-32AWG

[NEW DESIGN NEW APPEARANCE] Personalized & Unique Colorful Camouflage Appearance with firm construction which makes work more interesting
[SMALL SIZE & LIGHTWEIGHT] Small Size (6.27in * 1.93in) & Lightweight (225g / 0.5lb) for one-hand operation and easy carrying or outdoor use

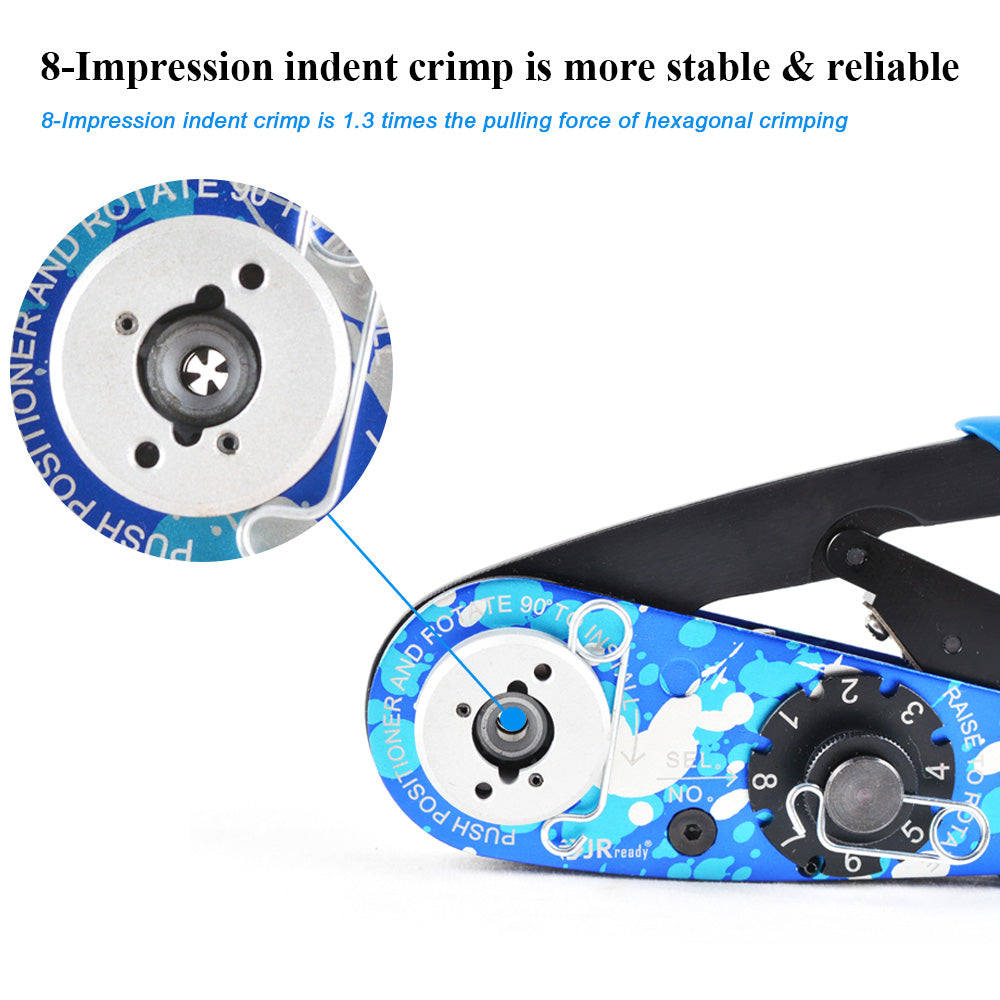

[4-WAY 8-IMPRESSION CRIMPING] Gives a Mil-Standard 8 impression crimp, which assures maximum tensile strength
[CRIMP WIRE RANGE] Meets the need for a miniature tool accommodating wire sizes 20 through 32 AWG(0.52-0.032mm²)
[PROFESSIONAL CRIMPING TOOL] Designed according to MIL-C-22520/2-01;The cycle controlled precision ratchet assures consistently accurate crimps every time
[APPLICATION] Designed for most of the miniature and sub-miniature connector types that are so widely used in electronic systems




K series Positioner kit & adjustable positioner

  • M22520/2-07: MS27490-22 & 22M & 22D, MS27655-22D
  • M22520/2-06: MS27491-22 & 22M & 22D, MS27492-22 & 22M & 22D, M24308/12-1
  • M22520/2-09: MS27493-22 & 22M & 22D, MS27494-22 & 22M & 22D, M24308/13-1
  • M22520/2-10: MS27490-20, MS27491-20, MS27492-20, MS27493-20, MS27494-20, MS27655-20
  • M22520/2-37: M39029/90-529, M39029/91-530, M39029/113-625, M39029/114-628
  • M22520/2-08: M24308/10-1, M24308/11-1, M39029/11-20-20, M39029/12-20-20, RG55B,58C,223/U

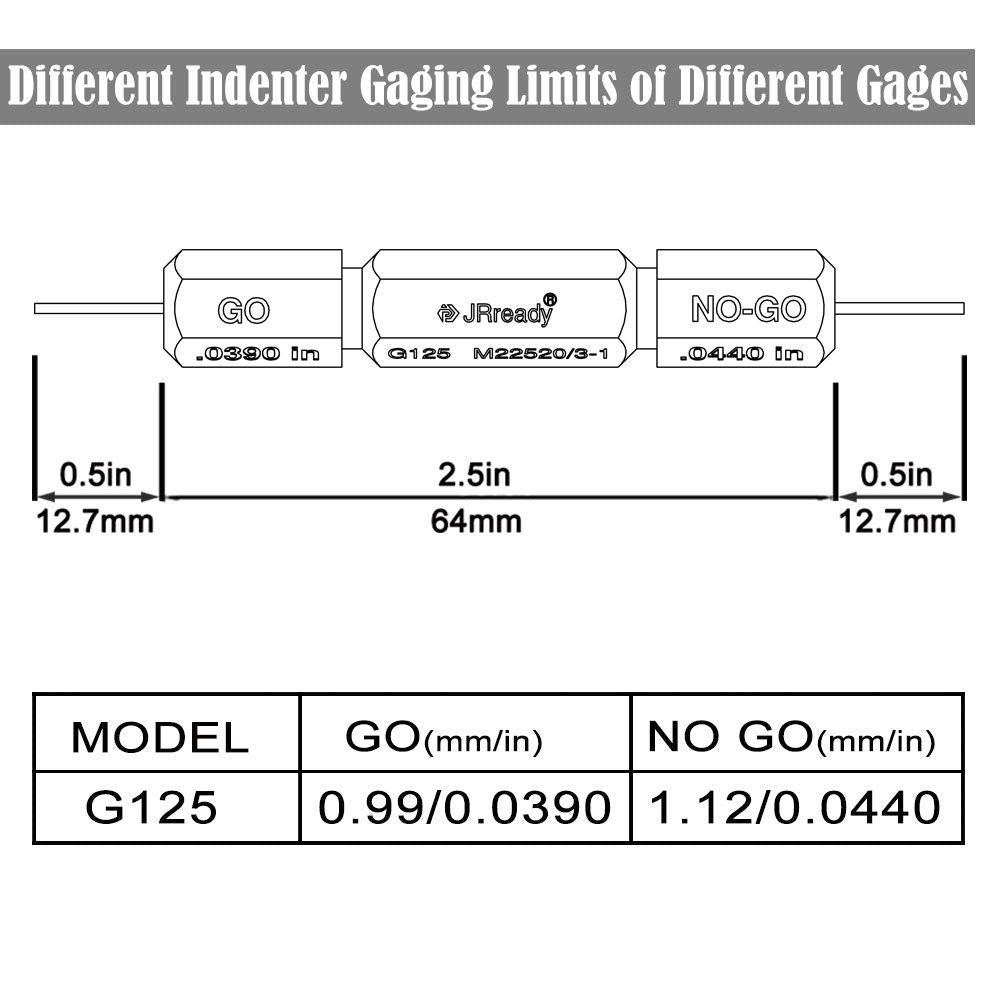

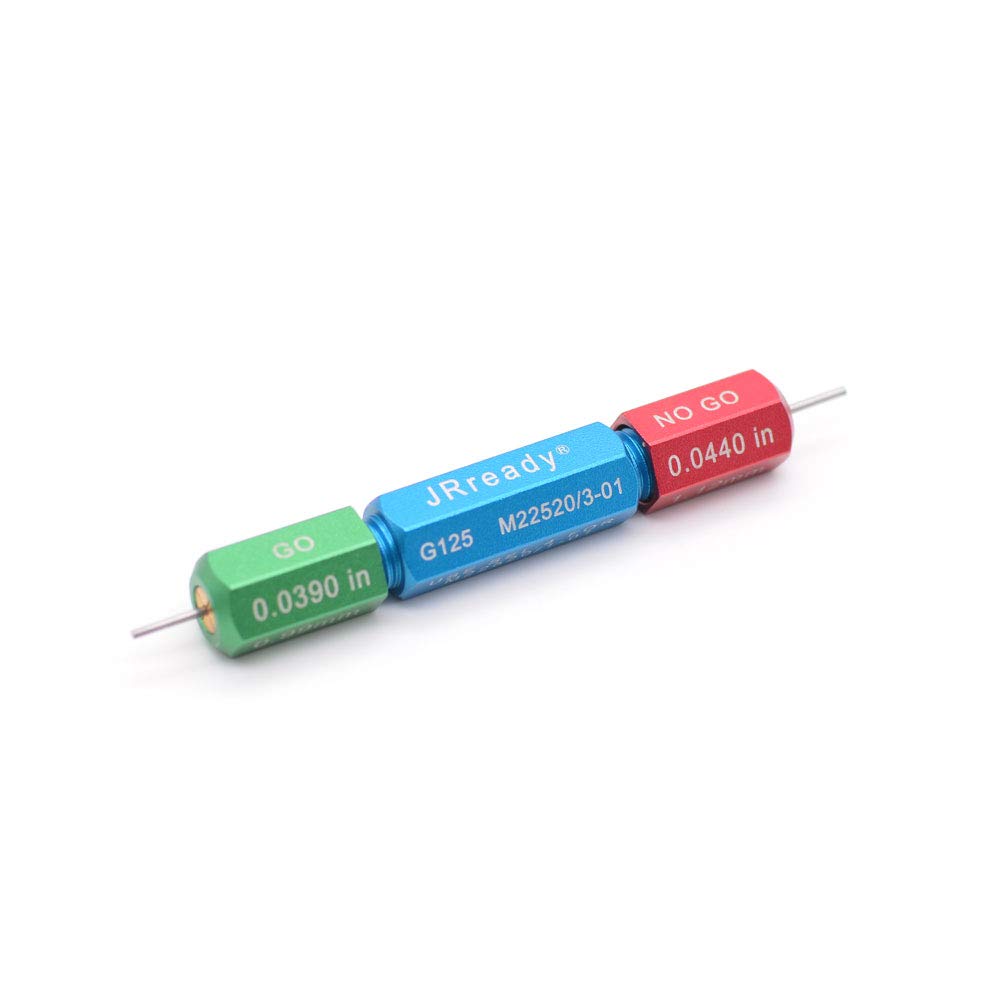

G125 Go-nogo Gage

M22520/3-1
GO: 0.039 inch, NO-GO: 0.044 inch

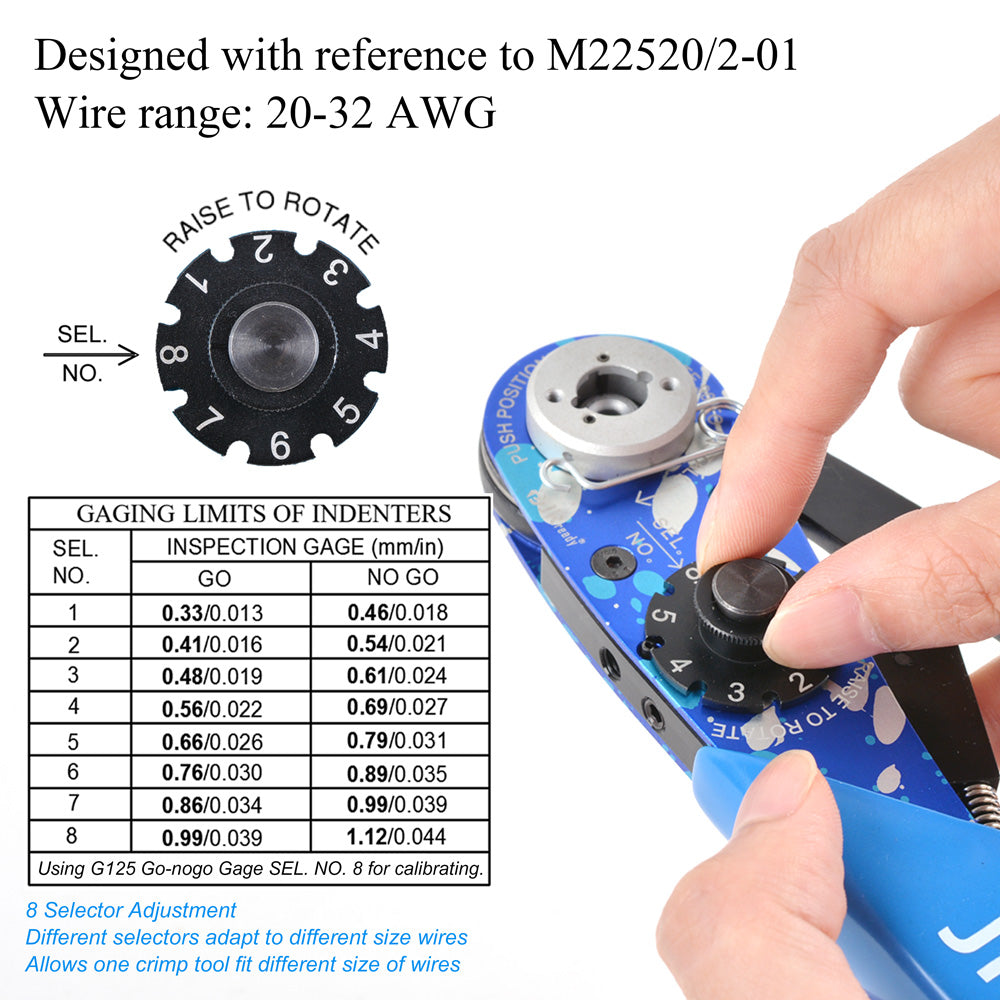

Set the tool selector knob to position 4, and check indenter closure with the gage
Periodic gaging is recommended to insure accurate calibration.
