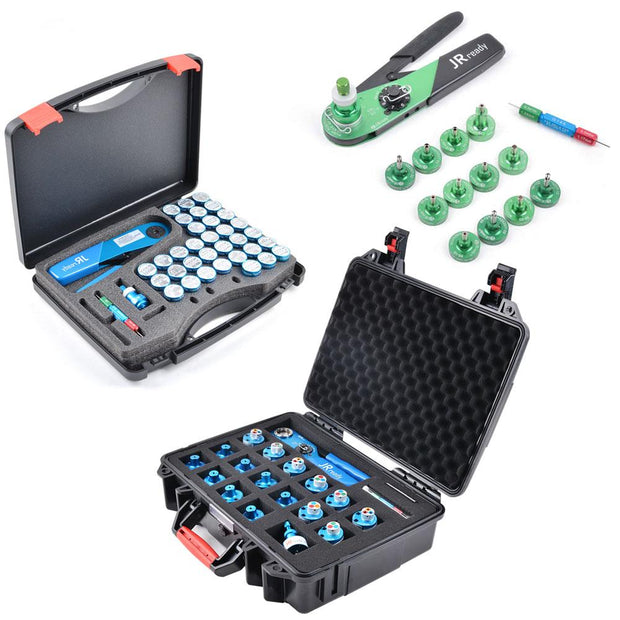

JRready ST2119 (M22520/2) +JST1162 (M22520/1)+ST1049 (M22520/7) Full Crimp Kit

JRready ST2119 (M22520/2) +JST1162 (M22520/1)+ST1049 (M22520/7) Full Crimp Kit

Regular price $1,349.00 USD
Regular price Sale price $1,349.00 USD
Sale Sold out
Shipping calculated at checkout.

JRready ST2119 (M22520/2) +JST1162 (M22520/1)+ST1049 (M22520/7) Full Crimp Kit

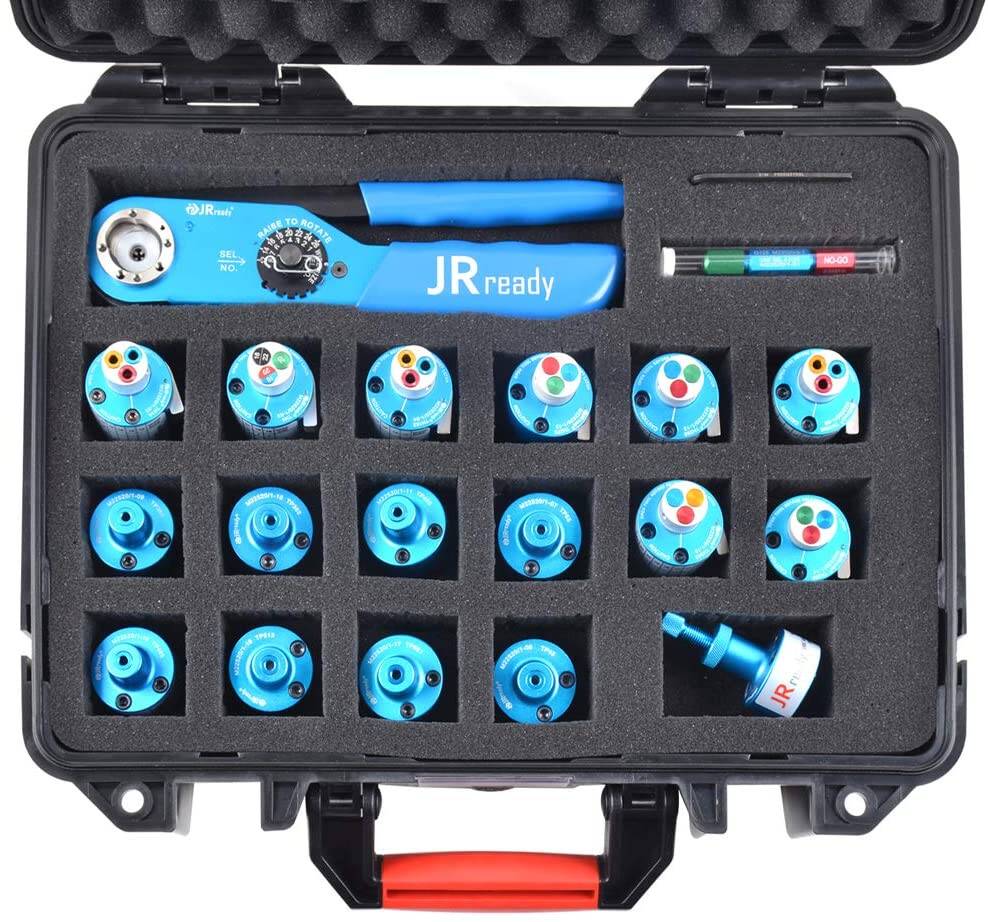

JRready Crimper Tool Kit ST2119 : 37 K series positioners+YJQ-W1A four-indent crimper+Universal Positioner+G125 GO-NOGO Gage for 20-32 AWG

  • Match Tools: YJQ-W1A Hand Crimp Tool&YJQ-W1Q(pneumatic); Wire Crimp Range: 20-32 AWG
  • Designed for most of the miniature and sub-miniature connector types that are so widely used in electronic systems; Suitable for crimping round contacts of MIL standard, Harting, Wain, TE connectors.
  • Suitable for Connector: MIL-PRF-38999 SERIES, MIL-C-81511 SERIES, MIL-DTL-26482 SERIES, MIL-STD-1760, MIL-DTL-81703 SERIES, MIL-DTL-28804, MIL-DTL-24308, MIL-DTL-83733, MIL-DTL-81659, AS81714, MIL-DTL-83527,etc.
  • Suitable for Contact: M39029 SERIES, MS24254 SERIES, MS24255 SERIES, MS18134, MS18136, M83723, MS27490 SERIES, MS27491 SERIES, MS27492 SERIES, MS27493 SERIES; MS27494 SERIES, MS27655 SERIES,M24308 SERIES, etc.

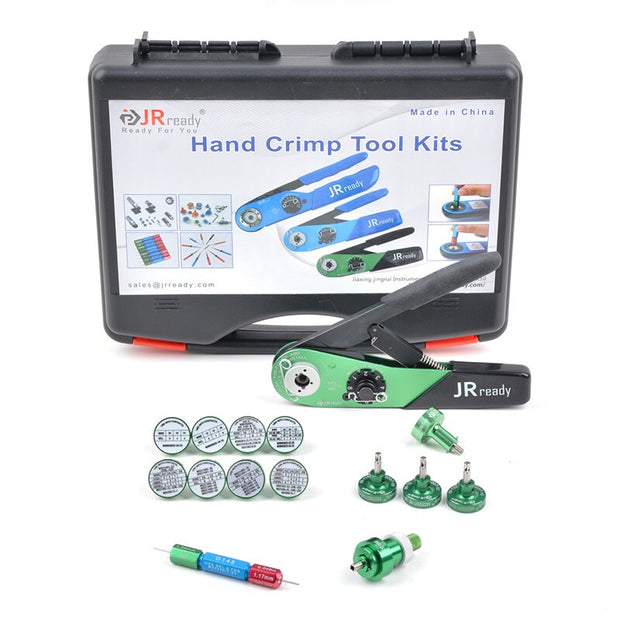

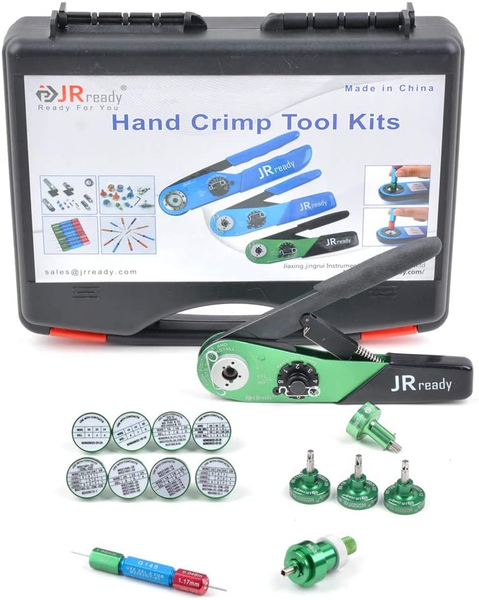

JRready JST1162 Crimp Tool Kit (M22520/1) Crimp Tool Full Kit

  • Crimper: JRD-ASF1 crimping tool is designed according to MIL-DTL-22520/1-01 and AS22520/1-01, New design wavy handle. Not easy to fall off

  • 8 TH Series Turret Head

  • 8 TP Series positioner

  • 1 Universal positioner

  • 1 Inspection Gage G125

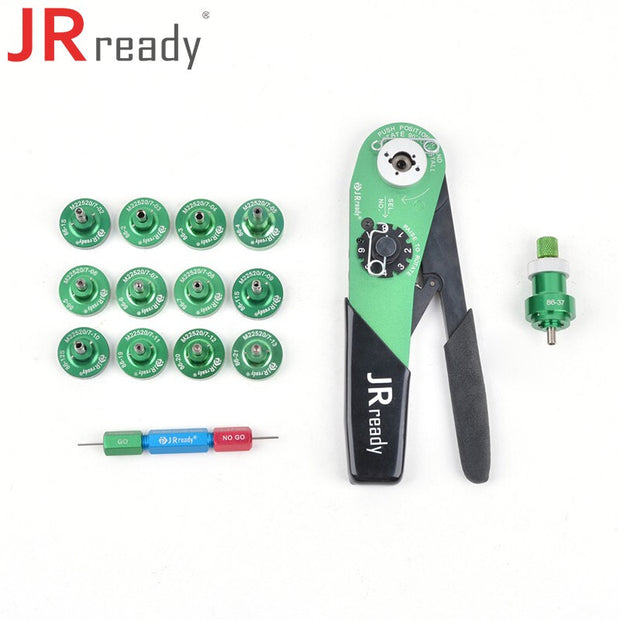

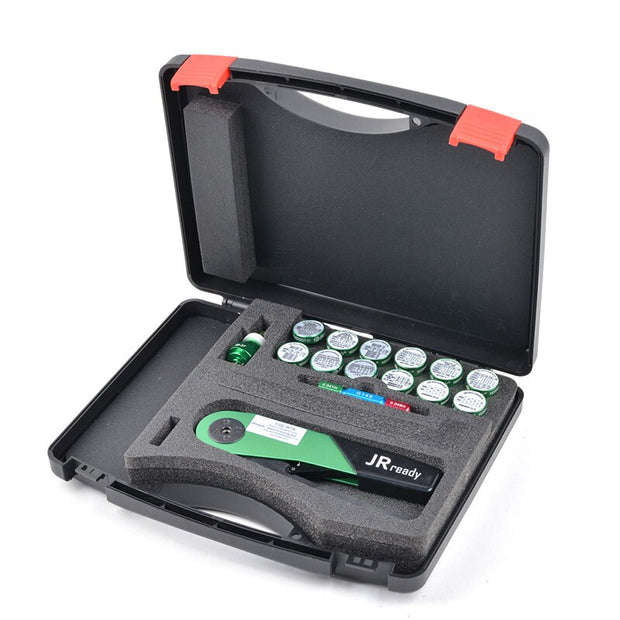

ST1049: YJQ-W7A M22520/7-01 Crimper+86 Series positioner+G145(M22520/3-3) Maintenance Kit For Electrical Connectors and Wiring Systems

  • Tool and accessory list : YJQ-W7A tool frame,  12 PCS 86 series Positioners and 1 Inspection Gage  G145(M22520/3-3)
  • Crimp : The YJQ-W7A/M22520/7-01 accepts the entire middle wire range of 16 through 28 AWG

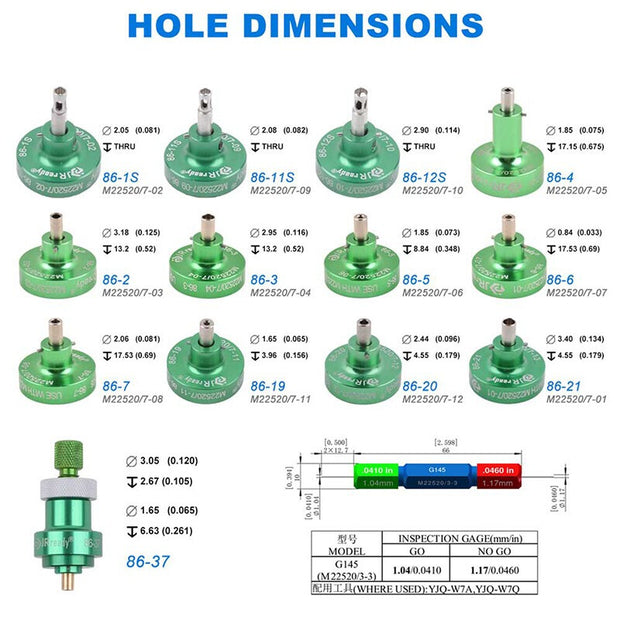

  • Positioner: 86-1S+86-2+86-3+86-4+86-5+86-6+86-7+86-11S+86-12S+86-19+86-20+86-21 & adjustable positioner 86-37
  • Connector: MIL-PRF-38999 SERIES, MIL-DTL-26482 series, MIL-DTL-26500, MIL-DTL-24308,MIL-C-38300, AS50151 series, MIL-C-81703 SERIES, MIL-DTL-83723 SERIES, MIL-C-81511 series, MIL-DTL-83733, MIL-STD-1549 ,etc.
  • Thanks to the cycle controlled precision ratchet,it assures the consistency of impression and the crimping quality of wires and contacts
