JRready tools

JRready ST4011 Pneumatic Crimp Tool Kit: YJQ-W7Q WA22P M22520/7-01 Pneumatic Crimp Tool & 86-37 Adjustable Positioner 16-28AWG

Regular price $619.00
/

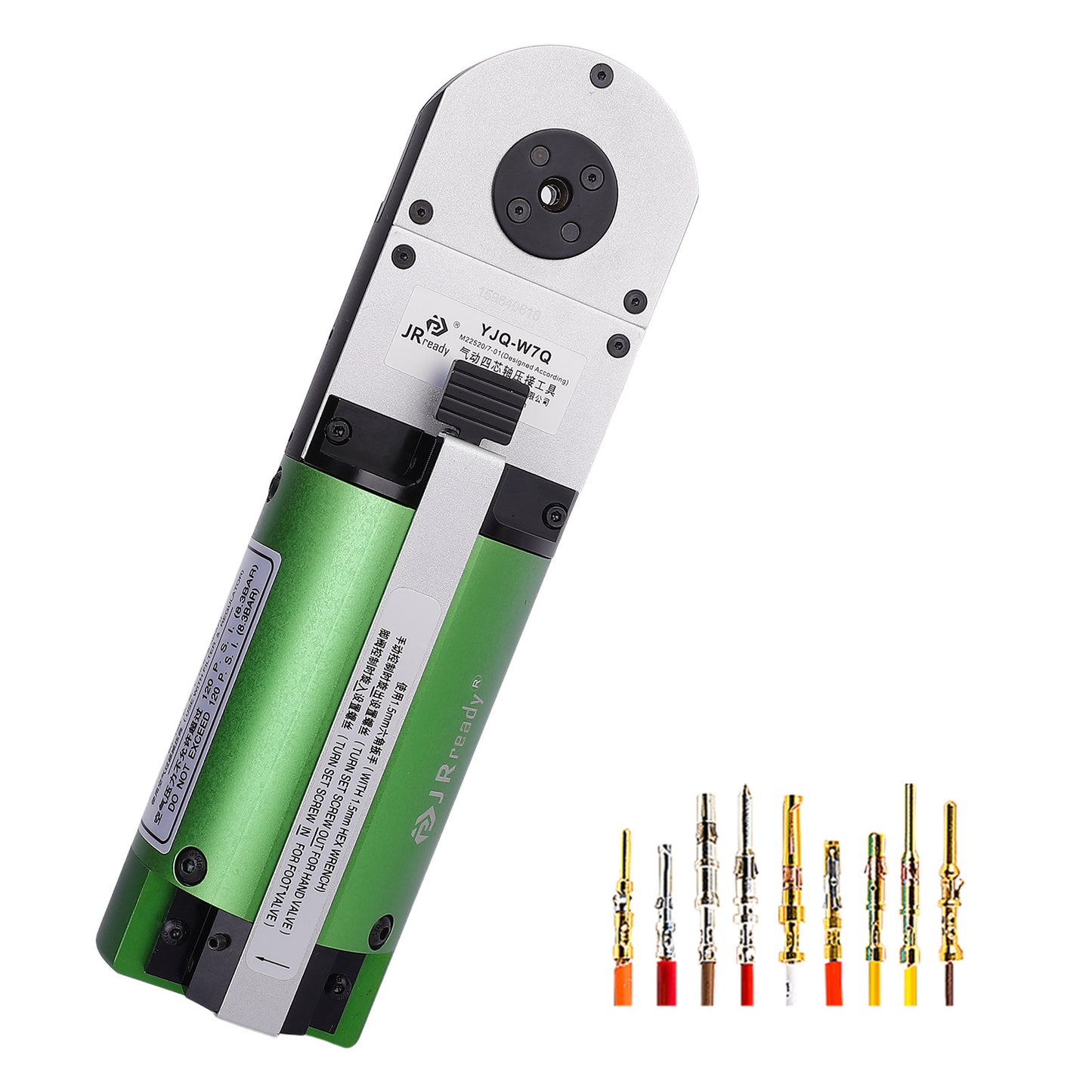

  • Suitable for crimping of round contacts of MIL standard, Harting, Wain, TE connectors
  • Wire Crimp Range:16-28AWG (0.08-1.32mm²);
  • Manual Version: ST2011.
  • Crimp Style: Four-indent Eight-impression

YJQ-W7Q

Net weight: 2881 g / 6.35 lb
Small size, suitable for line operation.
8-impressions crimping to ensure high quality.
Force completely produced from compressed air to ensure safe & energy saving.

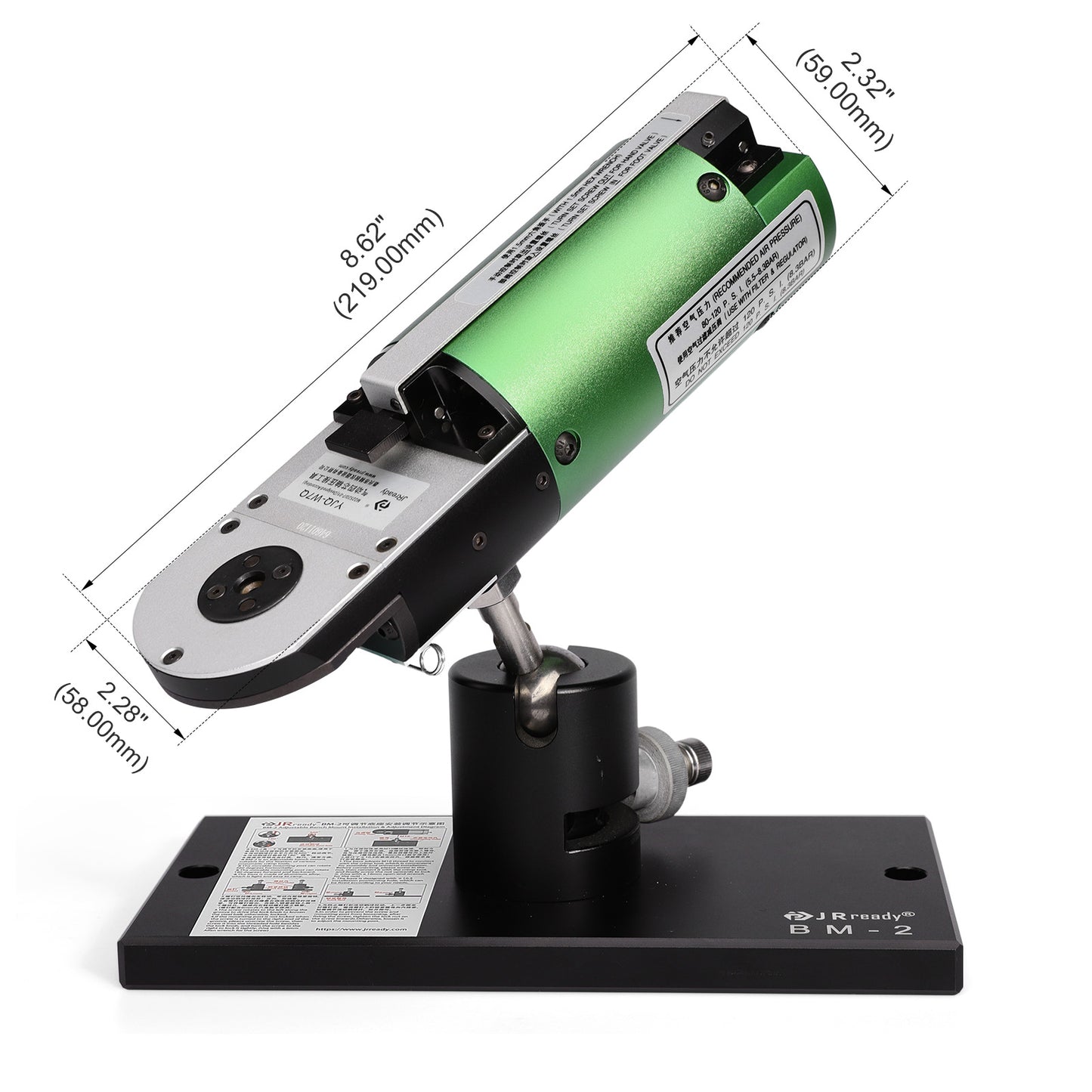

Package including: YJQ-W7Q Crimp Tool Frame & BM-2 Bench Mount & PC-SUITE1 Pneumatic Kit & 86-37 Universal Positioner.
Suitable for military connectors, heavy duty connectors, electric connectors, terminals, wiring harness manufacturing industry, cable assembly.

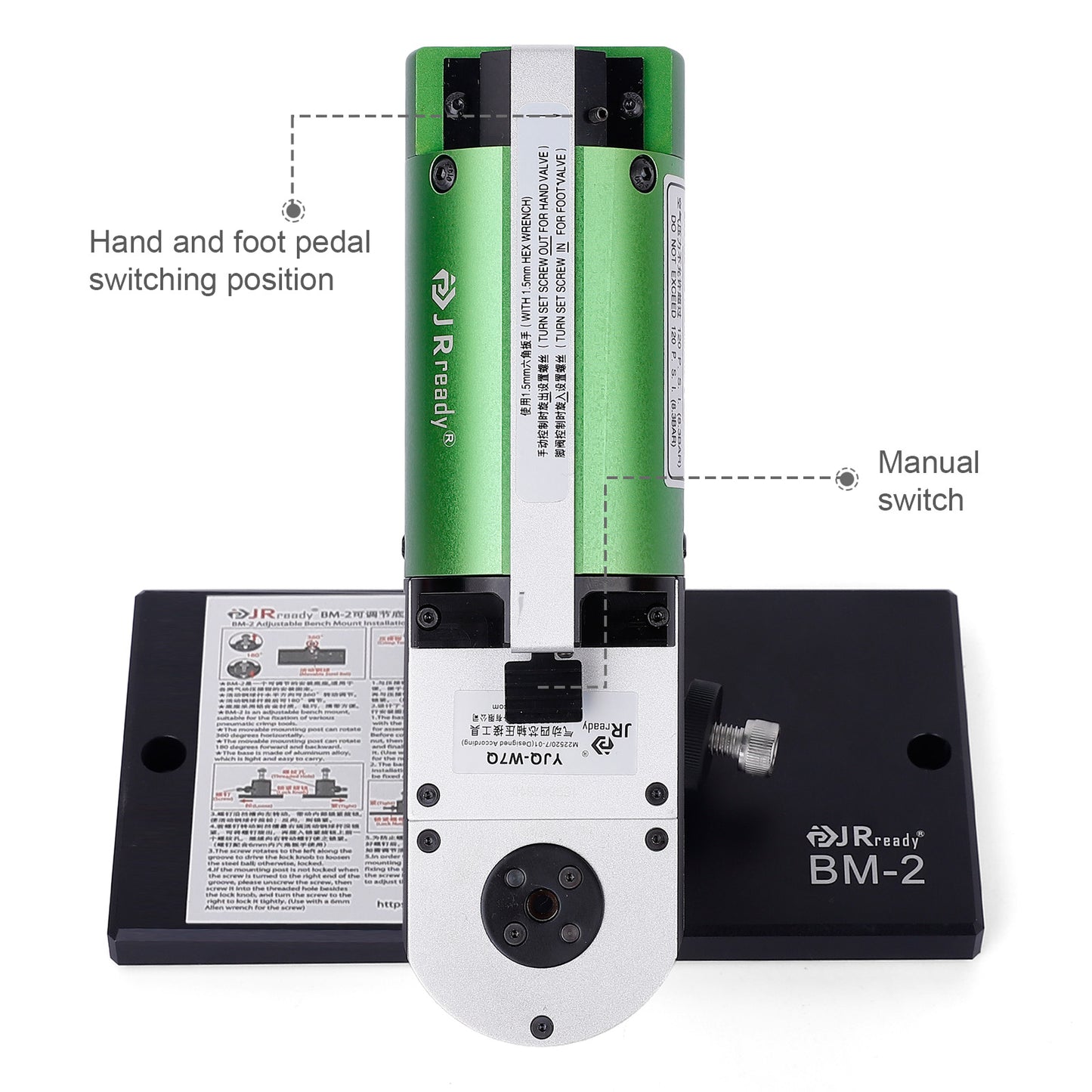

THE MODE SWITCH INSTRUCTION

Setting the setting screw by 1.5 mm hex wrench.

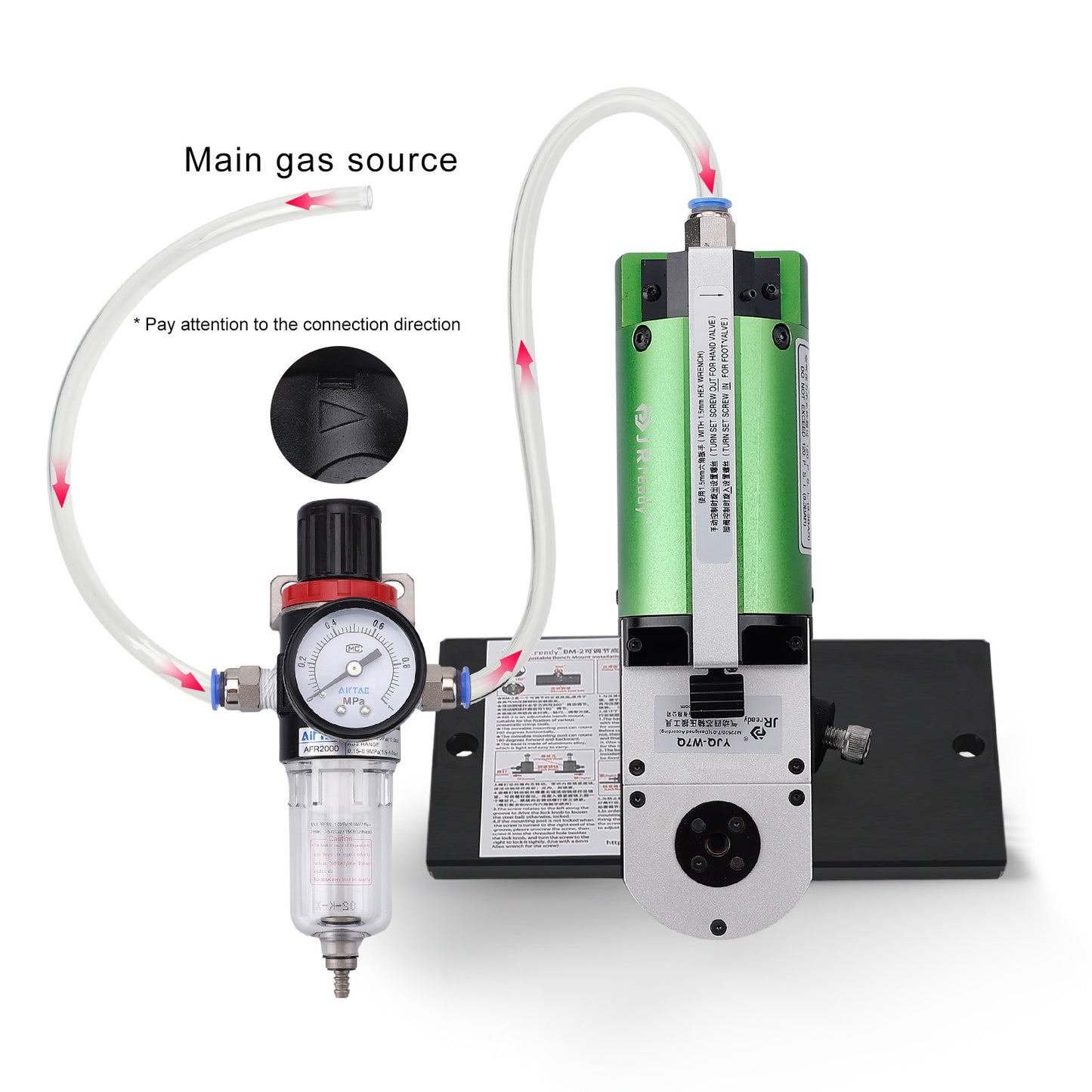

Set the screw 0-1mm above the reference plate when in hand value control.

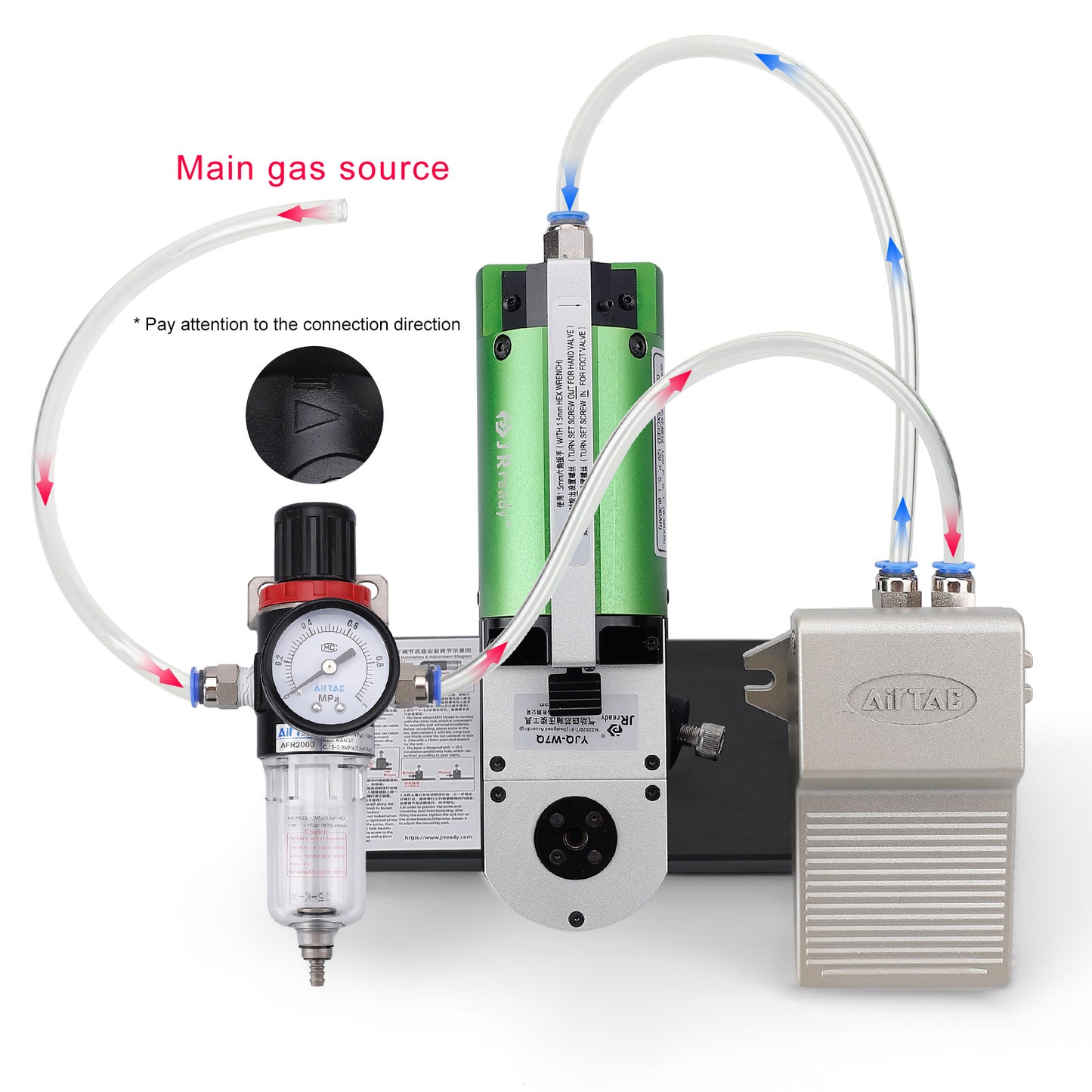

Set the screw 1-2mm into the reference plate when in foot value control.
PLEASE NOTE: Do not force the screw out to prevent the screw mechanism from damaging.

JRDTOOLS specializes in designing and manufacturing hand/ pneumatic indents crimping tools, open frame die crimper, positioners, turret heads for wire crimpers . We make every efforts to provide our customers with tool selection services, product customization services, after-sales services and product maintenance services.

Youtube Related Video:

How to install the JRready YJQ-W2Q WA27F Pneumatic Crimp Tool Kit?
https://www.youtube.com/watch?v=EcXlYHHjNrM

How to Switch Hand & Foot Control Mode of Pneumatic Crimp Tool?
https://www.youtube.com/watch?v=VnhCcaBvcUE

HOW TO CRIMP & TEST DEUTSCH SOLID CONTACTS--USING YJQ-W2DTQ PNEUMATIC DEUTSCH CRIMPER
https://www.youtube.com/watch?v=Gl8yFdOif7s
