JRready tools

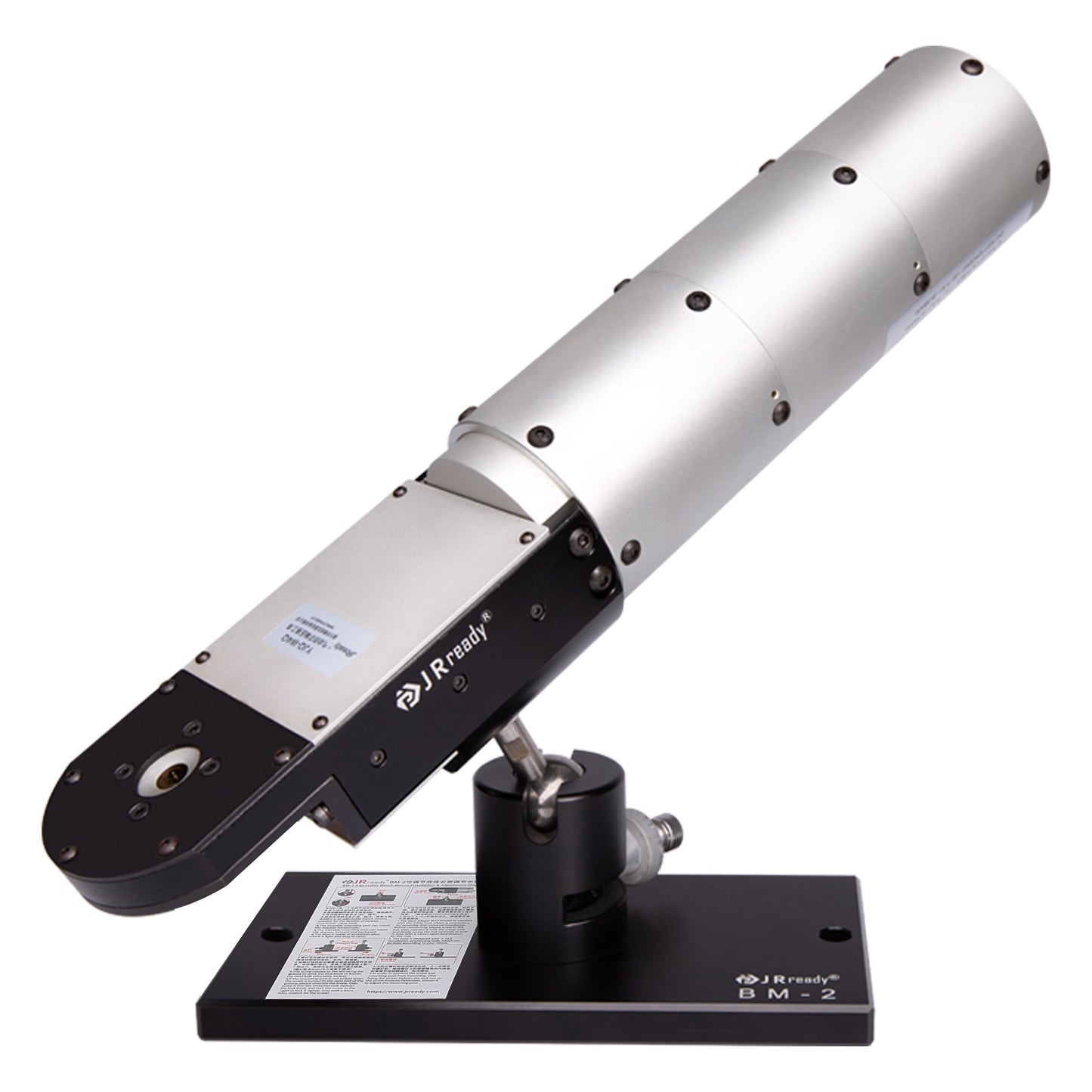

JRready ST4031 Pneumatic Crimp Tool Kit: YJQ-W4Q WA27-300BT-EP Pneumatic Mid-Current Range Crimp Tool & UF4-C001 Adjustable Positioner 6-14AWG (13.3-2.075mm²)

JRready ST4031 Pneumatic Crimp Tool Kit: YJQ-W4Q WA27-300BT-EP Pneumatic Mid-Current Range Crimp Tool & UF4-C001 Adjustable Positioner 6-14AWG (13.3-2.075mm²)

Regular price $854.00 USD
Regular price Sale price $854.00 USD
Sale Sold out
Shipping calculated at checkout.

  • It is is widely used for the crimping of wires and contacts in both military and proprietary programs
  • Compatible with hand crimp tool YJQ-M300 ACT-M300
  • UF4-C001:Adjusting screw and lock nut are respectively used in length adjustment and nut lock
  • Air control system is a combination of air control components which cyclically controlled by foot value
  • Adjustable bench mount is quick and easy positioning and unlocking,multi-angle rotation, 360-degree adjustment in the horizontal direction

FEATURES:
● Productivity (It can crimp 30-40 contacts per minute,High production)
● Material of Mould Steel (Good Durability & Good Anti-deformation & Good appearance & Anti-rust)
● Four-indent Crimp Tool (Crimp tension is 1.3 times that of the hexagonal crimp, more stable & more reliable)

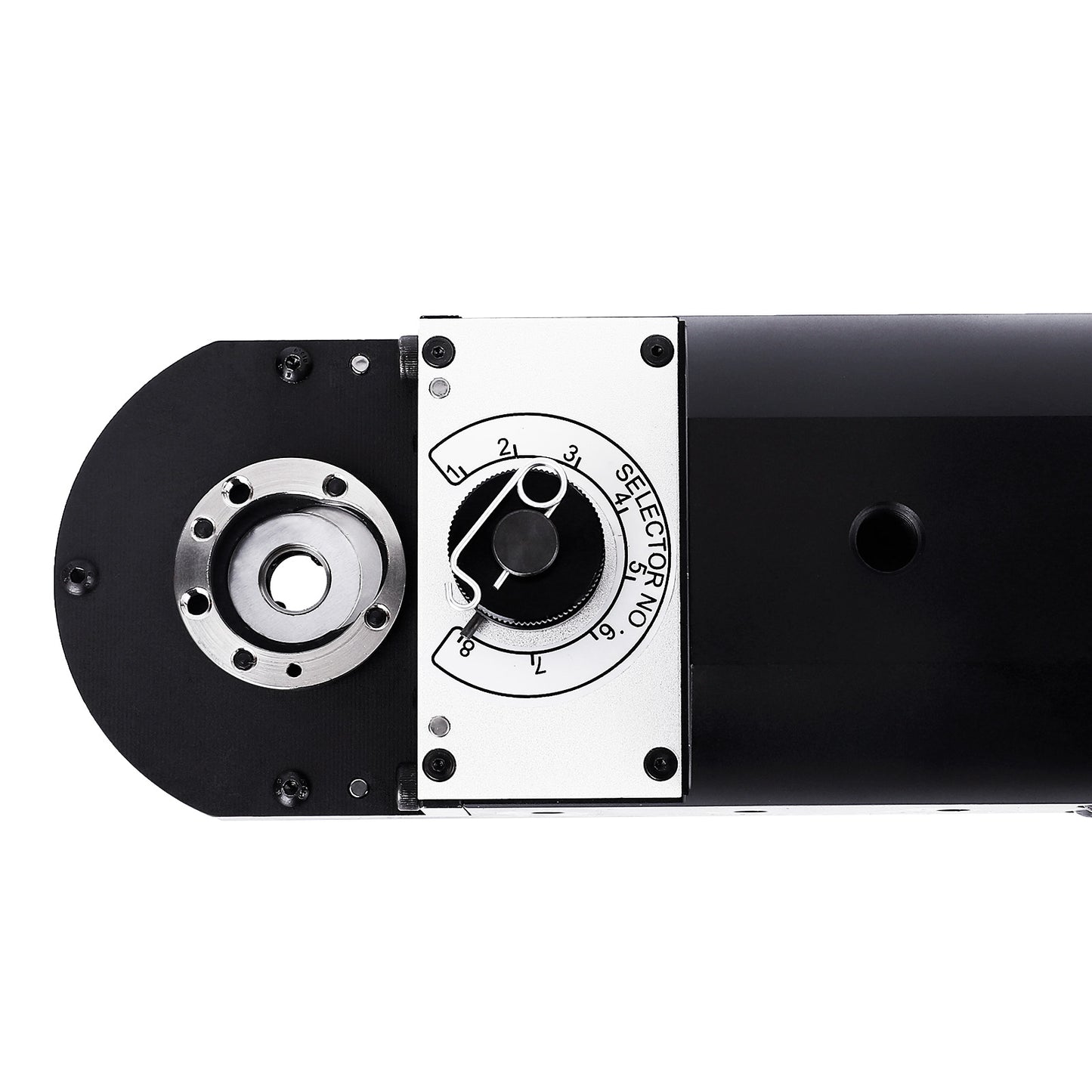

● 8 Selector Numbers(Adjustable crimping ranges in different selector number, more convenient for wider applications)

SPECIFICATIONS:
● Material: Mould Steel
● AWG: 6-14AWG (13.3-2.075mm²)
● Air Supply & Working Air Pressure (Bar): 5.5-8.3

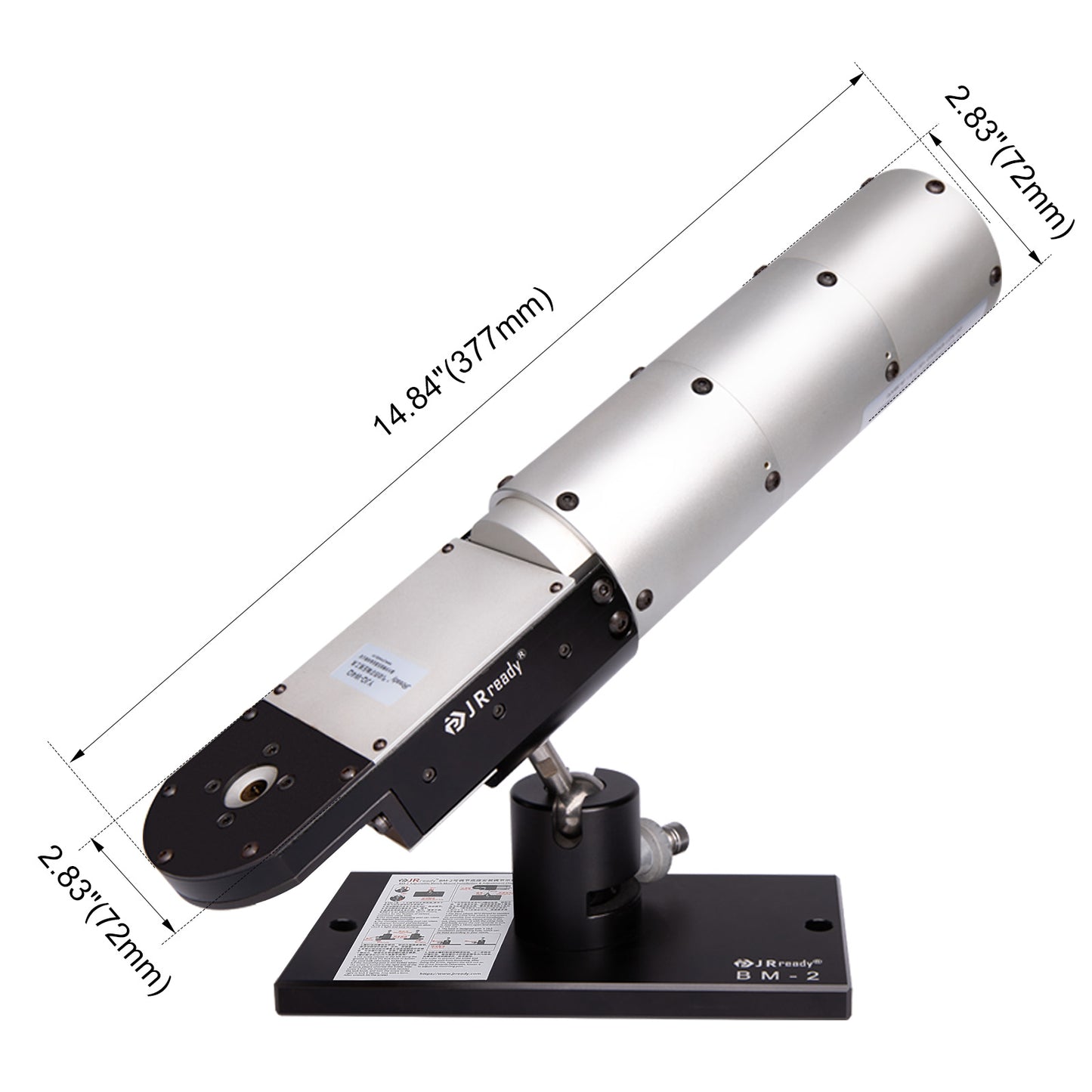

● Dimension (mm): 307.5*70.5*69.3

PACKAGE INCLUDED:
1 × Pneumatic Crimping Tool YJQ-W4Q
1 × UF4-C001 Positioner
1 × BM-2 Adjustable Bench Mount

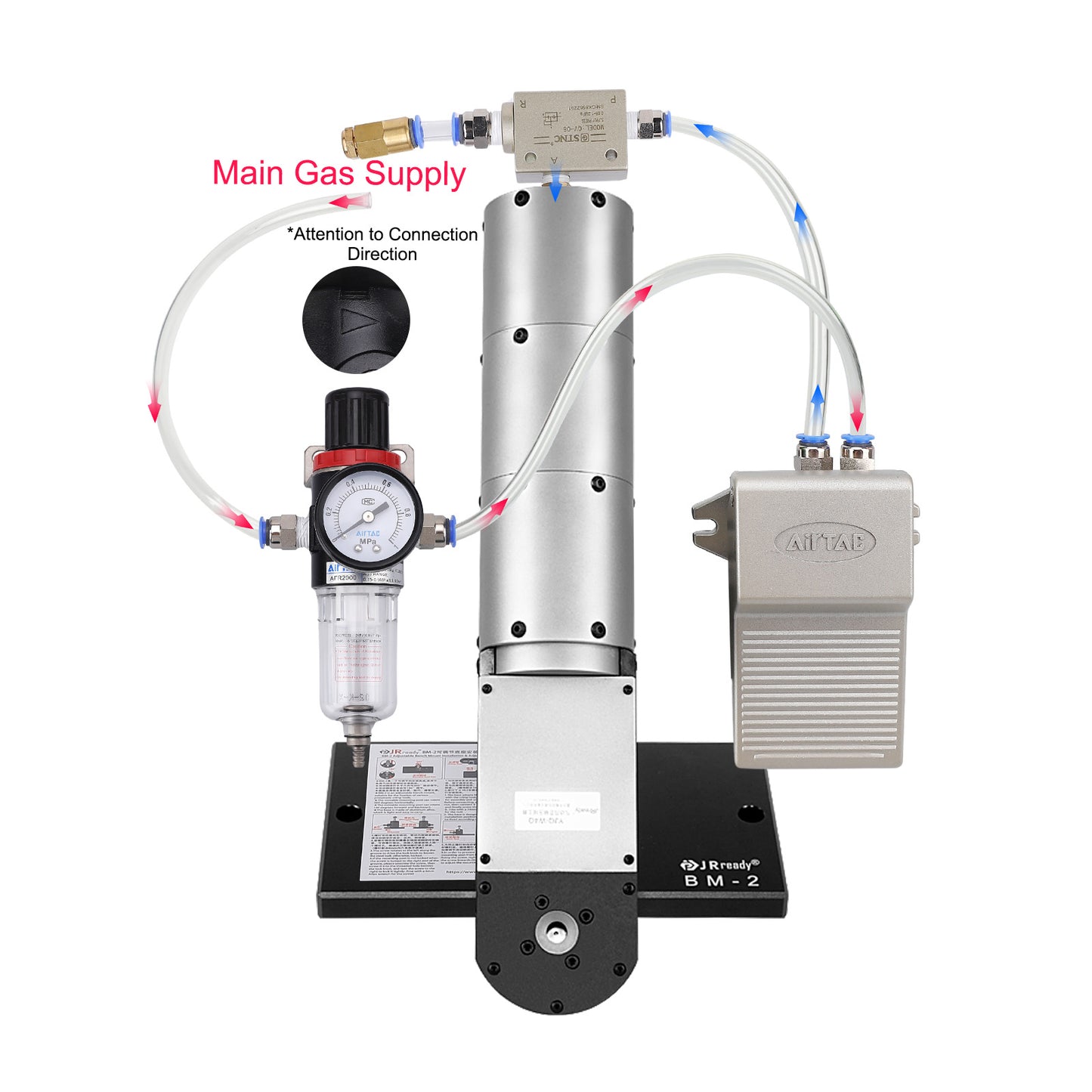

1 × PC-SUITE2 Air Control System(foot value, regulating value, exhaust valve, and air pipes)
