JRready ST5214 Deutsch Terminal Removal Tool Kit Wire Sizes 12 14 16 and 20 Gauge & Steel DRK-RT1 for Deutsch Connector

Regular price $39.00
/

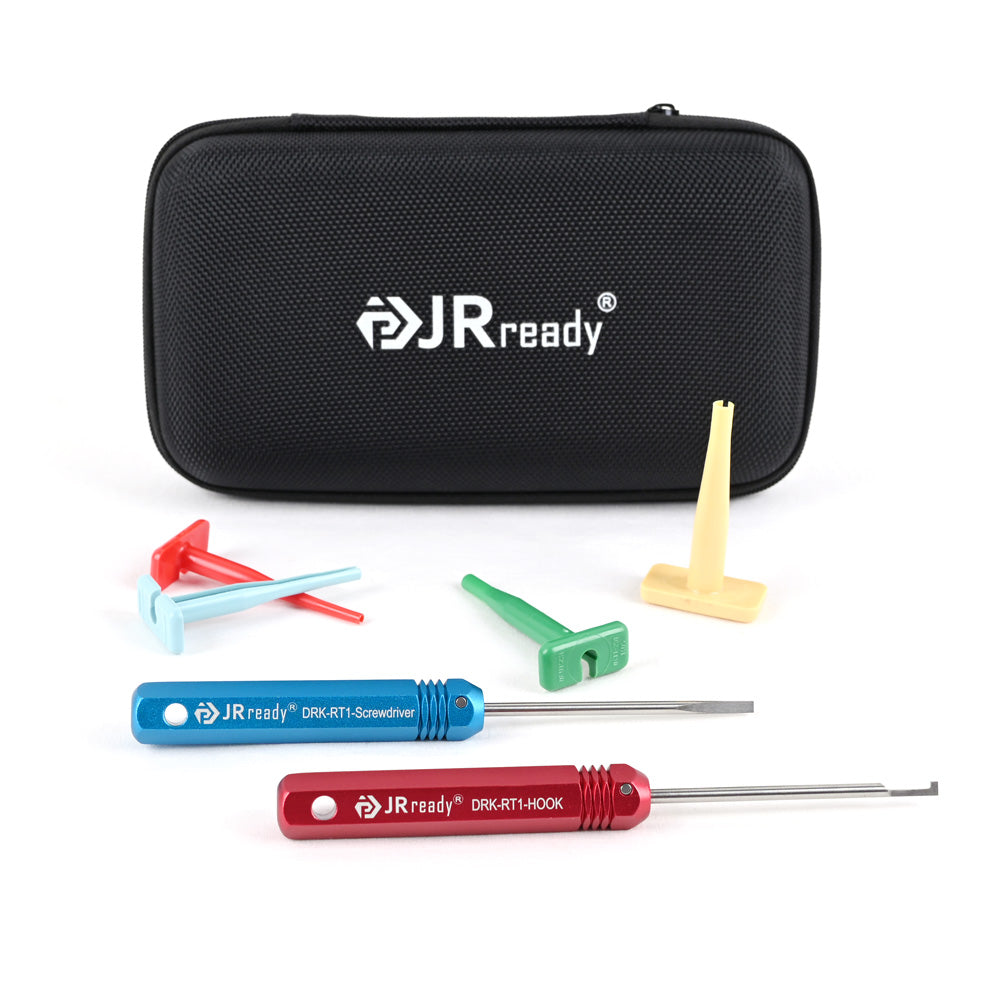

  • Package List:114010(Yellow 12 Gauge),0411-291-1405(Green 14 Gauge),0411-310-1605(Blue 16 Gauge),0411-240-2005(Red 20 Gauge),DRK-RT1-Hook, DRK-RT1-Screwdriver
  • Terminal Removal Tool:Compact, easy-to-use, and manufactured of heavy duty plastic to remove contacts without damage to the wire, insulation, connector seals, or connector body
  • DRK-RT1-Hook + DRK-RT1-Screwdriver Pick Removal Tool : A multi-use tool with a small hook and a small screwdriver

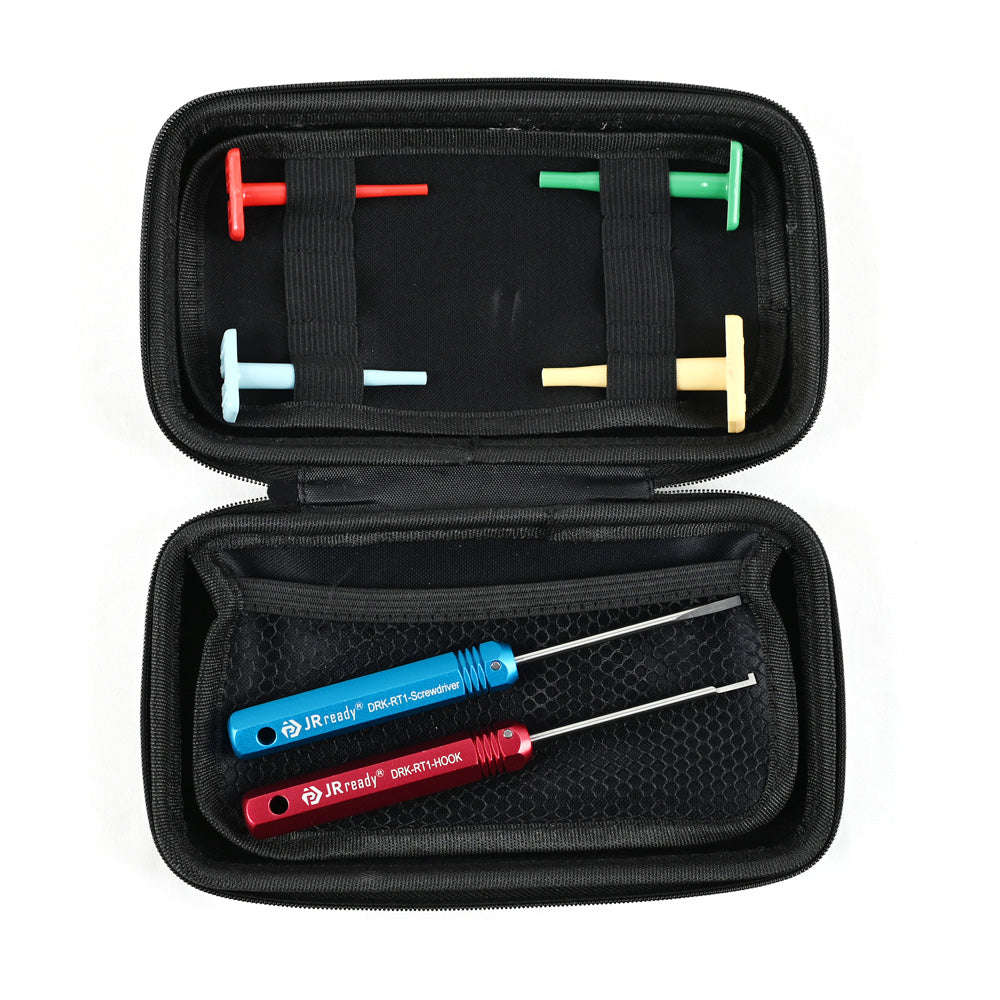

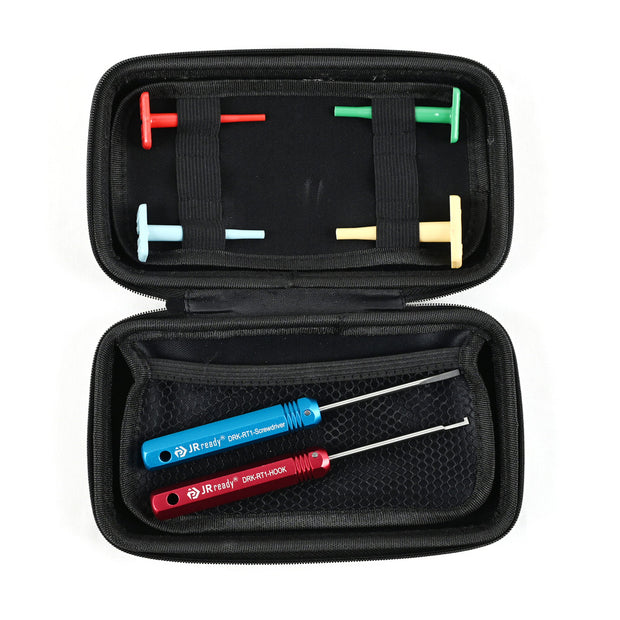

  • Sturdy Bag:The black canvas bag protects the plastic tools well, compact size and easy to carry

JRready ST5214 Removal Tool Kit



Using Terminal Removal Tool
1.From the rear of the connector, align the tool tip with the contact cavity of the contact to be removed.
Place the wire of the contact over the tool wire entry slot and apply light pressure on the wire until it enters the wire entry slot.
2.Slide the tool along the wire and into the contact cavity until the tool tip engages the contact and resistance is felt.
3.Gently pull the tool with the wire until the contact is removed

DRK-RT1-Hook + DRK-RT1-Screwdriver Pick Removal Tool:

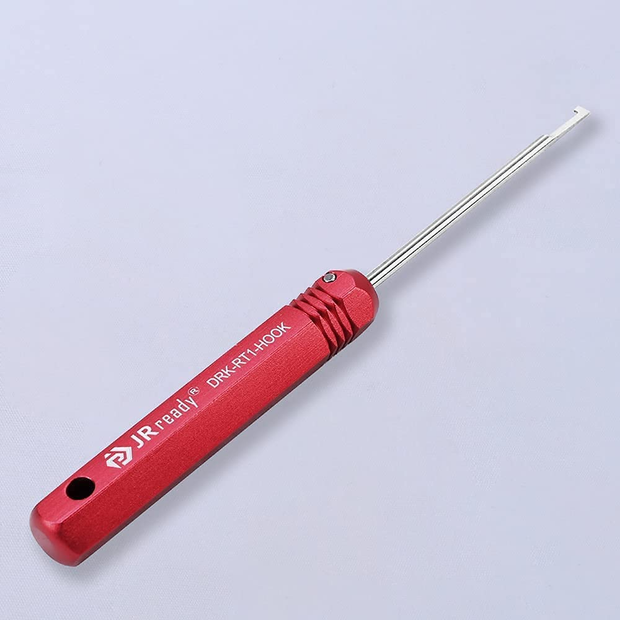

DRK-RT1-Hook is a sturdy 90 degree hook for non-slip wedge lock removal.
DRK-RT1-Screwdriver is a standard flat head screw driver which can be used as a straight pick or driver. Can be used to remove and install combination wedge, and also can be used to remove the terminals

Package Detail:
1× 114010(Yellow 12 Gauge)
1× 0411-291-1405(Green 14 Gauge)
1× 0411-310-1605(Blue 16 Gauge)
1× 0411-240-2005(Red 20 Gauge)
DRK-RT1-Hook

1× DRK-RT1-Screwdriver
