JRready ST6562 20# Pin & Socket Terminal Kit for Deutsch DTM HDP20 HD30 DRC Series Connectors, 0462-201-20141 & 0460-202-20141, 20-22 AWG Nickel-Plated, 7.5A Signal & Sensor Wiring

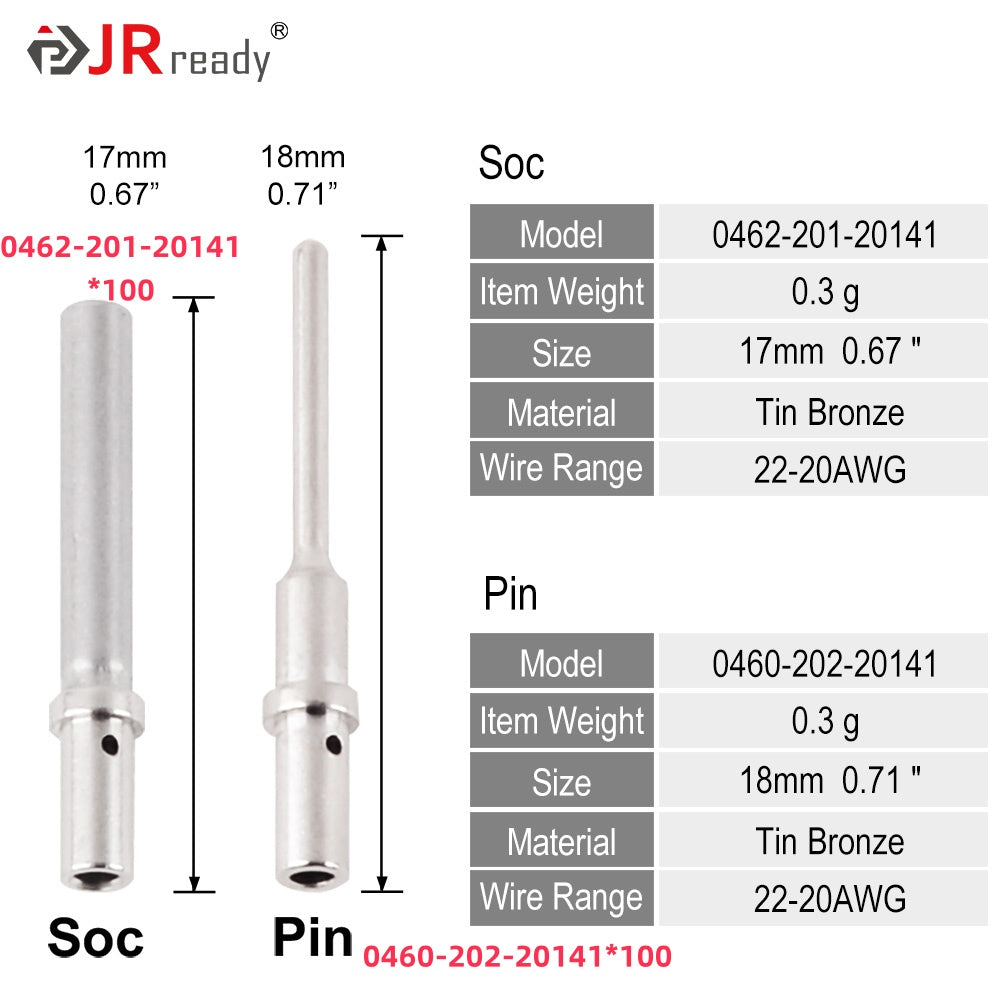

JRready ST6562 Contact Terminal Kit: 0462-201-20141*100pcs +0460-202-20141*100pcs

[MATCHED 20# PIN & SOCKET KIT FOR FINE-GAUGE WIRING]

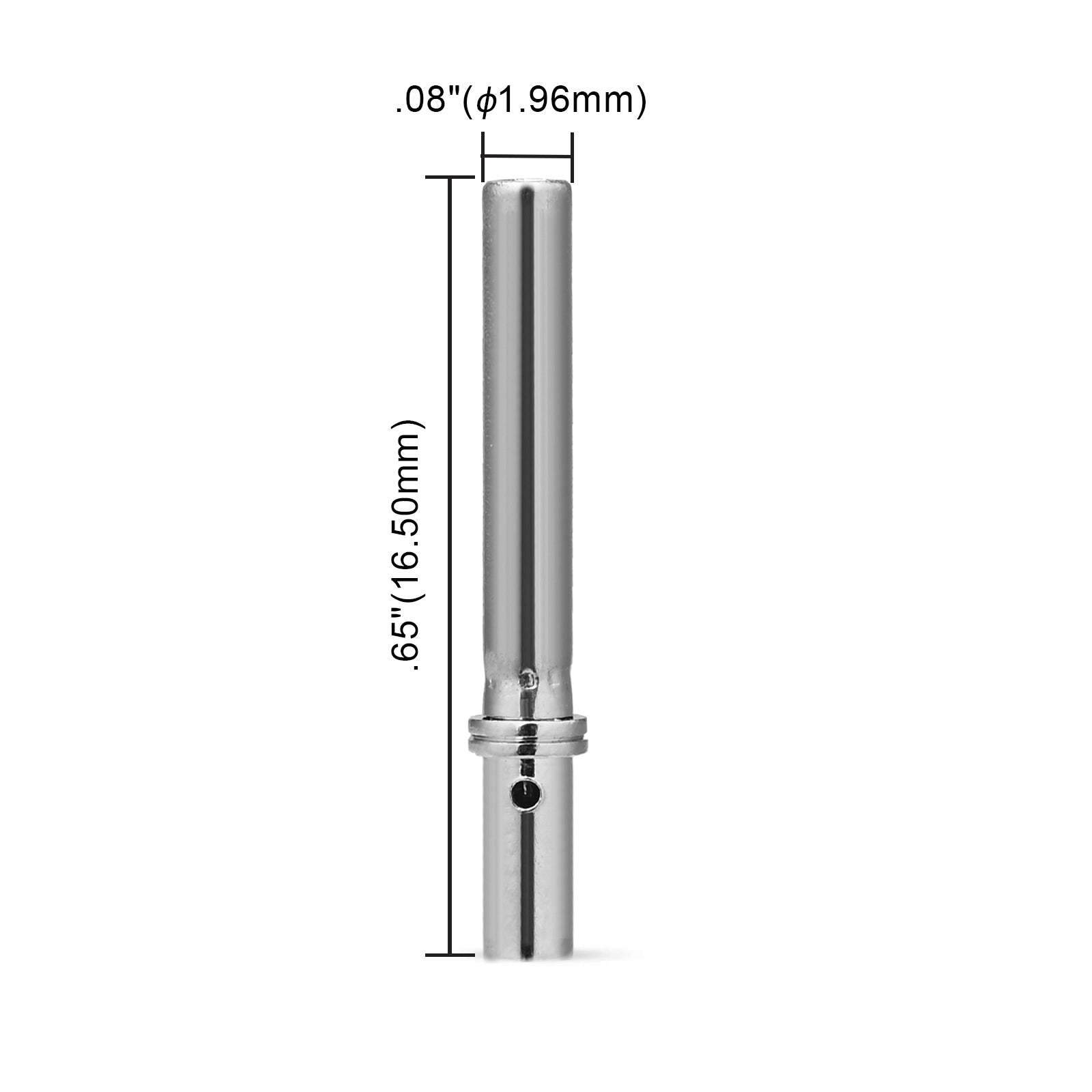

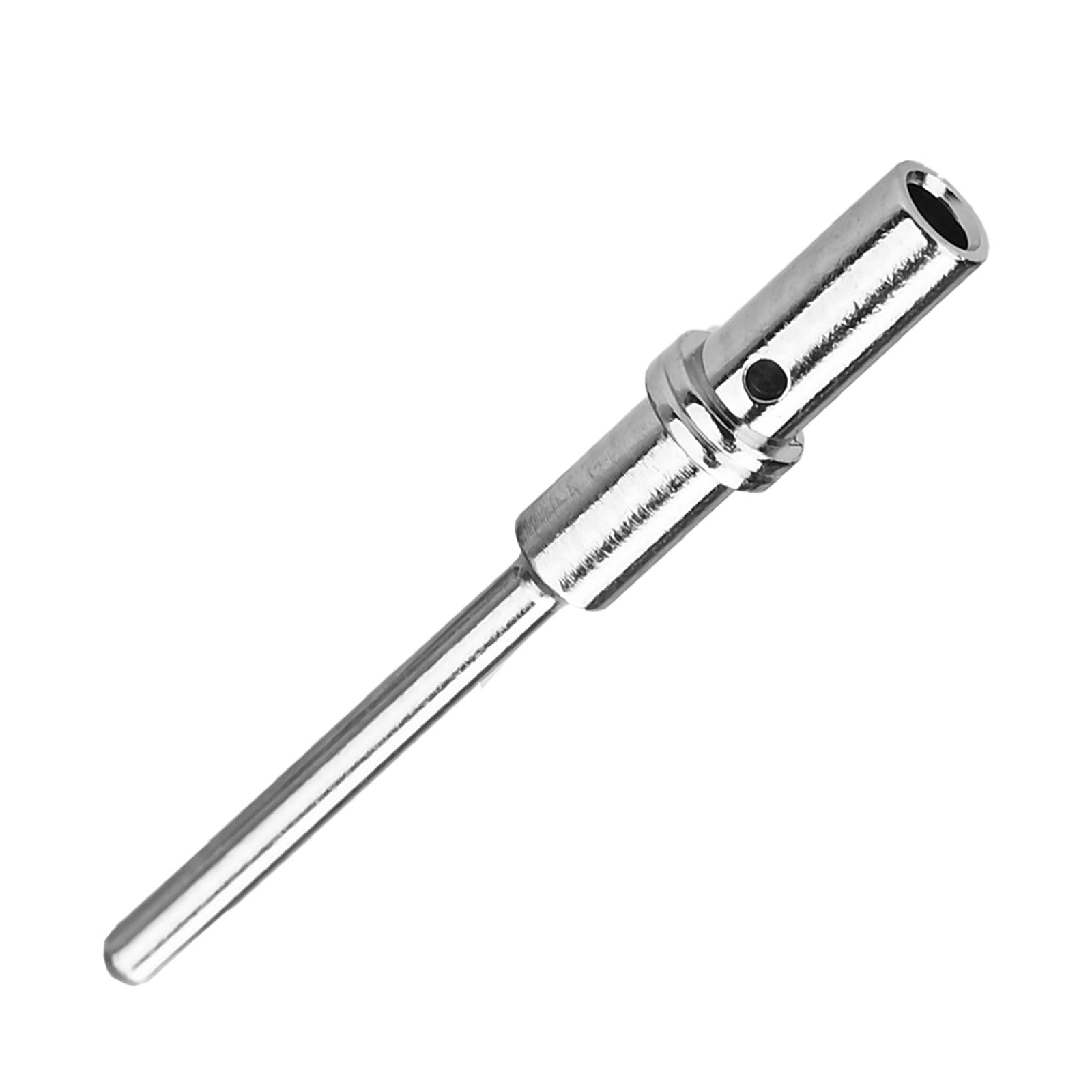

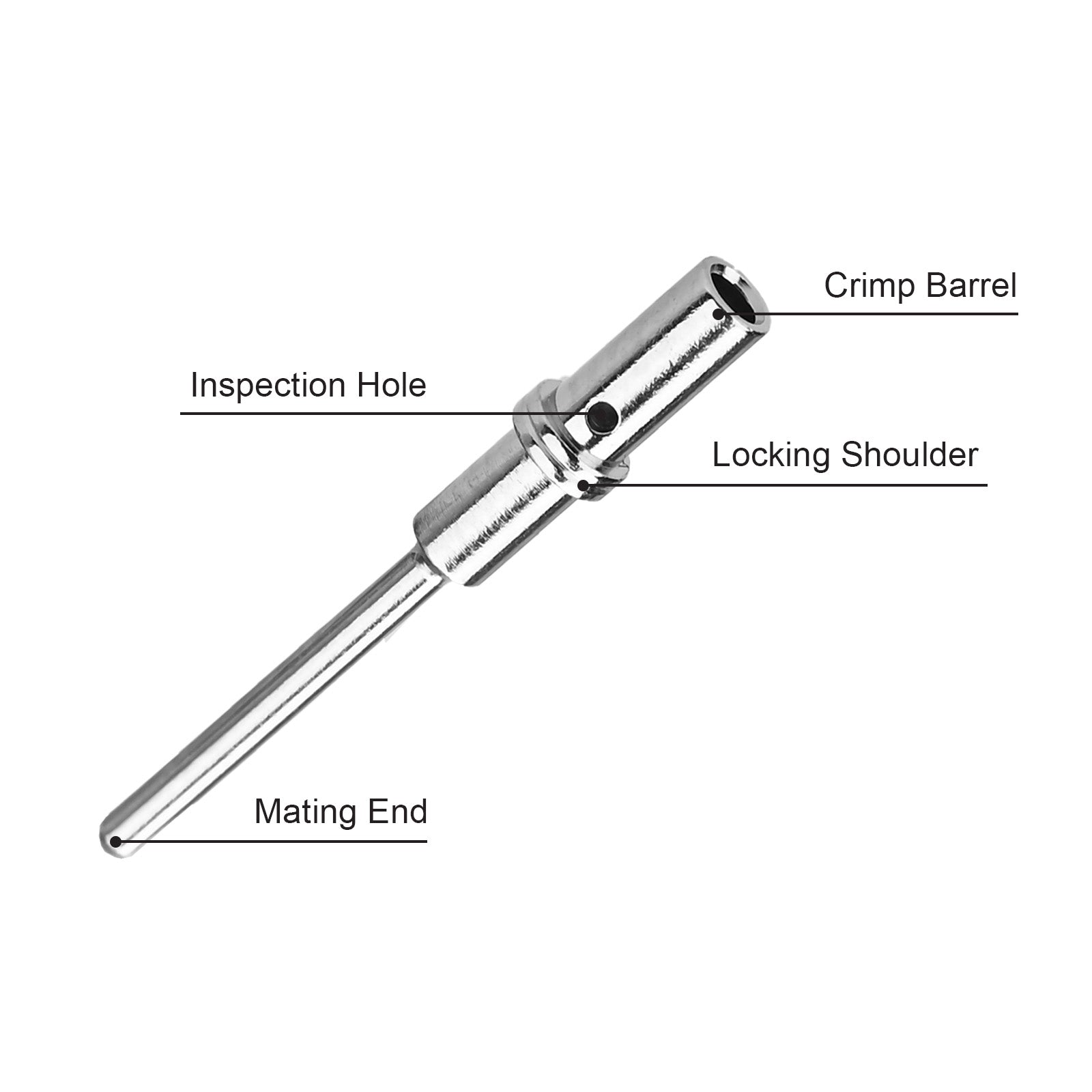

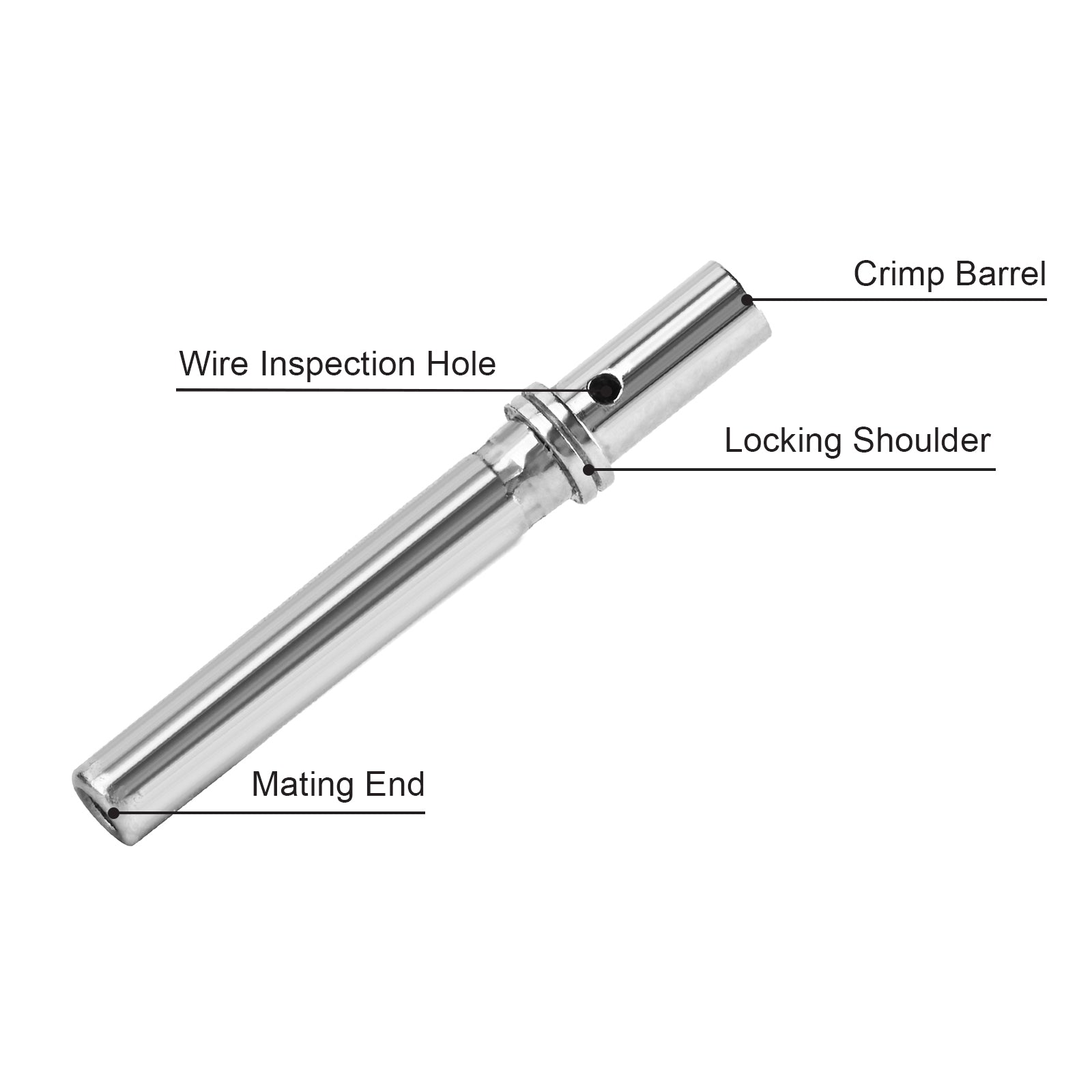

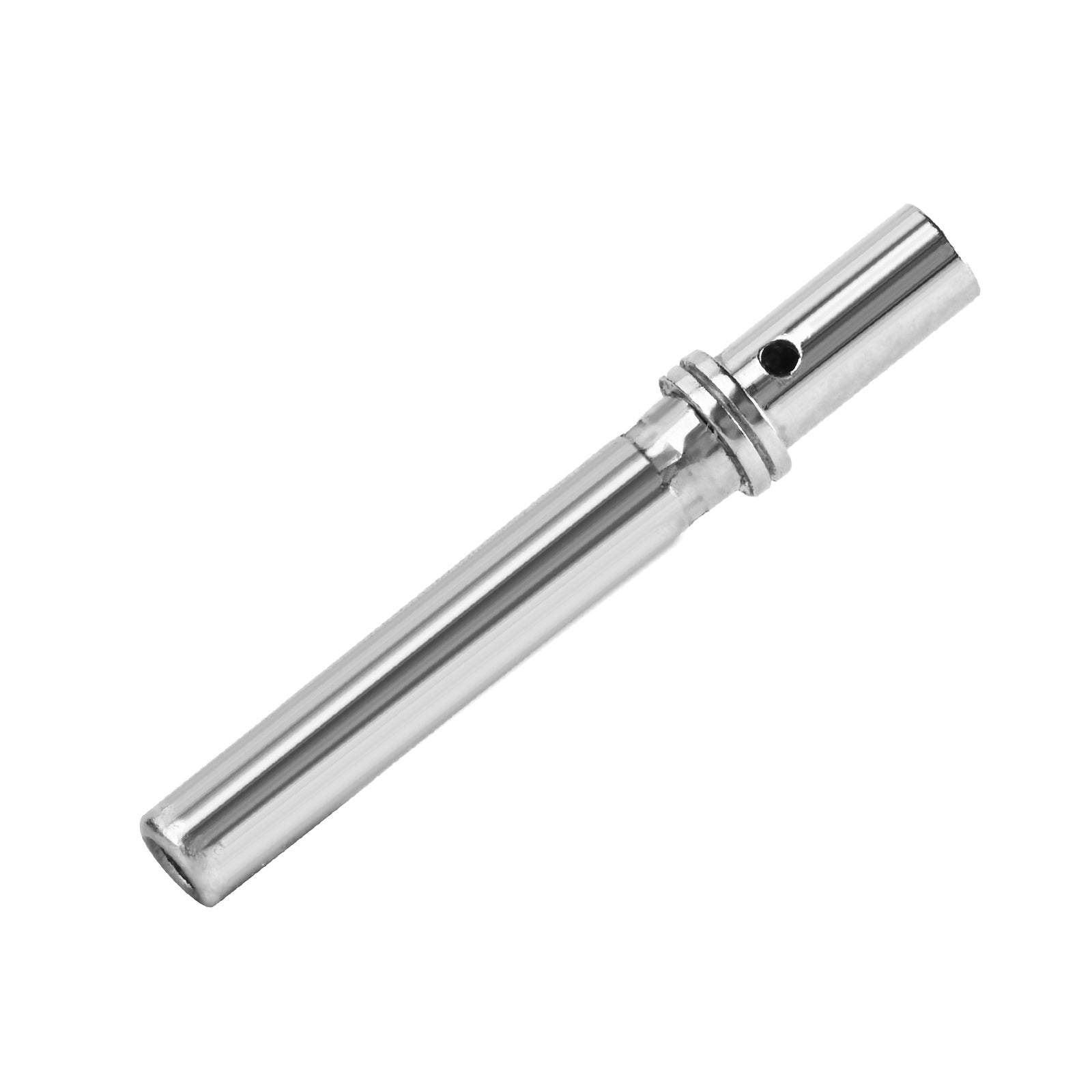

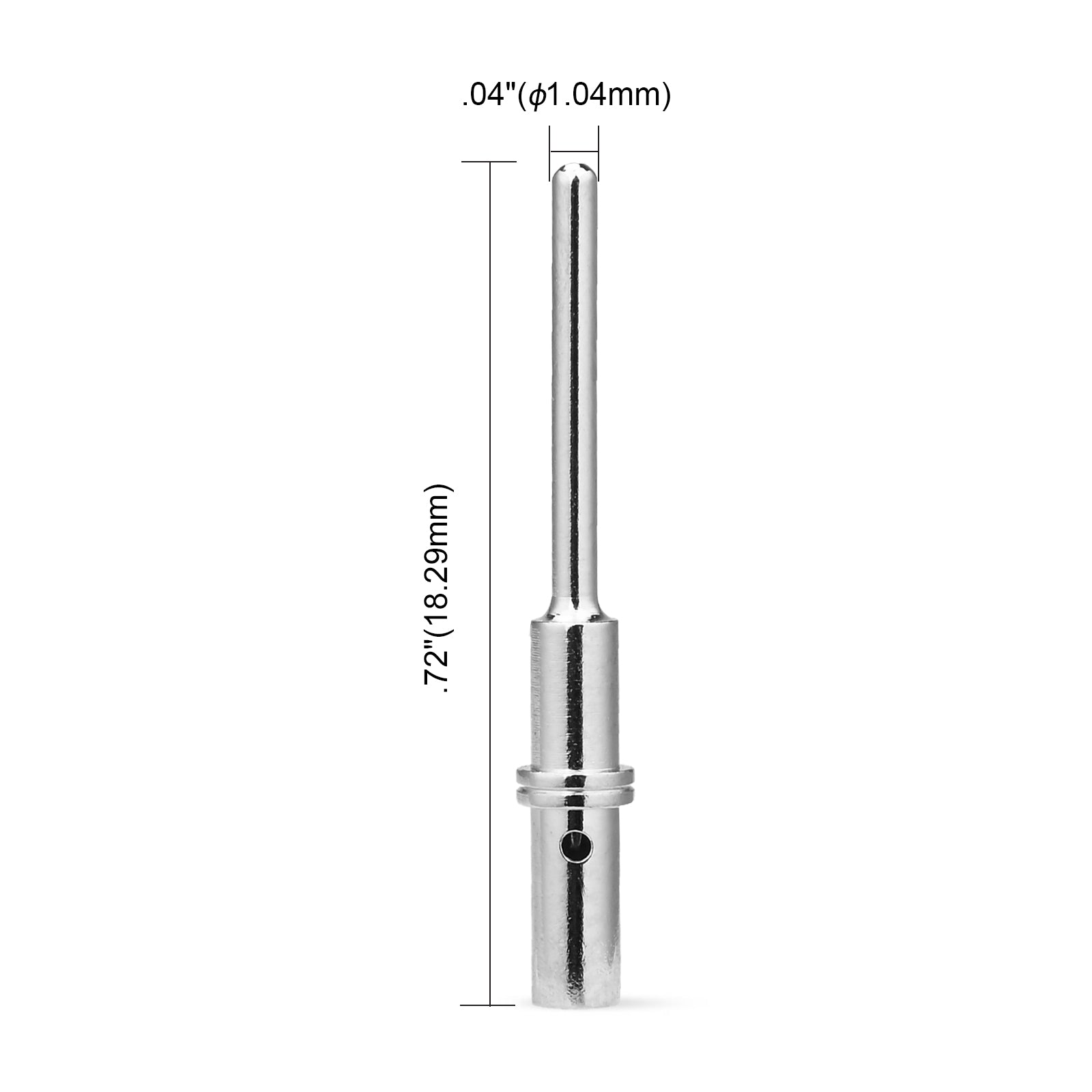

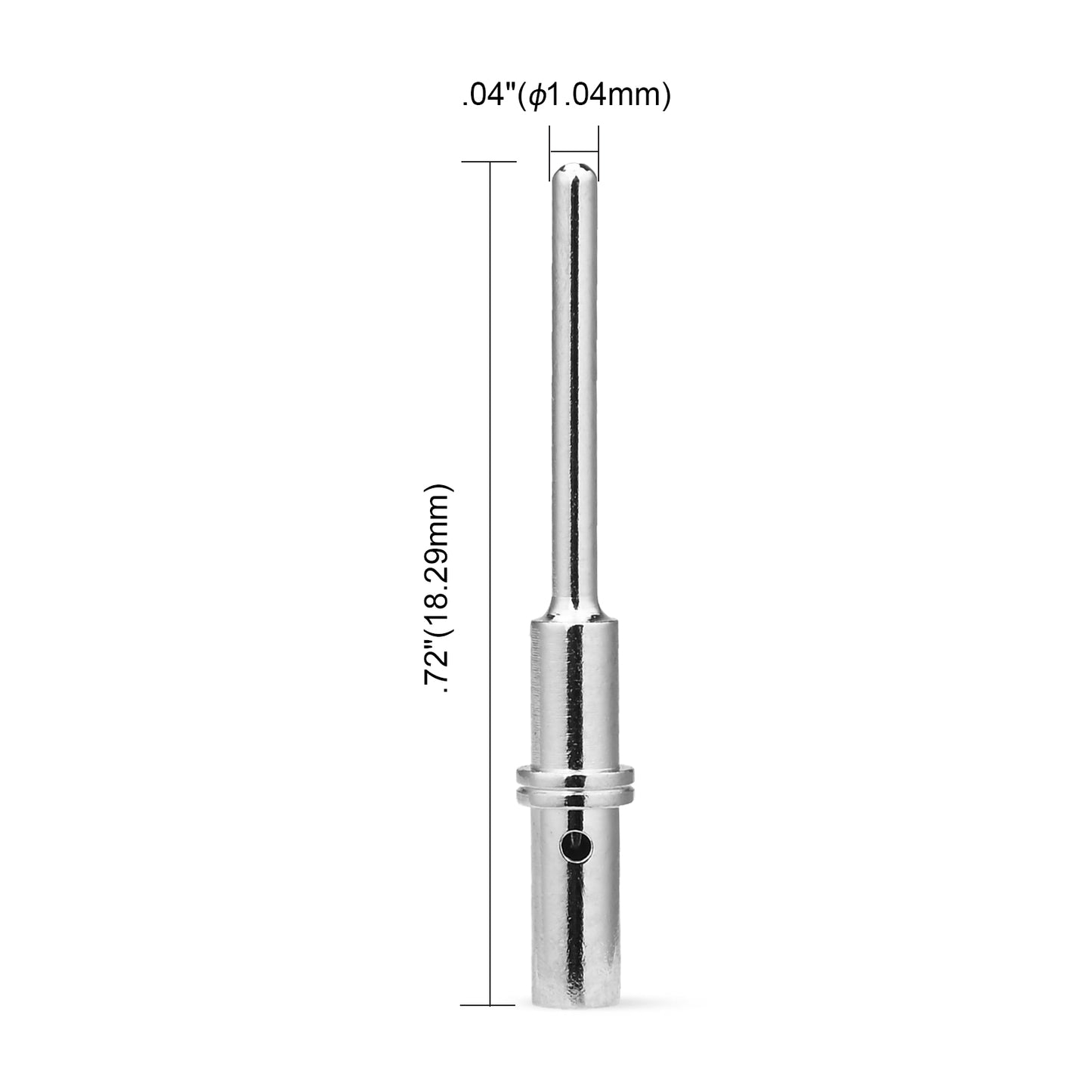

The ST6562 kit pairs the 0462-201-20141 socket and 0460-202-20141 pin terminal in a single package, providing both contact orientations for complete connector assembly without split sourcing. Both contacts are machined from tin bronze with full nickel plating, sized specifically for 20-22 AWG (0.35–0.50mm²) fine-gauge wire applications.

[NICKEL-PLATED TIN BRONZE FOR CORROSION RESISTANCE]

Full nickel plating on both contacts provides consistent corrosion resistance across the mating interface, maintaining stable contact resistance over the service life of the connector. The tin bronze base material combined with nickel plating ensures reliable conductivity in environments subject to moisture and temperature variation.

[RATED FOR LOW-CURRENT SIGNAL APPLICATIONS]

Both the 0462-201-20141 socket and 0460-202-20141 pin are rated at 7.5A and 250V, suited to the current levels typical of sensor signals, control inputs, and instrumentation circuits. The operating range of -40°C to +125°C covers the thermal demands of under-hood sensor wiring and industrial control environments.

[COMPATIBLE ACROSS DEUTSCH DTM AND RELATED FAMILIES]

Dimensioned for DTM, HDP20, HD30, and DRC series connectors, the pin and socket contacts cover the Deutsch-interface families most commonly used in compact fine-gauge wiring applications. A matched specification across both contacts simplifies inventory management for harness shops working within these connector families.

[SENSOR CIRCUITS, INSTRUMENTATION & COMPACT HARNESS ASSEMBLY]

The ST6562 kit is designed for harness assemblers and technicians working with fine-gauge signal wiring in engine management sensors, body control modules, and instrumentation systems where DTM and related Deutsch connectors are standard. The 20# contact size and 20-22 AWG wire range make it a practical stocking choice for operations that regularly terminate fine-gauge signal circuits in high-density connector housings.
