JRready YJQ-W2DTQ Pneumatic Criimp Tool FRAME ONLY for Deutsch DT DTM DTP Connector 12#, 16#, 20# Solid Contacts 12-22 AWG
JRready YJQ-W2DTQ Pneumatic Criimp Tool FRAME ONLY for Deutsch DT DTM DTP Connector 12#, 16#, 20# Solid Contacts 12-22 AWG
Couldn't load pickup availability

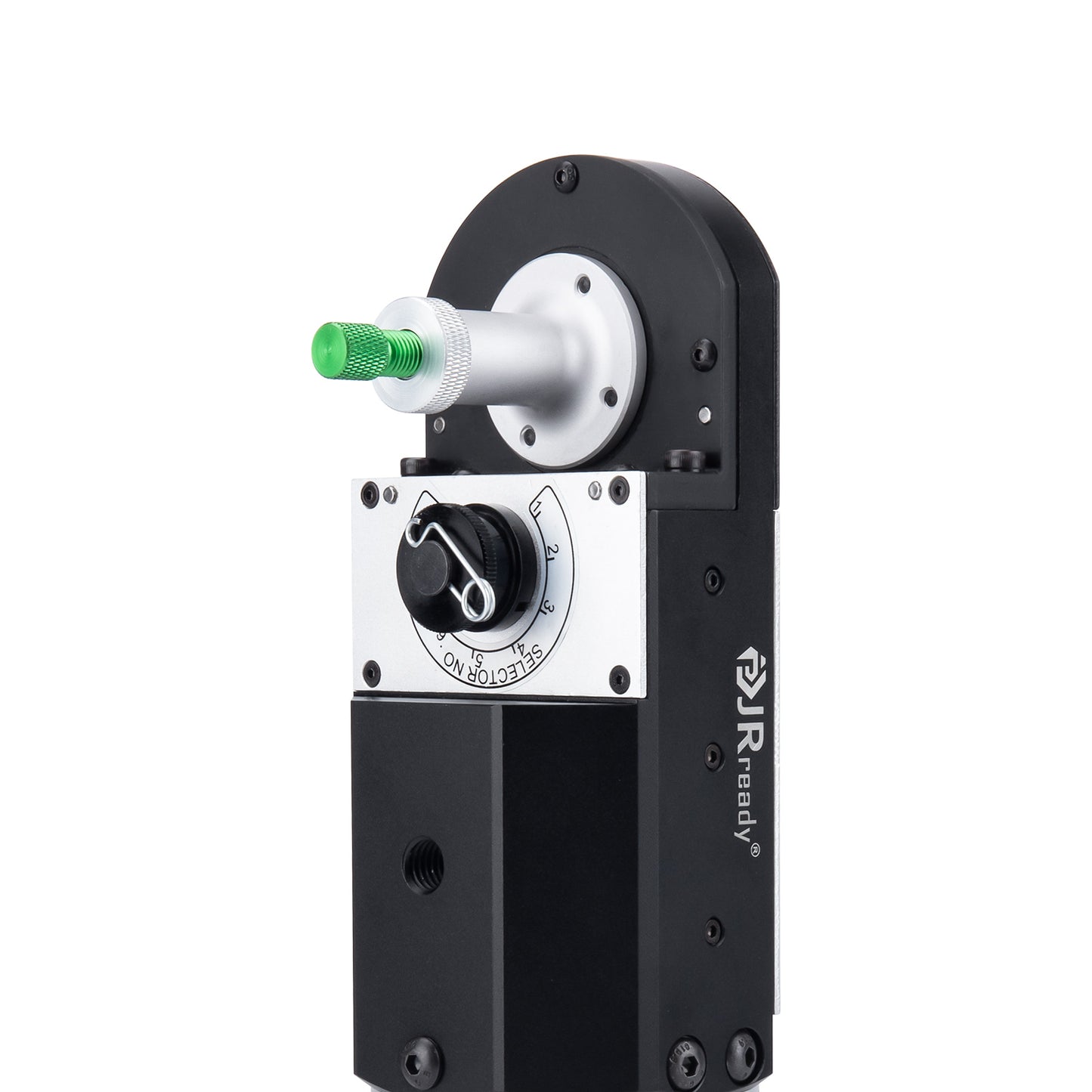

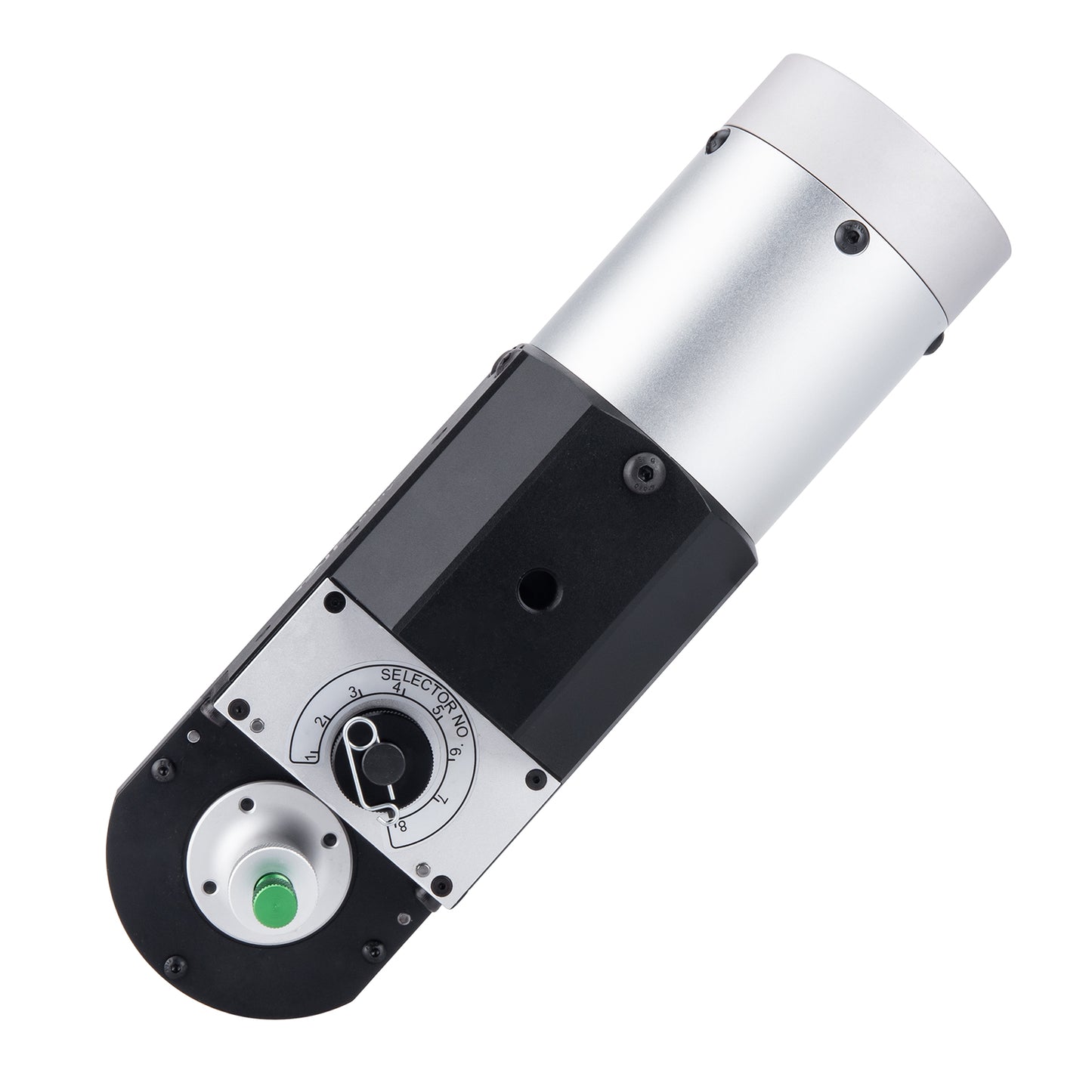

JRready YJQ-W2DTQ Pneumatic Version crimper

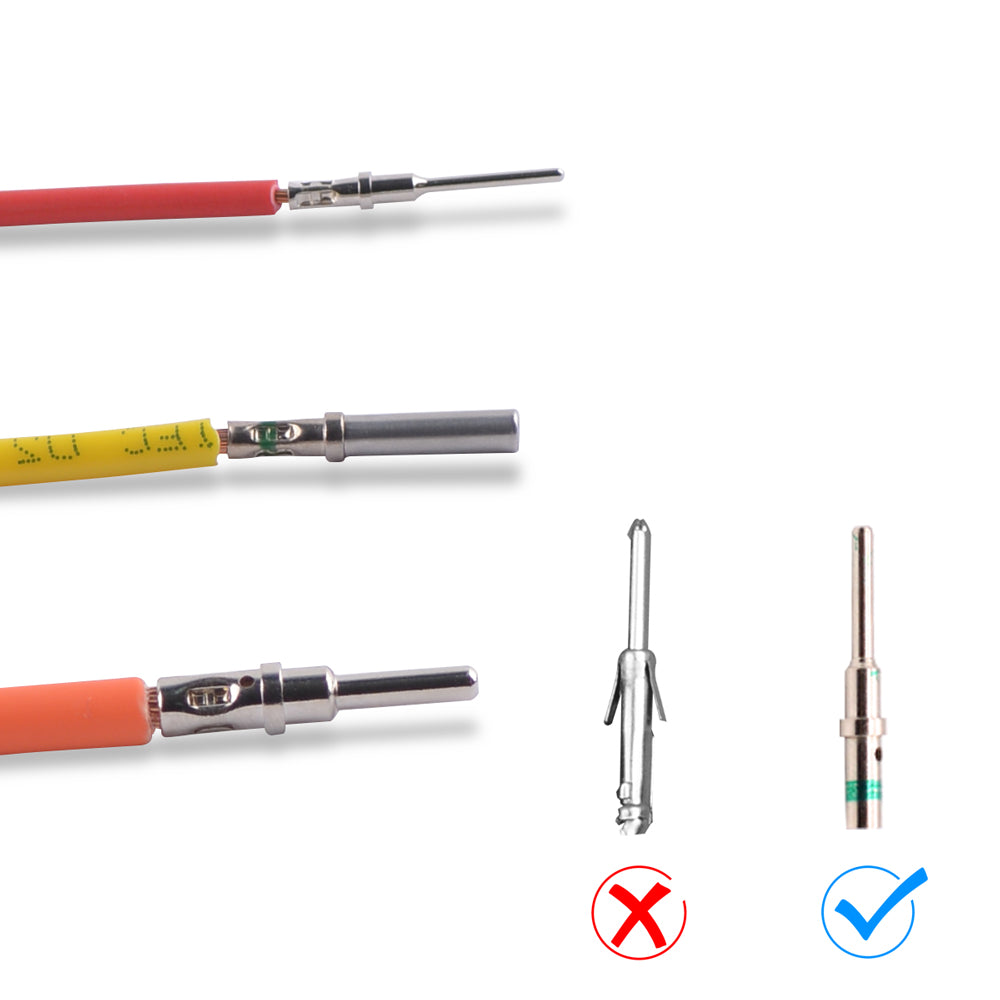

Suitable for crimping 12#, 16#, 20# round contacts

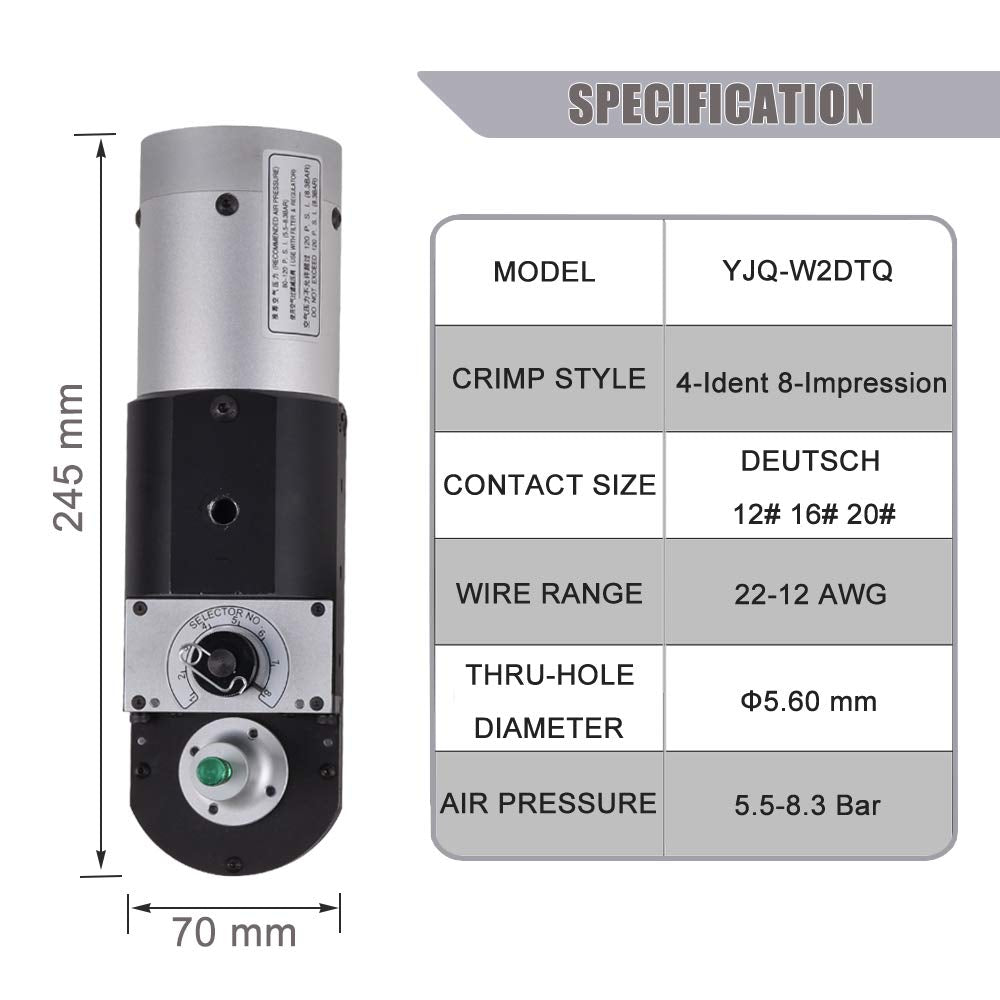

Wire Crimp Range:12-22AWG (0.32-3.33mm²)
Adjustable positioner is not removable
Specially designed to crimp contacts with air control system, high efficiency and less effort
Connector Series
DT Series, DTM Series, DTP Series, DTHD Series, HD10 Series, HDP20 Series, HD30 Series, AT Series, ATM Series, ATP Series, and AHD Series
Equivalent to YJQ-W2DT/HDT-48-00 Hand Crimping Tool
The YJQ-W2DTQ is the direct equivalent of the YJQ-W2DT/HDT-48-00 Standard Indent Crimp hand tool for size 12-22 wire,the tool runs on compressed air with no requirement for any electrical connection, even with the optional foot trigger attached. With the optional adjustable base, the tool may be permanently mounted for ease of use in high volume environment

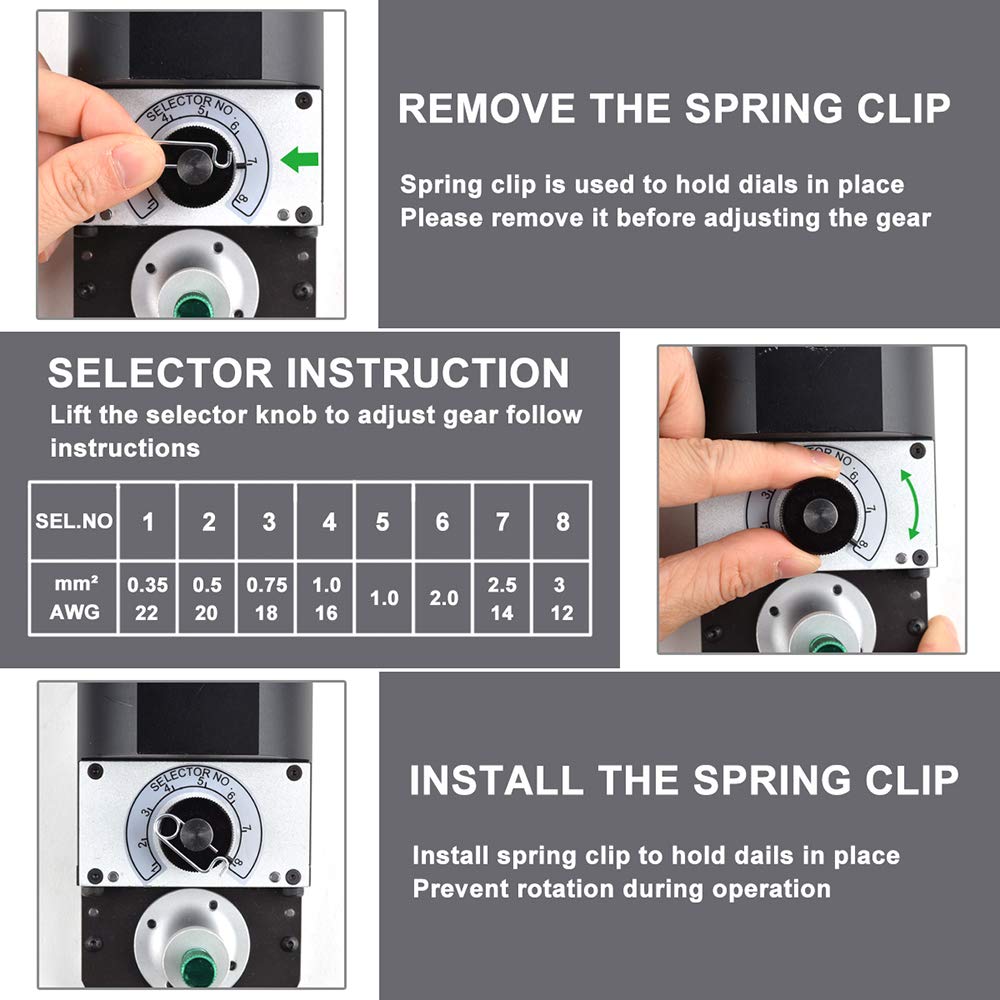

8 Selector Numbers
The crimper has 8 selector numbers(Selector NO:1-8,AWG :22-12/0.32-3.33mm²),adjustable crimping ranges in different selector number, more convenient for wider applications.

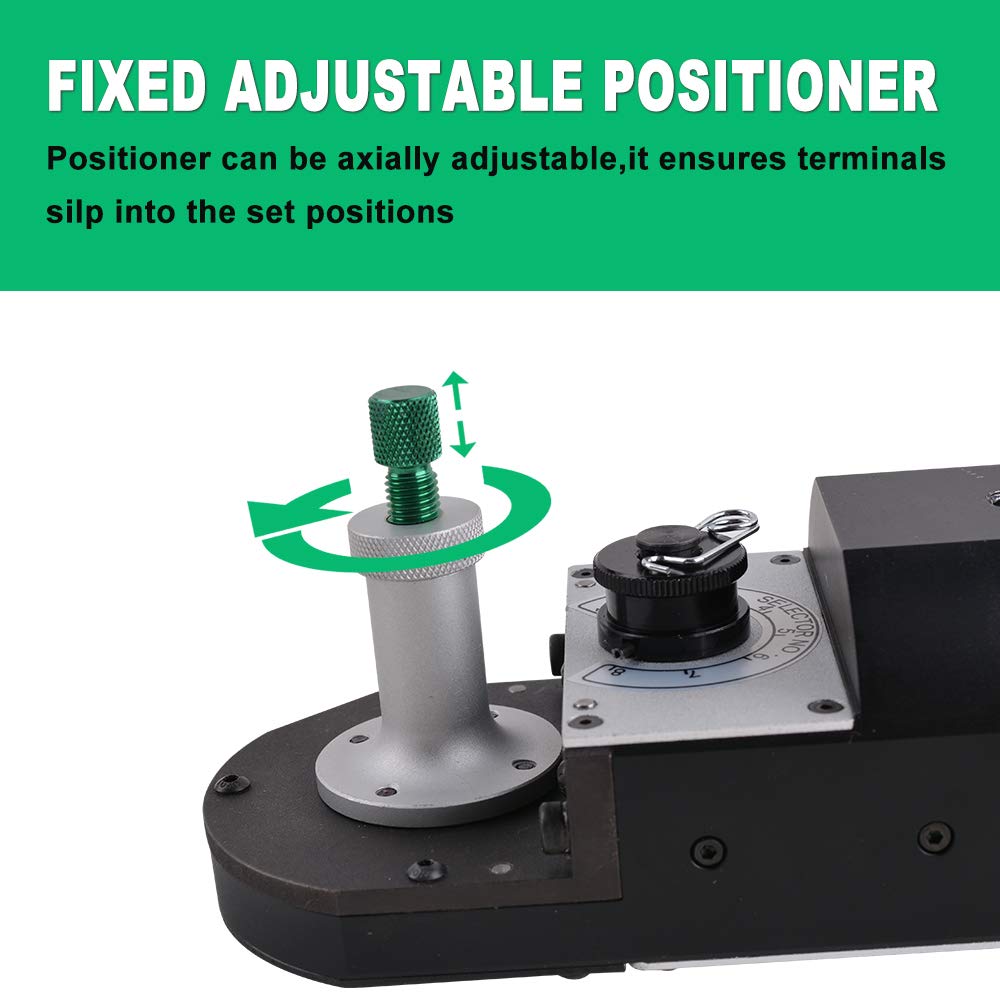

Fixed Adjustable Positioner
Positioner can be axially adjustable,it ensures terminals silp into the set positions.
Positioner is not removable,but the adjustable screw could be replace.
Youtube Related Video：

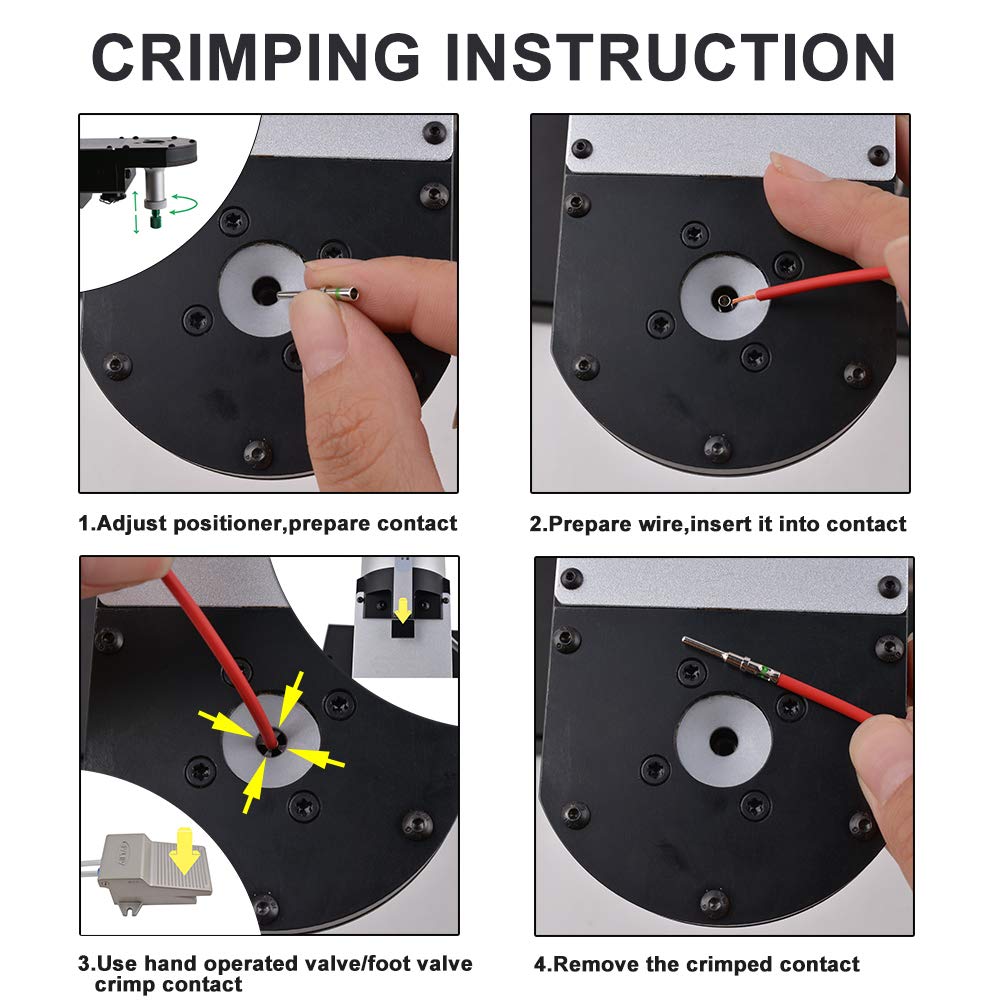

HOW TO CRIMP & TEST DEUTSCH SOLID CONTACTS--USING YJQ-W2DTQ PNEUMATIC DEUTSCH CRIMPER
https://www.youtube.com/watch?v=Gl8yFdOif7s
How to install the JRready YJQ-W2Q WA27F Pneumatic Crimp Tool Kit?
https://www.youtube.com/watch?v=EcXlYHHjNrM
How to Switch Hand & Foot Control Mode of Pneumatic Crimp Tool？
https://www.youtube.com/watch?v=VnhCcaBvcUE
