JRready JST2058 Tool Kit: JRD-ASF1 (HARTING 09990000001) Crimper Turret Head Removal Tool for HARTING Han D Han E Connectors 10A, 16A Contacts
JRready JST2058 Tool Kit: JRD-ASF1 (HARTING 09990000001) Crimper Turret Head Removal Tool for HARTING Han D Han E Connectors 10A, 16A Contacts
Couldn't load pickup availability

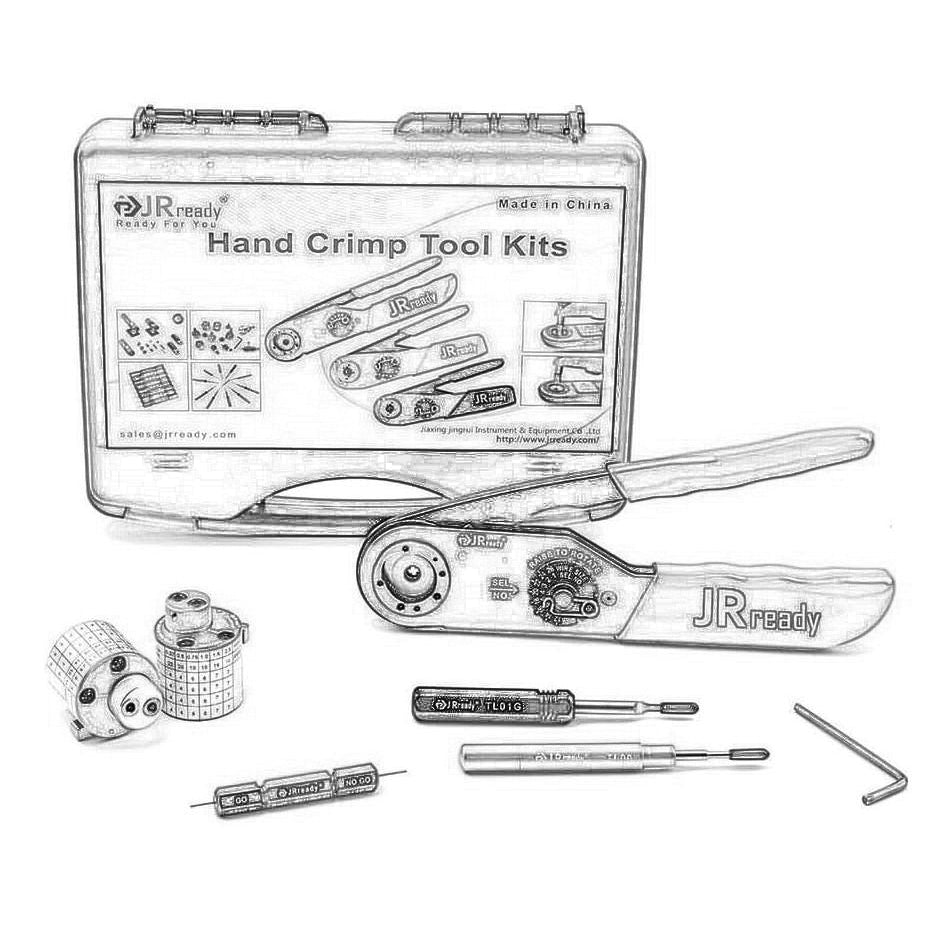

JRready JRD-ASF1+TH493-D+TH531-E+TL00+TL01G+G125 JST2058 Crimp Tool Kit m22520 for wire/cable contact/pin/socket/terminal Crimping in Connector

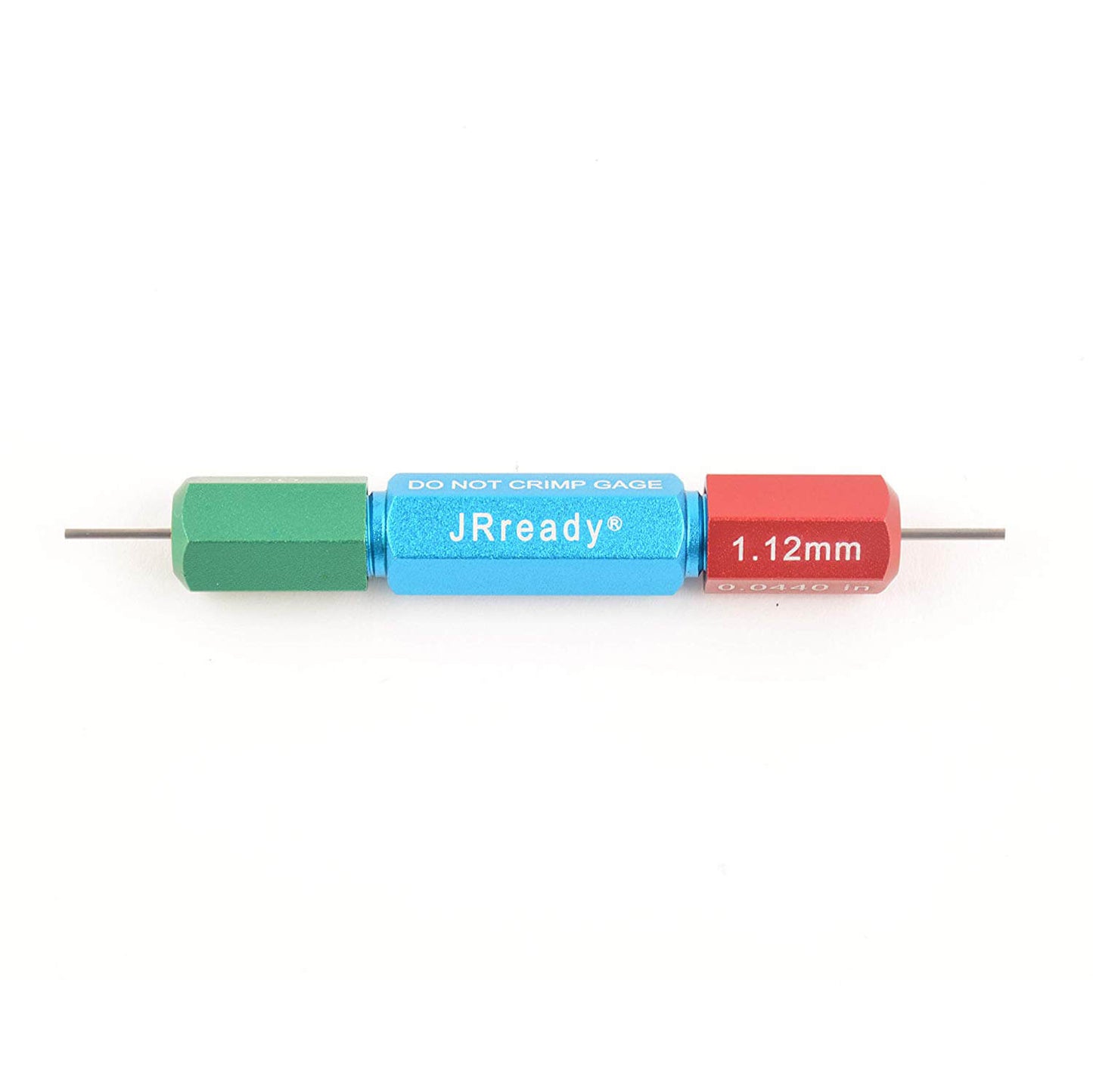

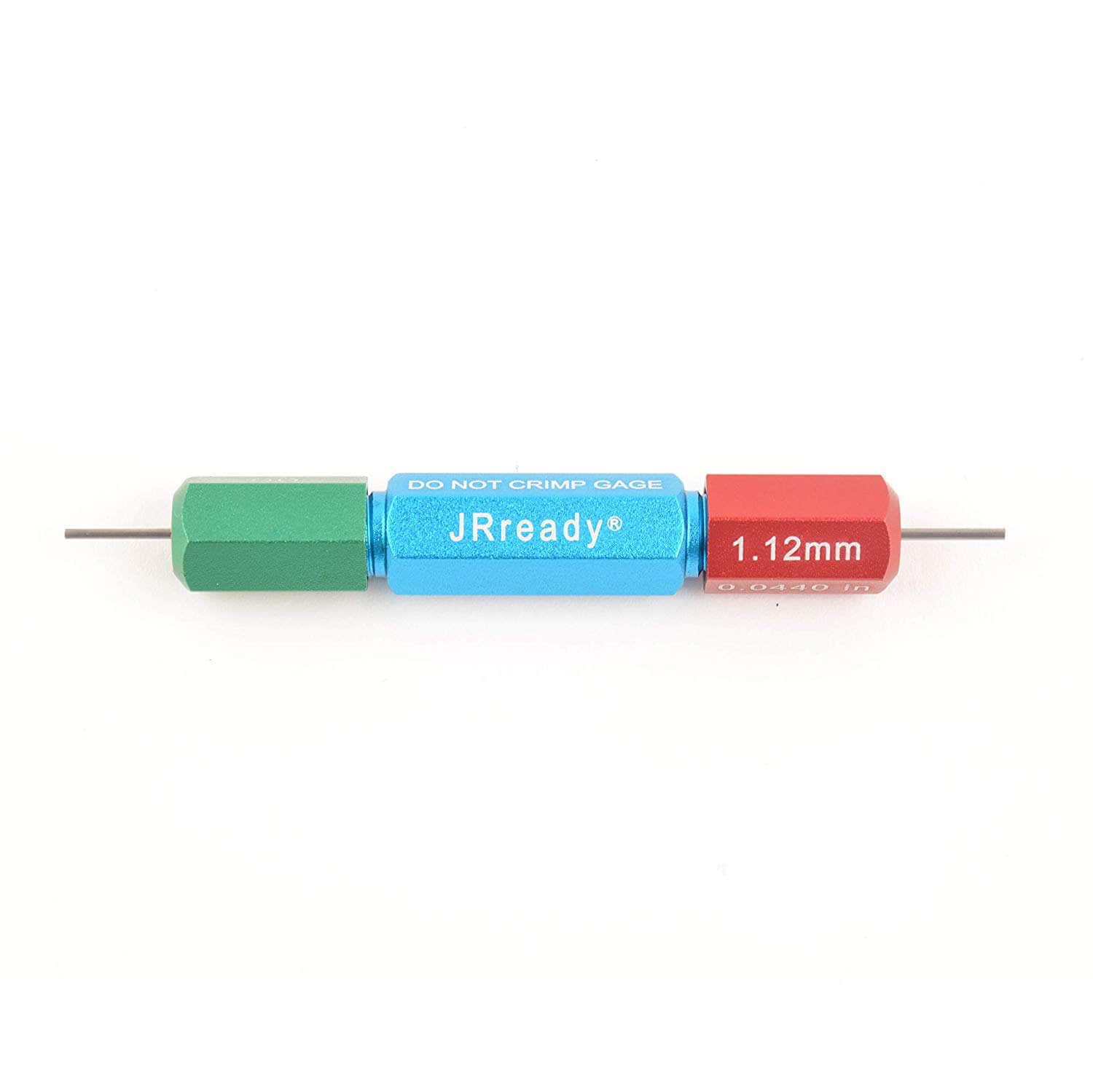

1.JST2058 Crimp Tool Kit includes YJQ-AF8 (Four-indent Hand Crimp Tool) and TH493-D,H531-E(Positoner),TL00(Removal Tool),TL01G(Removal Tool),G125(Go-nogo Gage)
2.Suitable for crimping of round contacts of MIL standard, Harting,Wain, TE connectors that within crimp range;
3.Wire Crimp Range: 12-26AWG(0.128-3.33mm²)；
Applications

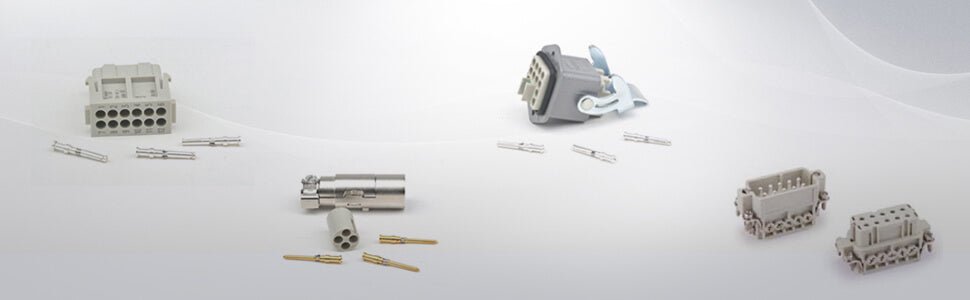

Crimp Han D, Han E series of terminals, widely used in construction machinery, textile machinery, packaging and printing machinery, tobacco machinery, robots, rail transit, hot runners, electricity, automation and other equipment that requires electrical and signal connections (industrial connector).
Installation of Positioners
1. Before installing the locator, the tool should be open.
2. Remove the safety clip from positioner guide.
3. Insert the positioner into positioner guide, push down and then rotate 90 °, until bayonet pins lock.
4. Remove the spring clip from the selector knob, adjust it to the correct selector position.
|
Han D Connectors
|
|||||||||
| NO | Terminal | Type | Wire specification (mm²) | Wire specification (AWG) | Manual crimping tool | Pneumatic crimping tool | Positioner | Removal Tool | HARTING Removal Tool |
| 1 | 09 15 000 6103 | Pin | 0.5 | 20 | JRD-AF8 | YJQ-W2Q | TH493-D | TL00 | 09990000012 |
| 2 | 09 15 000 6203 | Skt | 0.5 | 20 | JRD-AF8 | YJQ-W2Q | TH493-D | TL00 | 09990000012 |
| 3 | 09 15 000 6123 | Pin | 0.5 | 20 | JRD-AF8 | YJQ-W2Q | TH493-D | TL00 | 09990000012 |
| 4 | 09 15 000 6223 | Skt | 0.5 | 20 | JRD-AF8 | YJQ-W2Q | TH493-D | TL00 | 09990000012 |
| Han E Connectors | |||||||||
| NO | Terminal | Type | Wire specification (mm²) | Wire specification (AWG) | Manual crimping tool | Pneumatic crimping tool | Positioner | Removal Tool | HARTING Removal Tool |
| 5 | 09 33 000 6121 | Pin | 0.5 | 20 | JRD-AF8 | YJQ-W2Q | TH531-E | TL01 | 09990000319 |
| 6 | 09 33 000 6220 | Skt | 0.5 | 20 | JRD-AF8 | YJQ-W2Q | TH531-E | TL01 | 09990000319 |
| 7 | 09 33 000 6122 | Pin | 0.5 | 20 | JRD-AF8 | YJQ-W2Q | TH531-E | TL01 | 09990000319 |
| 8 | 09 33 000 6222 | Skt | 0.5 | 20 | JRD-AF8 | YJQ-W2Q | TH531-E | TL01 | 09990000319 |
| NO | Product Type | Model | JRready Model |
| 1 | Manual crimping tool | 09990000001 | JRD-ASF1 |
| 2 | Positioner（HAN D) | 09990000311 | TH493-D |
| Positioner（HAN E) | 09990000310 | TH531-E | |
| 3 | Pneumatic crimping tool | 09990000314 | YJQ-W2Q |

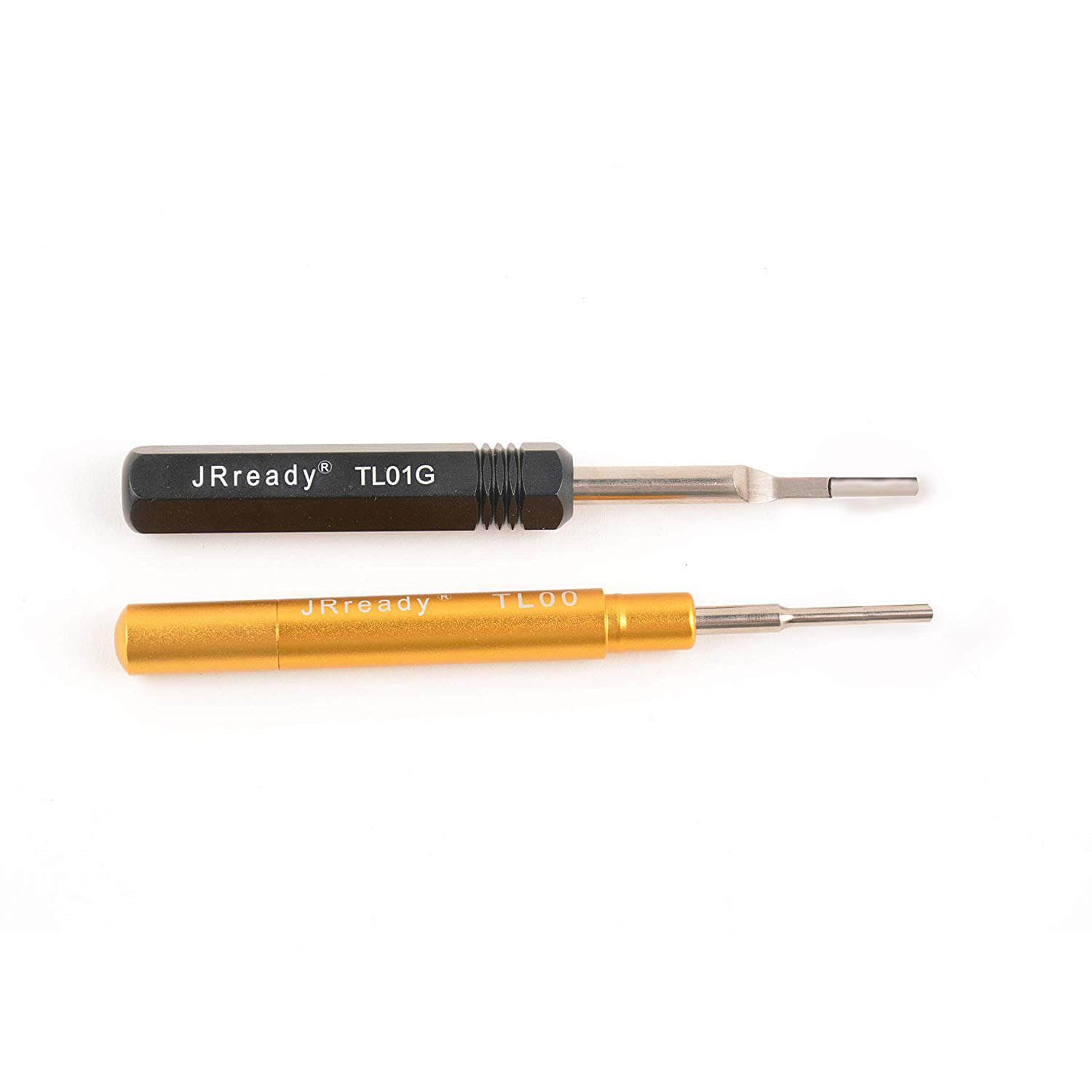

| 4 | 10A Removal Tool | 09990000012 | TL00 |
| 16A Removal Tool | 09990000319 | TL01G |
Crimp sample
The positioner can be quickly replaced to match different terminals.
Claw
The teeth works in synchronous motion with strokelocking devices to ensure the crimping quality.
Crimped shape
More reliable crimping than other methods, perfect uniformity and compression ratio.
Han D Connectors

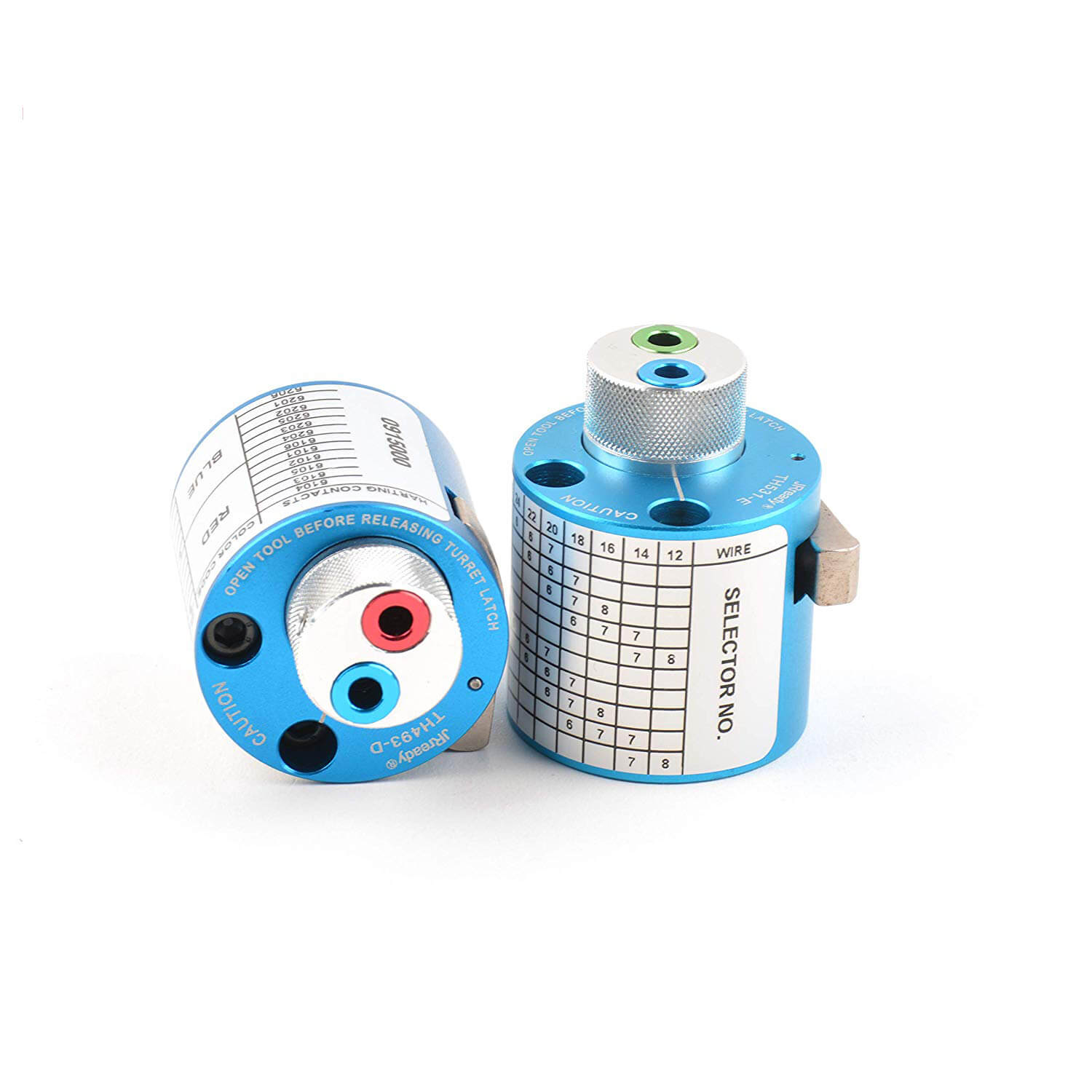

TH493-D Turret Head Positioner is applied for Han D Connectors, Han E Connectors, 10A Contacts, WAIN 10A Connector, TE Connector, and it is applied to crimp12#, 14#, 16#,18#,20#, 22# pin & socket;
TH531-E Turret Head Positioner is applied for Harting Han E Connectors,ILME 16A Contacts,WAIN 16A Connector,and it is applied to crimp 12#, 14#, 16#,18#,20#, 22# pin & socket;
