JST2512-EP Pneumatic Crimper Kit for 10A Contact (YJQ-W2Q pneumatic crimping tool,TH493-D positioner, TL00 removal tool)
JST2512-EP Pneumatic Crimper Kit for 10A Contact (YJQ-W2Q pneumatic crimping tool,TH493-D positioner, TL00 removal tool)
Regular price
$730.00 USD
Regular price
Sale price
$730.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
JST2512-EP Pneumatic crimper Air Tool Kit for for 10A Round Soild Contact

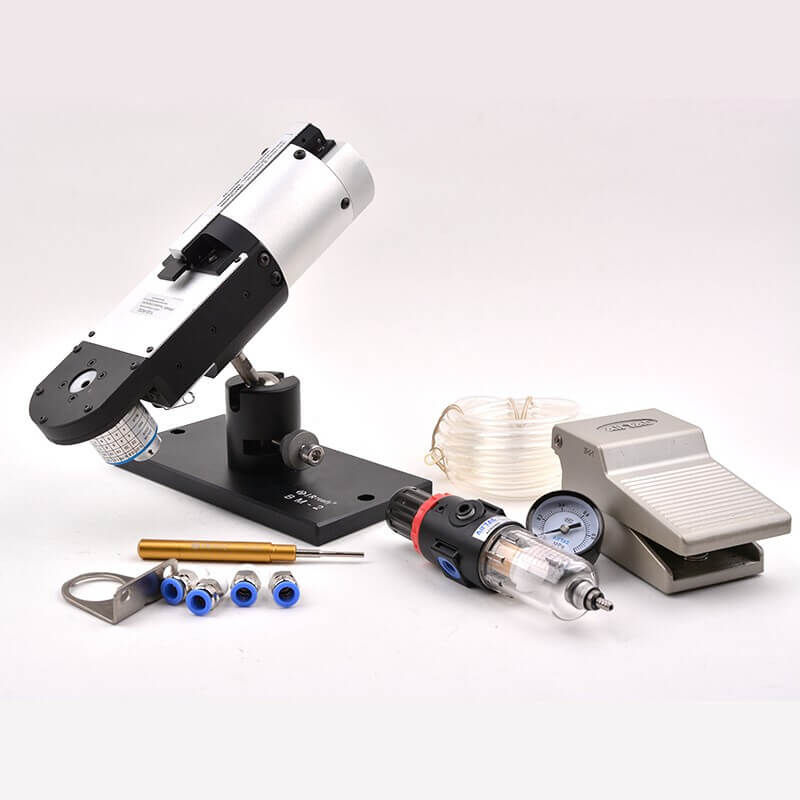

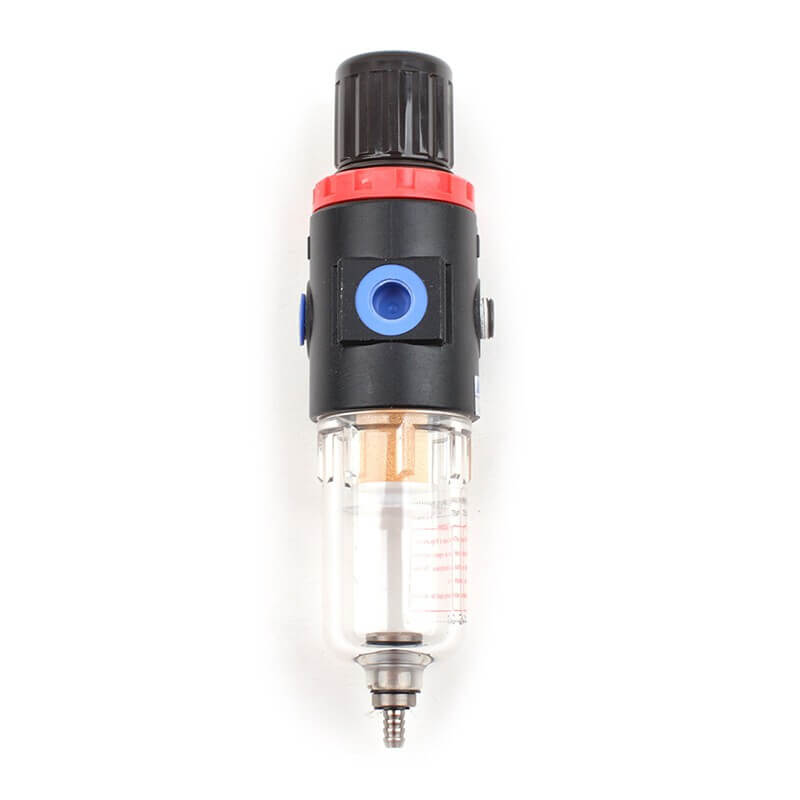

- The kit includes YJQ-W2Q pneumatic crimping tool,TH493-D positioner,PC-SUITE1 air control kit,BM-2 adjustable base mount and TL00 removal tool
- YJQ-W2Q is compatible with the M22520/2-01 which is widely used for the crimping of wires and contacts in electronic connectors
- TH493-D positioner ensures the accuracy and consistency of the crimp position. The positioner can be rotated to adjust the crimp position. Suitable for 10A Sockets & Pins in Han D series connectors.
- TL00 removal tool is used to remove round contacts in HARTING, WAIN, TE Han D series connectors without any damages to the electronic connectors
- The tool kit applied to connectors of fields in railway, electrical, Suitable for HARTING(HAN D/HAN DD/HANQ),TE(HD/HDD) series connectors
Application
Name | Contact drawing | Harting connector model | Harting contact model | Wain connector model | Wain contact model |
10A contact |
![]() |
Han D Series(09210073031 09210153001 09210253001) HAN Q Series(09120053001 09120073001 09120123001) HAN DD Series(09160243001 09160423001 09160723001) |
09150006104 | HD HDD HM HK HQ insert | CDSM -0.37 |
09150006103 | CDSM -0.5 | ||||
09150006105 | CDSM -0.75 | ||||
09150006102 | CDSM -1.0 | ||||
09150006101 | CDSM -1.5 | ||||
09150006106 | CDSM -2.5 | ||||
09150006204 | CDSF-0.37 | ||||
09150006203 | CDSF-0.5 | ||||
09150006205 | CDSF-0.75 | ||||
09150006202 | CDSF-1.0 | ||||
09150006201 | CDSF-1.5 | ||||
09150006206 | CDSF-2.5 | ||||
09150006124 | CDGM -0.37 | ||||
09150006123 | CDGM -0.5 | ||||
09150006125 | CDGM -0.75 | ||||
09150006122 | CDGM -1.0 | ||||
09150006121 | CDGM -1.5 | ||||
09150006126 | CDGM -2.5 | ||||
09150006224 | CDGF-0.37 | ||||
09150006223 | CDGF-0.5 | ||||
09150006225 | CDGF-0.75 | ||||
09150006222 | CDGF-1.0 | ||||
09150006221 | CDGF-1.5 | ||||
09150006226 | CDGF-2.5 |
Removal Instruction
Step 1: Prepare the removal tool and find the contact to be taken out
Step 2: Insert the removal tool into the electric connector until it reaches the bottom
Step 3: Push the contact out gently
Step 4: Remove the contact
Share
![Pneumatic crimper Air Tool Kit](http://www.jrdtools.com/cdn/shop/products/2_c9e60dc0-3eb1-4cd8-be7e-5bbdd7b12237.jpg?v=1657877400&width=1445)

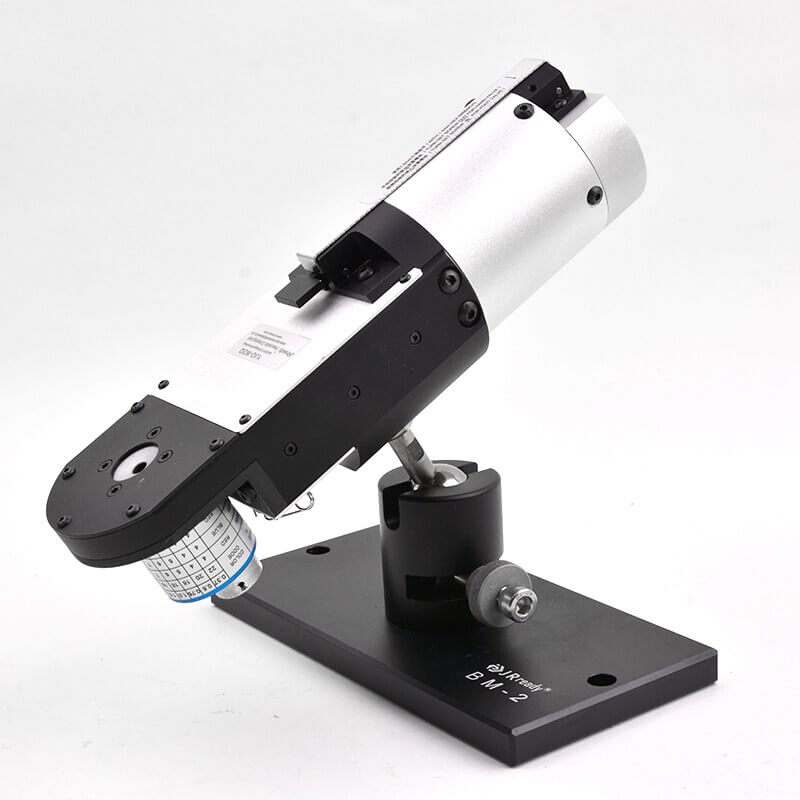

![PNEUMATIC CRIMP TOOL TO AF8](http://www.jrdtools.com/cdn/shop/products/1_e9bf3556-756c-49d5-97d6-c59f83346608.jpg?v=1657877400&width=1445)

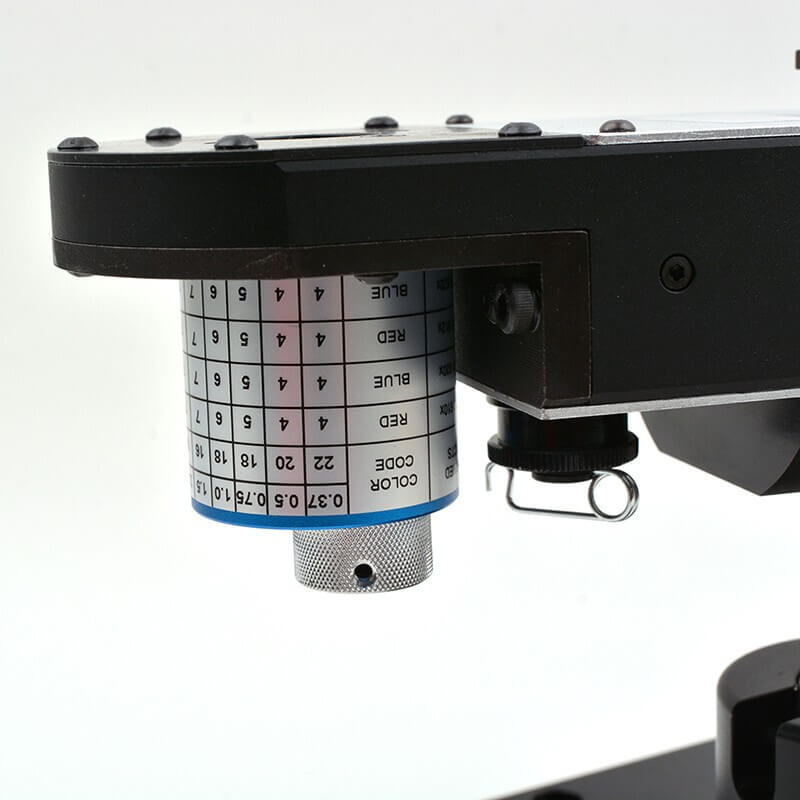

![YJQ-W2Q pneumatic crimping tool with TH493-D positioner](http://www.jrdtools.com/cdn/shop/products/3_f3fb0634-e966-4c47-bc41-640b4ac7b322.jpg?v=1578898961&width=1445)

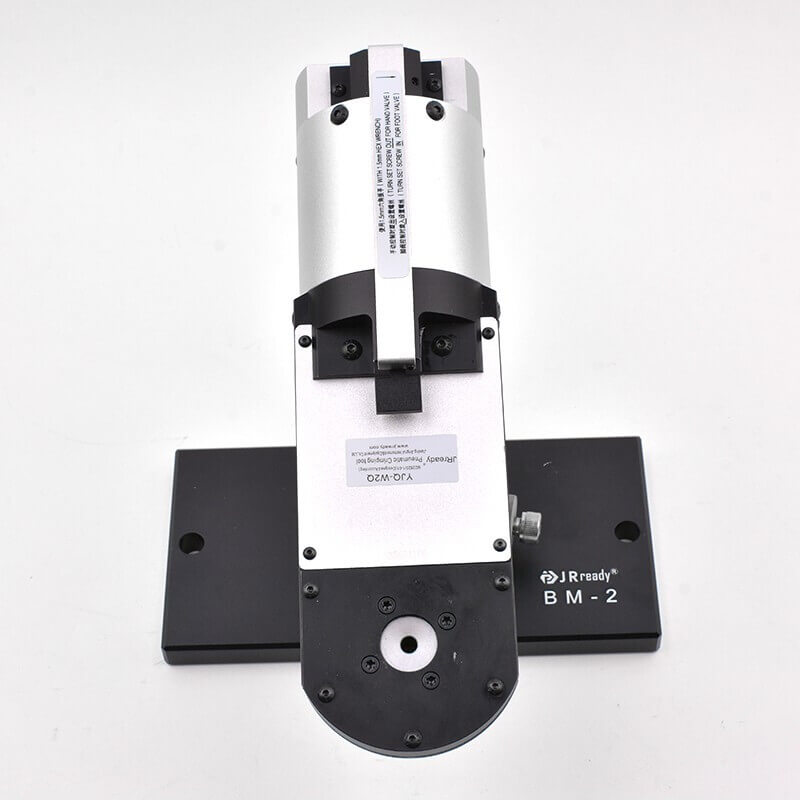

![JST2512-EP Pneumatic Crimper Kit for 10A Contact (YJQ-W2Q pneumatic crimping tool,TH493-D positioner, TL00 removal tool)](http://www.jrdtools.com/cdn/shop/products/4_0e537892-040f-4283-bcec-6d6995285fb4.jpg?v=1578626317&width=1445)

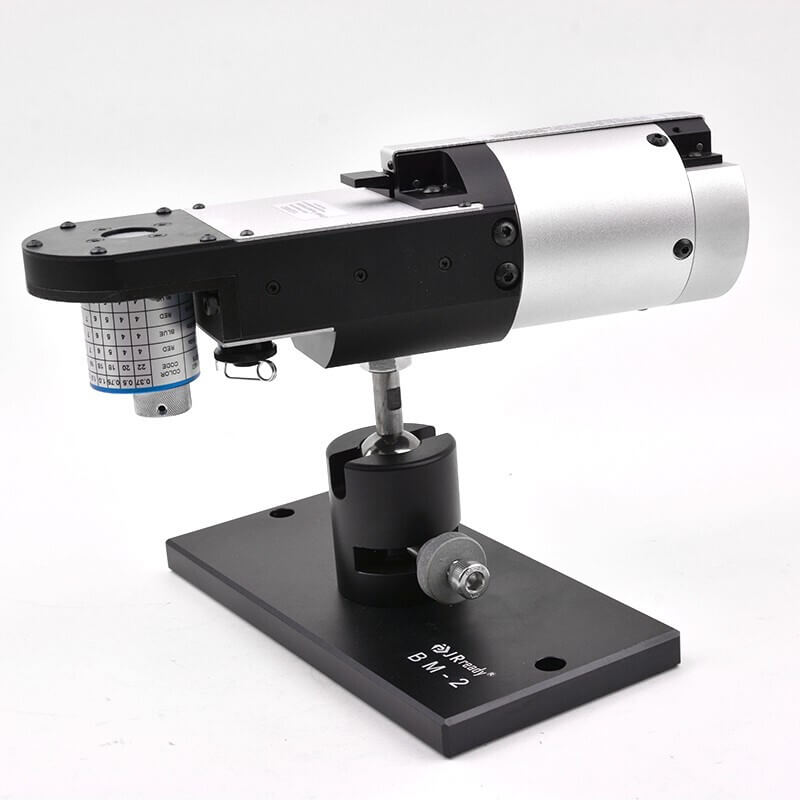

![JST2512-EP Pneumatic Crimper Kit for 10A Contact (YJQ-W2Q pneumatic crimping tool,TH493-D positioner, TL00 removal tool)](http://www.jrdtools.com/cdn/shop/products/5_7aa9bf1e-33b0-4591-b316-d3068675beeb.jpg?v=1578626317&width=1445)
![JST2512-EP Pneumatic Crimper Kit for 10A Contact (YJQ-W2Q pneumatic crimping tool,TH493-D positioner, TL00 removal tool)](http://www.jrdtools.com/cdn/shop/products/6_2dc5ca6f-871b-4dfb-9921-e623f703a21f.jpg?v=1578626317&width=1445)

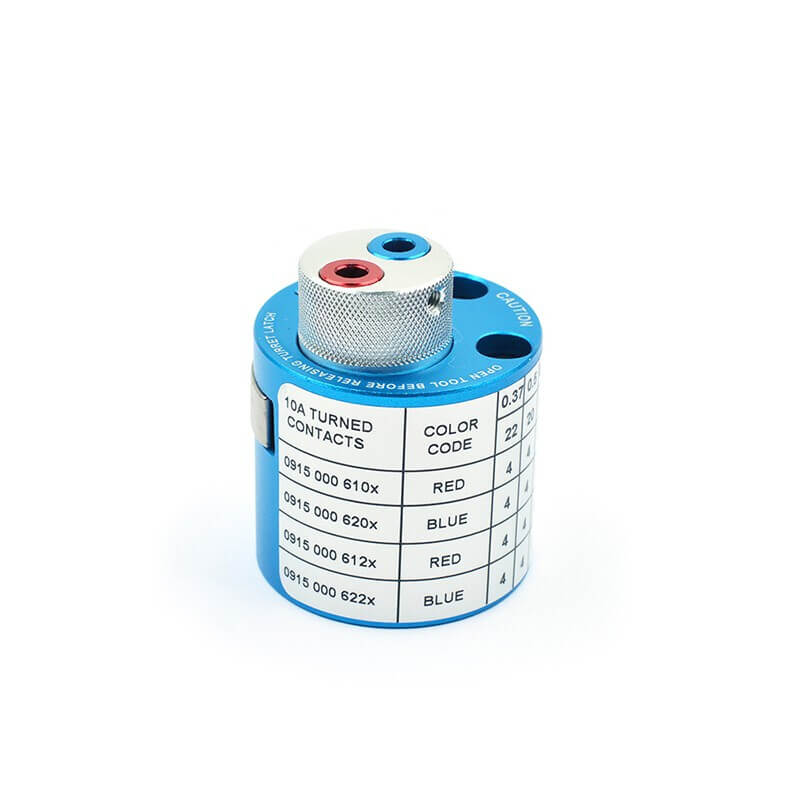

![TH493-D positioner](http://www.jrdtools.com/cdn/shop/products/7_626513ed-c896-4e1d-8e68-126f94f02594.jpg?v=1578898918&width=1445)
