JRready tools

JST2513-EP Pneumatic Crimping Tool Kit for HAN E SERIES CONNECTOR 16A round contacts

Regular price $739.00
/

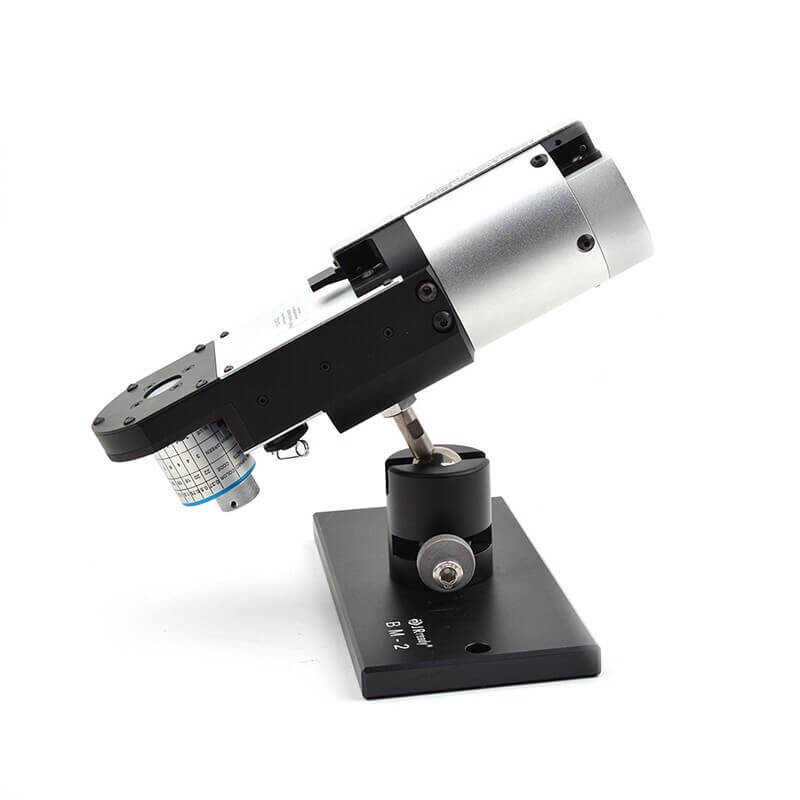

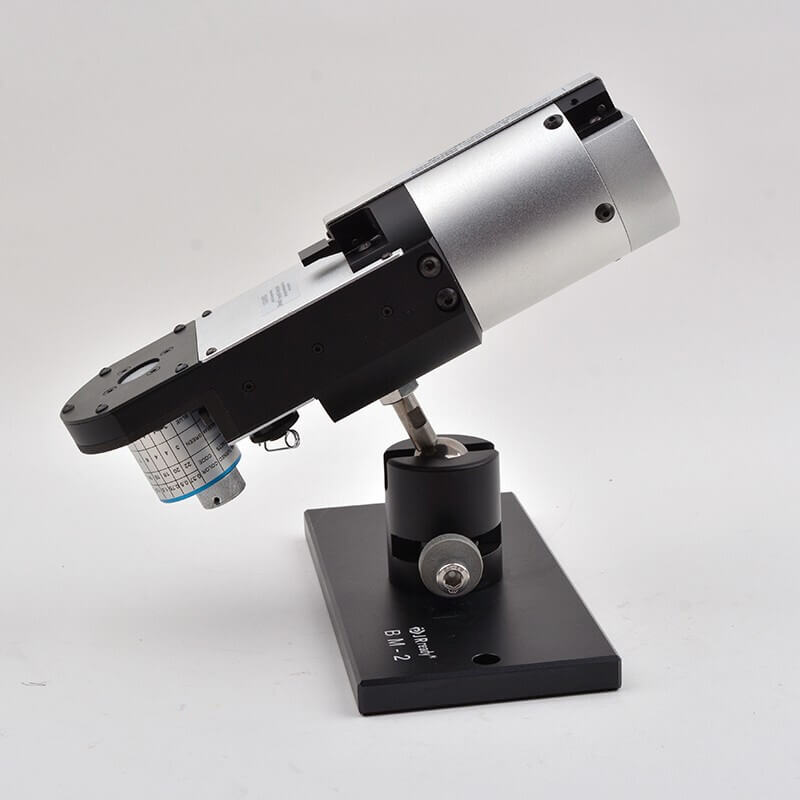

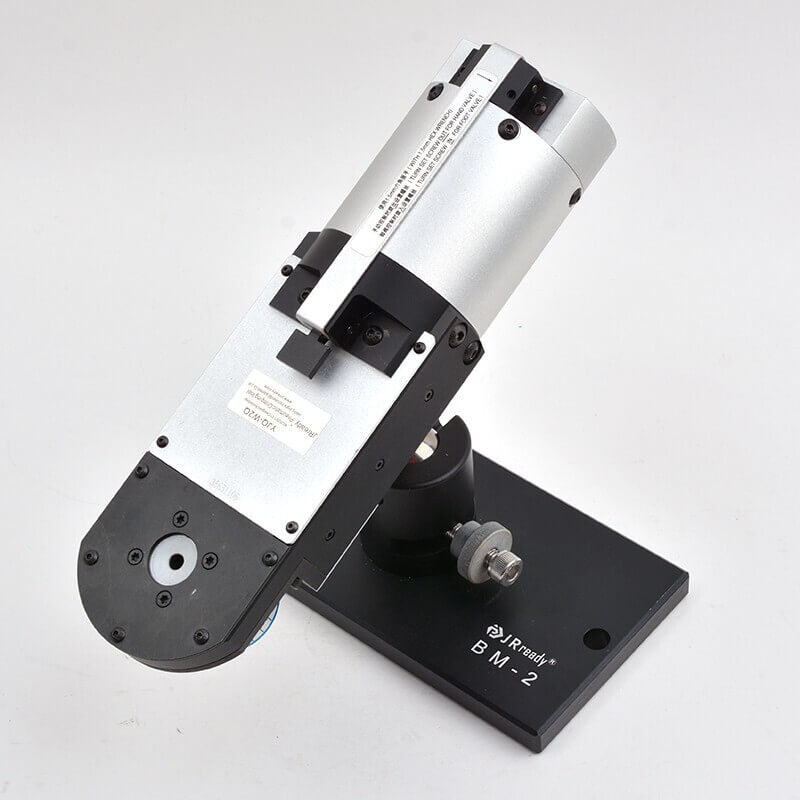

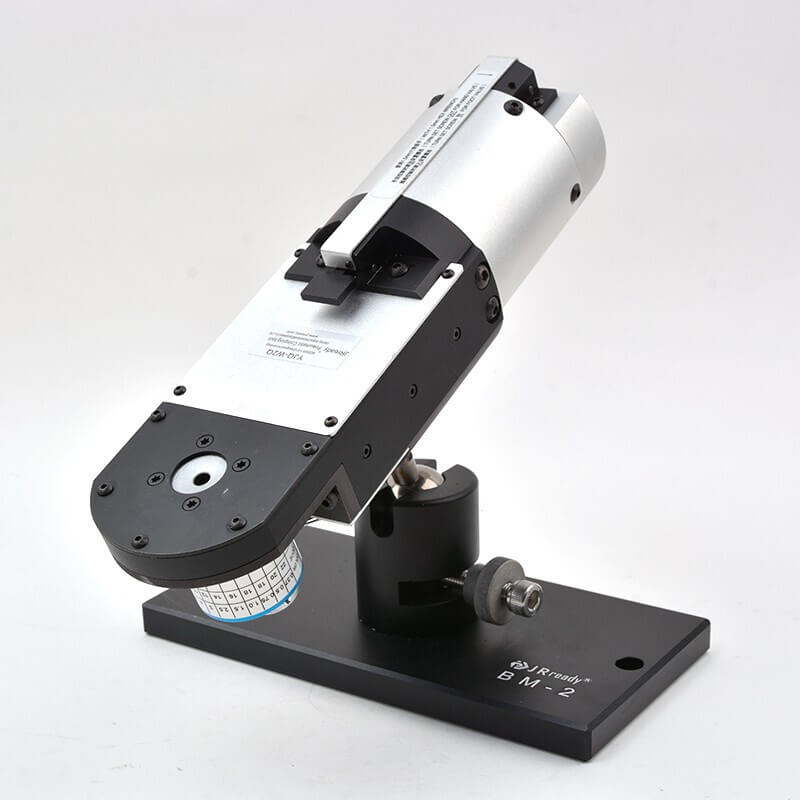

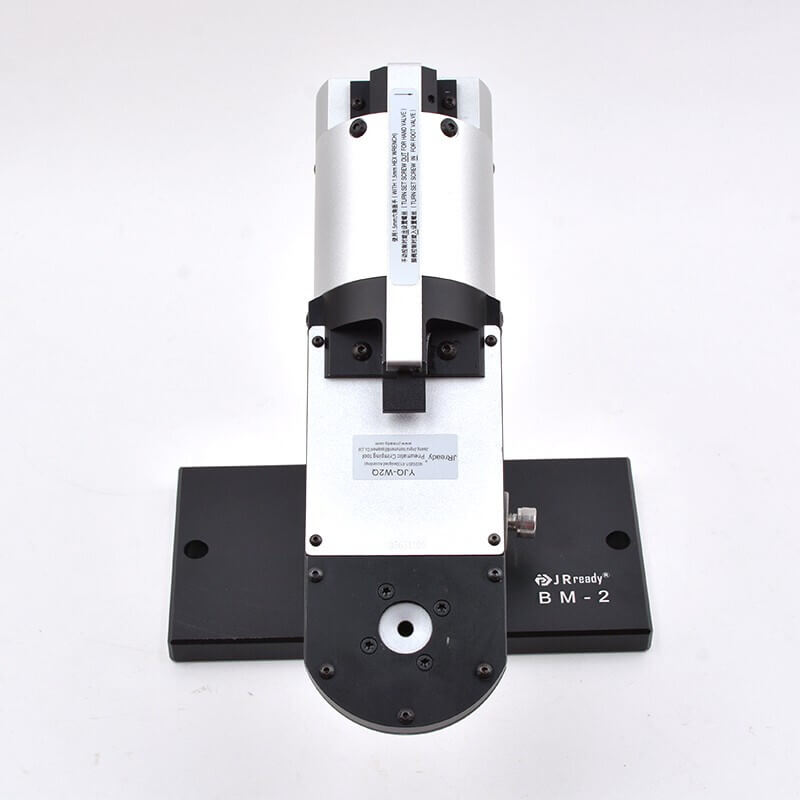

  • The kit includes YJQ-W2Q pneumatic crimping tool,TH531-E positioner,PC-SUITE1 air control kit,BM-2 adjustable base mount and TL01G removal tool
  • YJQ-W2Q is compatible with the M22520/2-01 which is widely used for the crimping of wires and contacts in electronic connectors
  • TH531-E positioner ensures the accuracy and consistency of the crimp position. The positioner can be rotated to adjust the crimp position. Suitable for 16A Sockets & Pins in Han E series connectors.
  • TL01G removal tool is used to remove round contacts in HARTING, WAIN, TE Han E series connectors without any damages to the electronic connectors.
  • The tool kit is suitable for connectors of fields in mechanical, electrical, and digital interface for 12-22 AWG.

Application

Name Contact drawing Harting connector model Harting contact model Wain connector model Wain contact model
16A contact

HAN E(09330062602 09330102602 09330102702)
HAN EE(0932010300 09320183001 09320323001) HAN EE(09320403001 09320643001)
09330006127  HAC HEC HEE HM HK insert CESM -0.37
09330006121  CESM -0.5
09330006114  CESM -0.75
09330006105  CESM -1.0
09330006104  CESM -1.5
09330006102  CESM -2.5
09330006106  CESM -3.0
09330006107  CESM -4.0
HAN E(09330062702 09330102702)
HAN EE(09320103101 09320183101)
HAN EE(09320403101 09320643101)
09330006227  CESF-0.37G
09330006220  CESF-0.5G
09330006214  CESF-0.75G
09330006205  CESF-1.0G
09330006204  CESF-1.5G
09330006202  CESF-2.5G
09330006206  CESF-3.0G
09330006207  CESF-4.0G
09330006117  CEGM -0.37
09330006122  CEGM -0.5
09330006115  CEGM -0.75
09330006118  CEGM -1.0
09330006116  CEGM -1.5
09330006123  CEGM -2.5
/ CEGM -3.0
09330006119  CEGM -4.0
09330006217  CEGF-0.37G
09330006222  CEGF-0.5G
09330006215  CEGF-0.75G
09330006218  CEGF-1.0G
09330006216  CEGF-1.5G
09330006223  CEGF-2.5G
/ CEGF-3.0G
09330006221  CEGF-4.0G

Removal Instruction


Step 1: Prepare the removal tool and find the contact to be taken out
Step 2: Insert the removal tool into the electric connector until it reaches the bottom
Step 3: Push the contact out gently
Step 4: Remove the contact
