JRready K1S / K13-1 / K40 / K41 / K42 / K43 / K709 / K330-3 Positioner, Use With YJQ-W1A M22520/2-01 Crimp Tool

JRready tools

JRready K1S / K13-1 / K40 / K41 / K42 / K43 / K709 / K330-3 Positioner, Use With YJQ-W1A M22520/2-01 Crimp Tool

Name: JRready K1S / K13-1 / K40 / K41 / K42 / K43 / K709 / K330-3 Positioner, Use With YJQ-W1A M22520/2-01 Crimp Tool
Brand: JRready tools
Price: 19.0 USD
Availability: InStock

$19.00

TYPE

K1S (M22520/2-02)

K41(M22520/2-06）

K40(M22520/2-07)

K13-1(M22520/2-08)

K42(M22520/2-09)

K43(M22520/2-10)

K709(M22520/2-37)

K330-3

Quantity

[{"id":31550031233097,"title":"K1S (M22520\/2-02)","option1":"K1S (M22520\/2-02)","option2":null,"option3":null,"sku":"K1SS28A","requires_shipping":true,"taxable":false,"featured_image":{"id":14029002178633,"product_id":4347506720841,"position":1,"created_at":"2020-05-23T13:41:05+08:00","updated_at":"2022-07-22T13:44:46+08:00","alt":null,"width":1000,"height":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/m22520_2-02_positioner.jpg?v=1658468686","variant_ids":[31550031233097]},"available":true,"name":"JRready K1S \/ K13-1 \/ K40 \/ K41 \/ K42 \/ K43 \/ K709 \/ K330-3 Positioner, Use With YJQ-W1A M22520\/2-01 Crimp Tool - K1S (M22520\/2-02)","public_title":"K1S (M22520\/2-02)","options":["K1S (M22520\/2-02)"],"price":1900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"8132215161978","featured_media":{"alt":null,"id":6202194198601,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/m22520_2-02_positioner.jpg?v=1658468686"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":31153772855369,"title":"K41(M22520\/2-06）","option1":"K41(M22520\/2-06）","option2":null,"option3":null,"sku":"K41S28A","requires_shipping":true,"taxable":false,"featured_image":{"id":13453322944585,"product_id":4347506720841,"position":2,"created_at":"2019-12-10T13:14:23+08:00","updated_at":"2022-07-22T13:44:46+08:00","alt":"K41 positioner（M22520\/2-06）","width":500,"height":500,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/1_2294a577-cc26-4ccd-afa0-525c4538e0ea.jpg?v=1658468686","variant_ids":[31153772855369]},"available":true,"name":"JRready K1S \/ K13-1 \/ K40 \/ K41 \/ K42 \/ K43 \/ K709 \/ K330-3 Positioner, Use With YJQ-W1A M22520\/2-01 Crimp Tool - K41(M22520\/2-06）","public_title":"K41(M22520\/2-06）","options":["K41(M22520\/2-06）"],"price":1600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"7771070068261","featured_media":{"alt":"K41 positioner（M22520\/2-06）","id":5626262913097,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/1_2294a577-cc26-4ccd-afa0-525c4538e0ea.jpg?v=1658468686"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":31153772822601,"title":"K40(M22520\/2-07)","option1":"K40(M22520\/2-07)","option2":null,"option3":null,"sku":"K40S28A","requires_shipping":true,"taxable":false,"featured_image":{"id":13453817708617,"product_id":4347506720841,"position":3,"created_at":"2019-12-10T16:25:00+08:00","updated_at":"2022-07-22T13:44:46+08:00","alt":"K40 positioner（M22520\/2-07）","width":800,"height":800,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/K40.jpg?v=1658468686","variant_ids":[31153772822601]},"available":true,"name":"JRready K1S \/ K13-1 \/ K40 \/ K41 \/ K42 \/ K43 \/ K709 \/ K330-3 Positioner, Use With YJQ-W1A M22520\/2-01 Crimp Tool - K40(M22520\/2-07)","public_title":"K40(M22520\/2-07)","options":["K40(M22520\/2-07)"],"price":1600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"7771070068254","featured_media":{"alt":"K40 positioner（M22520\/2-07）","id":5626757677129,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/K40.jpg?v=1658468686"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":31153772789833,"title":"K13-1(M22520\/2-08)","option1":"K13-1(M22520\/2-08)","option2":null,"option3":null,"sku":"K131S28A","requires_shipping":true,"taxable":false,"featured_image":{"id":13453322190921,"product_id":4347506720841,"position":4,"created_at":"2019-12-10T13:14:08+08:00","updated_at":"2022-07-22T13:44:46+08:00","alt":"K13-1 positioner（M22520\/2-08）","width":500,"height":500,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/1_650663bb-a130-45a9-8b0b-456fd26bbf79.jpg?v=1658468686","variant_ids":[31153772789833]},"available":true,"name":"JRready K1S \/ K13-1 \/ K40 \/ K41 \/ K42 \/ K43 \/ K709 \/ K330-3 Positioner, Use With YJQ-W1A M22520\/2-01 Crimp Tool - K13-1(M22520\/2-08)","public_title":"K13-1(M22520\/2-08)","options":["K13-1(M22520\/2-08)"],"price":1600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"7771070068247","featured_media":{"alt":"K13-1 positioner（M22520\/2-08）","id":5626262159433,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/1_650663bb-a130-45a9-8b0b-456fd26bbf79.jpg?v=1658468686"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":31153772888137,"title":"K42(M22520\/2-09)","option1":"K42(M22520\/2-09)","option2":null,"option3":null,"sku":"K42S28A","requires_shipping":true,"taxable":false,"featured_image":{"id":13453818200137,"product_id":4347506720841,"position":5,"created_at":"2019-12-10T16:25:29+08:00","updated_at":"2022-07-22T13:44:46+08:00","alt":"K42 positioner（M22520\/2-09）","width":800,"height":800,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/K42.jpg?v=1658468686","variant_ids":[31153772888137]},"available":true,"name":"JRready K1S \/ K13-1 \/ K40 \/ K41 \/ K42 \/ K43 \/ K709 \/ K330-3 Positioner, Use With YJQ-W1A M22520\/2-01 Crimp Tool - K42(M22520\/2-09)","public_title":"K42(M22520\/2-09)","options":["K42(M22520\/2-09)"],"price":1600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"7771070068278","featured_media":{"alt":"K42 positioner（M22520\/2-09）","id":5626758168649,"position":5,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/K42.jpg?v=1658468686"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":31153772920905,"title":"K43(M22520\/2-10)","option1":"K43(M22520\/2-10)","option2":null,"option3":null,"sku":"K43S28A","requires_shipping":true,"taxable":false,"featured_image":{"id":13453824589897,"product_id":4347506720841,"position":6,"created_at":"2019-12-10T16:30:59+08:00","updated_at":"2022-07-22T13:44:46+08:00","alt":"K43 positioner（M22520\/2-10）","width":800,"height":800,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/K43.jpg?v=1658468686","variant_ids":[31153772920905]},"available":true,"name":"JRready K1S \/ K13-1 \/ K40 \/ K41 \/ K42 \/ K43 \/ K709 \/ K330-3 Positioner, Use With YJQ-W1A M22520\/2-01 Crimp Tool - K43(M22520\/2-10)","public_title":"K43(M22520\/2-10)","options":["K43(M22520\/2-10)"],"price":1600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"7771070068285","featured_media":{"alt":"K43 positioner（M22520\/2-10）","id":5626764558409,"position":6,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/K43.jpg?v=1658468686"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":31153772953673,"title":"K709(M22520\/2-37)","option1":"K709(M22520\/2-37)","option2":null,"option3":null,"sku":"K709S28A","requires_shipping":true,"taxable":false,"featured_image":{"id":13453324091465,"product_id":4347506720841,"position":7,"created_at":"2019-12-10T13:14:45+08:00","updated_at":"2022-07-22T13:44:46+08:00","alt":"K709 positioner（M22520\/2-37）","width":500,"height":500,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/1_ba1bc8dd-fcea-4361-9314-e292d48d2e93.jpg?v=1658468686","variant_ids":[31153772953673]},"available":true,"name":"JRready K1S \/ K13-1 \/ K40 \/ K41 \/ K42 \/ K43 \/ K709 \/ K330-3 Positioner, Use With YJQ-W1A M22520\/2-01 Crimp Tool - K709(M22520\/2-37)","public_title":"K709(M22520\/2-37)","options":["K709(M22520\/2-37)"],"price":1600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"7771070068292","featured_media":{"alt":"K709 positioner（M22520\/2-37）","id":5626264059977,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/1_ba1bc8dd-fcea-4361-9314-e292d48d2e93.jpg?v=1658468686"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":31167029903433,"title":"K330-3","option1":"K330-3","option2":null,"option3":null,"sku":"K3303S28A","requires_shipping":true,"taxable":false,"featured_image":{"id":13473179074633,"product_id":4347506720841,"position":8,"created_at":"2019-12-17T10:13:33+08:00","updated_at":"2022-07-22T13:44:32+08:00","alt":"K330-3 positioner","width":1000,"height":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/7_5164bcbc-39e4-425e-8974-84cf9374d5d8.jpg?v=1658468672","variant_ids":[31167029903433]},"available":true,"name":"JRready K1S \/ K13-1 \/ K40 \/ K41 \/ K42 \/ K43 \/ K709 \/ K330-3 Positioner, Use With YJQ-W1A M22520\/2-01 Crimp Tool - K330-3","public_title":"K330-3","options":["K330-3"],"price":1600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"7771070068186","featured_media":{"alt":"K330-3 positioner","id":5646119141449,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/7_5164bcbc-39e4-425e-8974-84cf9374d5d8.jpg?v=1658468672"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Feature

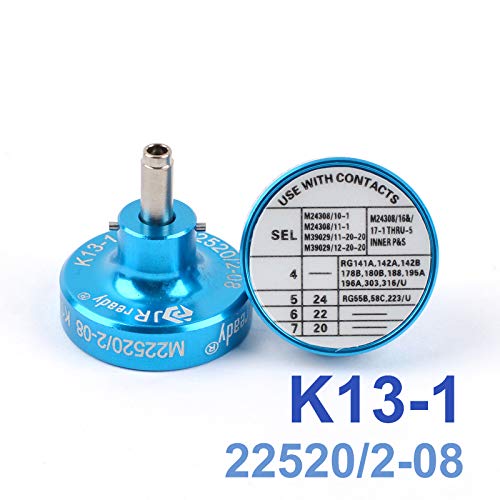

The K13-1 positioner is designed according to MIL-C-22520/2-08.
The K40 positioner is designed according to MIL-C-22520/2-07.

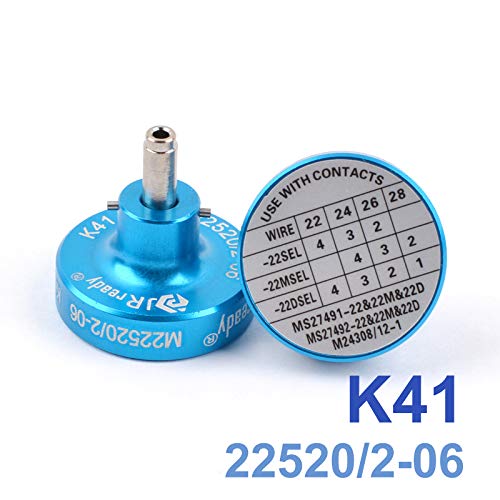

The K41 positioner is designed according to MIL-C-22520/2-06.

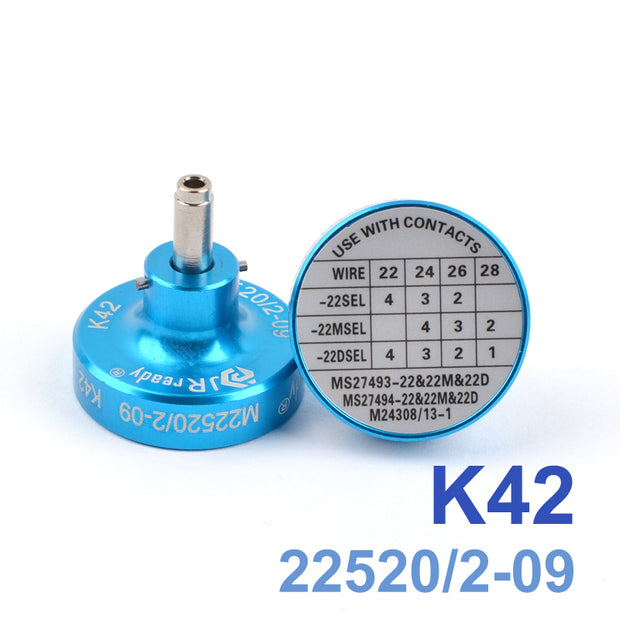

The K42 positioner is designed according to MIL-C-22520/2-09.

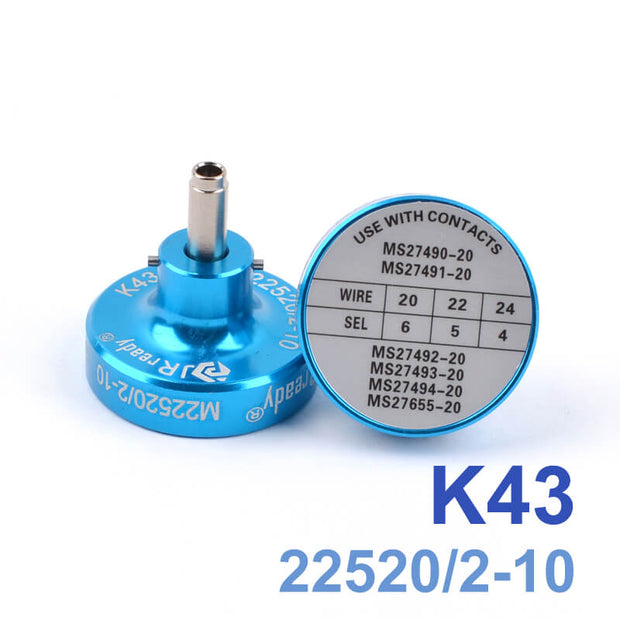

The K43 positioner is designed according to MIL-C-22520/2-10.
The K709 positioner is designed according to MIL-C-22520/2-37.

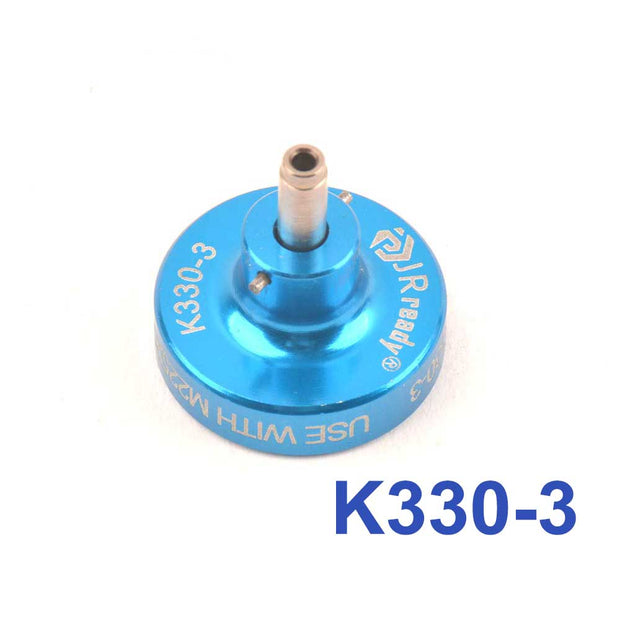

The K330-3 positioner customized positioner for connectors match crimp tools AFM8 M22520/2-01 & YJQ-W1A crimper
SK2/2 is a universal positioner mounted on the YJQ-W1Q & YJQ-W1A crimp tools.

Positioners can be installed directly on the crimping tool and requires no adjustment. They are used to locate contacts horizontally and vertically between the indenters of the tools to ensure the accuracy and consistency of the crimp position.
Positioners are suitable for military connectors,heavy duty connectors,electric connectors,terminals,wiring harness manufacturing industry,cable assembly.

Contacts to be crimped:

K1 Positioner

Bayonet positioner used with the 615717, mil spec M22520/2-01, crimp tool frame on size 20 pin and socket contacts installed in MIL-C-5015, MIL-C-26482, MIL-C-26500, and MIL-C-83723 circular connectors. Contact numbers: MS3192-20-20, MS3193-20-20, MS24254-20P, MS24254-20S, MS18134-20, MS18136-20, M39029/4-110, M39029/5-115, M39059/9-132, M39059/9-133, M39059/9-134, M39059/9-135, M39059/9-136, M39029/10-138, M39029/10-139, M39029/10-140, M39029/10-141, M39029/10-142, M83723/33-20, M83723/34-20, M39029/31-223, M39029/31-224, M39029/31-225, M39029/31-226, M39029/31-227, M39029/31-240, M39029/31-241, M39029/31-448, M39029/32-242, M39029/32-243, M39029/32-245, M39029/32-246, M39029/32-259, M39029/32-260, M39029/32-449, M39029/92-532

K13-1 Positioner

Suitable for 24308 SERIES CONNECTORS
39029/63-968 20# SOCKET
39029/64-369 20# PIN
39029/63-928 20# PINAS81659
SERIES CONNECTORS39029/11-145
20# PIN39029/12-149
20# SOCKETD83527 SERIES CONNECTORS 39029/93-598
20# PIN39029/94-602 20# SOCKET

K40 positioner

38999 SERIES 1, 3, 4 CONNECTORS
39029/56-350 22# SOCKET
39029/56-349 22M# SOCKET
39029/56-348 22D# SOCKET

K41 positioner

M38999 SERIES 2 CONNECTORS
M39029/57-356 22# SOCKET
M39029/57-355 22M# SOCKET
M39029/57-354 22D# SOCKET

K42 positioner

MS27493-22 & 22M & 22D
MS27494-22 & 22M & 22D
M24308/13-1 Contacts

K43 Positioner

M38999 SERIES 1, 3, 4 CONNECTORS
M39029/58-363 20# PIN
M39029/56-351 20# SOCKET
M38999 SERIES 2 CONNECTORS
M39029/58-363 20# PIN
M39029/57-357 20# SOCKET

K709 Positioner

39029/90-529 39029/91-530 39029/113-625
8# PIN 39029/114-628 8# SOCKET 39029/119
8# PIN 39029/120 8# SOCKET

K330-3 Positioner

Applicable Connector Models:SAE AS81511 SERIES 3, SAE AS81511 SERIES 4.
Deutsch connectors M39029/22-22-22, Deutsch M39029/22-191 contacts ,CTS-S22/22 contacts.

SK2-2 Universal Positioner

It is suitable for the positioning of a small part of round contacts of MIL standard.

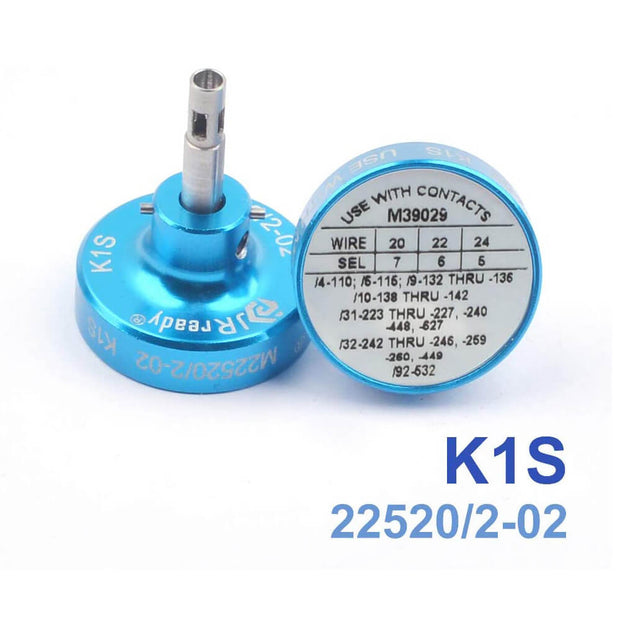

K1S Positioner

Designed for M22520/2-02
IT can be used to crimp 20# contacts
Match crimp tools YJQ-W1A（AFM8)
Applied to connectors of High-speed railway、aviation、electrical etc.
Use with contacts MS3192-20、MS3193-20
